IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI

IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
IV7W 1080P 5MP 4.3Inch HD AHD Camera Tester CCTV Tester Monitor AHD Analog Camera Testing UTP Cable Test TVI CVI
  • Stock: In Stock
  • Model: ST230042295
  • SKU: ST230042295
$55.24
Ex Tax: $55.24
Fratures:

Terminal and DC power supply, palm size, easy to carry and operate.
Through DC power out enables user to inspect; crrect camera or confirm installation. It is conveniet for video equipment that helps communication and discussion with clients during installation peocess.
With ADSL Detection Function.

Specification:

Model: IV7W
4.3" HD camera tester CCTV camera tester monitor 12V 1A output Support 5MP/4MP Hikvision Coaxial Testing,Support 5MP/4MP AHD Camera Testing.
Support TVI Cameras: 5MP, 4MP, 3MP, 1080P, 720P;
Support AHD Cameras: 5MP, 4MP, 3MP, 1080P, 720P;
Support CVI Cameras: 1080P, 720P;
Analog cameras=video testing updated model

1. Video tester
Video System: NTSC/PAL Automatically recognize
Video level: 1VPP
Display screen: 4.3 inch LCD RGB 480 * 272 (QVGA) resolution, 64K color
Screen adjustment: Video display brightness, contrast, color saturation adjustable,
LCD backlight brightness adjustable
Video input / output: 1 channel BNC Video IN

2. HD AHD ,TVI Test
SD signal Format: NTSC,PAL
Video signal: HD AHD, TVI, CVI, CVBS
Resolution: D1,720P,960p,1080P,3MP,4MP,5MP
MAX Support 5MP, 4MP AHD 20FPS; 5MP 4MP TVI 20FPS
Signal Level: 1Vpp

3. 12V power output
Power output:
Temporary power output 12V 1A D
 USBX1 5V1A output

4. Audio test
Audio test: Input audio signal, and played on the internal speaker
5. Power supply
External power supply: DC 5V(2A)
Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh
Charge: Charge time 3-4 hours Battery power time 8 hours
Power saving features: Low power consumption, automatic power off, Real-time display of battery level

6. System settings
Language settings: English
Auto power off: Disable / 5-60 minutes

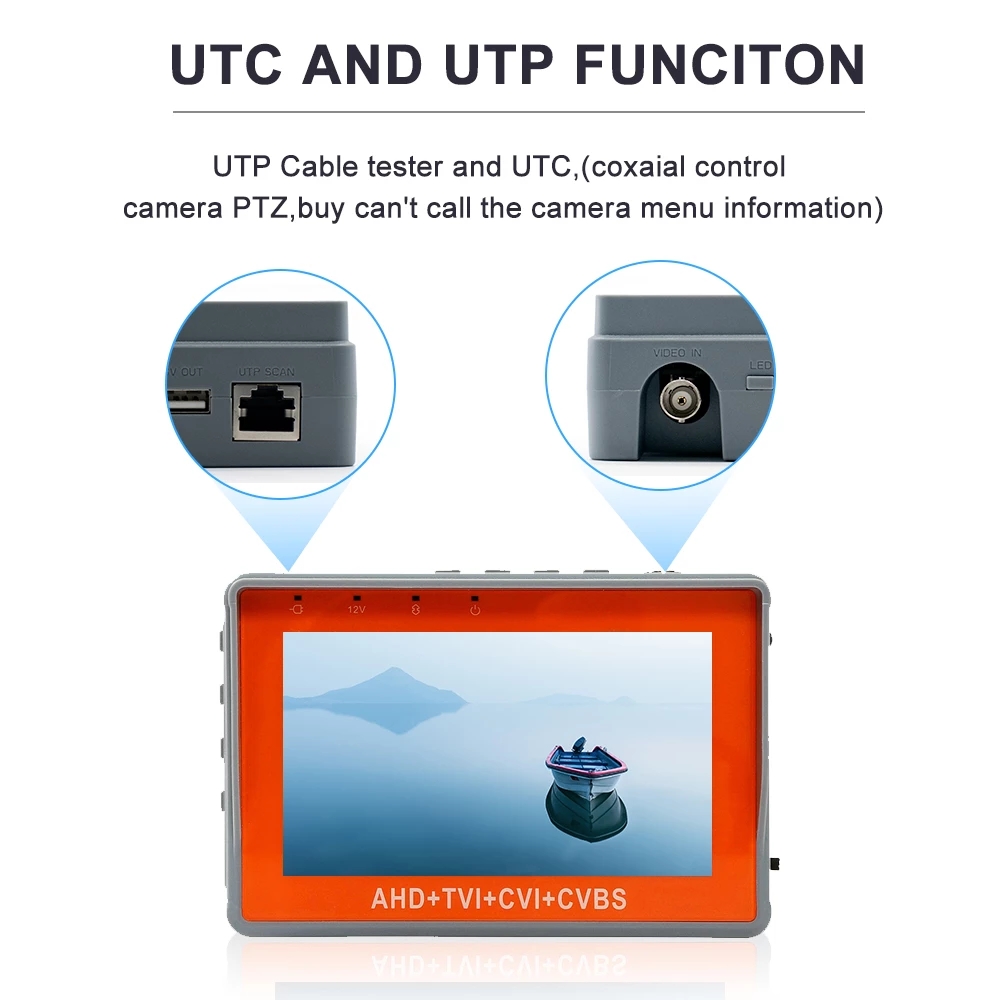

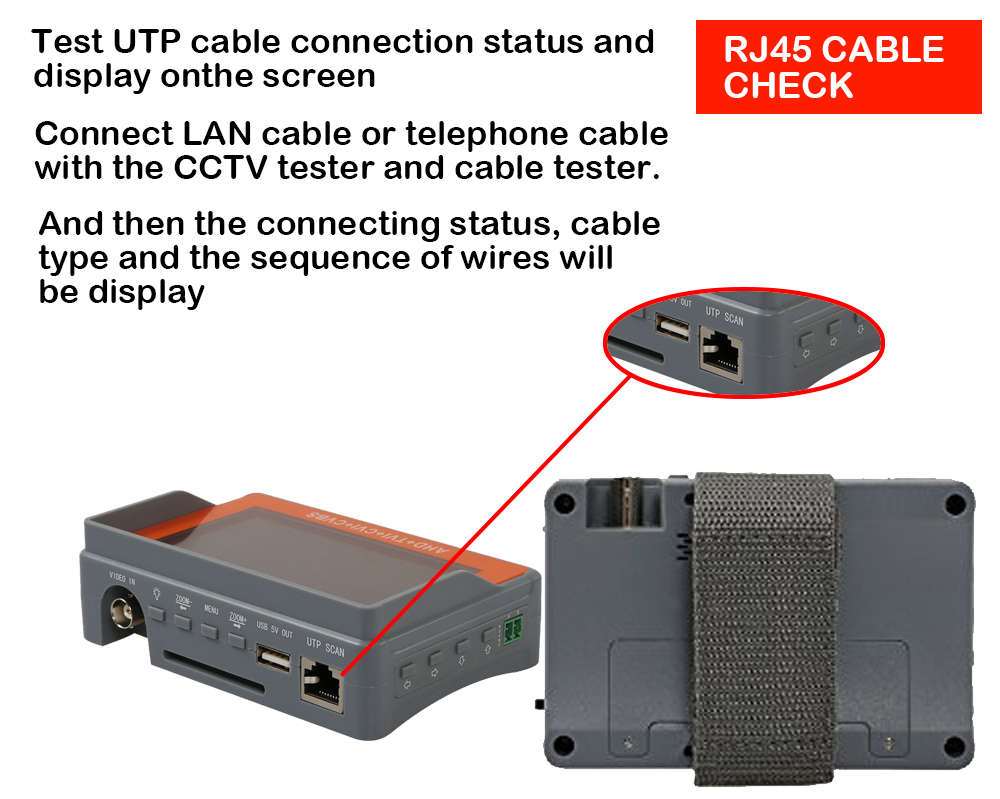

7.Cable test
cable test: Test any two or more wire cable Display connect sequence and remote number
LED Light: 1*35lm LED light
Working environment and Specifications: -20℃---+70℃/30%-90%R

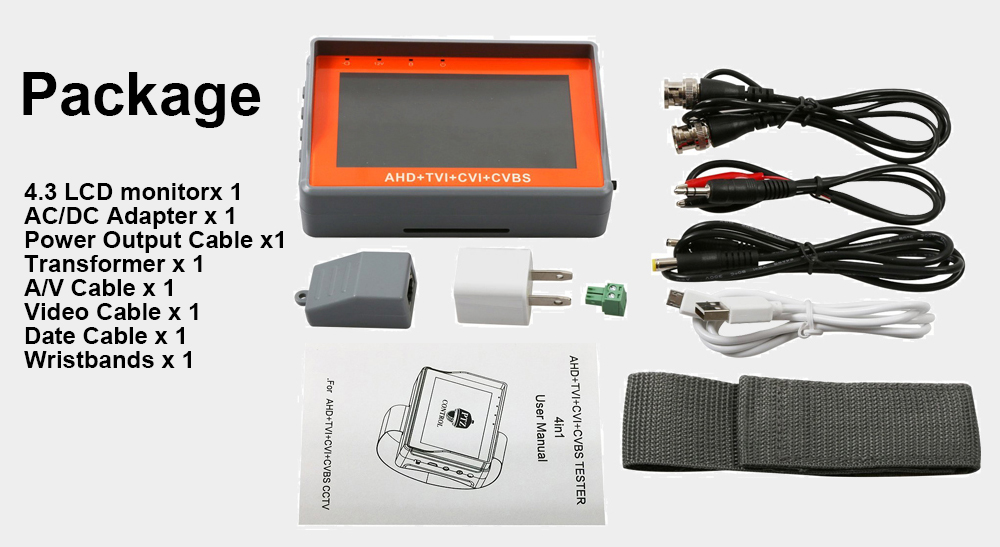

Package included:

1 x HD AHD+TVI+CVI+CVBS CCTV Tester
1 x AC/DC Adapter(We will send you the suitable adapter according to your location)
1 x Power Output Cable
1 x Transformer
1 x A/V Cable
1 x Video Cable
1 x Date Cable
1 x Wristbands
