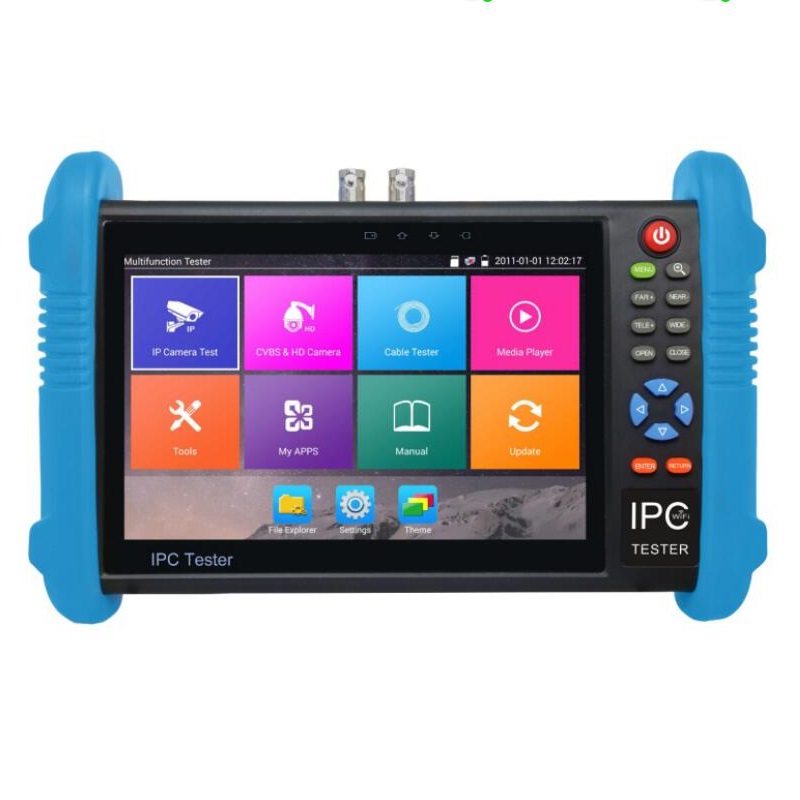

IPC9800Plus+ 7 Inch IP CCTV Monitor Analog CVBS Camera H.265 4K Video Support ONVIF WIFI POE 12V Output

Note: there is only hdmi out.

Description:

IPC-9800 Plus

Camera check:

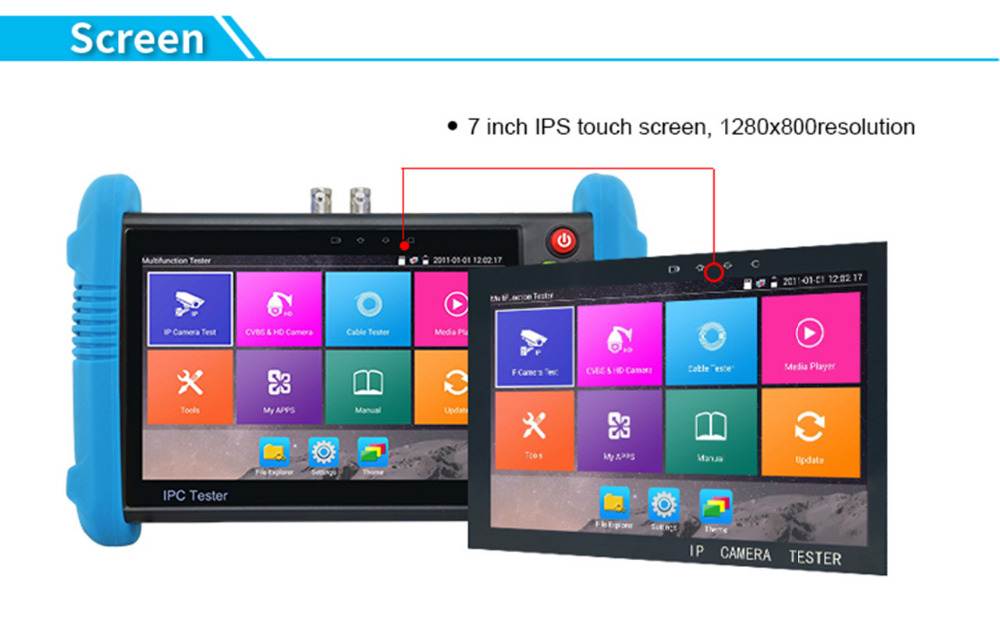

● 7 inch IPS touch screen, 1920*1200 resolution

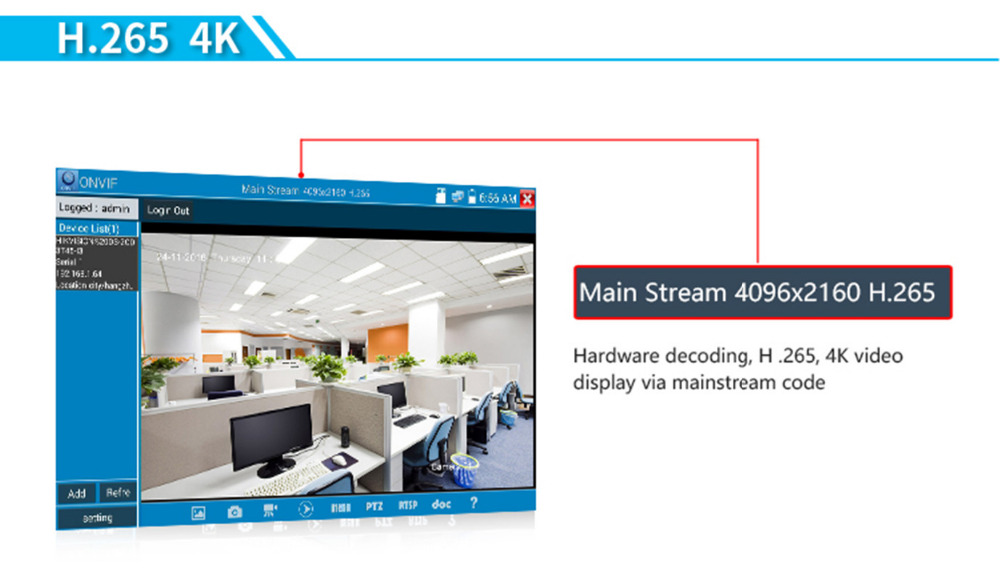

● H.265 & H .264 IP, 4K video display via mainstream

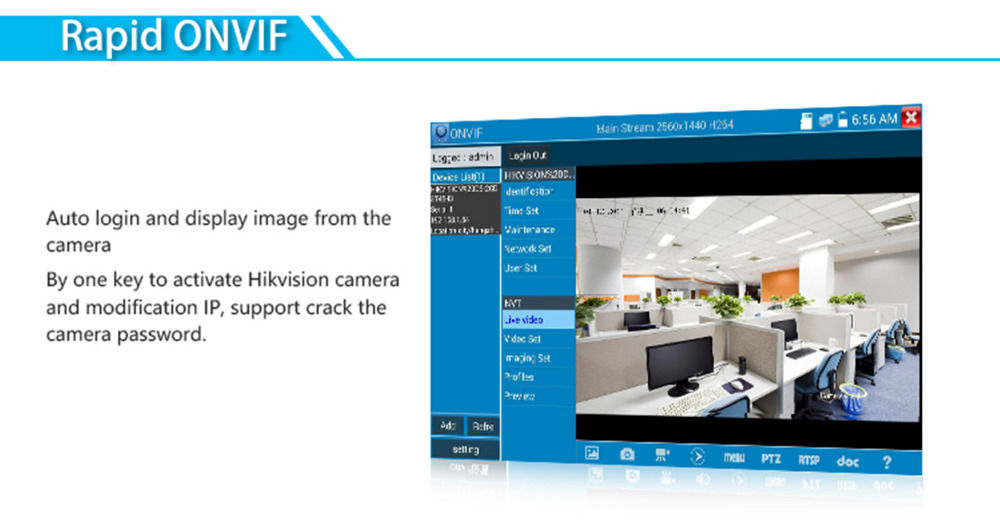

● Rapid ONVIF, Auto log in & display image, create check report

● AXIS, Hikvision camera check, enter ONVIF app, input username and password to check

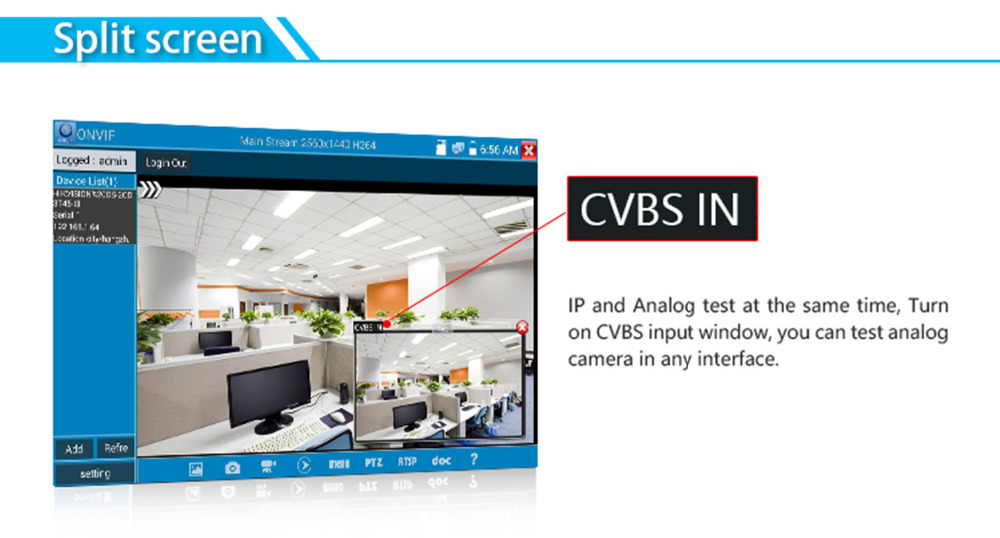

● CVBS camera check and PTZ control

● IPC check (Non-ONVIF check), HIK check tool (Hikvision camera),DH check tool (Dahua camera)

● Video level meter, peak video signal level, SYNC signal level, Colorful bar chroma level measurement*

● DC12V/3A power output, camera can be powered from DC 12Votage

● 48V PoE power output power

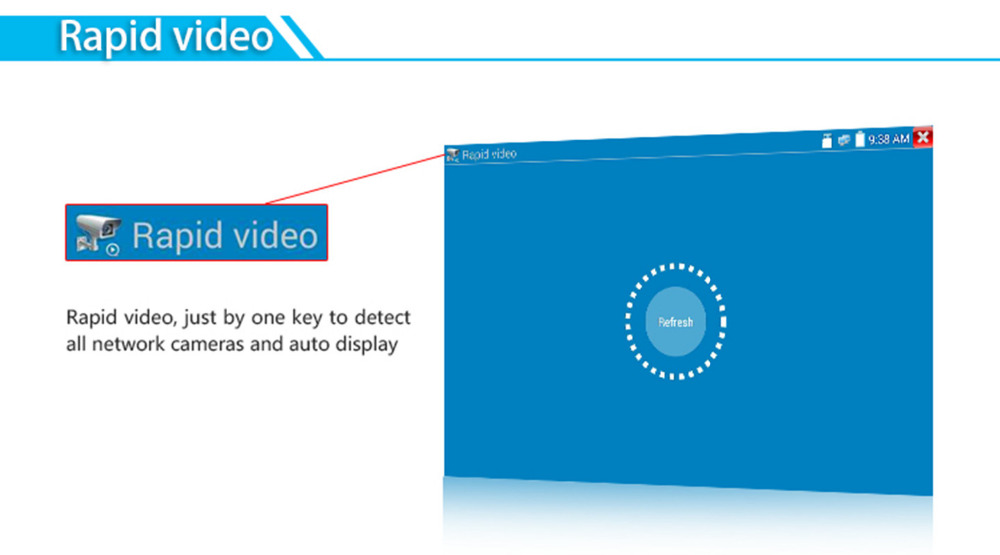

● Rapid video, just by one key to detect all network cameras and auto display

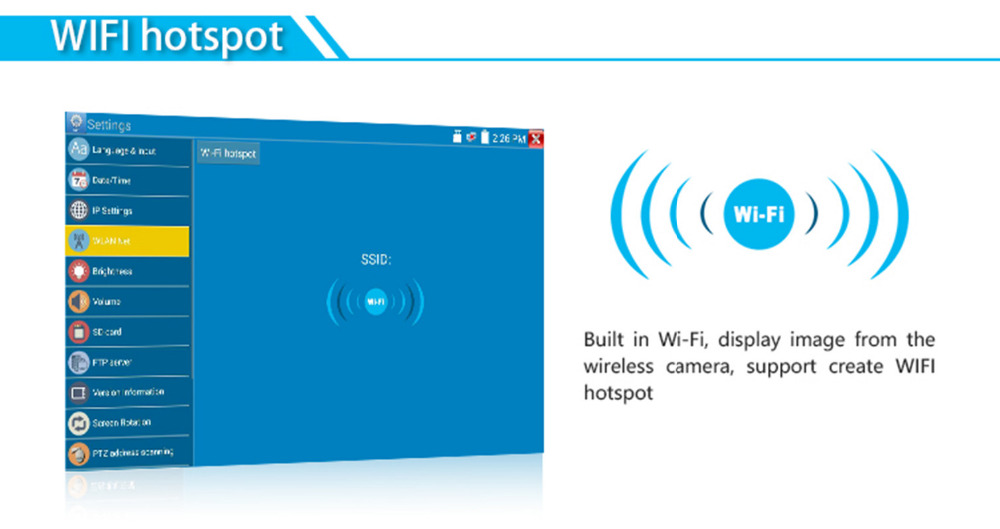

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

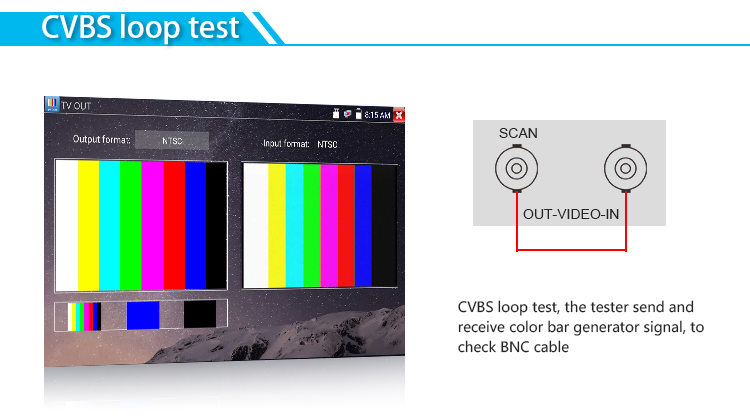

● CVBS loop check , the check send and receive colorful bar generator signal, to check BNC cable

● Enhanced colorful bar generator, PAL/NTSC multi-system colorful bar video generator

Cable check:

● Improvement cable check, UTP cable, telephone cable etc order and connectivity check, can save check report, if special number, need customized

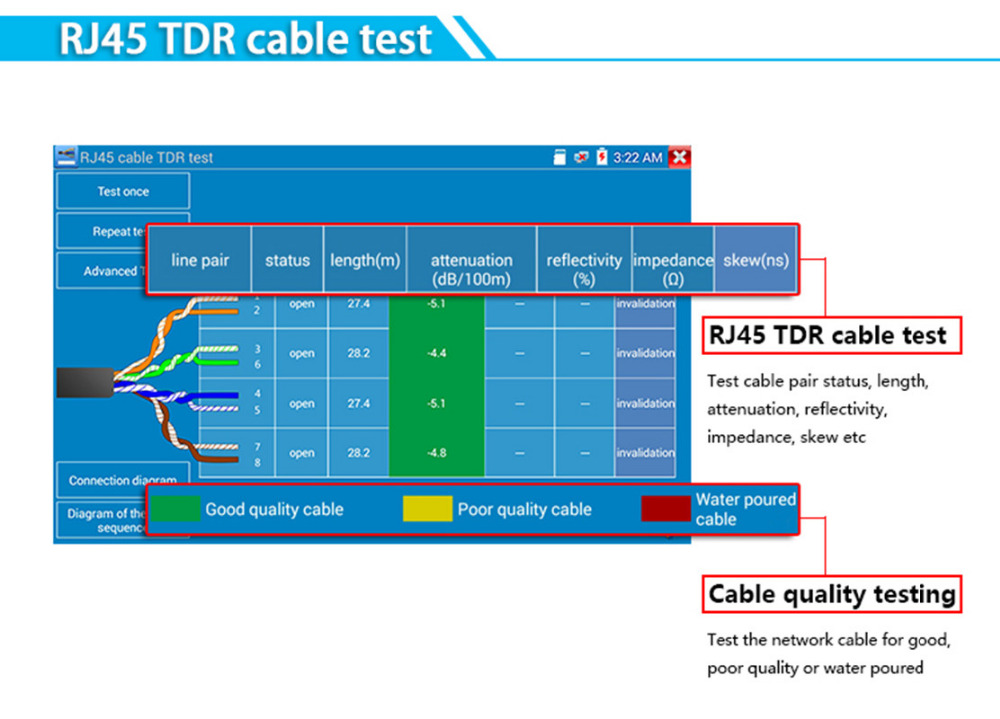

● RJ45 cable TDR check, check cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

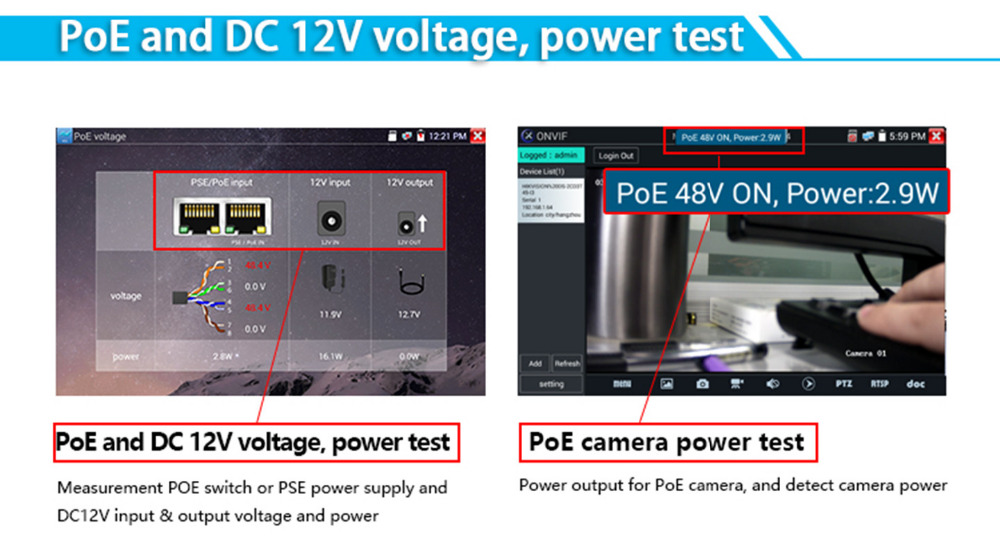

● POE & power information, DC12V& PoE power and voltage output /input measurement

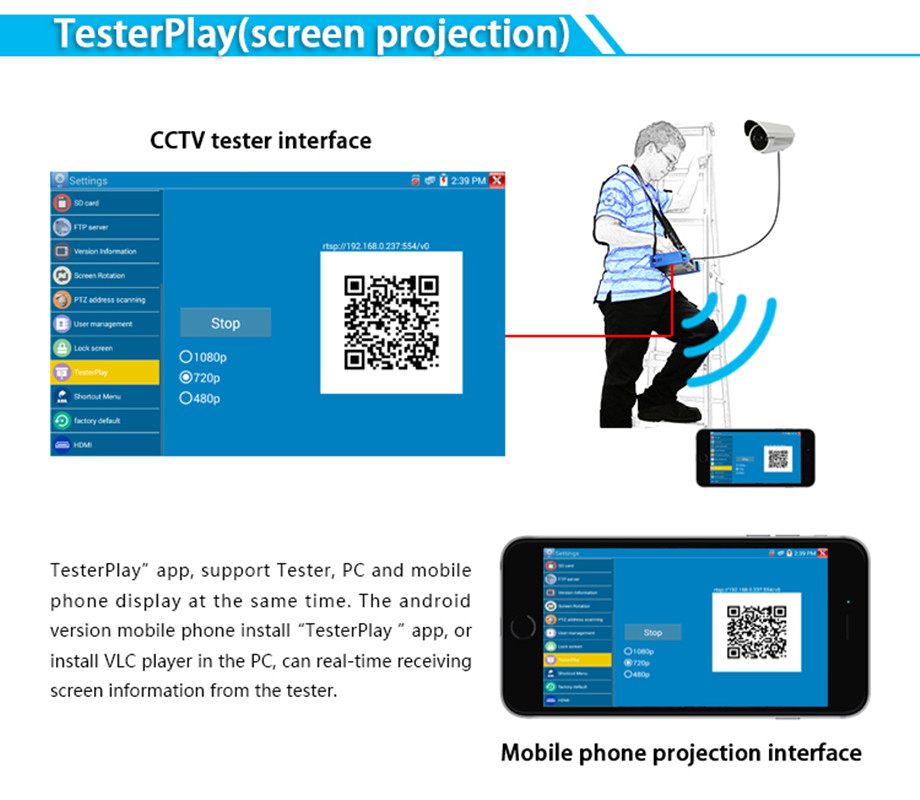

● check Play: check , android version mobile phone and PC display at the same time

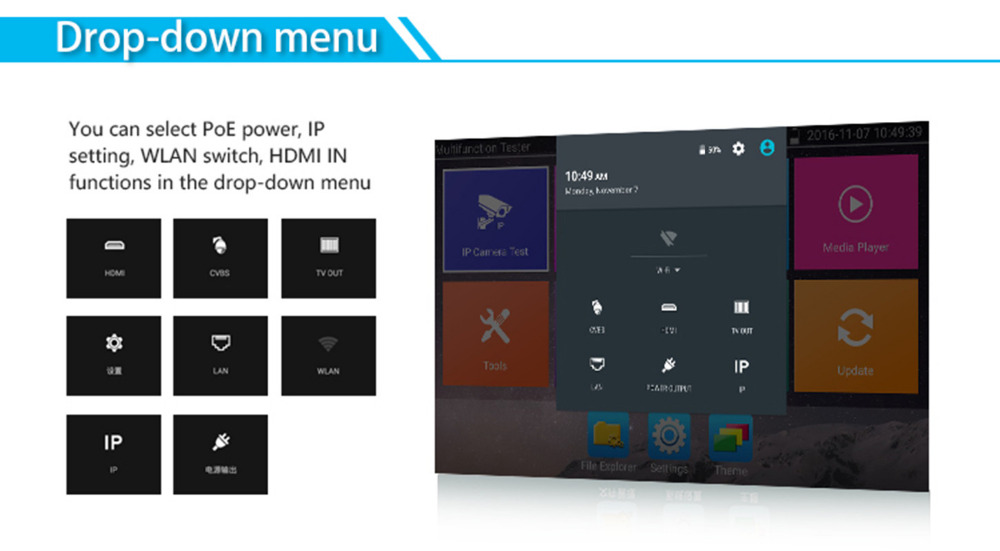

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, etc

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel, word, ppt format) doc. editable

● 8GB SD card including

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /7500mAh Lithium Ion Polymer Battery, after 5~6 hours charging , working time lasts 10 hours
