1/2 3/4 1 Inch 12V Electric Solenoid Valve Pneumatic Valve for Water Air Gas Brass Valve Air Valves
- Stock: In Stock
- Model: ST230043000
- SKU: ST230043000
$22.99
Ex Tax: $22.99
Specification:
| Nominal Diameter (DN) | Inch | Thread Diameter(mm) | Thread Type | Material | Voltage | Type | Max. Pressure | Working Temperature | Applicable Medium | Flow Direction |
| DN08 | 1/4 | 12 | G Thread | Brass | DC 12V | Normal Closed (NC) | 0.8Mpa | -5~80 ℃ | Air, Water, Oil, Gas | One Way |
| DN10 | 3/8 | 15 | ||||||||
| DN15 | 1/2 | 20 | 1.0MPa | |||||||
| DN20 | 3/4 | 25 | ||||||||
| DN25 | 1 | 30 | ||||||||
| DN32 | 1-1/4 | 40 | ||||||||
| DN40 | 1-1/2 | 46 | ||||||||
| DN50 | 2 | 57 |
Features:
1. Two position, two way, normal close switch, magnetic solenoid water valve.
2. Horizontal installation
3. Used to control automatically the liquid and gas in the pipeline.

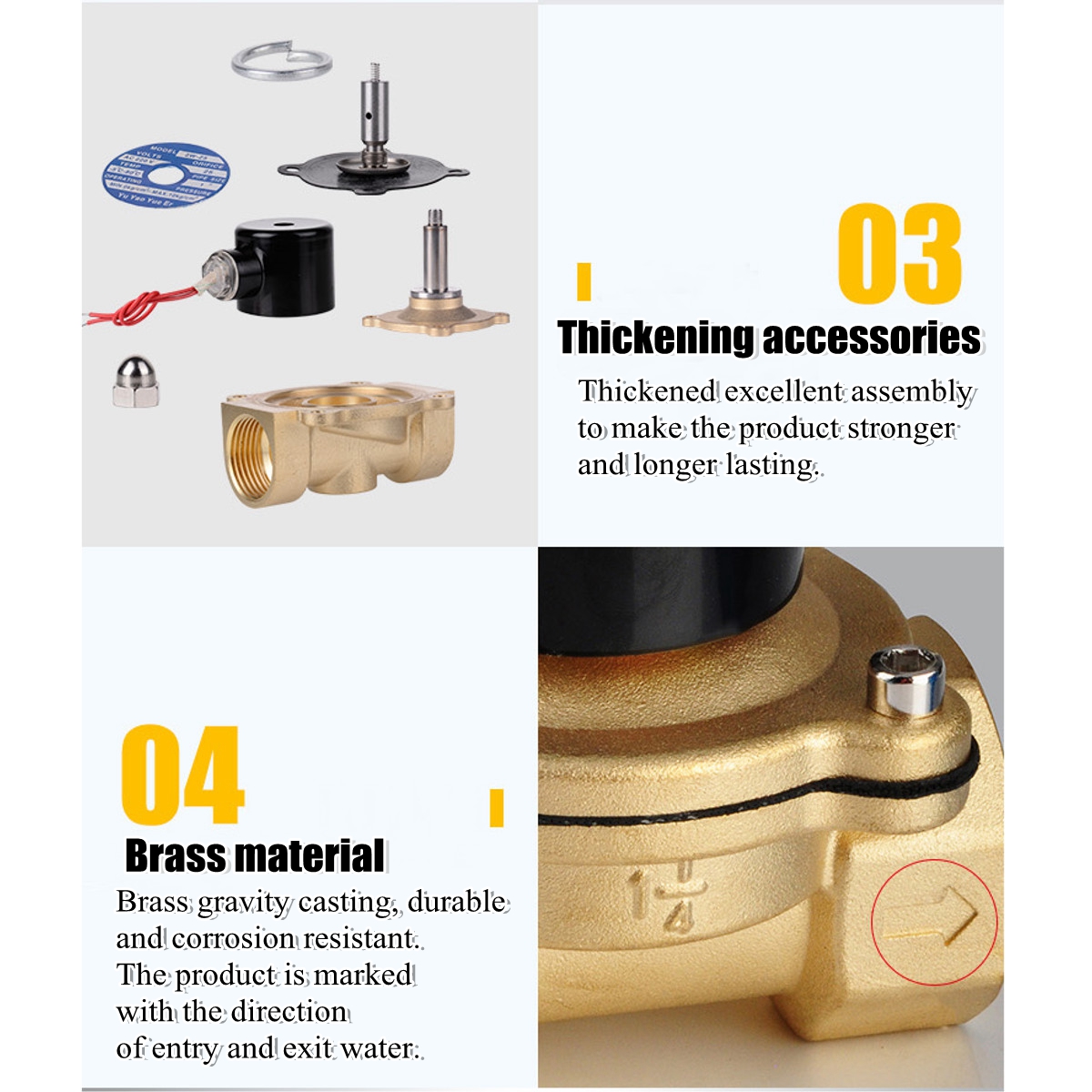

4. Good copper material, crush resistance, crack leak proof, safe non toxic and long life.
More choice:
AC 220V Please refer to ID: 1327193
AC 110V Please refer to ID: 1474459
DC 24V Please refer to ID: 1474508
Package Included:
1 x 12V Electric Solenoid Valve Pneumatic Valve for Water Air Gas
4. Good copper material, crush resistance, crack leak proof, safe non toxic and long life.
5. Suitable for medium with gas, water, oil and gas.
Solenoid valve working principle:
Normally closed: When the coil is energized, the p ilot spool is closed, the p ilot hole is opened, the upper chamber of the valve is relieved, the piston is pushed by the medium pressure of the lower chamber, and the solenoid valve is opened.
When the coil is de-energized, the p ilot spool is reset by the spring, the p ilot hole is closed, the upper chamber of the valve is pressurized by the piston orifice and the thrust of the return spring, and the solenoid valve is closed.
