High Power Wireless Transmitter Module 3000M Long Range ASK Transceiver Board
- Stock: In Stock
- Model: ST230045814
- SKU: ST230045814
$10.79
Ex Tax: $10.79
Feature:

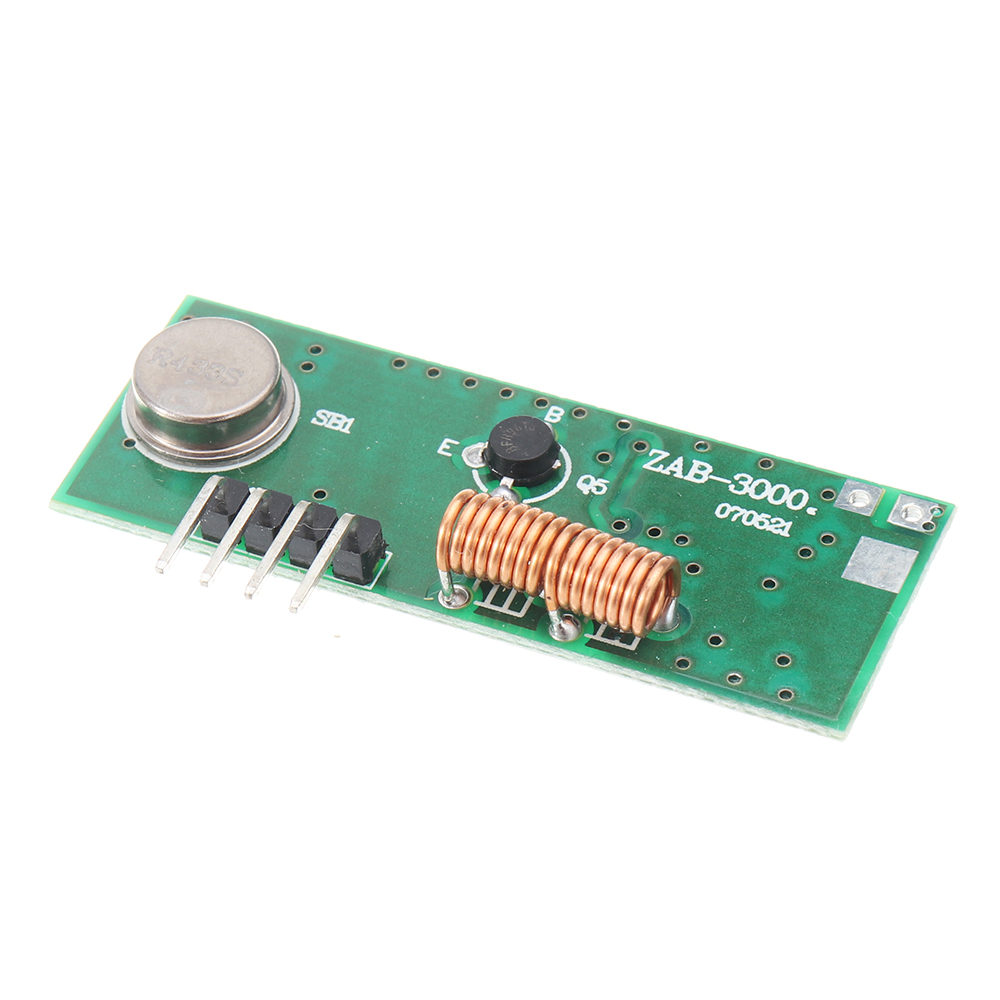

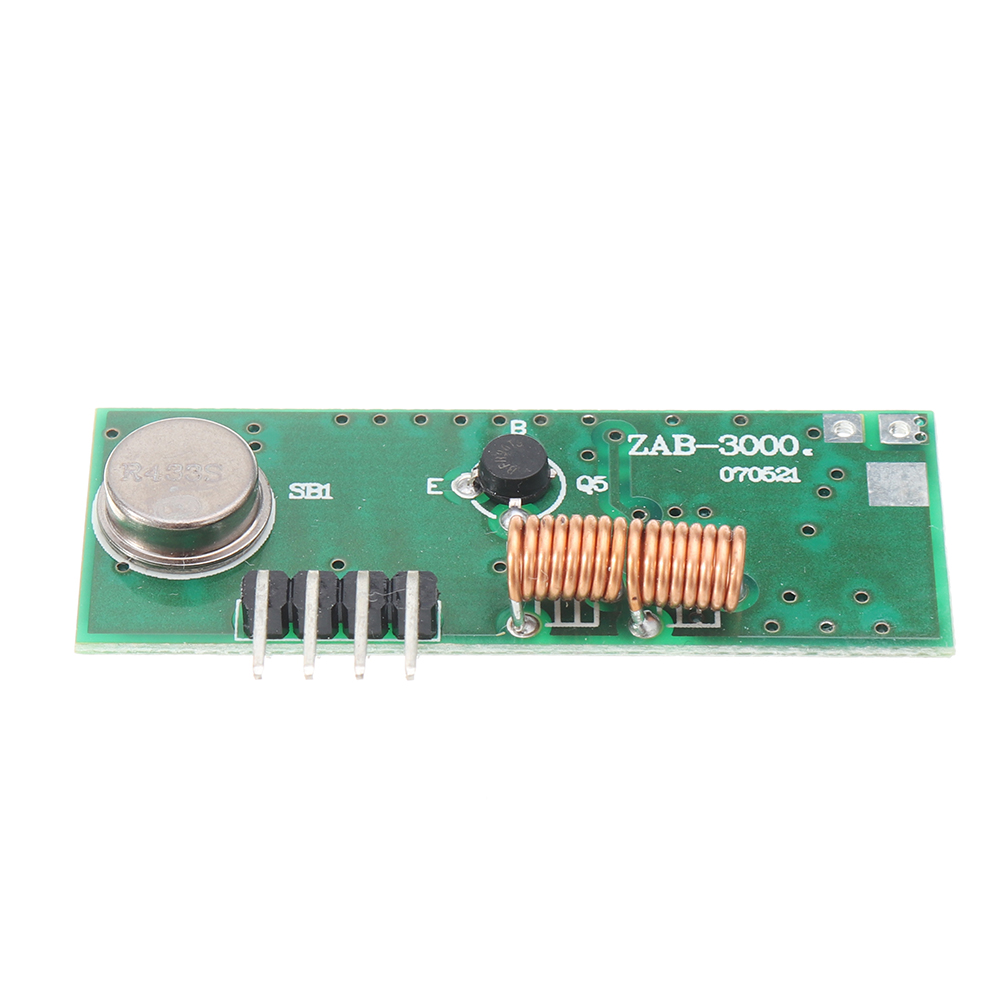

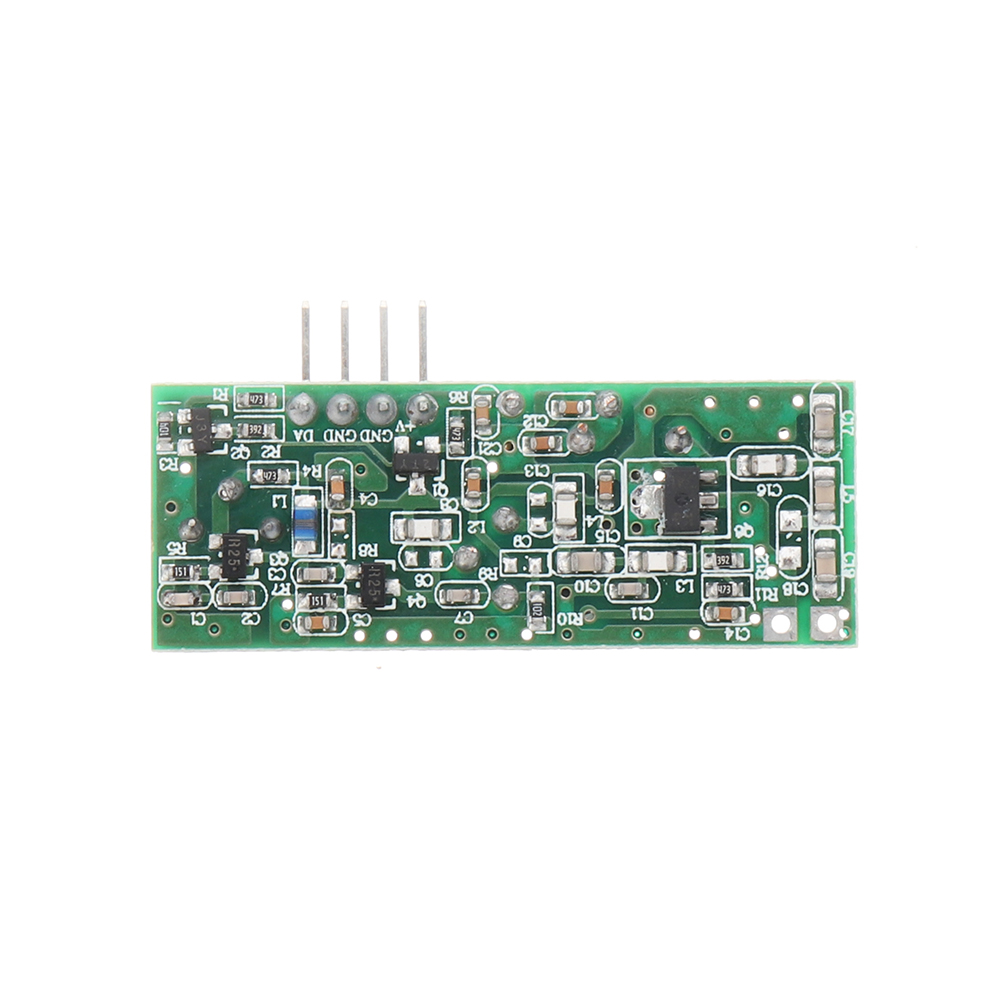

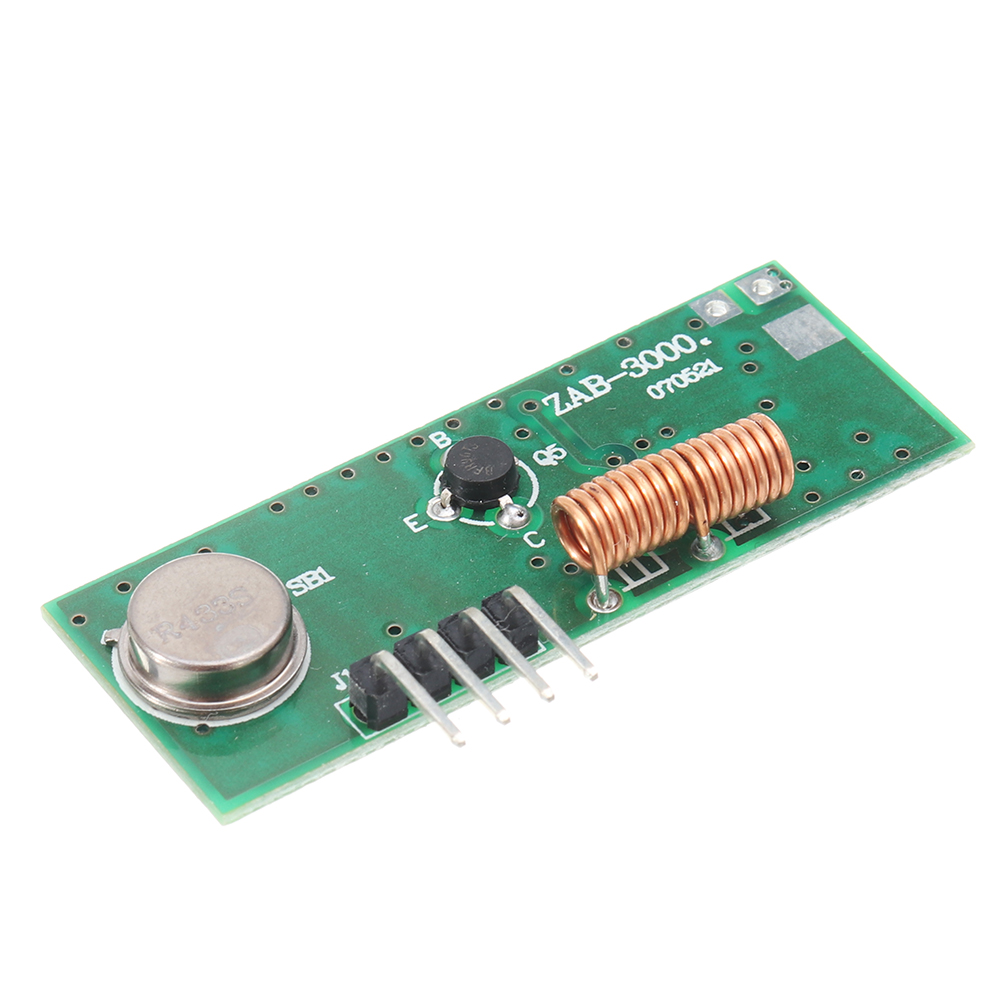

Product Name: Wireless 3000m Transmitter Module
Product type ZAB-3000 (without coding)

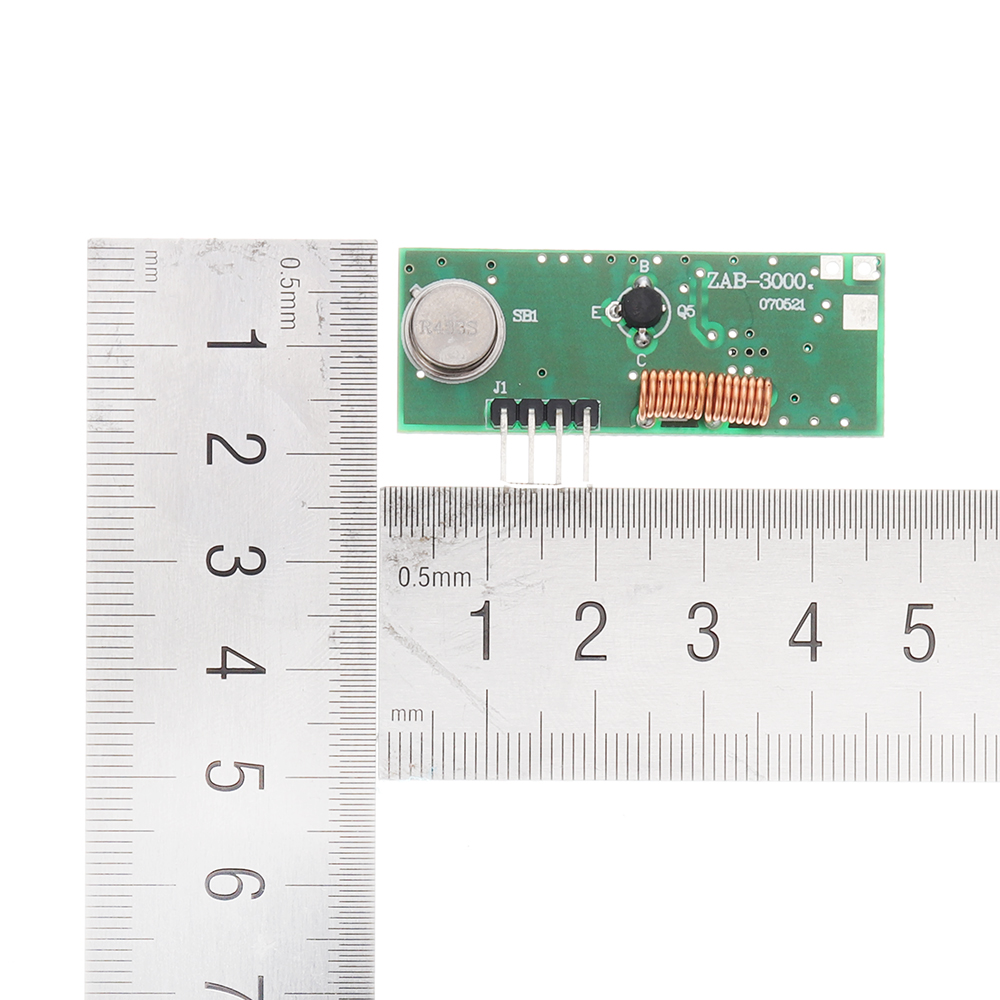

Dimensions : 45mm*17mm*6.2mm
Working voltage: DC 9V ~12V
Working current: 200~220mA
Operating frequency: 315MHz, 433MHz (optional)
Transmit power: >10mw
Launch distance: 2000-3000 meters
Radiated power: 1.5 W
Modulation method: ASK
Quiescent current: 0uA
Package includes:
1 x Wireless 3000m Transmitter Module
| Rated parameter | Symbol | Value |
| DC supply voltage | VDD-VSS | 5V |
| Storage temperature range (TS) | TSTG | -12°C to 75°C |
| Welding temperature | +260°C |
| PIN | Description | |

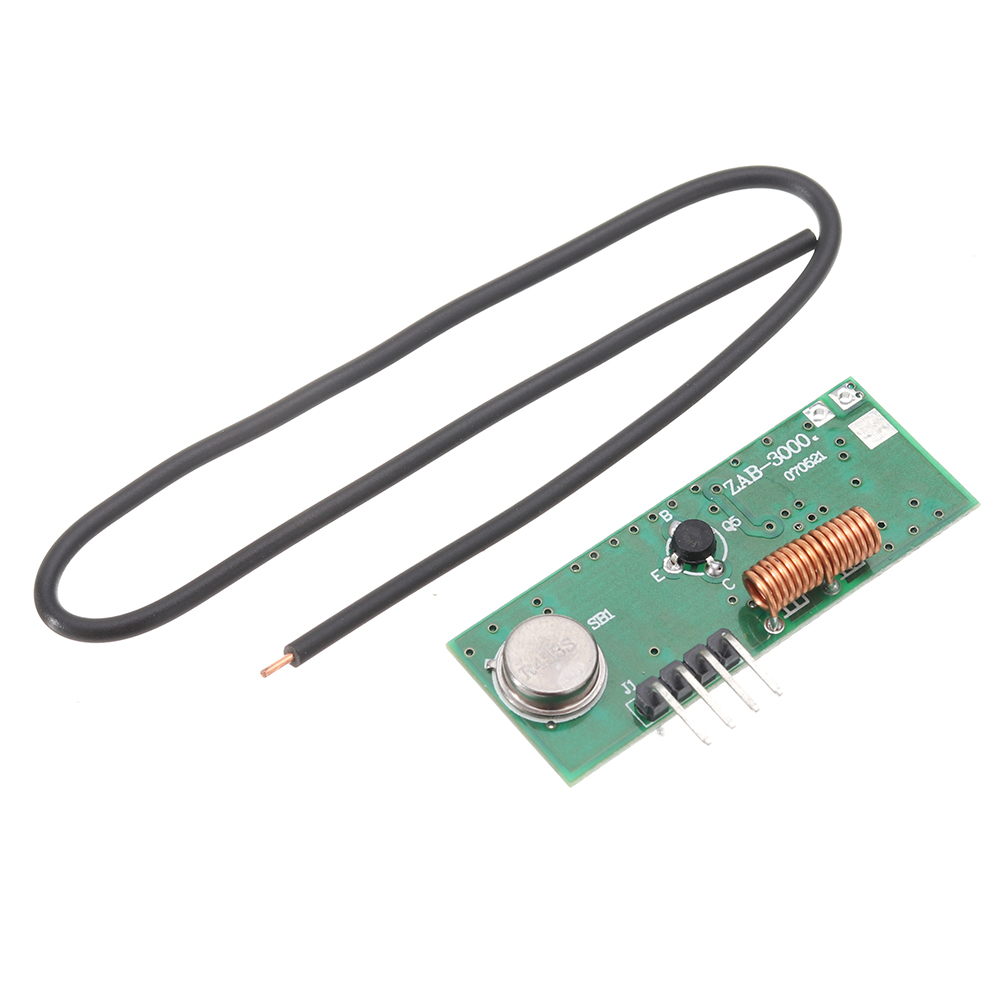

| 1 | ANT | RF signal input pin, this pin should be connected to the antenna |
| 2 | VSS | Positive power supply |
| 3/4 | GND | Negative power supply |
| 5 | DATA | Data signal output, compatible with CMOS levels |
Package includes:
1 x Wireless 3000m Transmitter Module
