Garage Door Remote Key Control For Merlin M832 M842 M844 230T 430R

Description :

Garage Door Remote Key Control For Merlin M832 M842 M844 230T 430R
Features :
One to one key copy.
Each key password alone save.
Can continuous repetitive copy use one million times.
Privacy is strong.

Specification :
Working voltage : DC12V (27A battery including)
Material : ABS & Metal
Color : Black & Chrome Green
Operating current : < 8mA
Working frequency : 433MHz
Modulation mode : ASK (AM)
The transmission power : <100mW
Emission distance : 50 to 100 m (proof)
The encoding type : Self Copy
The working temperature : -10°C to +50°C
Copy chip remote : Merlin M832, Merlin M842, Merlin M844, 230T, 430R etc.

Uses : garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products.

Operation method : 1. Clear the copy remote controller, Long press the above two keys at the same time and release your hand when the light flash quickly.
2. Press the button of the copyed remote control with one hand, and press the button of the new remote control with the other hand, keep for a few seconds,release when the new remote control lights flash quickly, then the copy succeeds.
3. If all the above operation succeed,the romote control can be used directly. If it can not work,please operate again from Clearing.
4. If you meet misoperation and cancel useful codes,before re-copy, you can press the below two keys at the same time for 2 seconds and release when the lights flash quickly, then the control will be recovered.

Package includes :
1 x Garage Door Remote

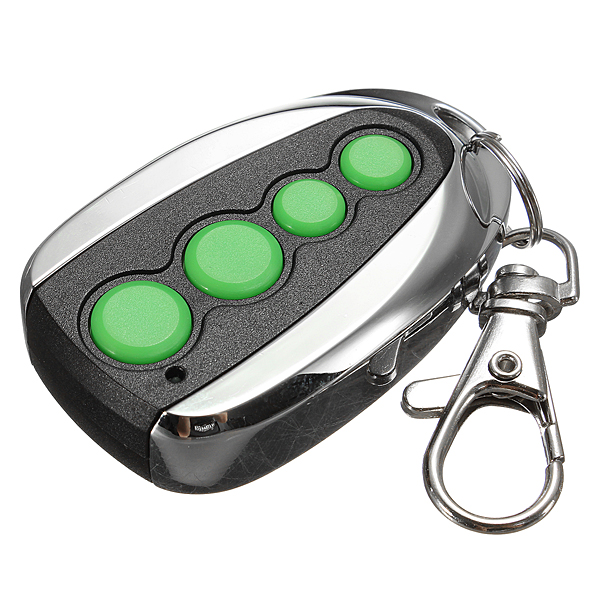

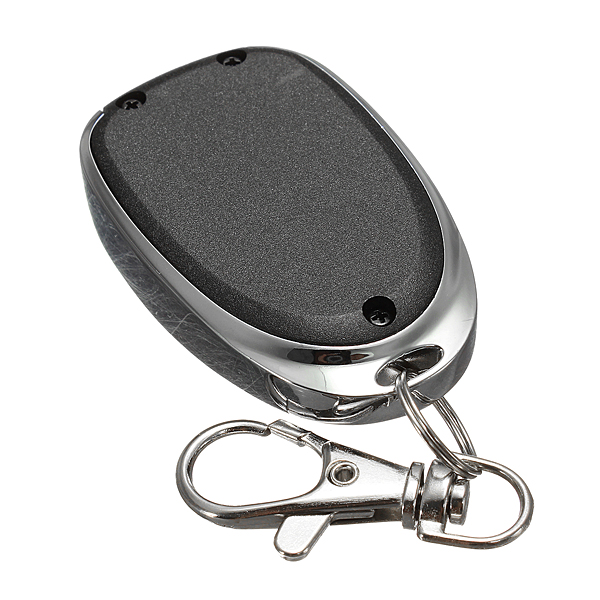

Details pictures :
