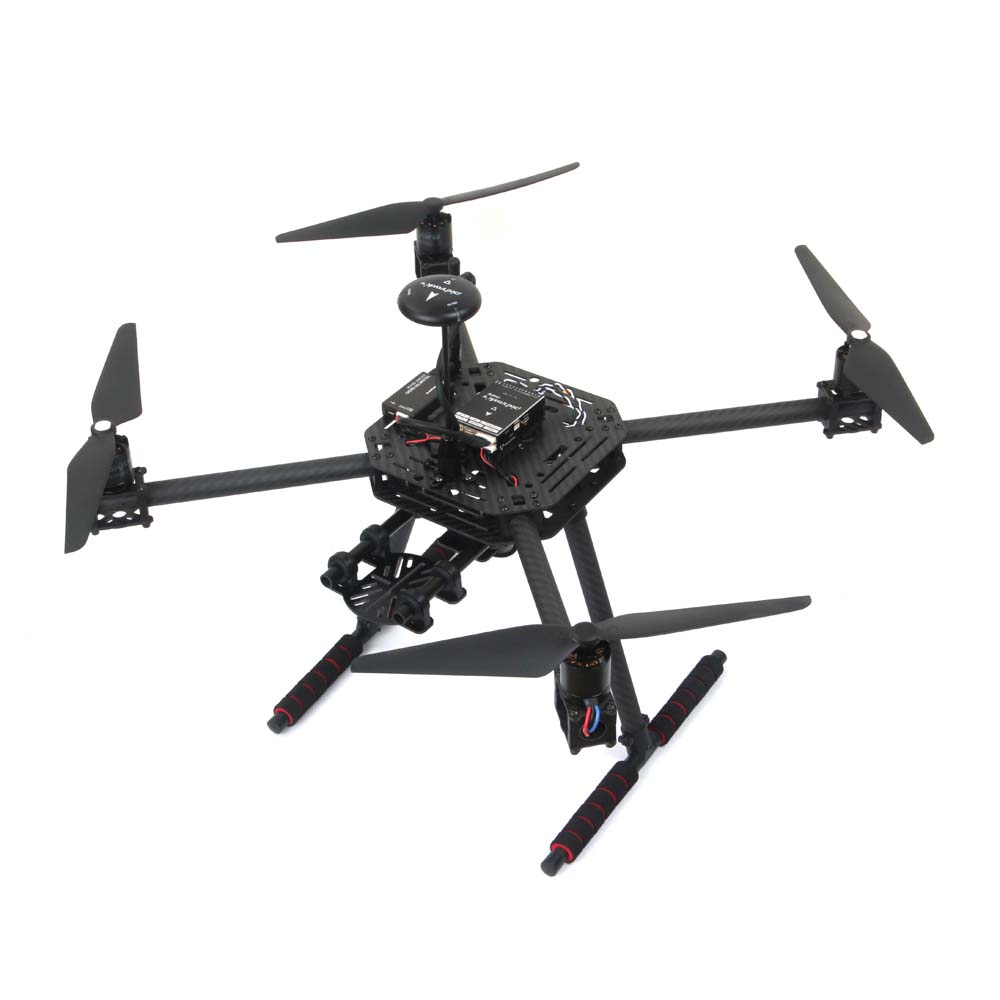

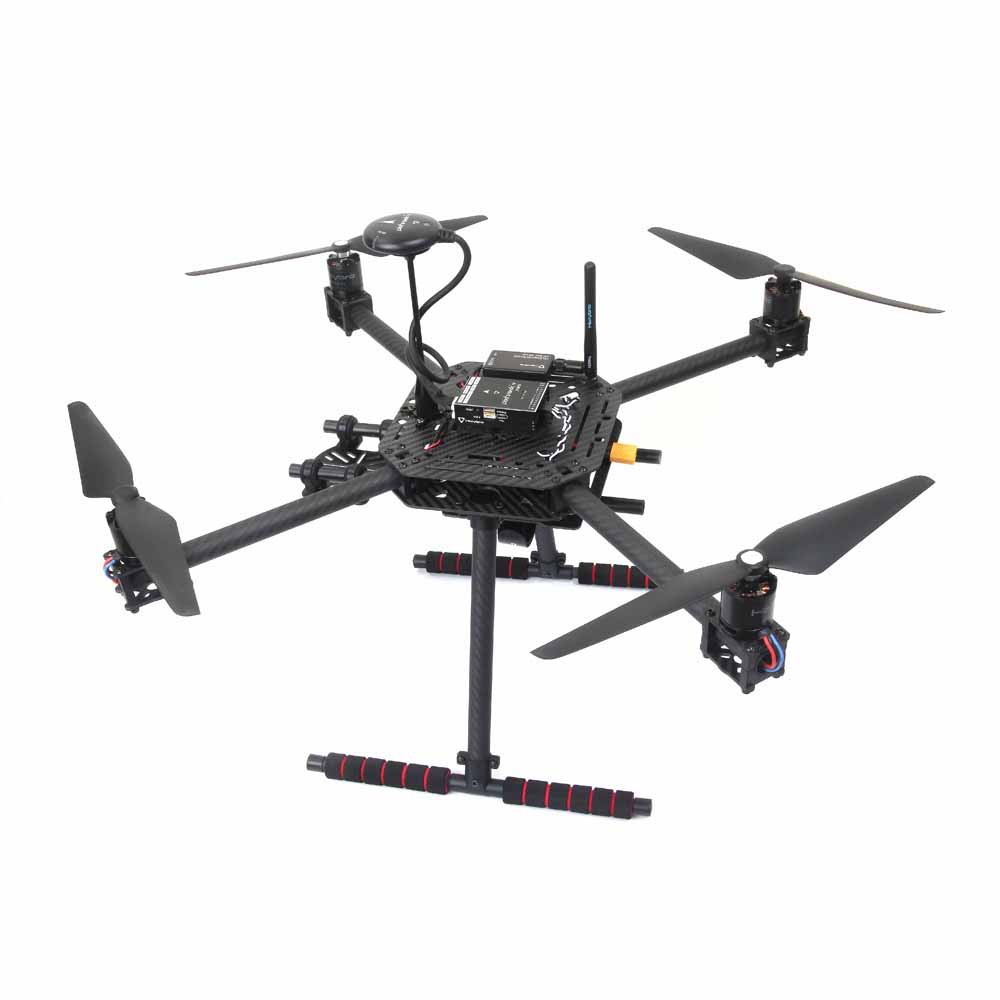

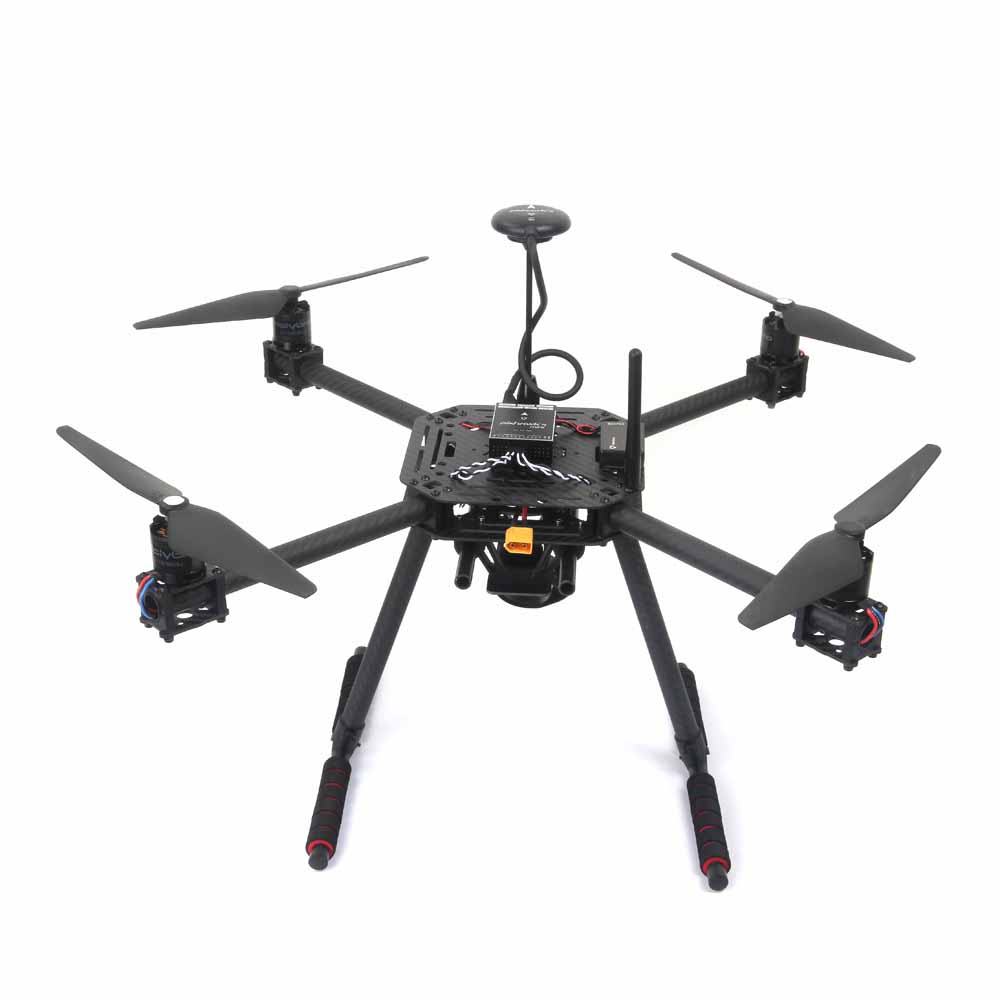

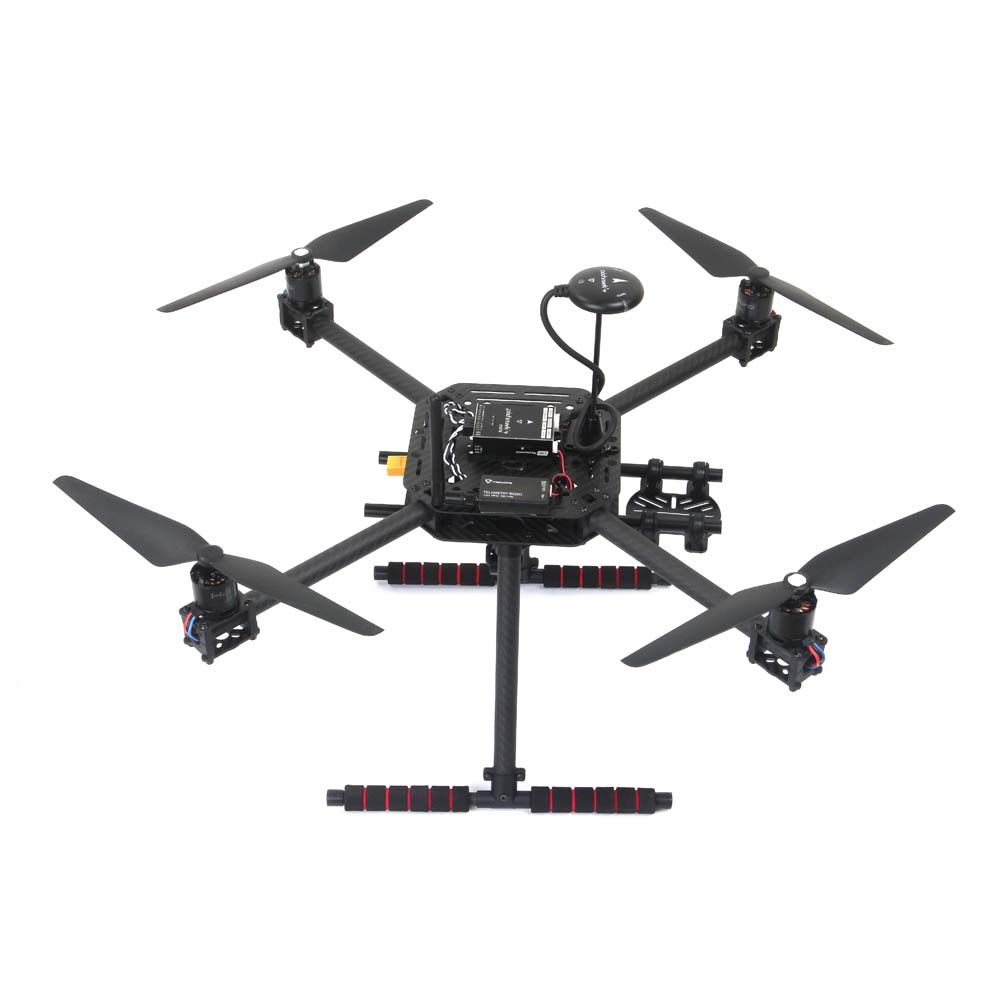

X500 Pixhawk4 / Pixhak4 Mini 500mm Wheelbase FPV Drone w/ 2216 880KV Motor 20A BL_S ESC 1045 Propeller Combo for RC Drone

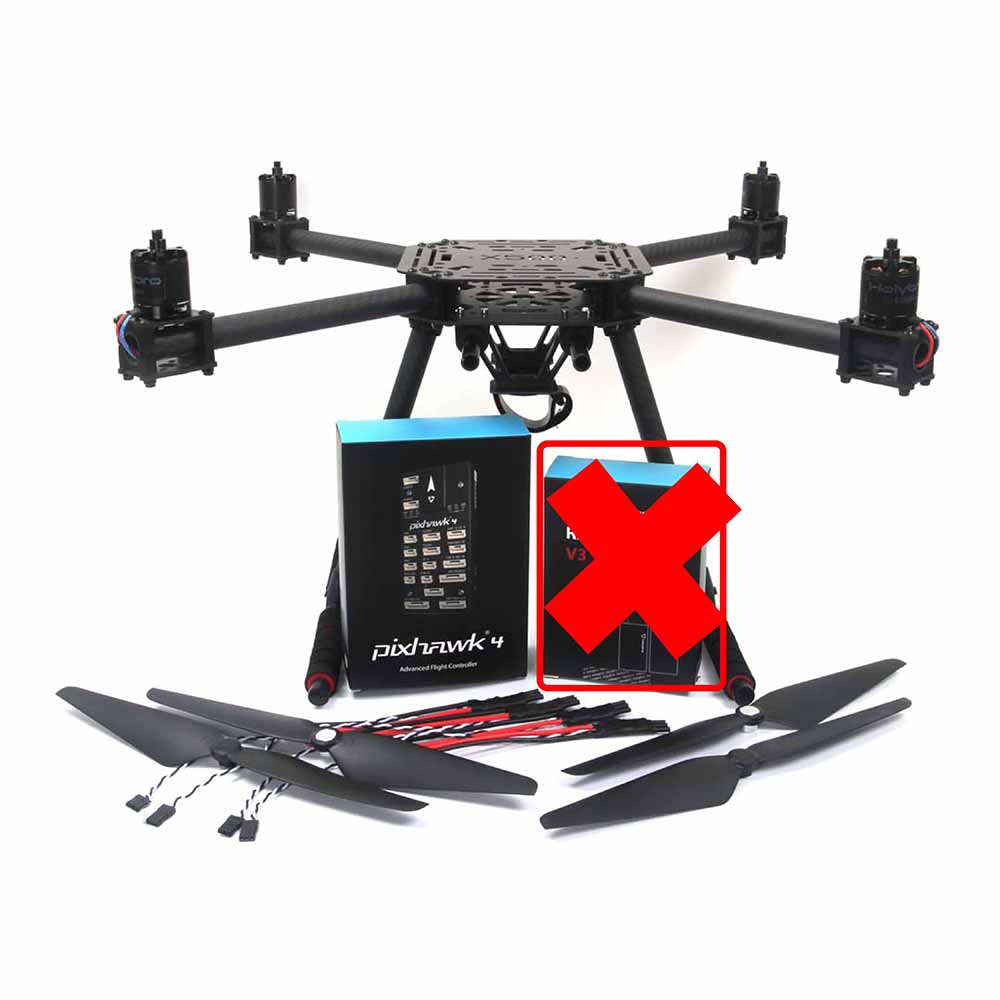

Notice: NOT Included Telemetry Radio.

Introduction:

X500 Frame full carbon fiber twill，The 2mm thick carbon fiber bottom plate supports a PM board with 30.5 mm or 45 mm mounting holes. It is perfectly compatible with the SUNTHEN Pixhawk4 and Pixhawk4 Mini kits.The kit is easy to assemble.No soldering needed.

Description:

Brand: SUNTHEN

Model: X500

Item Name: 500mm Wheelbase FPV Drone

• Pixhawk4 / Pixhawk4 mini autopilot ( Optional)
• Power Management PM06
• Pixhawk4 GPS
• Motors – 2216 KV880
• BLHeli S ESC 20A
• Propeller 1045
• Power and Radio Cables
• Battery Straps
• Dimensions:410*410*300mm
• Wheelbase:500mm
• Weight:955
• Note: No LiPo battery included.
• Recommended Battery: 4S 5000mAh Lipo; Max payload: up to 2.1kg ( take example as 4S 5000 mAh battery)

Spare Parts-X500 Specification

1045 Propeller	Item Name: 1045 10 Inch 2-Blade Prop Quantity: 2 CW & 2 CCW
X500 Frame Kit	Item Name: 500mm Wheelbase Frame X500 Frame Kit Assembly Guide
2216 880KV Motor	Item Name: 2216 880KV Motor Quantity: 2 CW & 2 CCW Test Table
20A BLHeli_S ESC	Item Name: 20A BLheli_S ESC Con. Current:20A Burst Current(10S): 30A BEC: NO LiPo cells: 2-4S Quantity: 4 PCS BLHeli-S is using the A-H-30 BLHeli-S firmware

X500-Kit_AssemblyManual ( Take example as pixhawk4 version,)

Package Included:

1x SUNTHEN X500 Pixhawk4 Combo

OR

1x SUNTHEN X500 Pixhawk4 Mini Combo
