- Stock: In Stock
- Model: ST22001426
- SKU: ST22001426
Upgrade Diffirecence:
New Motor Version Support Flight in 4S Lipo Battery with 2.5 Inch Prop very well.
( Old 1104 Motor Version support 3S Lipo well and support 4S with 2 Inch Prop well, now new 4S 2.5 inch very well)
For New Motor Version, recommend 4S 450-650mAh Lipo ( with 2.5 Inch Prop); 3S 450mAh Lipo ( with 2.5 Inch for beginner)
Specification:
Brand Name: FUS
Model: Spartan V3

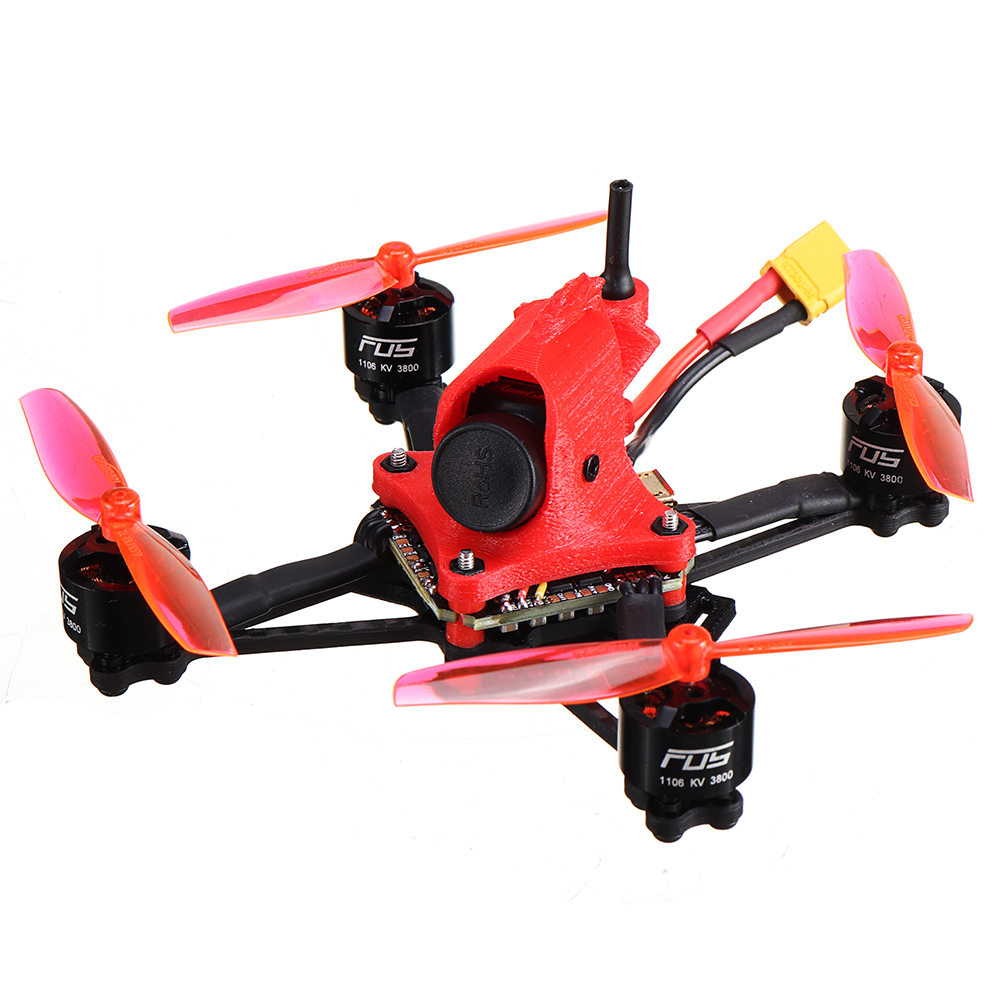

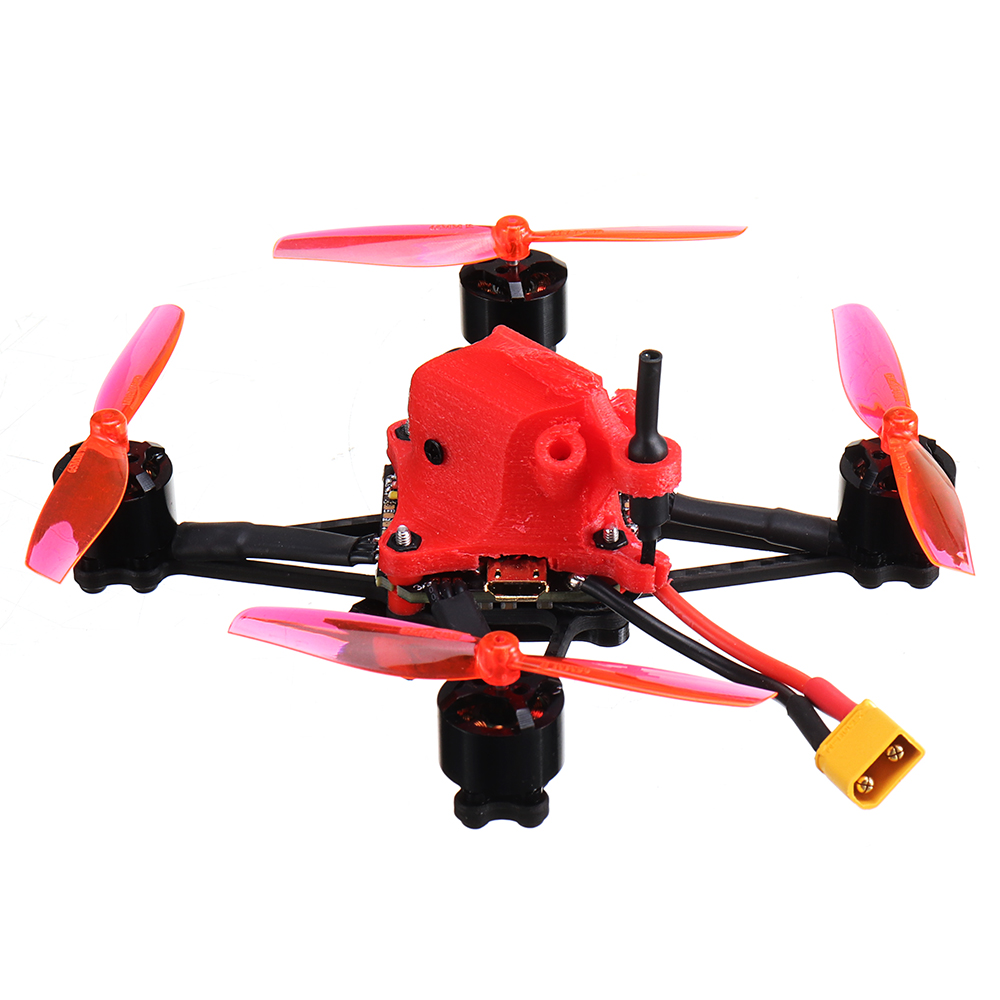

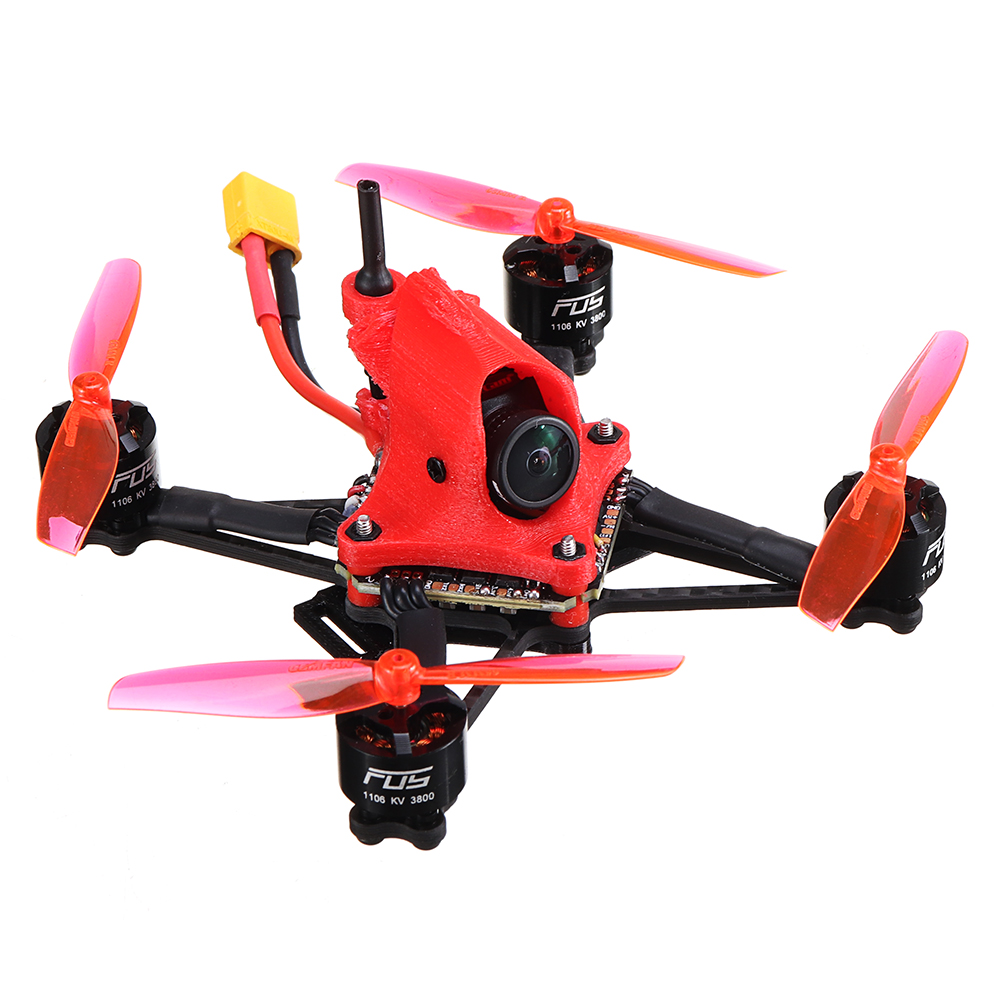

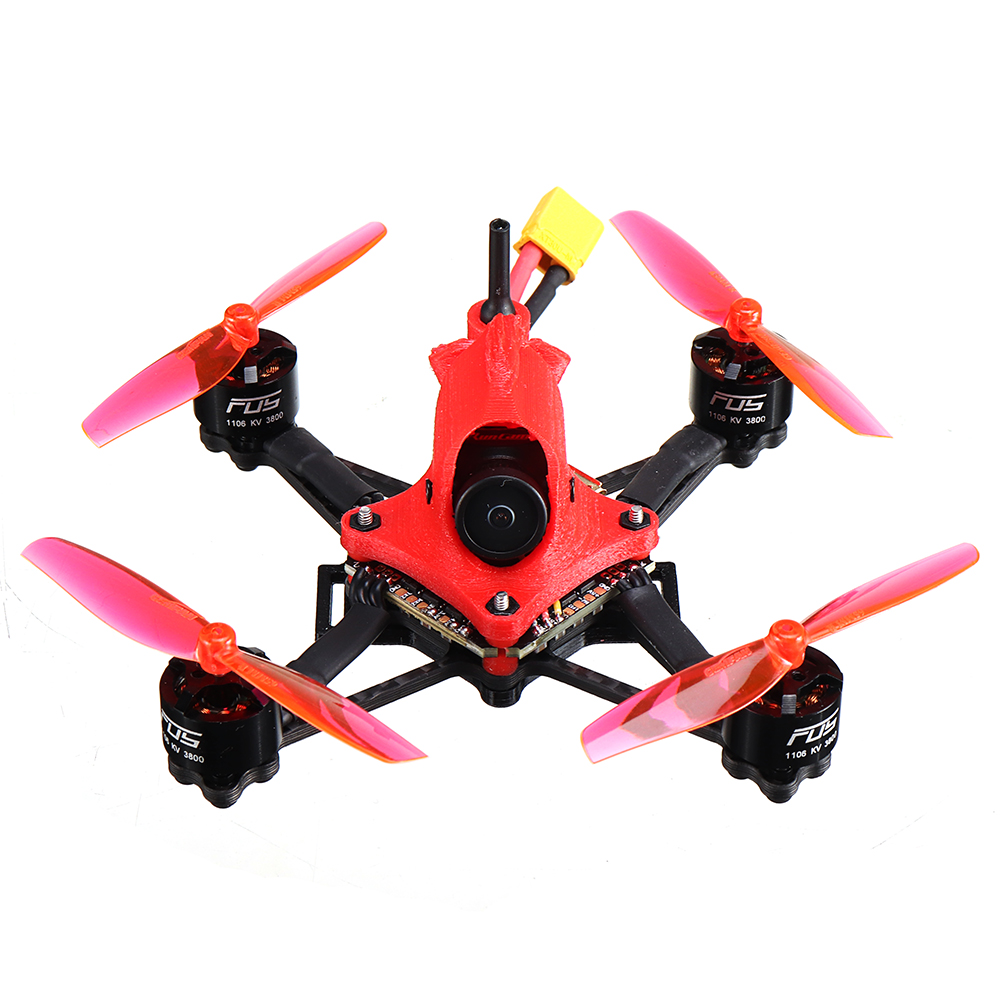

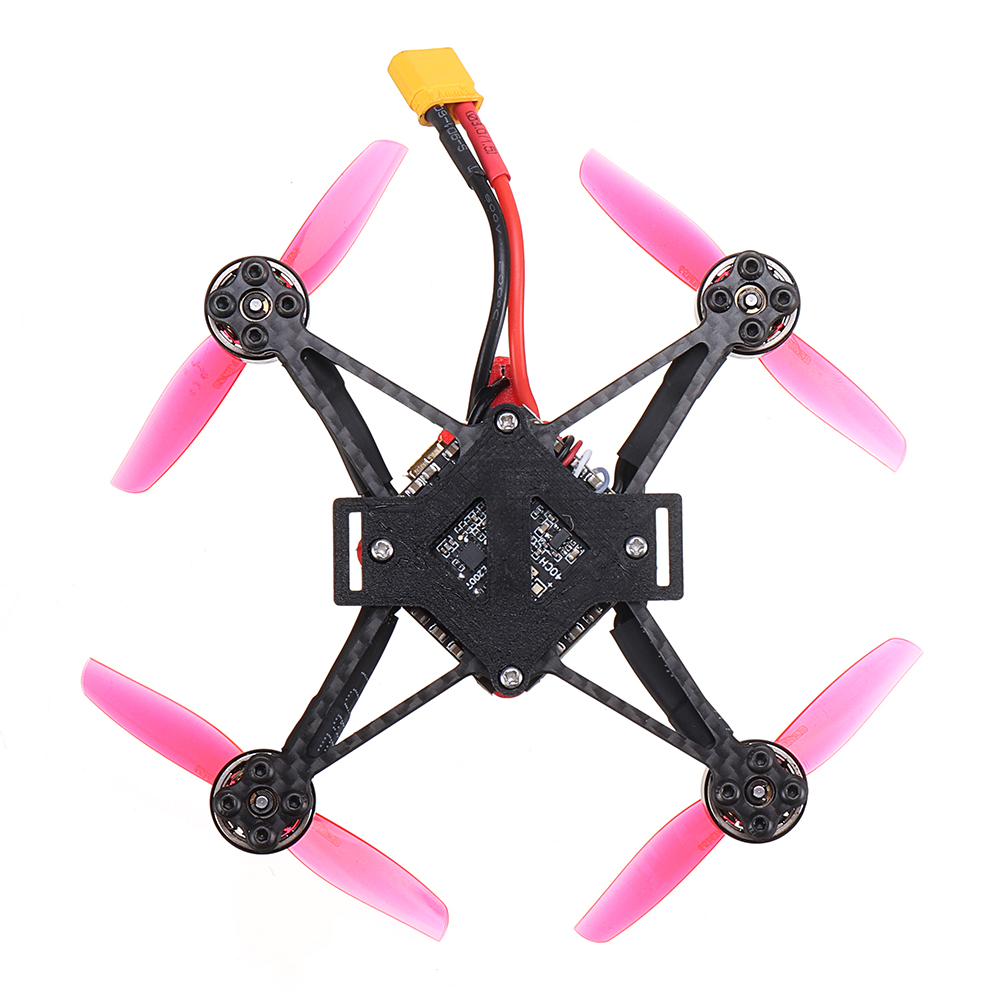

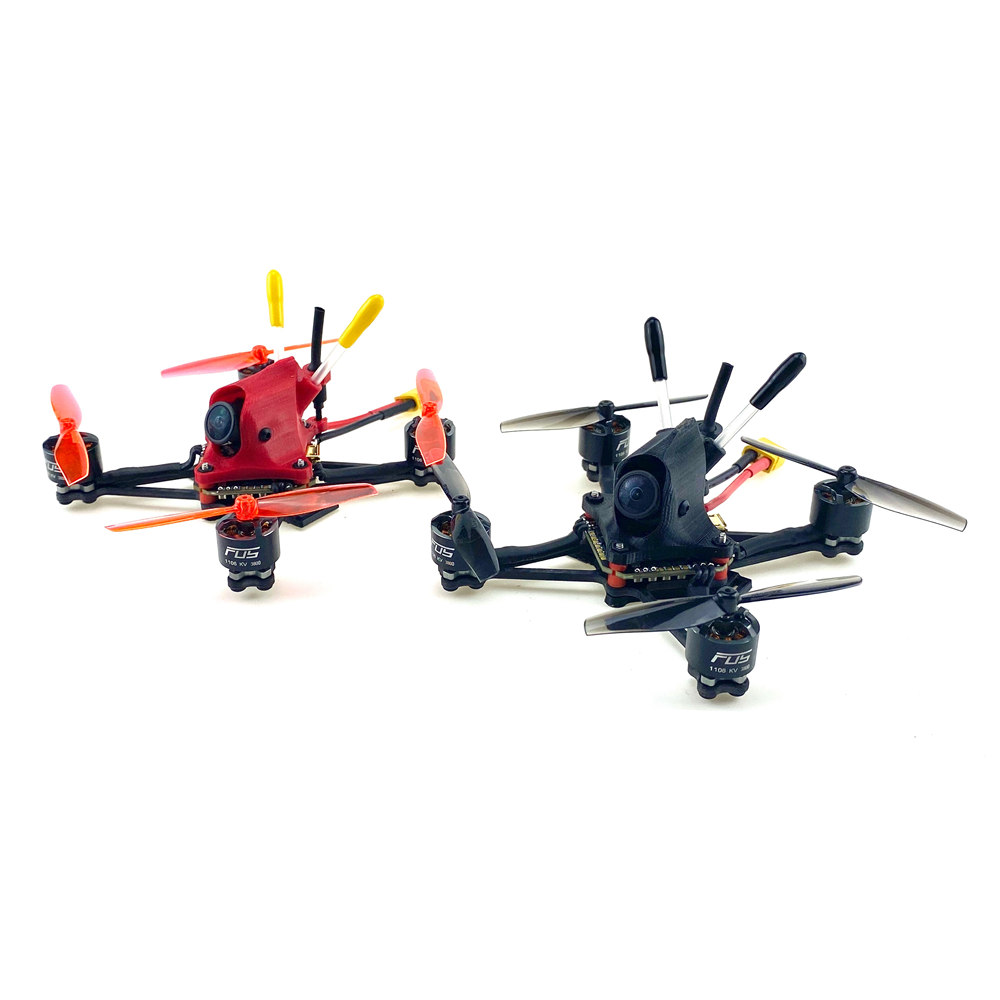

Item Name: 99mm Wheelbase F4 2-4S Whoop FPV Racing Drone
Version: PNP ( Without Receiver, Battery)
Wheelbase: 99mm
Flight Controller & ESC: F4 Flight Controller AIO 20A BL_S 4in1 ESC
Brushless Motor: FUS 1106 3800KV
FPV Transmitter: IRC 200mW VTX
FPV Camera: Runcam Nano 2 700TVL Camera
Propeller: 2.5 Inch Propeller
Drone Weight: 62.3g ( without Battery)
F4 Flight Controller AIO 20A BL_S 4in1 ESC ( FC Manual) | Size: 32.5*32.5mm Mounting pattern: 25.5*25.5mm (3mm harf-hole) Weight：6.3g Connector: Micro-USB MCU: STM32F411 Gyroscope: MPU6000(SPI) Blackbox: Not included BEC output: 5V 2A | ||||||||
| Onboard 20A 4in1 ESC | Constant current: 20A,25A(Peak) Input Voltage: 2-4s (support HV） Current sensor：Included BLHeli: BLHeli_S Target: MATEK F411 ESC Firmware:G_H_30 BLS | ||||||||
5.8G 40CH 25/100/200mW FPV Transmitter ( VTX Manual link) | Power— 25MW/100MW/200MW IRC Tramp— Support to change power and frequency points through flight control（TXD) Number of Signal channel: 40 Frequency Adjustment: short press button
Power adjustment：Long press button（≥2 sec.)
|
Original Replace Canopy Link ( Here )
Original Replace Bottom Plate Link ( Here)

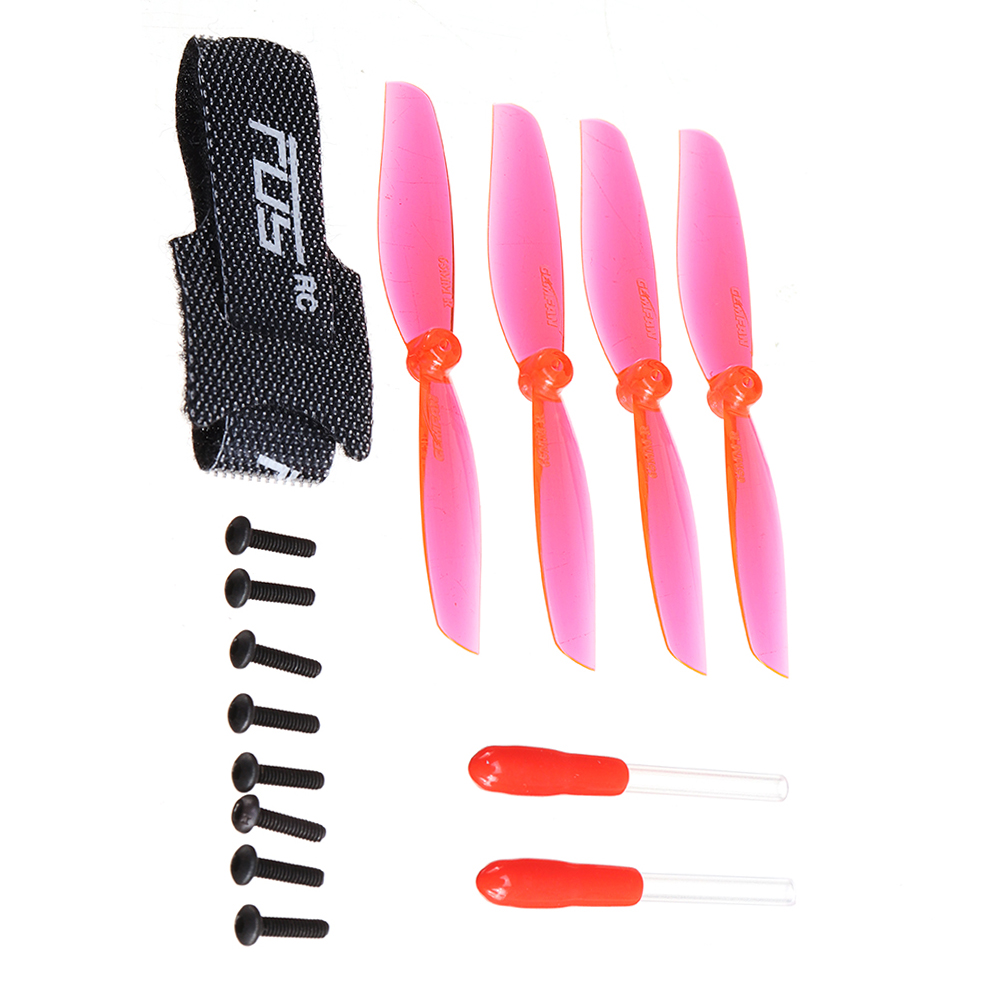

Pacakge Included:
1x Spartan V3 Frame
1x F4 FC AIO 20A ESC Board
4x FUS 1106 3800KV Motor
1x Runcam Nano 2 FPV Camera
1x 200mW FPV Transmitter
4x 2.5 Inch Propeller
