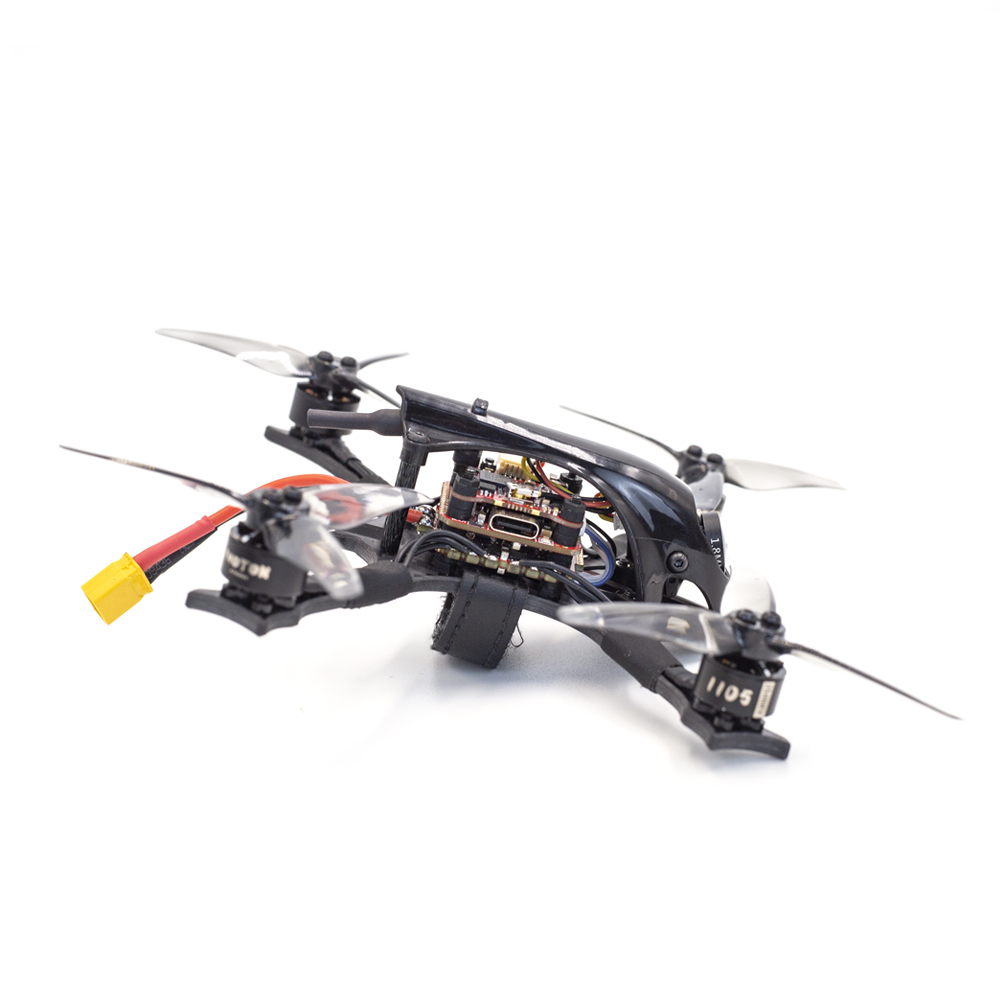

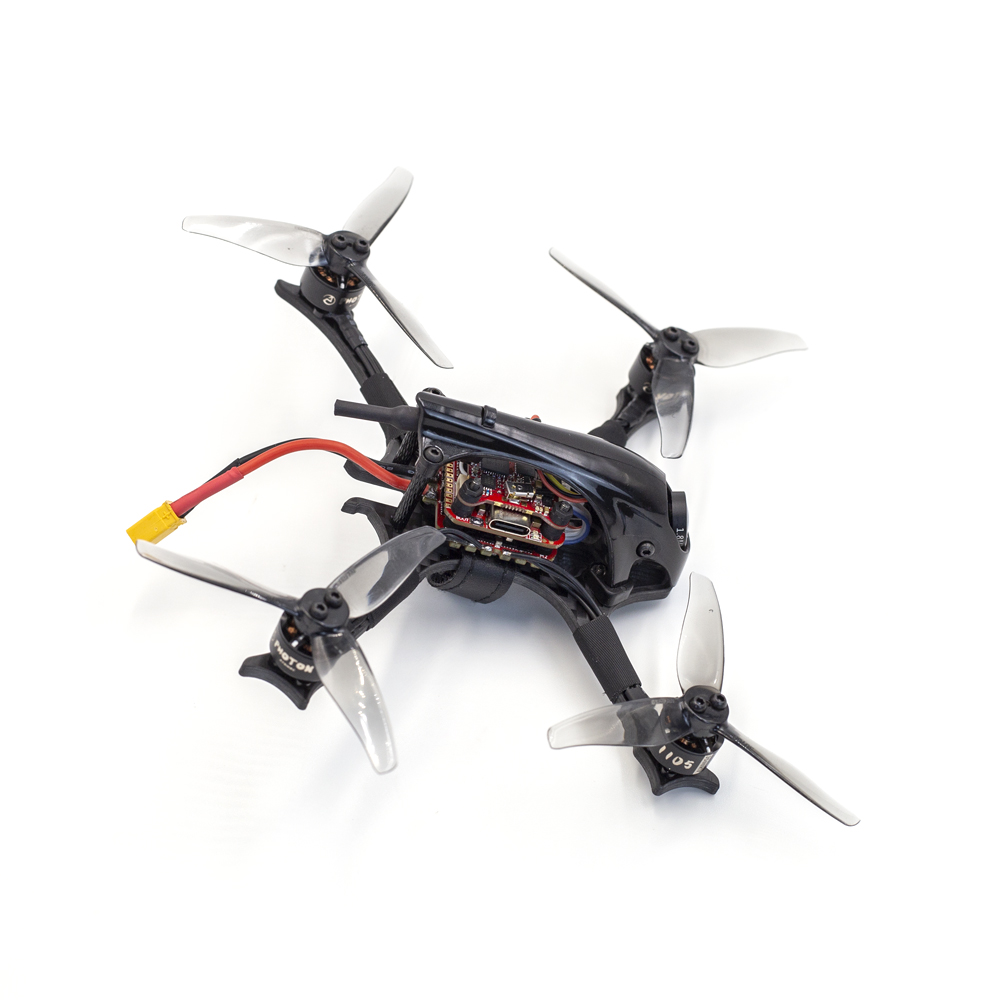

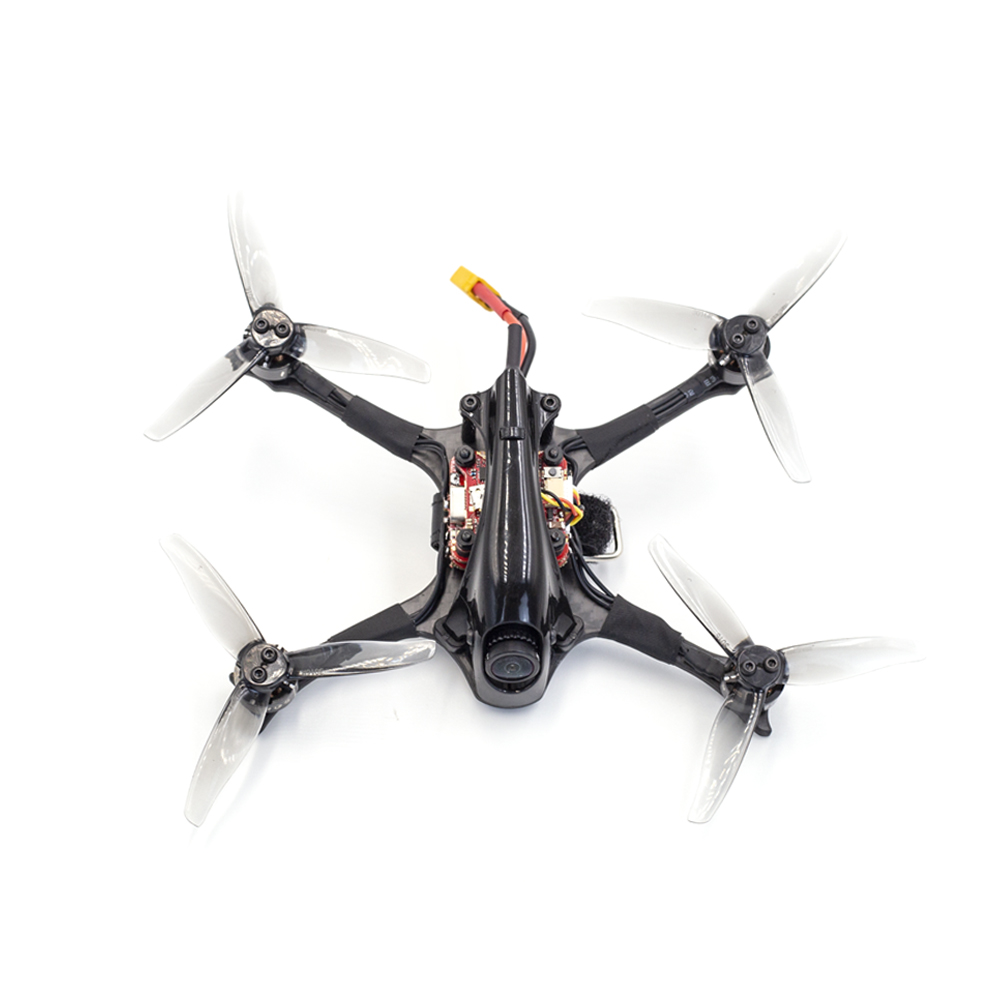

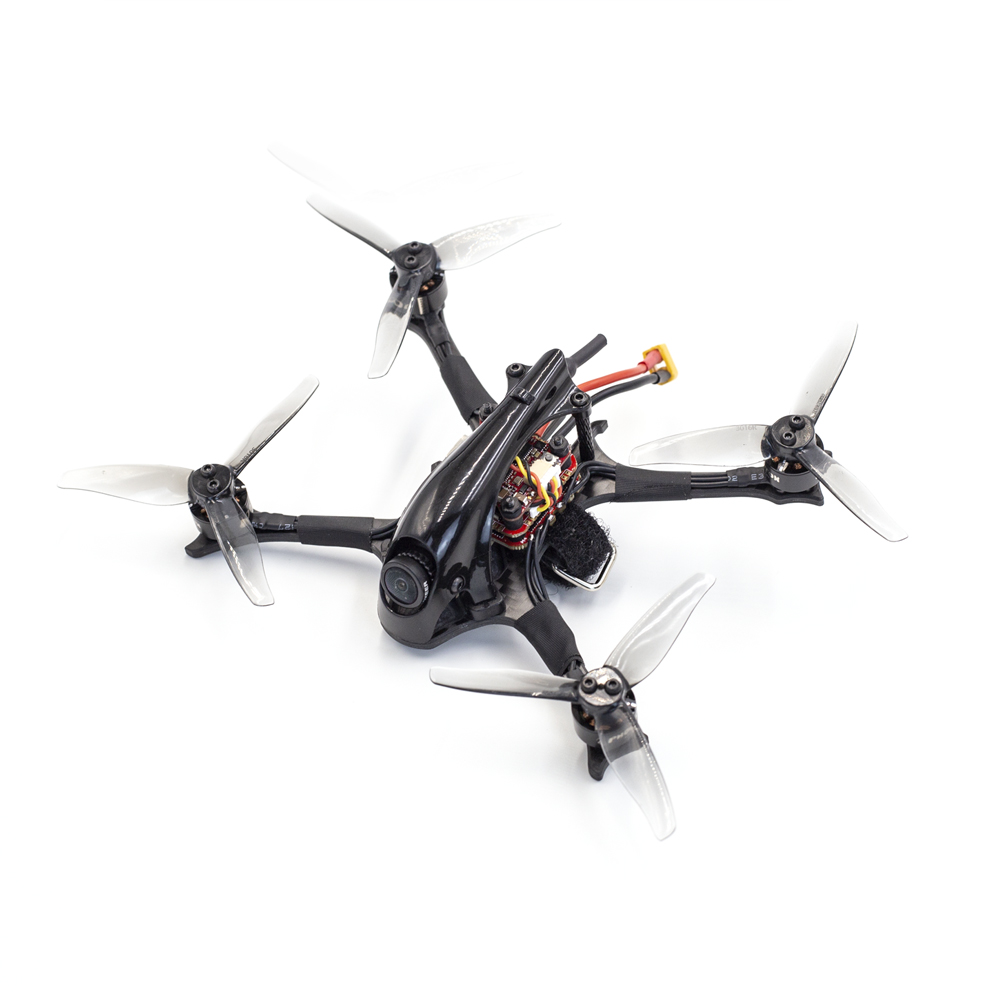

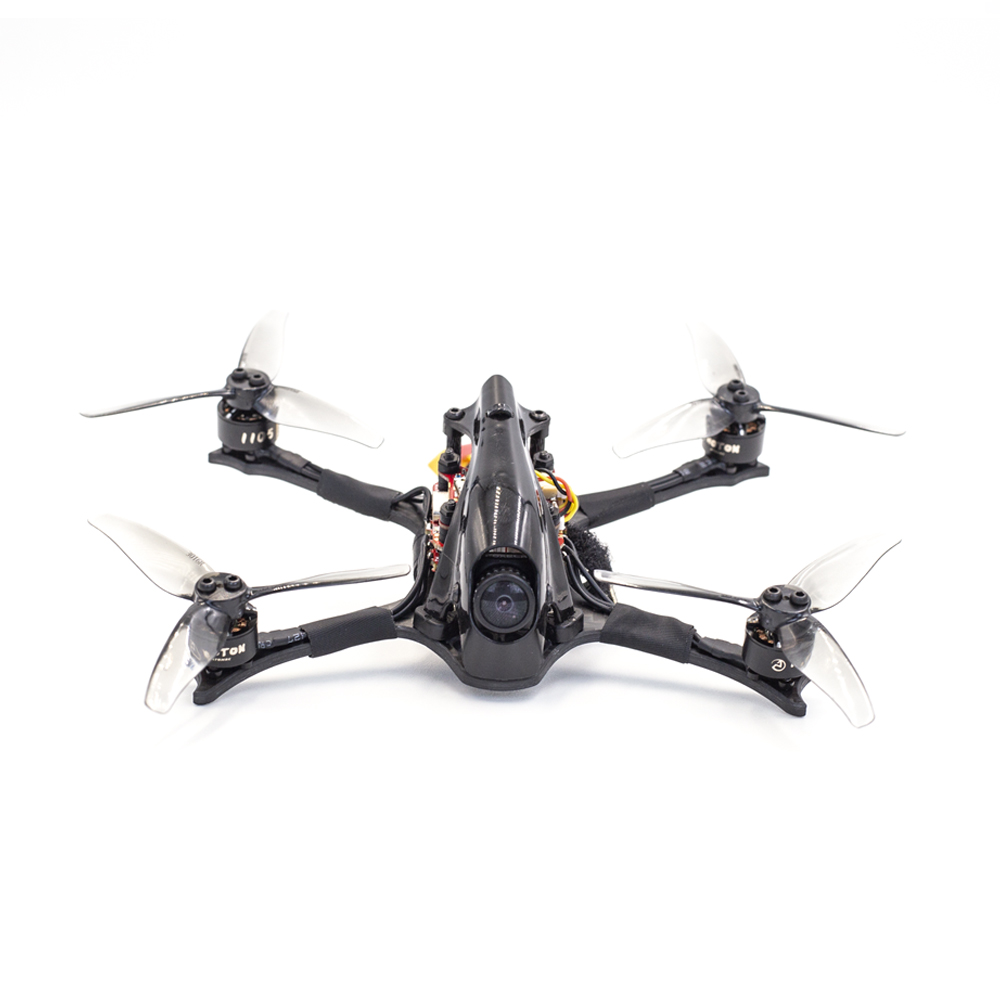

Dodo D135 PRO 135mm Exceed F405 3-4S 3 Inch Toothpcik FPV Racing Drone PNP w/ 20A ESC 1105 3500KV Motor Foxeer Razer NANO 1200TVL Camera

Exceed F405 F4 FC Diagram Picture ( Link )

Specification:
Brand: SUNTHEN/ATOMRC
Item Name: D135 PRO

Wheelbase: 135mm
FC: ATOMRC Exceed F405 MINI
ESC: ATOMRC Exceed BLHeli_S 20A 4IN1 MINI ESC
Motor: ATOMRC Photon 1105 3500KV Brushless Motor
VTX: ATOMRC Exceed 500mW MINI VTX

Camera: Foxeer Razer NANO 1.8mm 4:3 Camera

Propeller: Gemfan 3052-3Blade
Package Weight: 201g
Carton Size: 20*22*6cm

Flight Controller Details:

MCU: 168MHZSTM32F405

IMU: MPU6000 Accelerametergyro (SPI)

OSD: Betaflight OSD

UART: 5

PWM/Oshot Output: 6

BEC: 3.3A / 5V

Bulit in inverter for SBUS (RX2)

Smartaudia & Tramp VTX Protocal Supported.

WS2812 Led Strip: YES

Beeper: YES

RSSI: YES

USB Connector: Type-C

TARGET: ATOMRCF405

Recommended Battery (No Included)

Compatibal with 450mAh 3S, 650mAh 4S

Features:
Freestyle and Racing no limitation.
Support continuously upgrade,easy to fix.
VTX with OSO control 4pin detachable connector.
Easy to replace Antenna with Self lock UFL connector.
Easy to connect ESC. Receiver.
Multiple Power for choose.

Package Included:
1 x Sunthen ATOMRC Dodo D135 PRO FPV Racing Drone
1 x Screw Pack
2 x Canopy (Two Black)
1 x Propeller Pack
1 x Battery Strap
