- Stock: In Stock
- Model: ST22001602
- SKU: ST22001602
Notice: Get notification from iFlight, all of their flight controllers will come without Barometer.
Oct. 26th, 2021.
Description:
Brand: iFlight
Model: Mach R5 ( Analog)

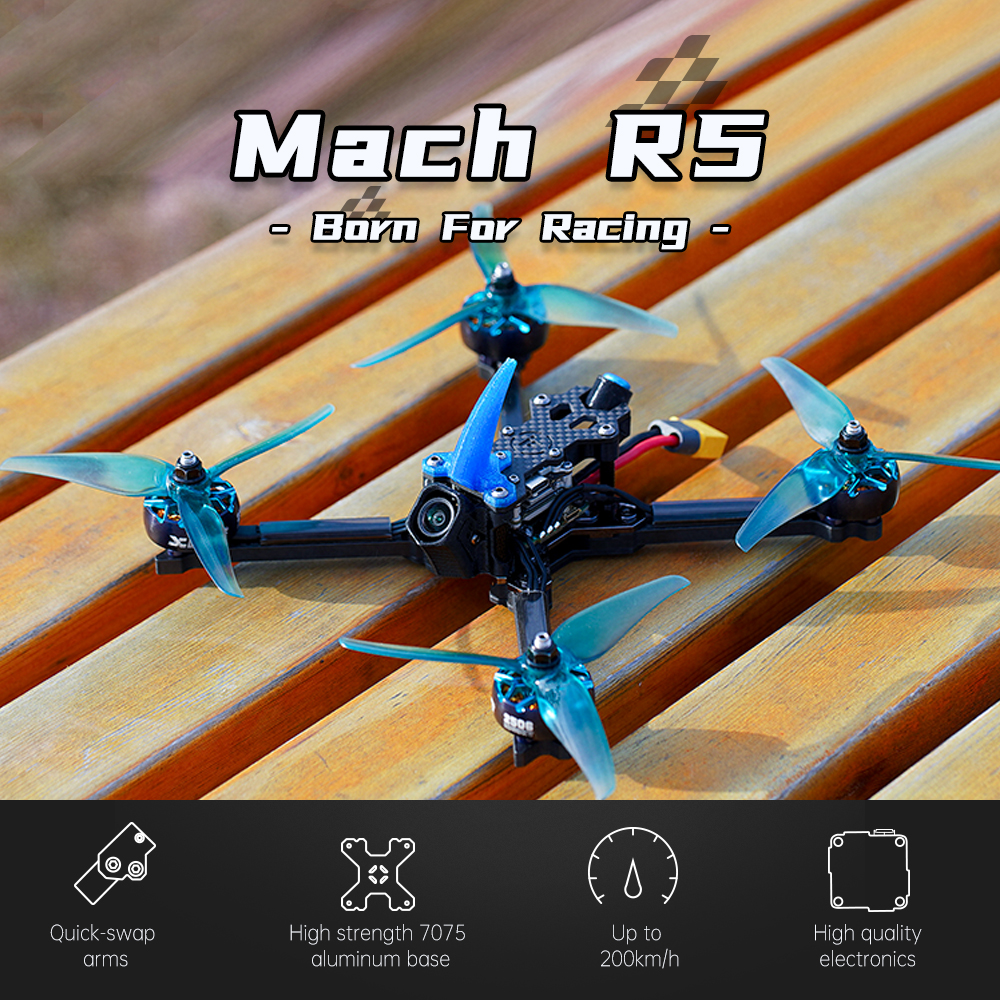

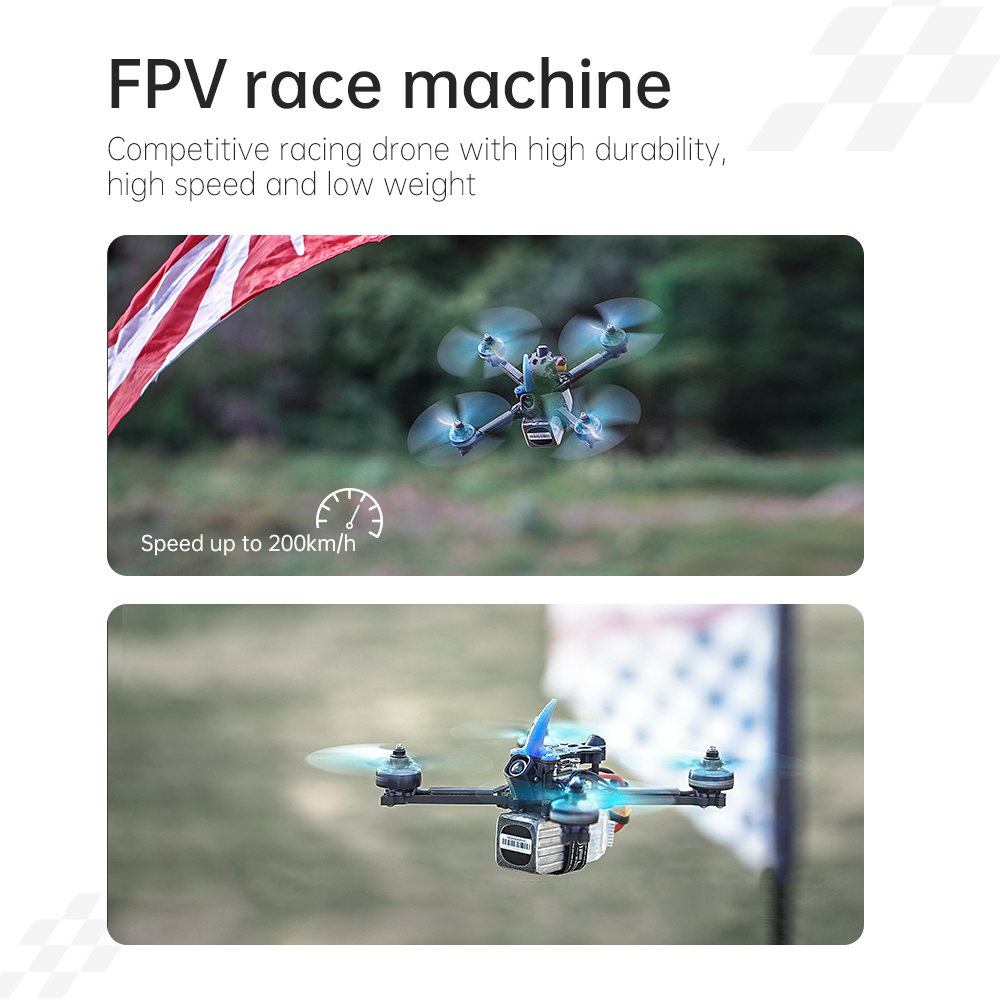

Item Name: 215mm F7 6S 5 Inch FPV Racing Drone

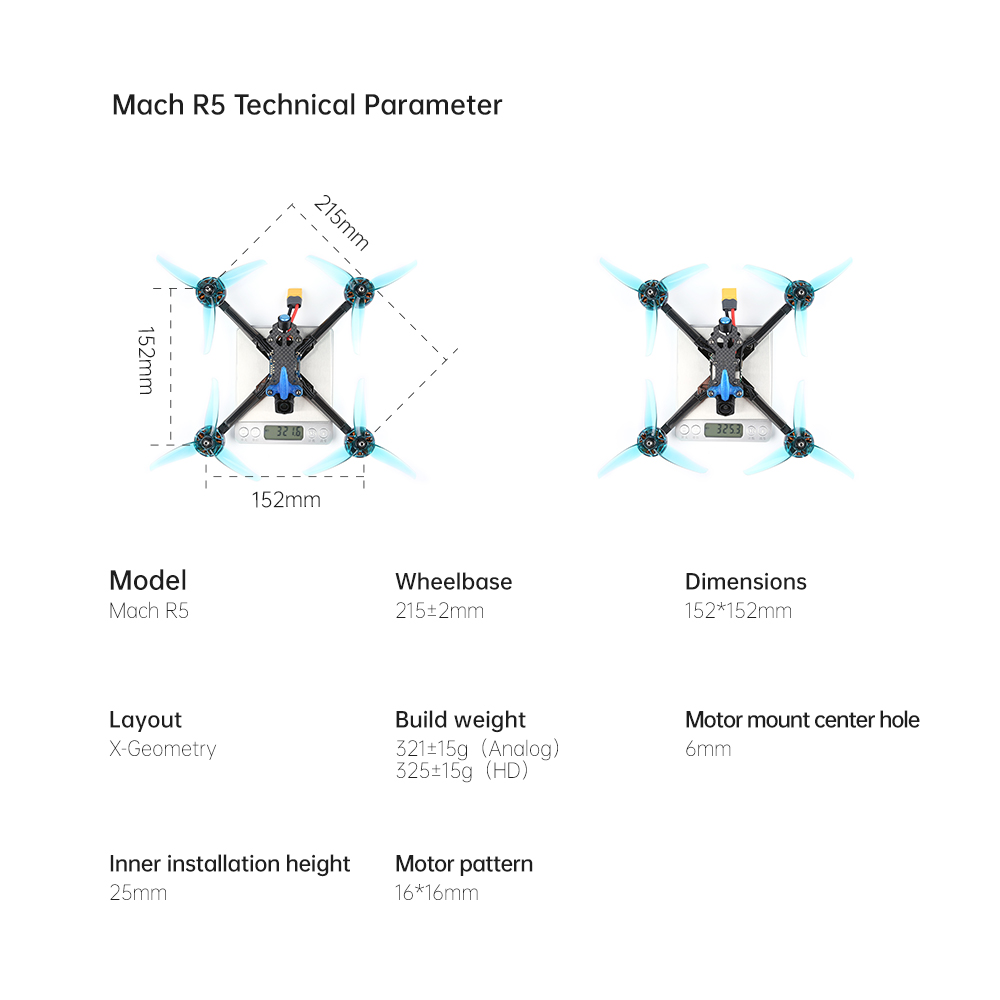

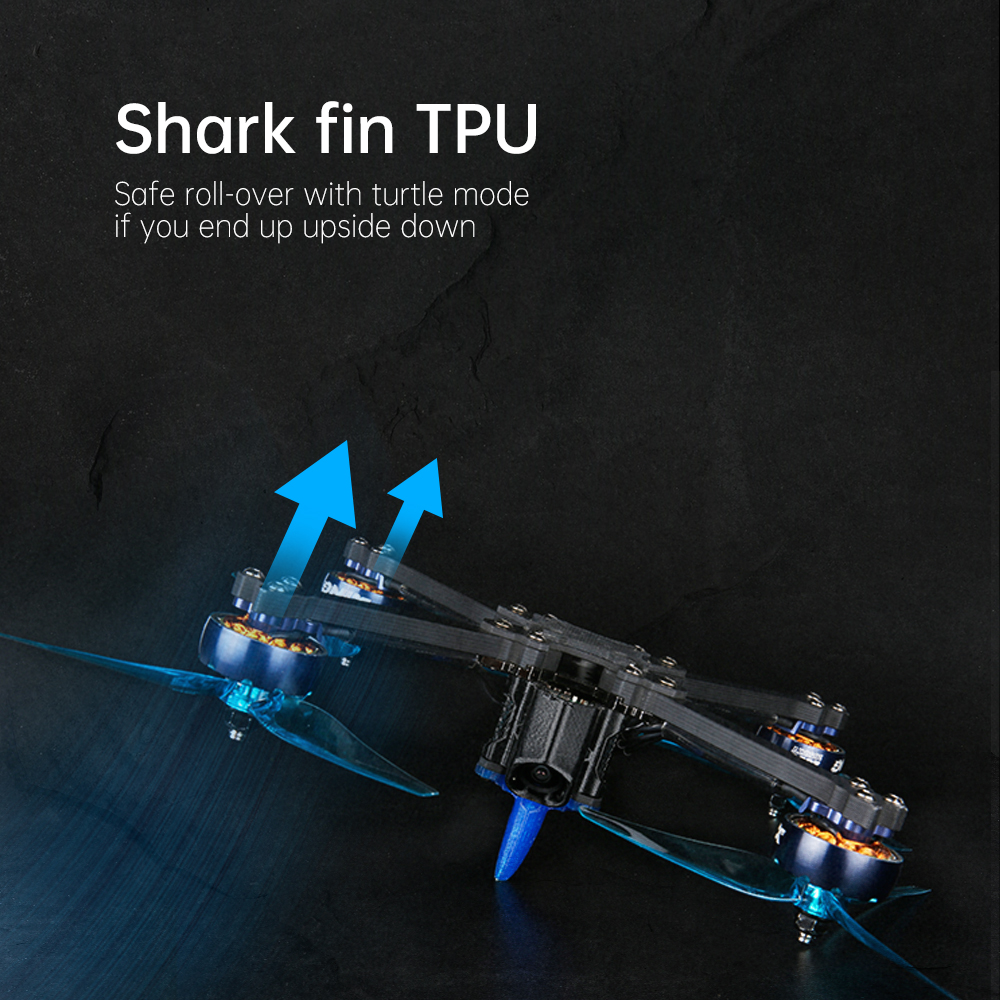

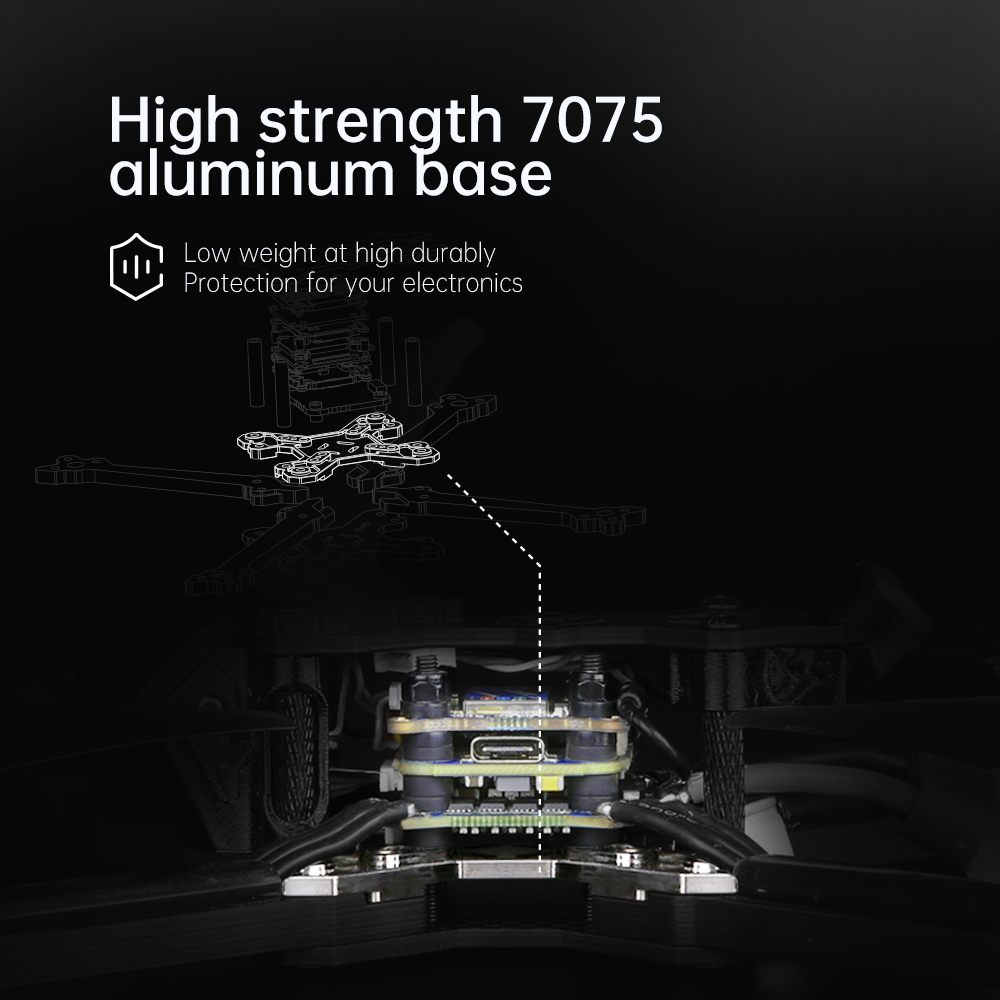

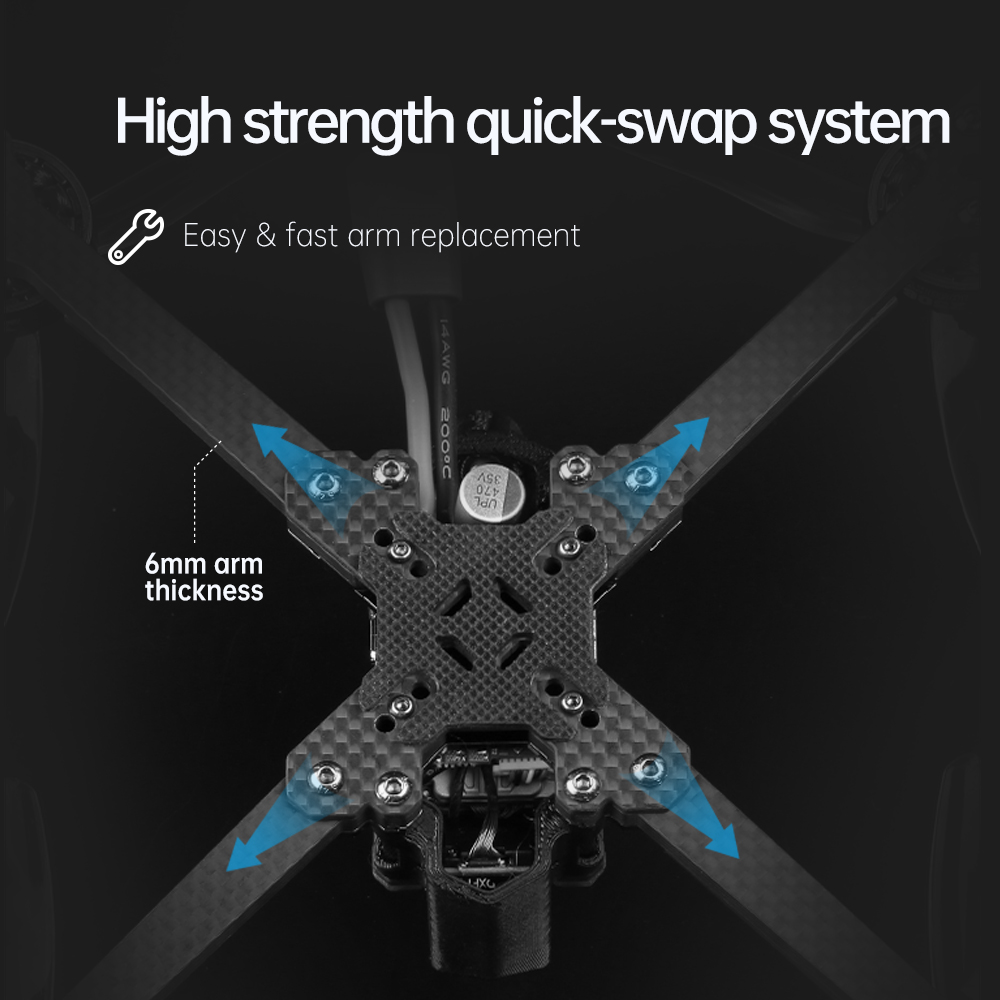

| Mach R5 215mm Frame Kit | Wheelbase: 215mm Main body dimension: 152*152mm Arm thickness: 6mm Bottom plate thickness: 3mm Top plate thickness: 2.5mm Middle Plate thickness: 2.5mm CNC 7075 aluminum alloy TPU Camera plate FC: 30.5*30.5/25.5*25.5mm/20*20mm FPV Cam: 14mm /19mm Micro / 20mm |

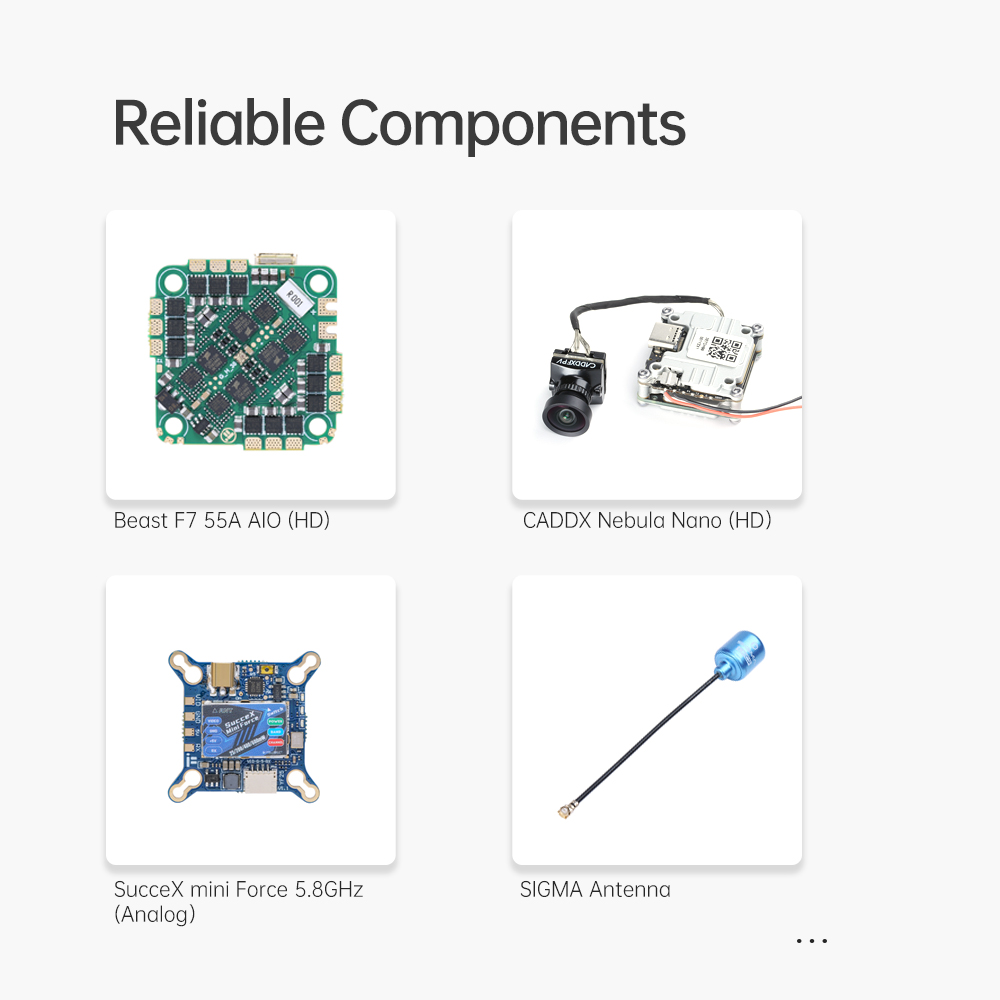

| Beast F7 Flight Controller AIO ESC | MCU: BGA-STM32F745 Gyro: MPU6000 Blackbox: 16Mb Onboard Flash BEC output: 5V 2.5A Barometer: NO Connector: Micro-USB OSD: AT7456E FC Firmware：IFLIGHT_F745_AIO Mounting pattern: 25.5*25.5mm φ3mm Dimensions: 32.5*32.5mm Weight: 8.5g |

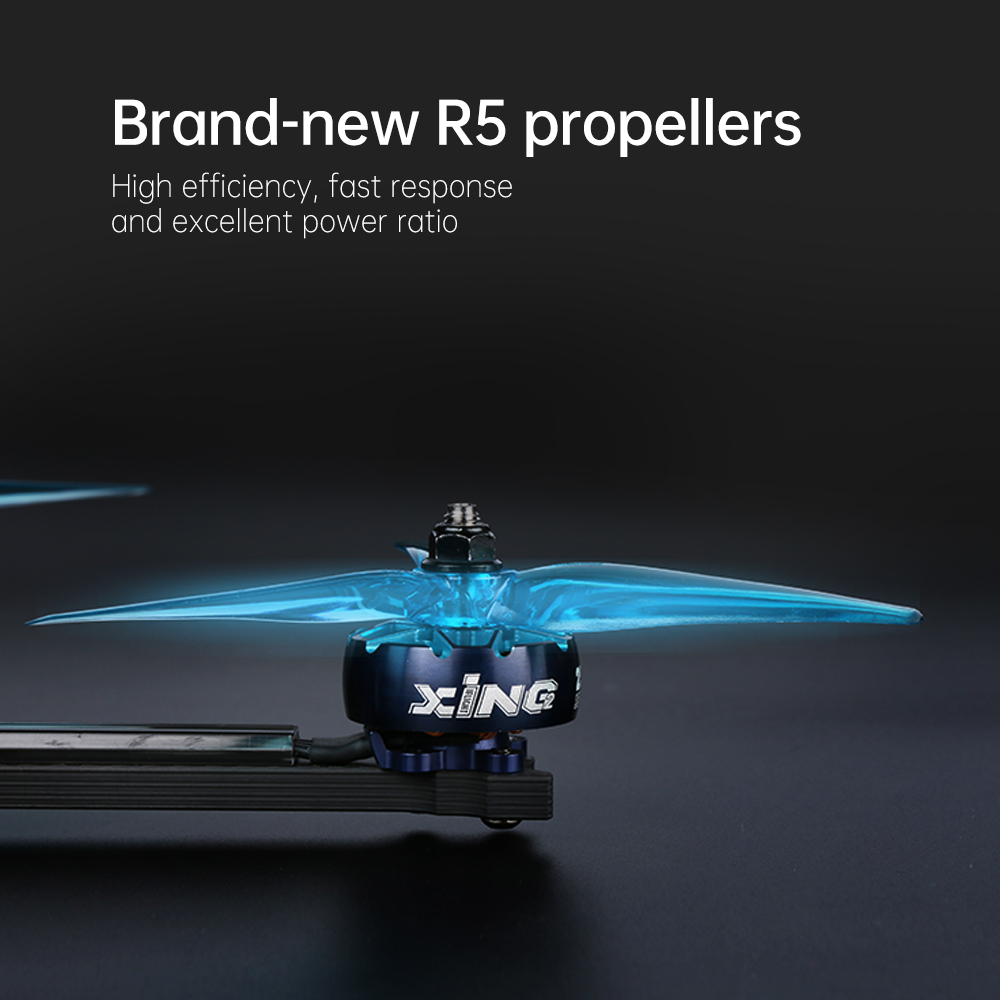

| XING2 2506 1850KV Motor | Configuration: 12N14P Shaft Diameter: 5mm Stator Diameter: 25mm Stator length: 6.5mm |
| Onboard 55A BL_S 2-6S 4in1 ESC | UARTs: 5 Current Sensor: Yes Input: 2-6S LIPO Current scale: 200 Constant: 55A Burst: 60A BLHeli: BLHeli-S Telemetry: no ESC Firmware: BlheliS G-H-30 BLS Mounting pattern: 25.5*25.5mm/Φ3mm Dimensions: 32.5*32.5mm |
| SucceX Mini Force 5.8GHz 600mW VTX | Power: PIT/25/200/400mW/600mW Antenna interface: MMCX |
| iFlight RaceCam R1 FPV Camera | Image Sensor: 1/3" CCD Sensor Horizontal Resolution: 600 TVL TV System: NTSC/PAL (optional) Synchronization Internal Ratio: 4:3 Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS Lens: 2.3mm, FOV 130° Lens Screw Diameter: M10 Min. Illumination: 0.01Lux F1.2 Auto Gain Control: YES BLC: YES FLY OSD Voltage/time/horizontal line/title Camera OSD: YES WDR: D-WDR DNR: 2 DNR Day/Night: Auto/Color/B&W Connector: Molex PicoBlade 1.25mm 4P Wide Power Input: DC 5-40V Work Temperature: -20℃~+60℃ Work Humidity: 20%~80% Dimensions: 22mm*22mm*27mm Weight: 12g (N.W.)/ (G.W.) |

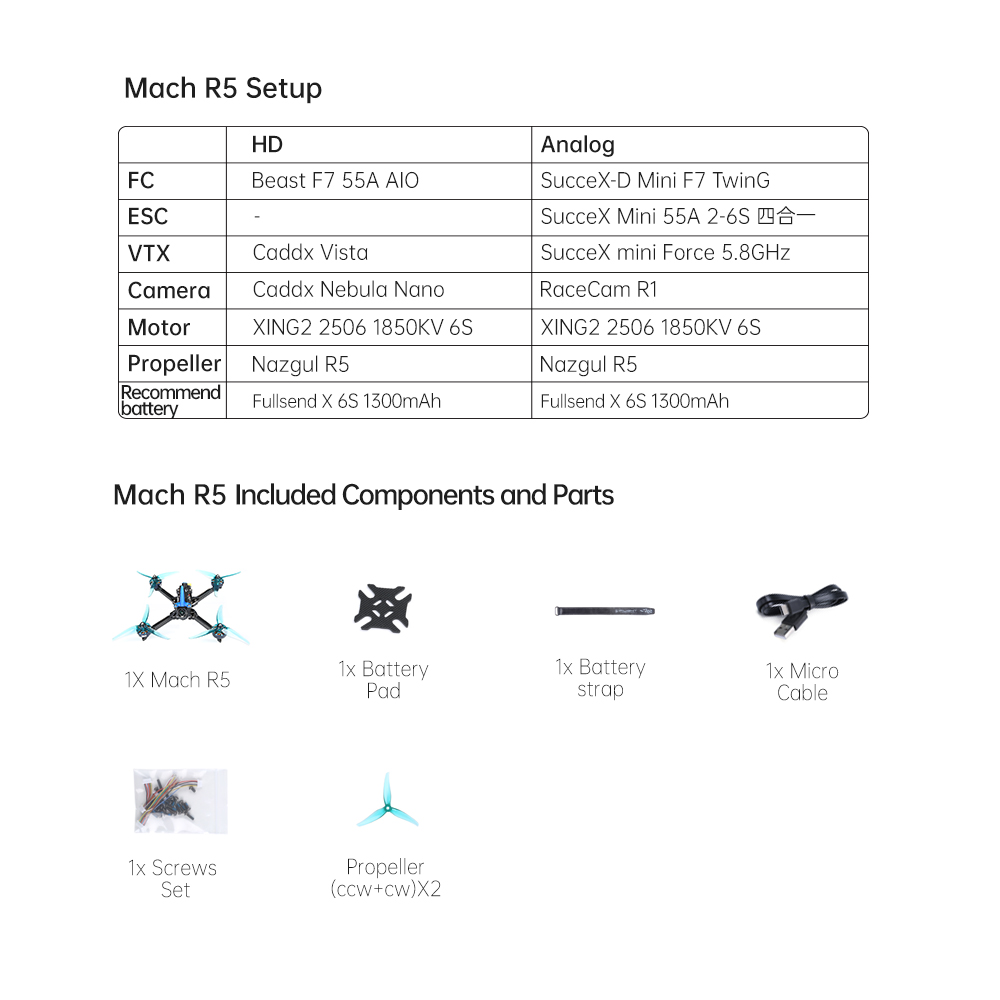

Package Included:
1x Mach R5 FPV Racing Drone ( Analog)
2x battery non-slip mat
1x battery tie
