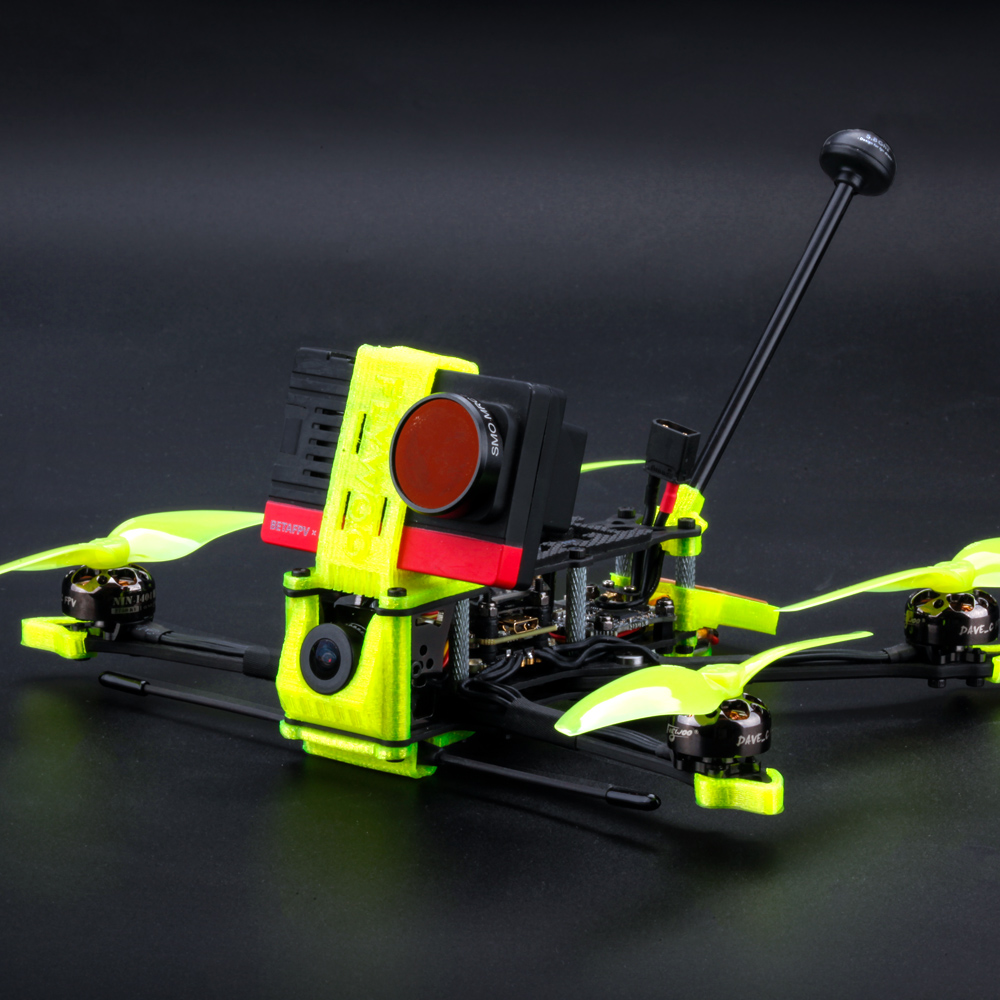

LR 4 Pro 4S Micro Long Range Analog FPV RC Drone Caddx Ratel 2 GOKU HM600 VTX 600MW

Main Changelog Analog Pro:
1、 Equipped with Caddx Ratel V2 Camera, perform better
2、Built-in BT-NANO Bluetooth module
3、Built-in Flywoo AGC-MIC Microphone module

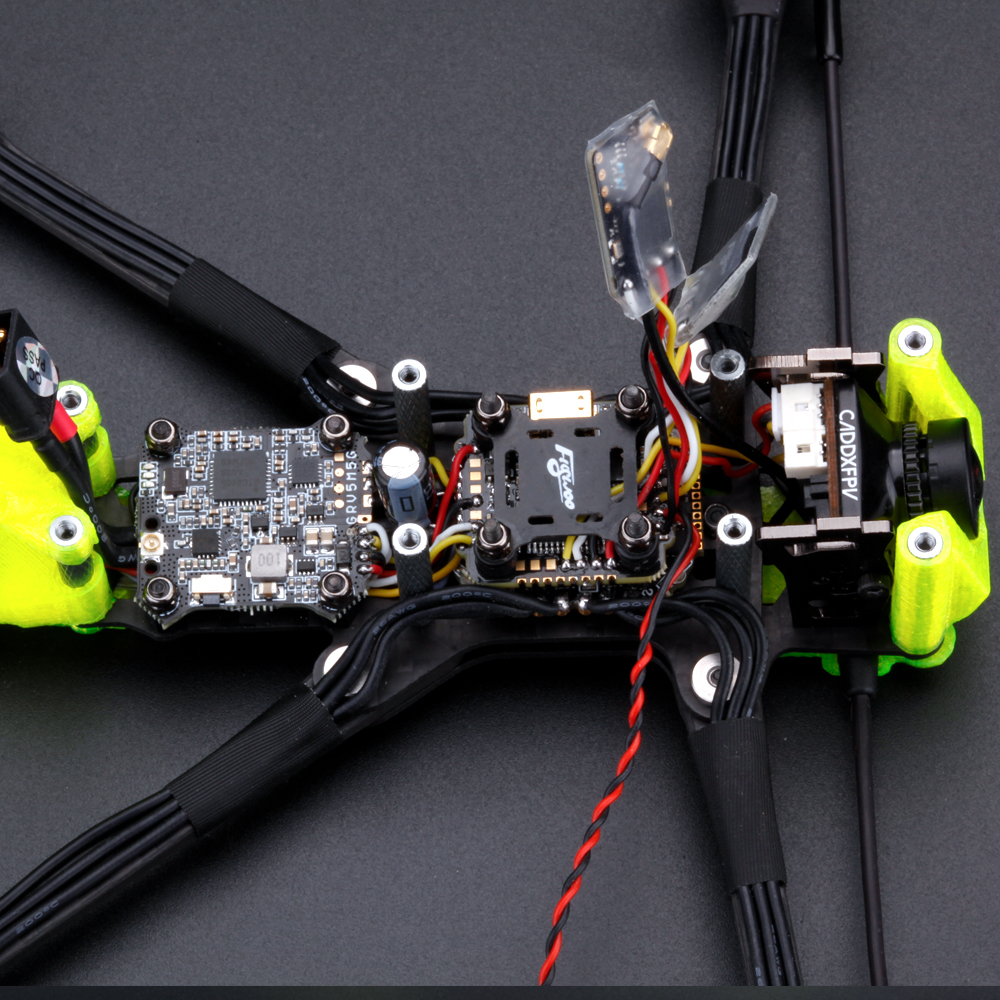

4、Goku F745 2-6S 16x16 Stack/Combo ( F745 FC / 35A 4in1 ESC )

Specifications:

Brand: Flywoo

Item Name: Explorer LR 4 Pro

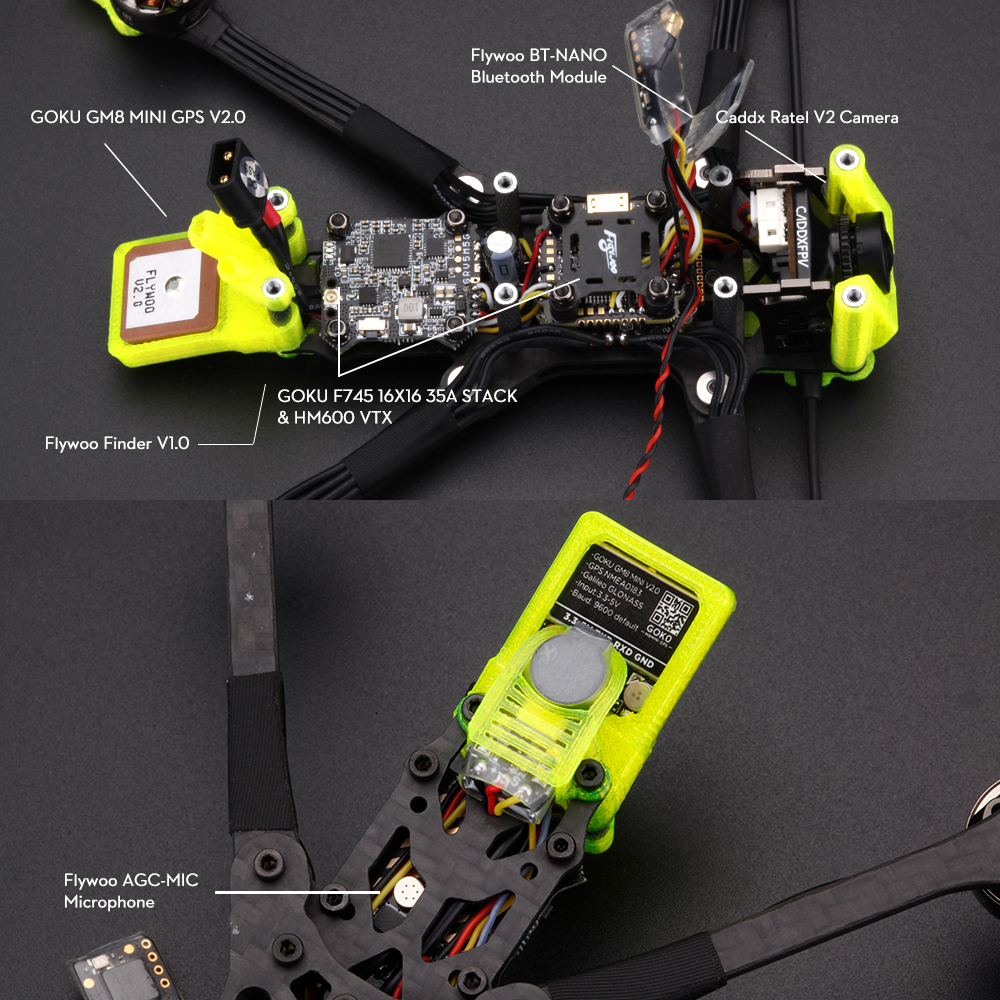

FC & ESC Combo : Goku F745 2-6S 16x16 Stack/Combo ( F745 FC / 35A 4in1 ESC )
VTX : GOKU HM600 VTX 600MW (Link)
Camera: Caddx Ratel 2
Motor: NIN V2 1404-2750KV （Link）
Blutooth : BT-NANO V2 Bluetooth Module (Link)
MIC : Flywoo AGC-MIC Microphone
GPS : FLYWOO GM8 MINI V2.0 GPS
Propeller: Gemfan 4024 ( 4pcs Green 4pcs Gray )

Recommend Lipo: Lionpack VTC6 18650 3000mAh 4S XT30 Plug (Link)

Receiver Option: PNP(Without receiver)/ Frsky XM+(fcc)/ Frsky R9MM OTA(fcc)/ Tbs Crossfire Nano (Link)

Features:

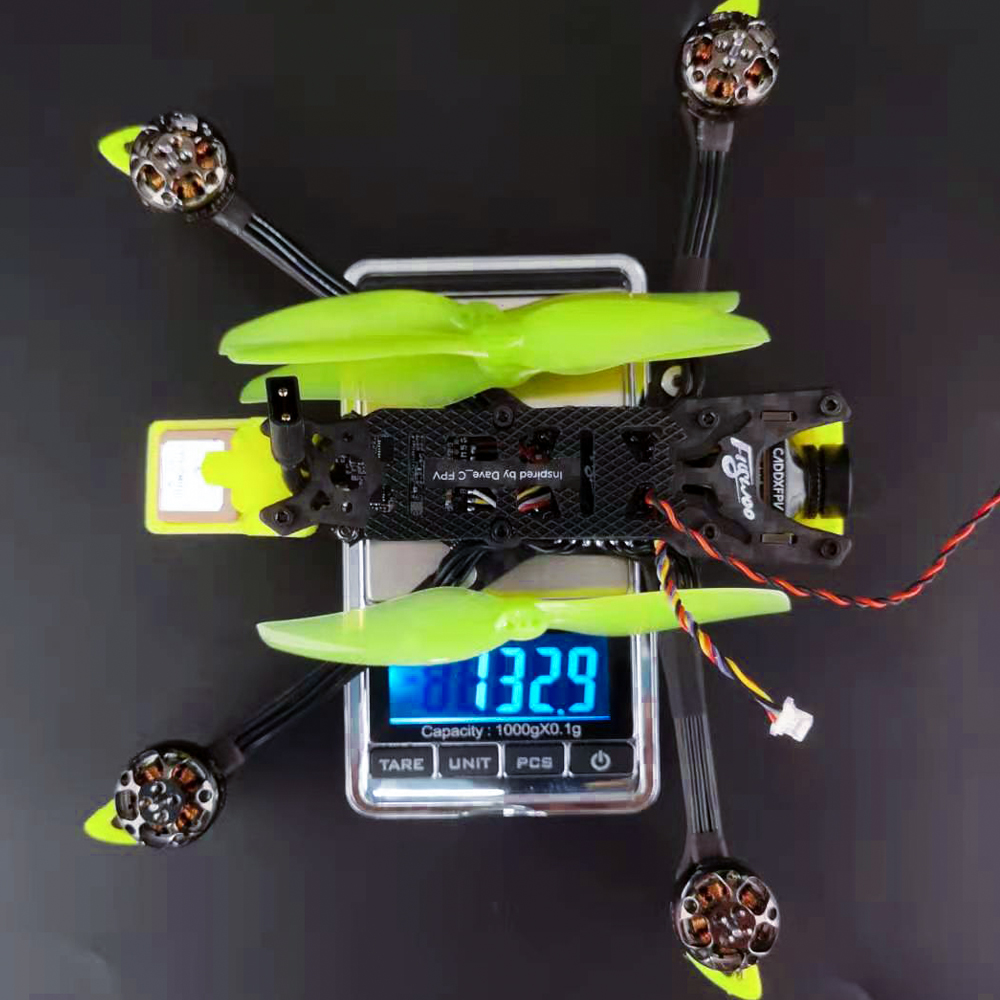

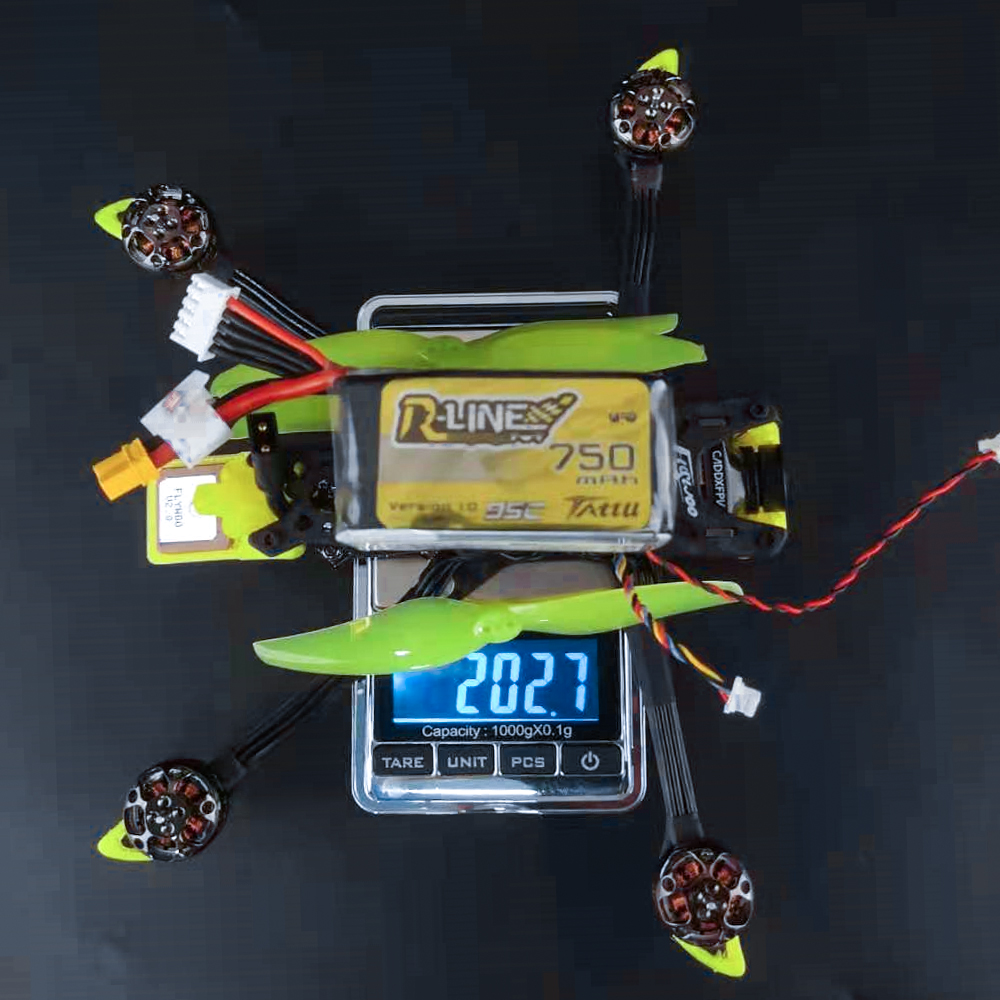

• The lightweight 4inch quad below 250g even if you connect with the battery, meet the current requested of FAA rules.
• Easy to control and long flight time, we strongly recommend to FPV beginners and pilots who like to cruise!
  Equipped with GOKU 16X16 MICRO STACK, and NIN 1404 v2-2750kv, support 4s battery. You can get up to
• 20 minutes cruising! So this is a quad that is very suitable for FPV beginners and long-range enthusiasts!
  It is recommended installing side carbon fiber plate to increase the strength and stability of the Arm.

How to Work Flywoo Finder v1.0？
Flywoo Finder v1.0 can power itself to beep and LED light to flash even the quad battery has been ejected.
Fingder v1.0 can work for 4-5 hours.
Press the button for 3 seconds to close it

How to Work Flywoo Goku GPS Mini V2.0 Rescue Function?

• Before disarm, GPS must search for more than 5 satellites to lock the home position.
• After disarming, observe the OSD data during the flight, and the rescue function can work normally only if the distance exceeds 100 m. Otherwise, the quad will crash.
• If the remote control suddenly loses signal, the GPS rescue function will work automatically and return to the home position. (Set the AUX of GPS rescue mode in betaflight Failsafe, the default is AUX3 2000)

Package Included:

1* Prebuilt and tested Explorer LR Drone w/ Rhcp Antenna
1* Side Carbon Plate 1 Set
1* Spare Srew
2*Gemfan 4024 4pcs
