- Stock: In Stock
- Model: ST22001456
- SKU: ST22001456
Specification:
Brand: AuroraRC

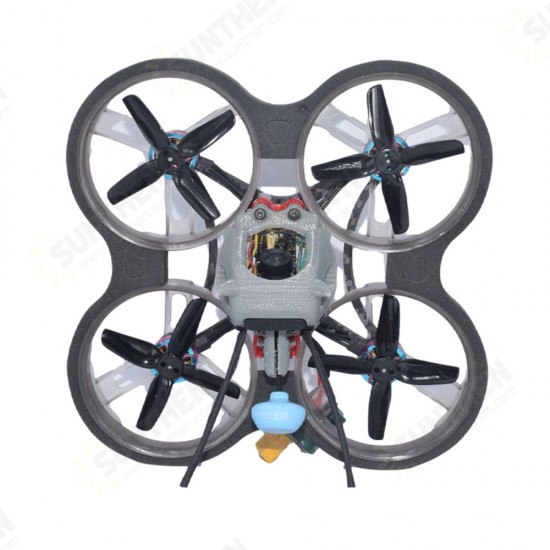

Item Name: DEMON 1200TVL Version 100mm RC FPV Racing Drone
Wheelbase: 100mm
Propeller Size: 2Inch
Flight Controller: F411 AIO FC
ESC: 25A BLHeli_S ESC
Motor: RCINPOWER GTS 1204 V2-5000KV Brushless Motor
Propeller: HQProP T2X2X4 4-Blade
VTX: TBS UNIFY PRO32 NANO 400MW
Camera: CADDX ANT 1200TVL Camera
Power Plug: XT30 Plug
Size: 85x85x58mm
Weight: 105g（No Included Battery）
Recommended Battery: 300-450mah 3-4s 40-120C Lipo Battery (No Included)
CADDX ANT 1200TVL Camera Detalis:
Model | Caddx Ant |
Image Sensor | 1/3" CMOS Sensor |
Horizontal Resolution | 1200 TVL |
TV System | NTSC or PAL |
MENU | Support |
IMAGE | 16:9 or 4:3 |
| Synchronization | Internal |
| Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| S/N Ratio | ＞52dB (AGC OFF) |
| Video Output | CVBS |
| Lens | 1.8mm |
| Min.illumination | [email protected] |
| Auto Gain Control | YES |
| BLC | YES |
| WDR | Global WDR |
| NDR | 3D DNR |
| Dimensions | 14*14mm (Bracket to 19*19mm) |
| Wide Power Input | DC 3.7-18V |
| Work Temperature | -20℃~+60℃ |
| Work Humidity | 20%-80% |
Weight | 2g(N.W.) |
Package Included:
1 x AuroraRC DEMON 1200TVL Version 100mm RC FPV Racing Drone
1 X Battery Antiskid Gasket
1 X Battery Tie
1 X Spare Screw
1 X Camera Parameter Adjustment Board
2 X Antenna Tie
2 X Antenna Heat Shrinkable Tube
Option 1: PNP Receiver
Option 2: FRSKY XM+ Receiver
Option 3: FLYSKY Receiver
Option 4: TBS CROSFIRE NANO Receiver
