- Stock: In Stock
- Model: ST22001528
- SKU: ST22001528

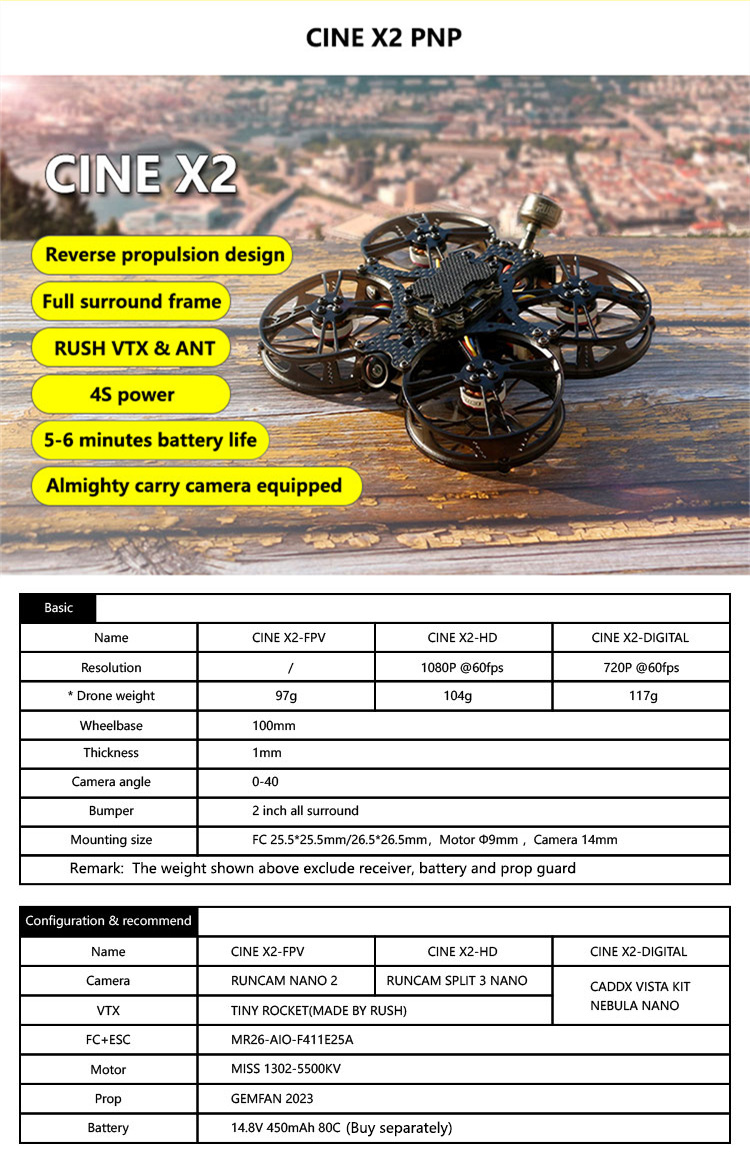

Specification:
Brand Name: FPVRACER
Model: CINE X2 ( Digital)
Item Name: 100mm F4 4S 2 Inch Whoop FPV Racing Drone
Version: PNP ( Without Receiver, Battery, Radio Transmitter)
Wheelbase: 100mm
Weight: 117g ( Without Battery, Receiver and Prop Guard)
F4 FC AIO 25A ESC Board ( Manual) | Model: MR26-AIO-F411E25A Input Voltage: 3-4S Lipo (10-18V) Size: 32.5x32.5mm ( Mounting Hole: 26.5x26.5mm) Weight: 8.1g Chip: STM32F411CE/ 100MHZ/ 512KB FLASH/ 128KB RAM Gyroscope: MPU600, SPI OSD: AT7456E URAT: 2 FC Firmware Target: LDARCF411 ESC Firmware Target: g_H_30 FC Current Sensor Scale: 100 / OFFSET 0 Con. Current: 25A ( Burst Current: 30A ) ESC MOSFET: TRN2R203 BEC: MP9943/3A/36V - Support Spektrum Satellite/ SBUS/TBS Crossfire Nano Receiver |
| MISS 1302 5500KV Brushless Motor | Motor Size: ф16.8 x 10mm Motor Cable: 24#AWG 50mm Shaft Diameter: 1.5mm Stator Diameter: 13mm Stator Thickness: 2mm Bolt Holes Spacing: 9x9mm, M2 Weight: 5.6g |
| GEMFAN 2023 3-Blade Propeller | Center Hole Inner Diameter: 1.5mm Quantity: 4 CW & 4 CCW |
| Caddx Vista Kit Nebula Nano HD Digital System | Dimensions: Vista Kit: 30x29x13mm Camera: 14x14x21mm Coaxial Cable:80mm/120mm Operating Frequency: 5.725-5.850GHz Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm Min. Latency (end-to-end):720p 60fps: 32ms Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km I/O Interface: USB-C,IPEX,3-in-1 Port Supported Flight Control System: F3,F4,F7 Operating Temperature Range: 32° to 104° F (0℃ ~40℃) Input Power: 7.4-26.4V Power output: 25mW/200mW/500mW/700mW Hardware included:Vista/Nebula nano/Coaxial cable/Antenna Goggles: work with DJI goggles Camera:Sensor: 1/3''CMOS Lens: 2.1mm,f/2.1 Shutter: Rolling shutter FOV: 150°[D],122°[H],93°[V] |
| Built-in Receiver | Built-in Receiver, compatible with DJI Remote Controller |
Recommend buy together:
DJI Remote Controller ( Link)
4S 14.8V 450mAh 80C Lipo Battery XT30 Plug ( Link)
Flight Time: 5-6mins
Click Here buy CINE X2 FPV Version.
Click Here buy CINE X2 HD Version.

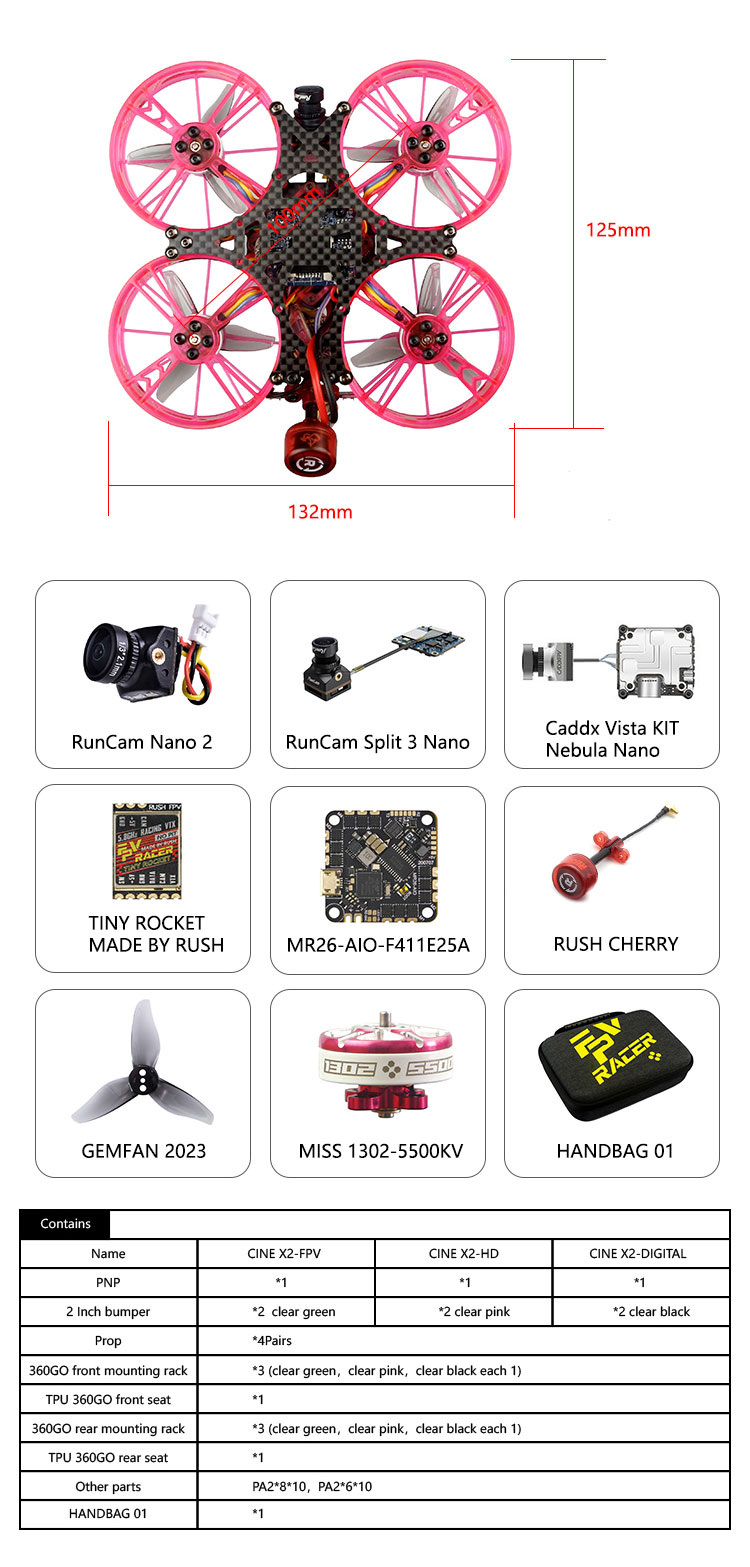

Pacakge Included:
1x CINE X2 100mm FPV Drone (Digital)
2x Prop Guard ( Clear Black Color)
4x Gemfan 2023 Propeller CW
4x Gemfan 2023 Propeller CCW

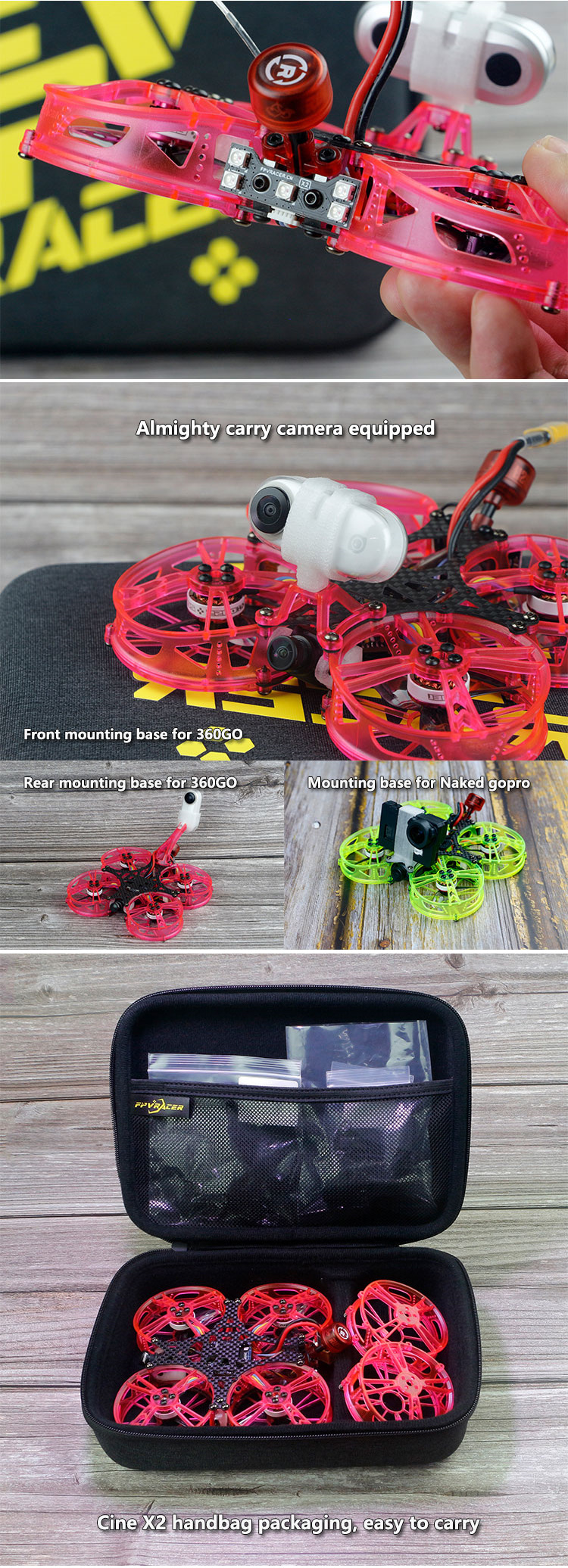

3x 360GO Front Mounting Rack
3x 360GO Rear Mounting Rack
1x TPU 360GO Front Seat
1x TPU 360GO Rear Seat
1x Handbag
