- Stock: In Stock
- Model: ST22000958
- SKU: ST22000958
Specification:
Brand Name: GEELANG
Model: Anger 85X 1080P HD

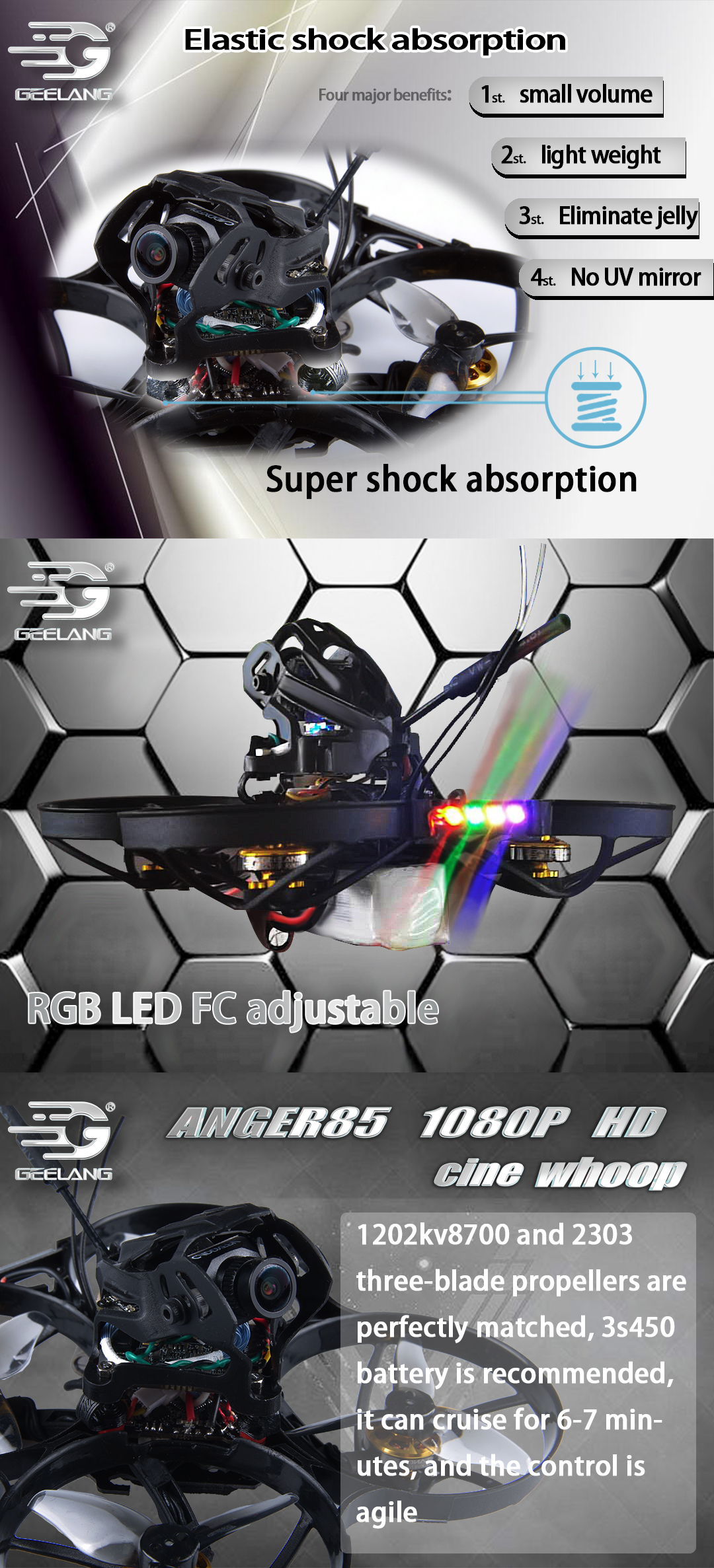

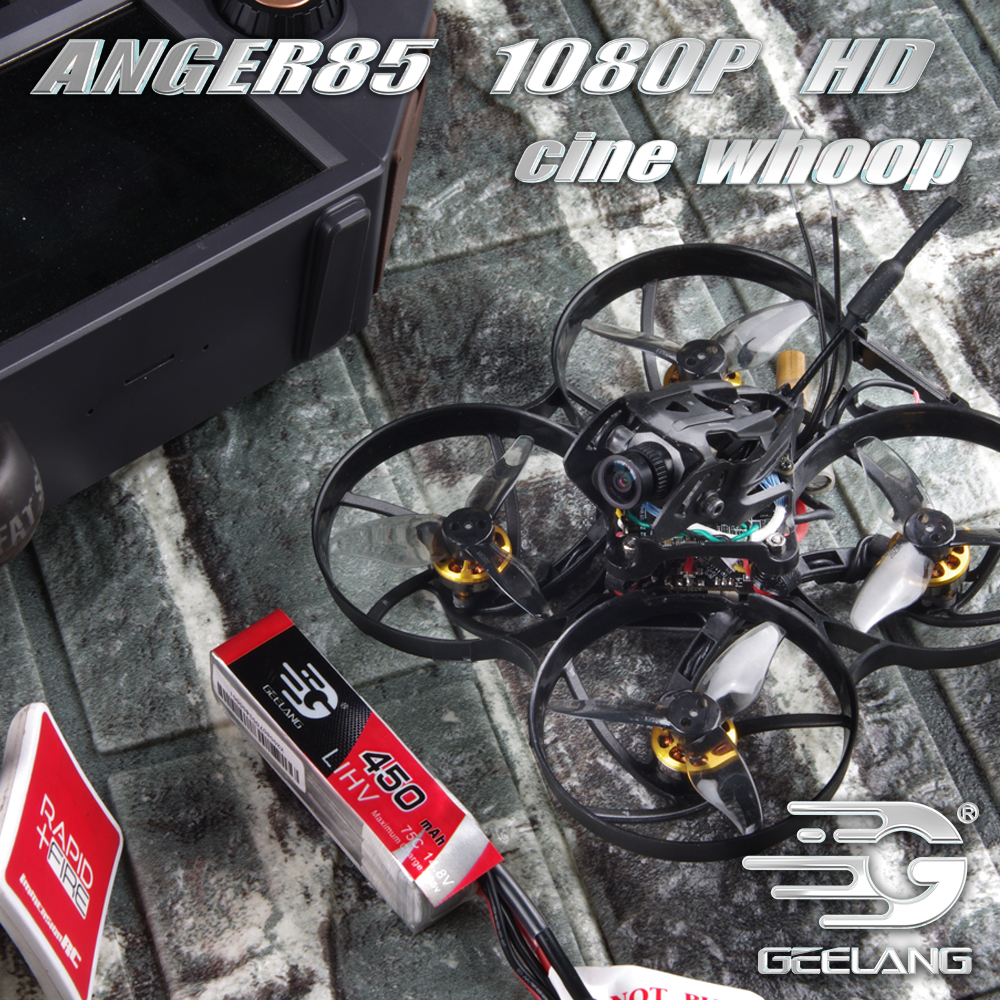

Item Name: 85mm F4 2-3S 2 Inch FPV Racing Drone
Wheelbase:85mm
Size:118mm*118mm*70mm
Weight:59g(without battery)
Take Off Weight: 100g
Recommend 3S 450mAh lithium battery, flight time can reach 6 minutes 30 seconds -7 minutes
| GL1202 8700KV Motor
|
Stator specifications: D12 * H4 0.2mm
Configu-ration: 9N12P Stator Diamter: 12mm Stator Length: 2mm Shaft Diameter: Φ1.5mm Winding Specifications: 180℃ Class Multiple oxygen-free copper Weight: 3.4g No.of Cells: 2-3S Lipo | ||||||||||||
| F4 Flight Controller Built-in 5A 4in1 ESC |
Name: SH50AF4 MATEKF411
MCU: STM32F411CEU6 (100MHZ, 512K flash memory) Sensor: MPU-6000 (SPI connection) Shop: 8MB black box onboard Board size: 28.5 * 28.5MM Power supply: 2-3S battery input (DC 7-12.6V) Built-in 5A (each) Blheli_S 4 in 1 ESC Dshot600 ready Built-in Betaflight OSD (SPI control) Built-in 5V 2A BEC Built-in voltage detection The onboard 4-in-1 ESC MCU is upgraded to EFM8BB21 Power supply: 2-3S LiPo / LiPo HV (7v / 12.6v) Current: 5A continuous peak value 7A (5 seconds) Support BLHeliSuite programmable Factory firmware: G_H_50_REV16_77.HEX Default protocol: DSHOT600 | ||||||||||||
| Optional Receiver |
| ||||||||||||
| 5.8G 40CH 25-200mW VTX |
VTX output power: 25~200mw adjustable
Frequency: 40CH Input voltage: 3.2V- 5.2V Current consumption: 320mA (type) Power switching: three gears (25MW, 100MW, 200MW) Antenna frequency: 5.8GHz 5 frequency band 40 channels Band competition Ready for smart audio Weight: 1.9 g LED: RGB LED light strip, adjustable flight control | ||||||||||||
| Caddx Baby Turtle Camera
|
Resolution: 800TVL
Video standard: 1080p 60fps Field of view: 170 degrees Screen size: 4:3, 16:9 Maximum supported recording capacity: 64g u1 Power supply: 5v-20v Current: 12v / 160ma Weight: 9g | ||||||||||||
| Gemfan 2030 3-Blade Propeller | Quantity: 4 CW & 4 CCW | ||||||||||||
| Lipo Battery | Item Name: 3S 450mAh Lipo Battery Quantity: 1 PC |
Package Included:
1x GEELANG Anger 85X 1080P FPV Drone
1x screw driver
1x 3S 450mah battery
1x USB data cable
1x Bag
