19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera

19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
19.5g Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
  • Stock: In Stock
  • Model: ST22001409
  • SKU: ST22001409
$116.59
Ex Tax: $116.59

Available Options



Notice:

Because the previous materials of the bag are seriously out of stock, happymodel change it in soft fabric material .

At present, our stock are mix, will send randomly.

July 18th, 2021.


Specification:

Brand: Sunthen

Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97x97x25mm

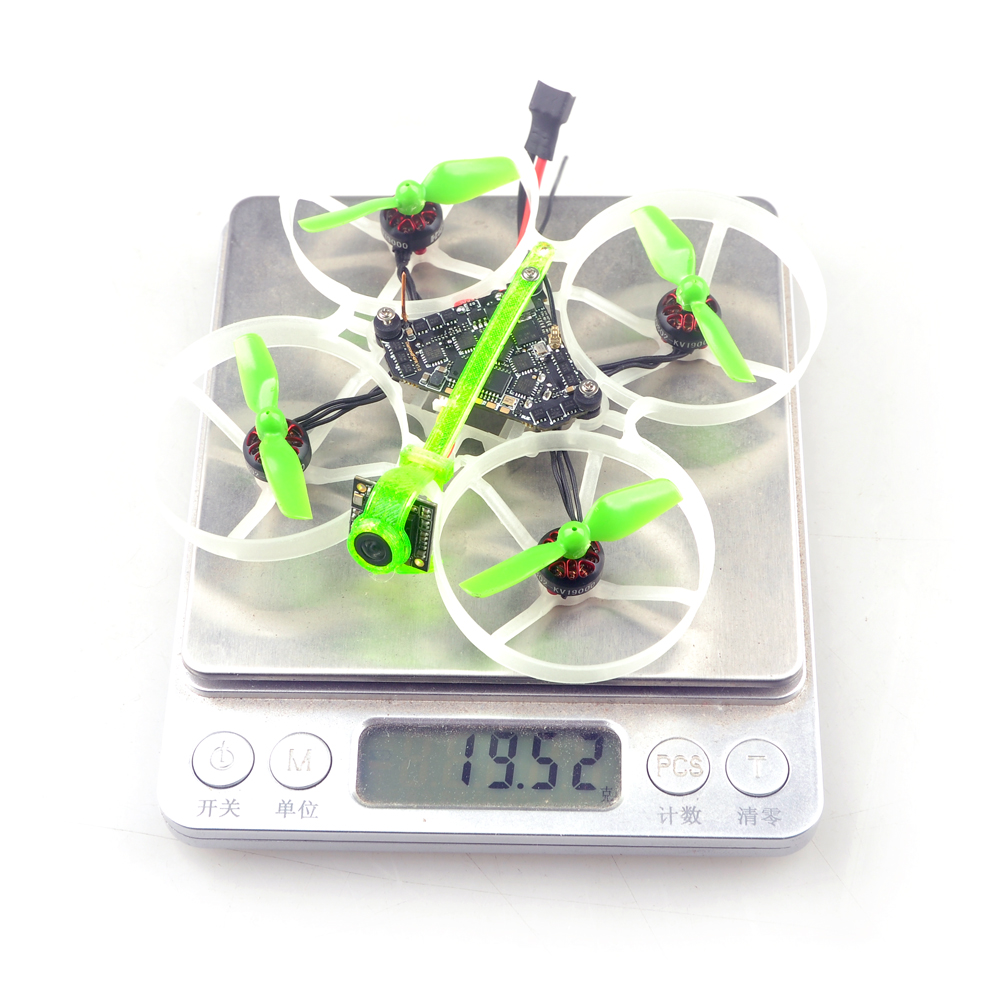

Weight: 19.5g (without battery)
Weight: 36g (with Original 1s 650mah Lipo battery )

Motor

Model: EX 0802 19000KV ( New Unibell Version)

Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Weight(g): 1.7g
No.of Cells(Lipo): 1S only

Flight Controller

(Frsky SPI RX Version) DiamondF4 FR FC Firmware Target: CrazybeeF4FR

MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC

MCU Upgraded to EFM8BB21

Power Supply: 1S LiPo/LiPo HV
Current: 5A continuous, peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory Firmware: O_H_50_REV16_8.HEX
Default Protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

SPI BUS Receiver Frsky D8 Compatible

Compatible Non EU transmitter D8 model
Channels: 8CH
Failsafe Support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard Flysky Receiver Version
SPI BUS Receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8CH (AFHDS) or 14CH (AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe Support

Onboard 5.8G 40CH 25-200mW VTX

Output Power: 25mw~200mw switchable

Frequency: 40CH
Input Voltage: 3.3V 5.5V
Current Consumption: 300mA (type)
Frequency: 5.8GHz 5bands 40 channels (include Race band)
Smartaudio Ready

Runcam Nano 3 FPV Camera

Model: RunCam Nano 3

Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery

Capacity: 650mAh

Voltage: 3.8V
Continuous Discharge Rate: 30C
Instantaneous Discharge Rate: 60C
Size: 60mmx18mmx8mm
Weight: 16g
Connector: PH2.0

Quantity: 2 PCS


Features:
- The lightest 1s 75mm brushless whoop
- Powerful and efficiency
- The lightest 1s AIO 5IN1 F4 flight controller
- New Unibell EX0802 brushless motors
- Low profile Canopy design
- VTX power switchable 25mw~200mw

Package Included:

1 x Sunthen Moblite7 75mm Whoop RC FPV Racing Drone
Option1: 1 x DiamondF4 FR built-in SPI Frsky Receiver
Option2: 1 x DiamondF4 FS built-in SPI Flysky Receiver
4 x EX0802 KV19000 Unibell Brushless Motor
1 x HQPROP 40MMX2 Propeller(4cw+4ccw)
1 x Runcam Nano 3 FPV Camera
1 x Built-in 5.8G 40ch 25mw-200mw VTX
2 x 1S 650mah Lipo Battery
1 x Propeller Disassemble Tool
1 x Screwdriver

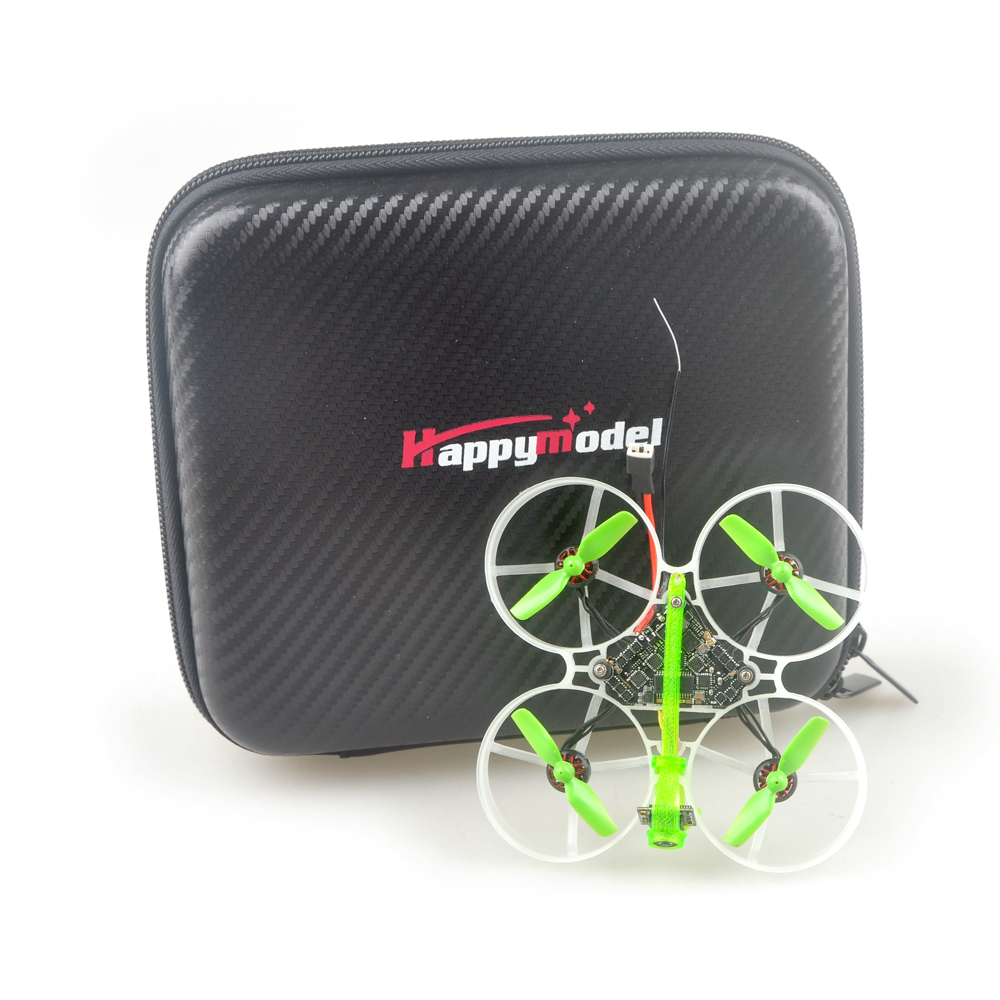

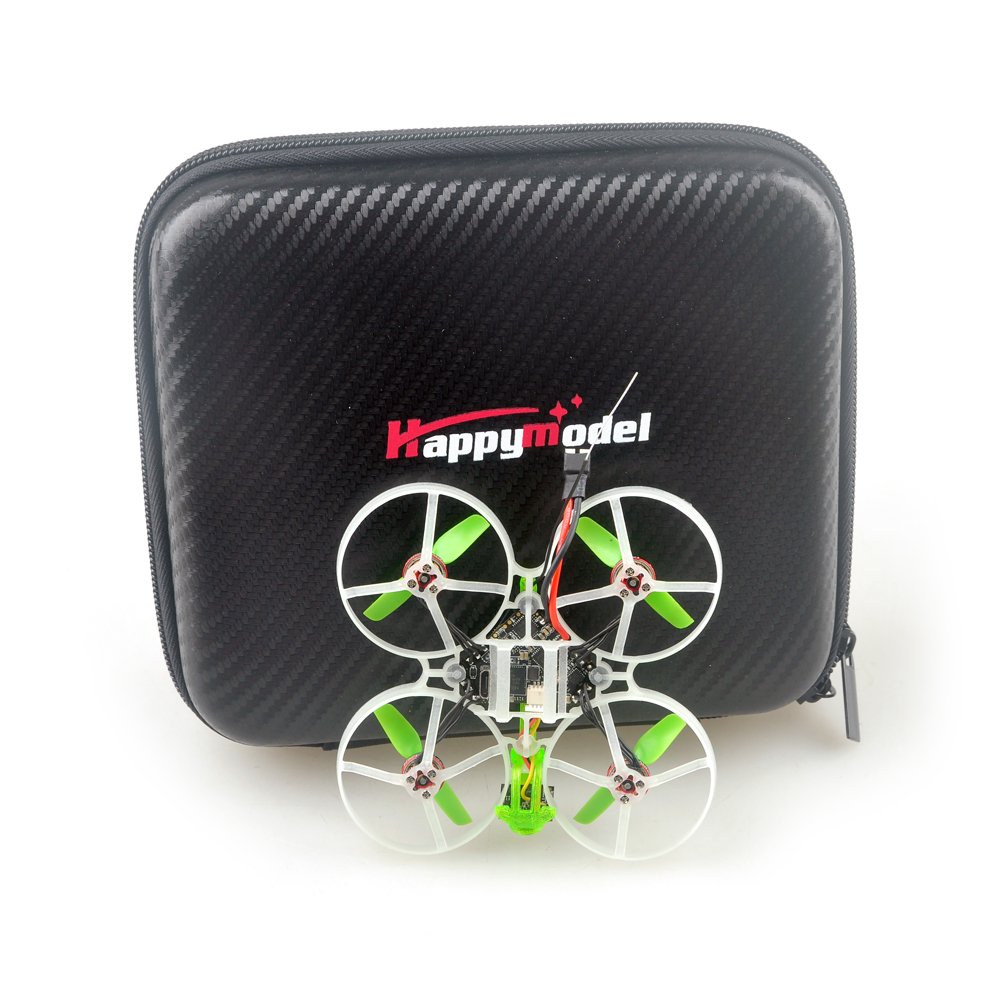

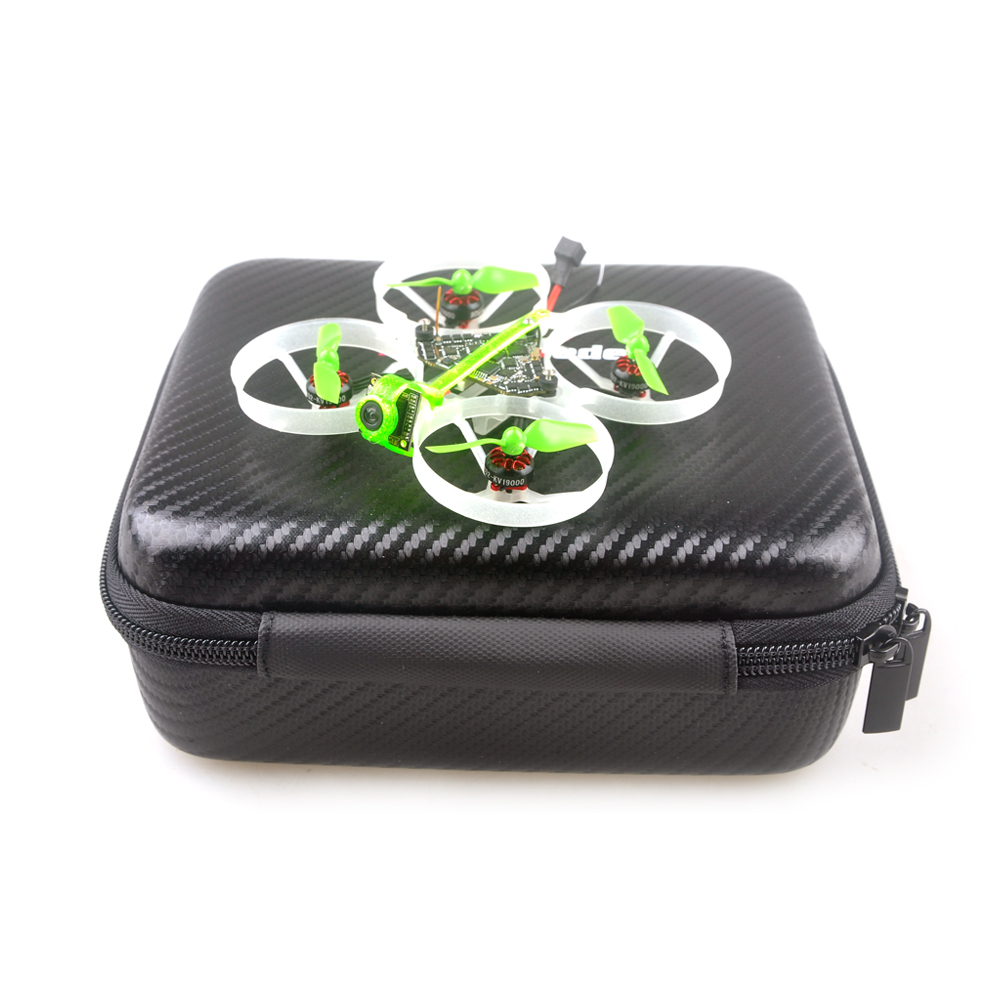

1 x Sunthen Carry Case
