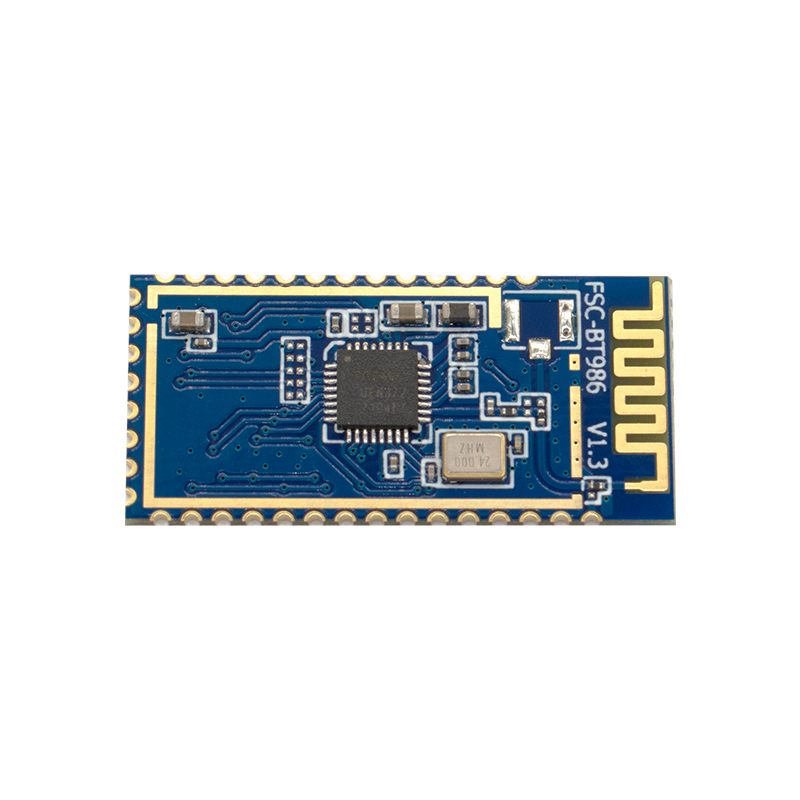

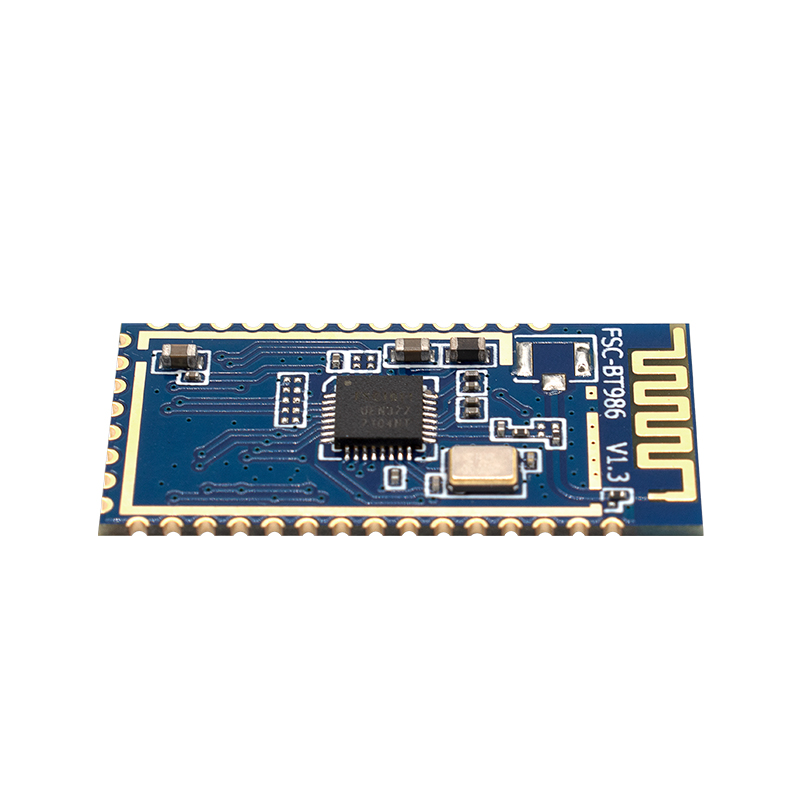

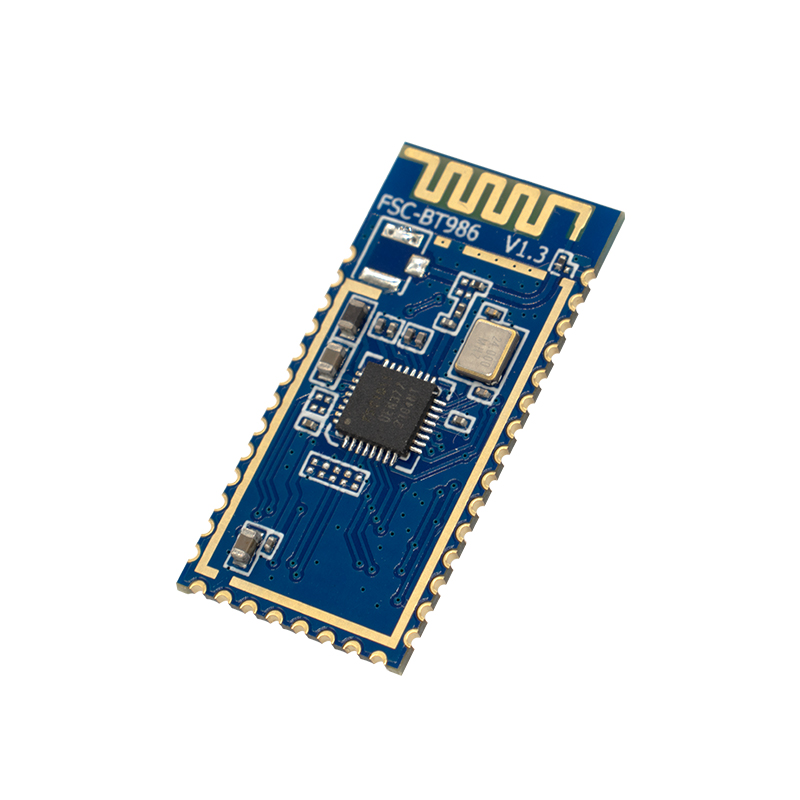

HC05 FSC-BT986 Bluetooth Module Master-slave Integration Speed Serial Port 4.2 Transparent Transmission Module
- Stock: In Stock
- Model: ST230045569
- SKU: ST230045569
$8.99
Ex Tax: $8.99
>>>Manual: Click here to open<<<
Description:
- FSC-BT986 is a high-performance, highly integrated Bluetooth 5.2 BR/EDR/BLE, designed to operate on the 2400MHz to 2480Mhz ISM frequency band.
- Abundant peripherals, power-on reset (POR) and I2C/USB, arithmetic accelerators further reduce the cost and size of the entire system.
- Support communicating with the FeasyBlue app and many other Bluetooth apps
Data transmission Bluetooth module’s solution:
| Bluetooth module model | FSC-BT986 |
| Bluetooth version | Bluetooth 5.2 dual mode |
| Certifications | CE, FCC, IC, KC, NCC |
| Dimension | 13mm X 26.9mm X 2.4mm; Pad Pitch 1.5mm |
| Interfaces | UART |
| Profiles | SPP, GATT |
| Frequency | 2.400-2.480 GHz |
| Transmit power | 5 dBm (Maximum) |
| Power supply | 3.3-3.6V |
| Antenna | Built-in PCB Antenna(Default), supports external antenna(Optional) |
| Power Consumption | Working current 5mA |
| Storage Temperature | -20℃ to +85℃ |
| Operating Temperature | -20℃ to +85℃ |
| Highlights | Excellent compatibility, Multiple connections, Low cost, HC-05 pin-to-pin solution, Low power consumption |
Application:
- Printer
- Health Thermometer
- Heart Rate
- Blood Pressure
- Proximity
Package includes:
1 x Dual mode module
