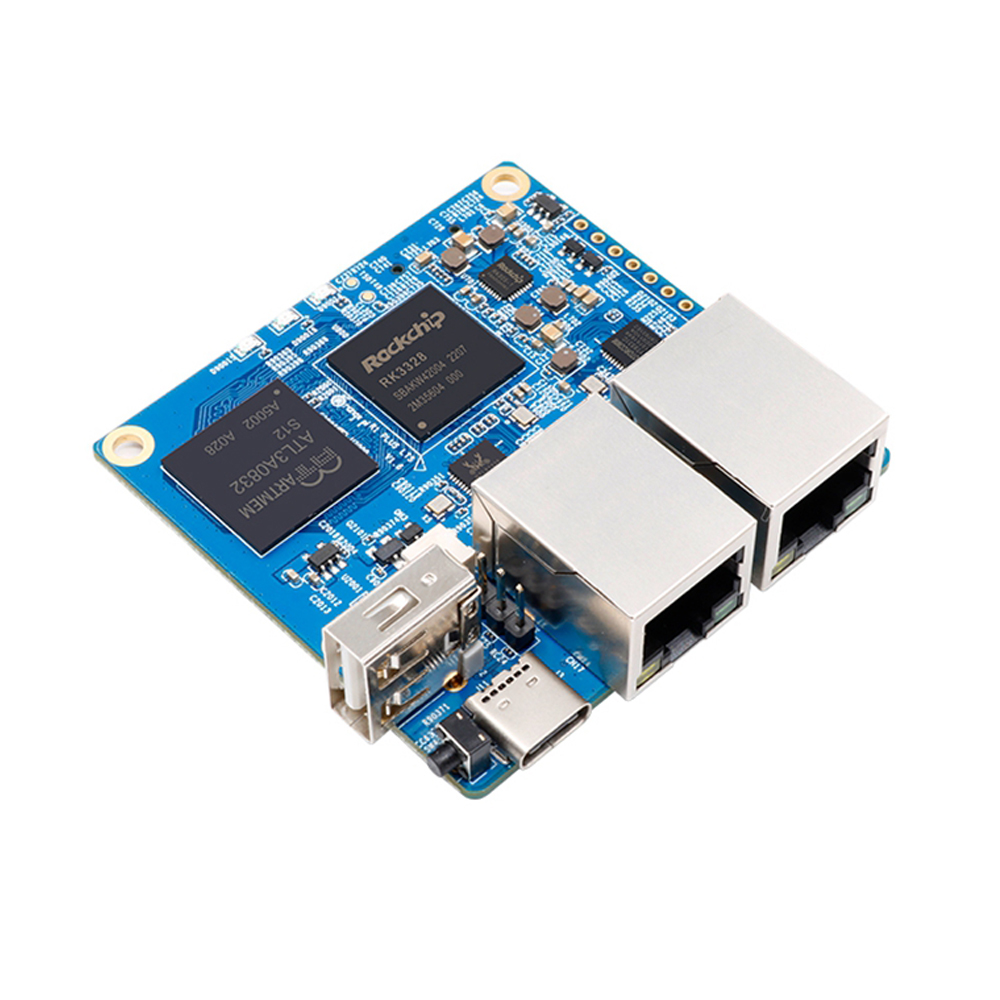

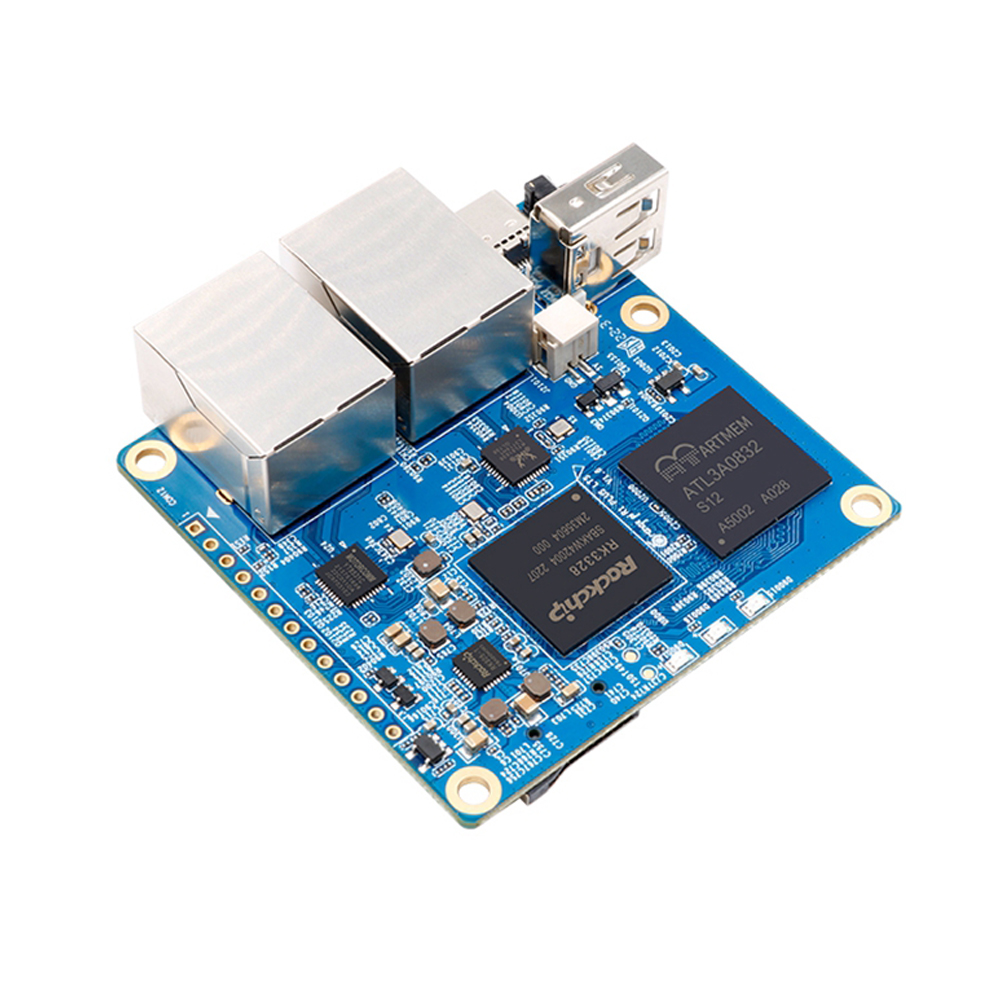

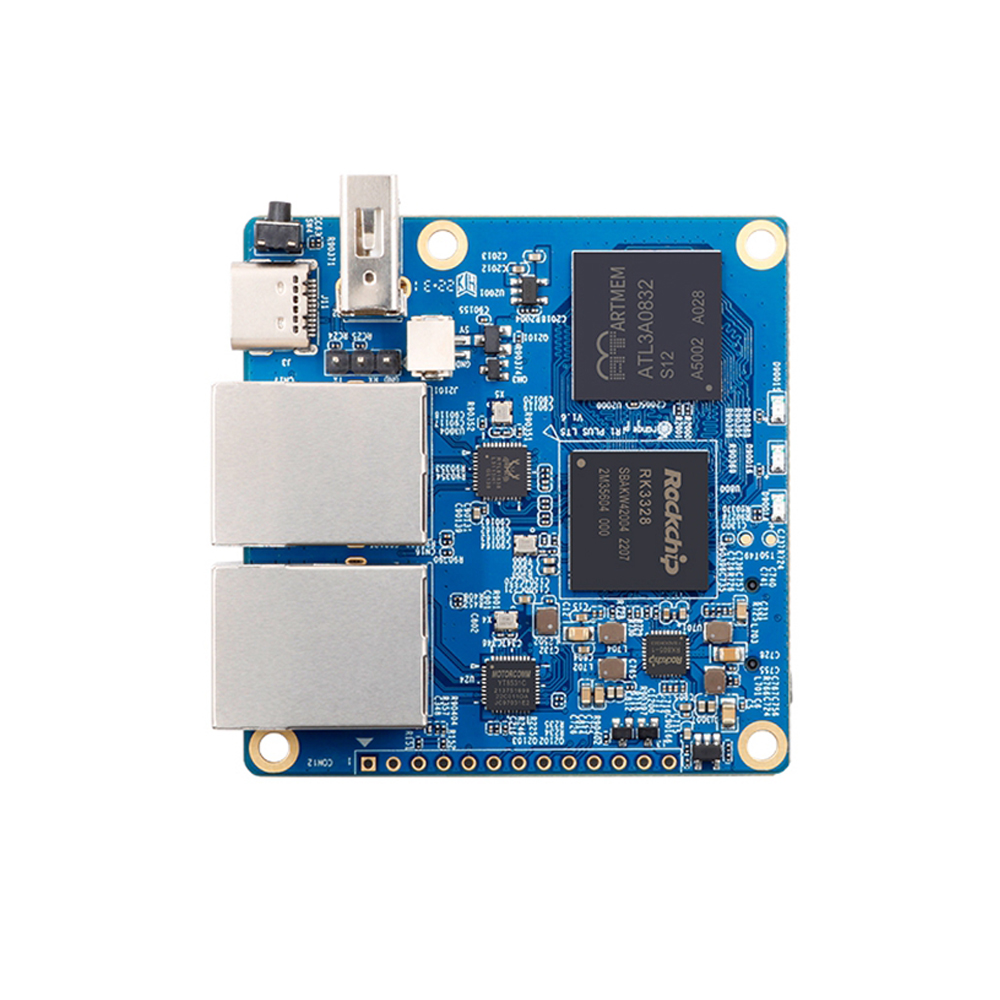

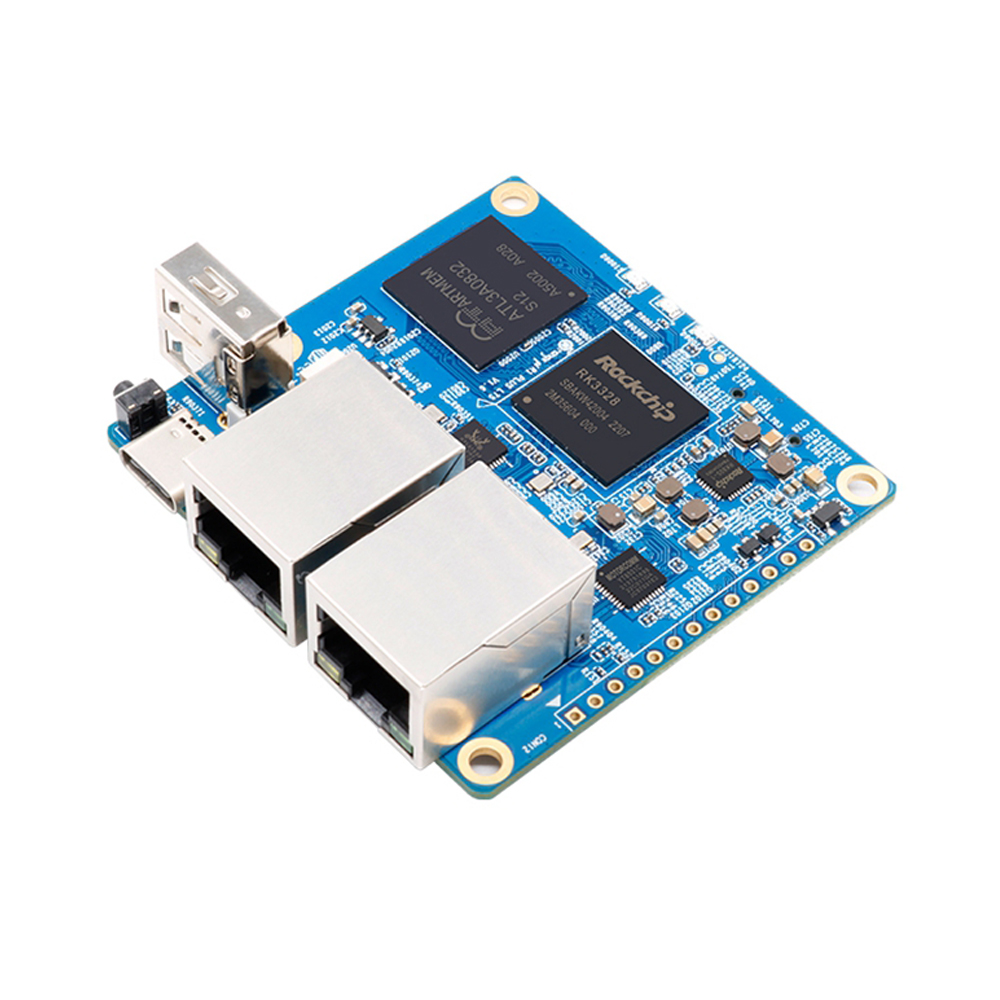

Orange Pi R1 Plus LTS 1GB RAM Rockchip RK3328 Open Source Single Board Computer Run Android 9 Ubuntu Debian OS
- Stock: In Stock
- Model: ST230046833
- SKU: ST230046833
$59.99
Ex Tax: $59.99
Feature:

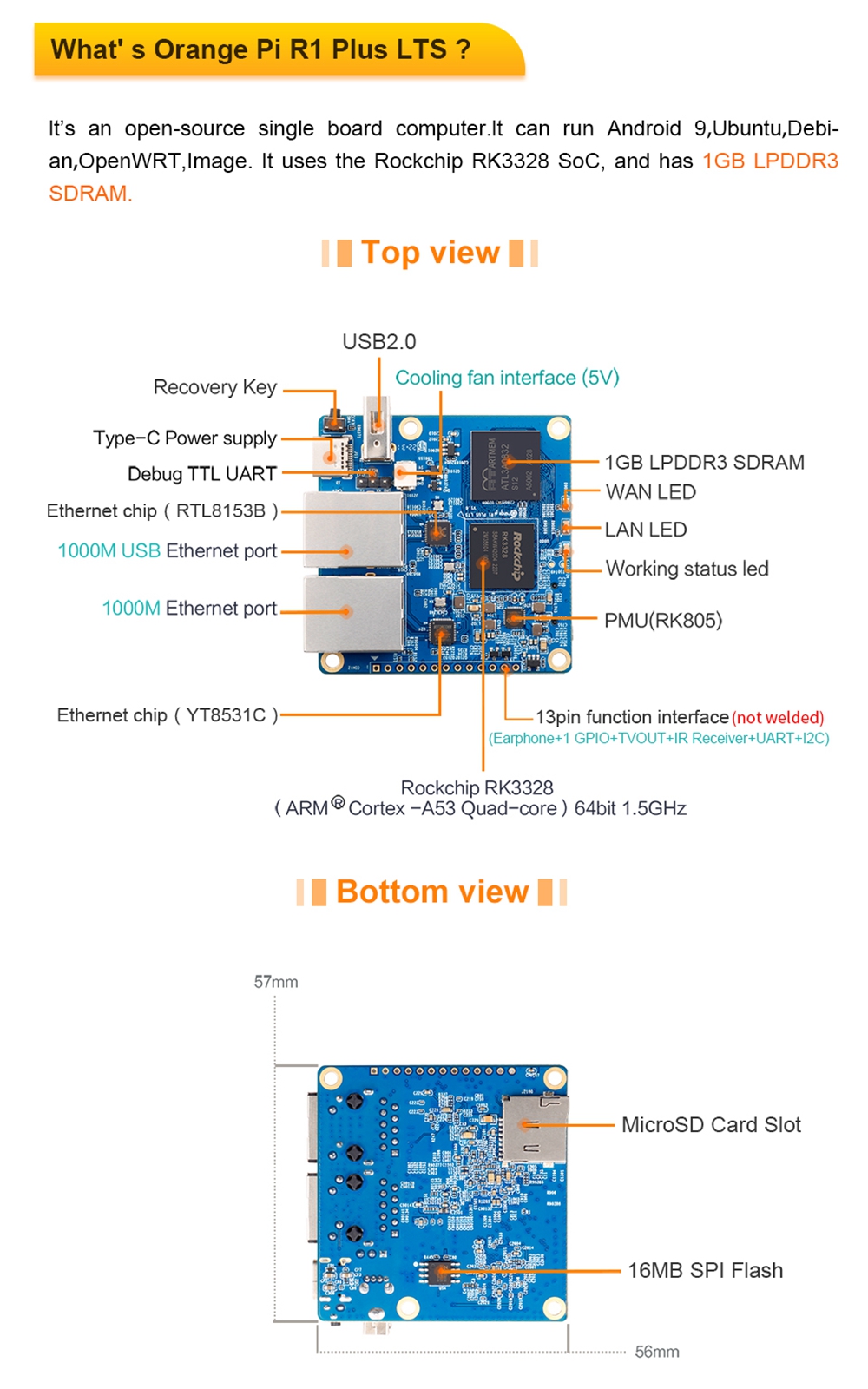

| Hardware specification | |

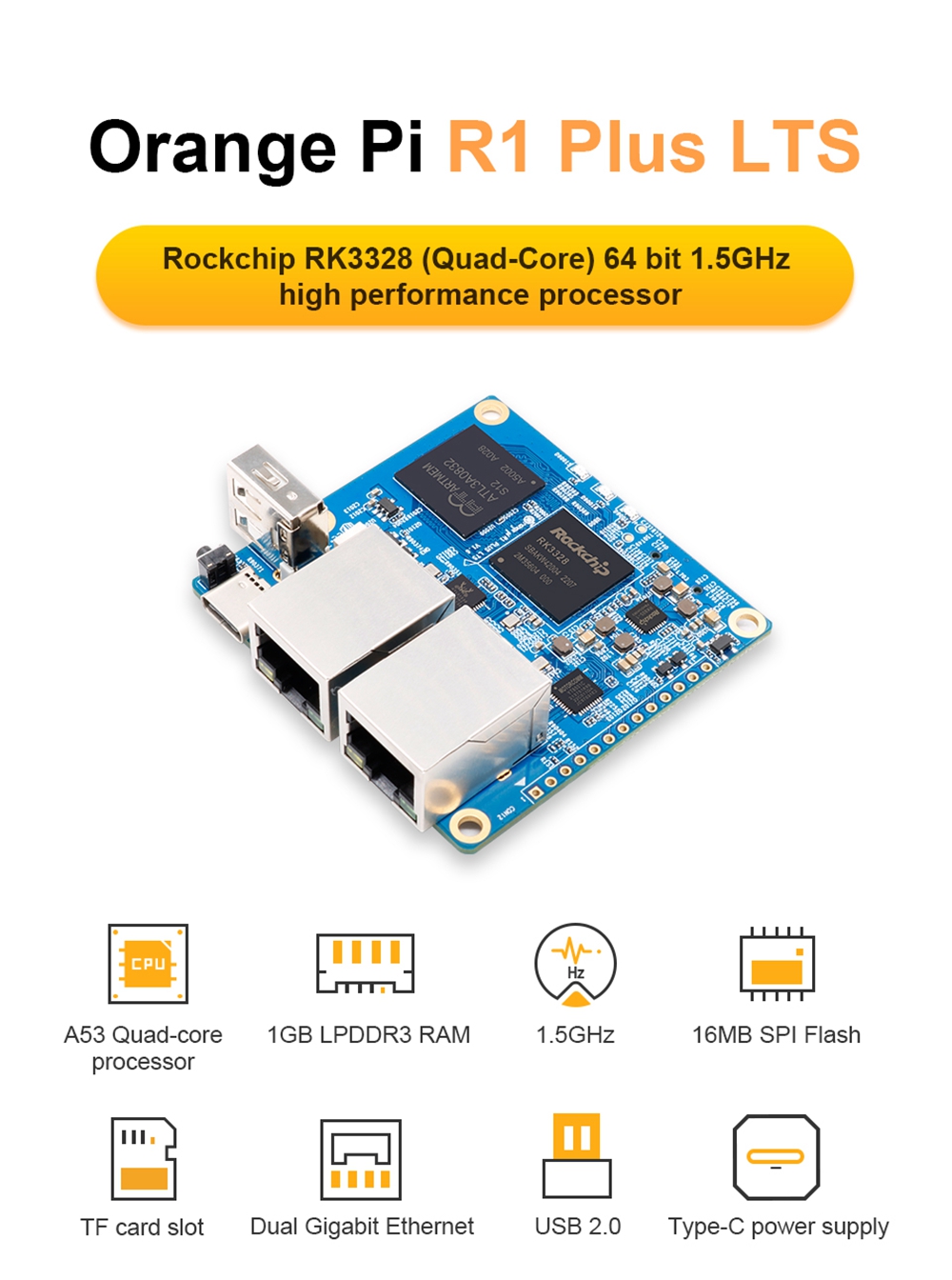

| CPU | Rockchip RK3328 Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz |
| GPU | Mali-450MP2 Supports OpenGL ES 1.0/2.0 |
| Power Management Chip | RK805 |
| Memory(SDRAM) | 1GB LPDDR3 |

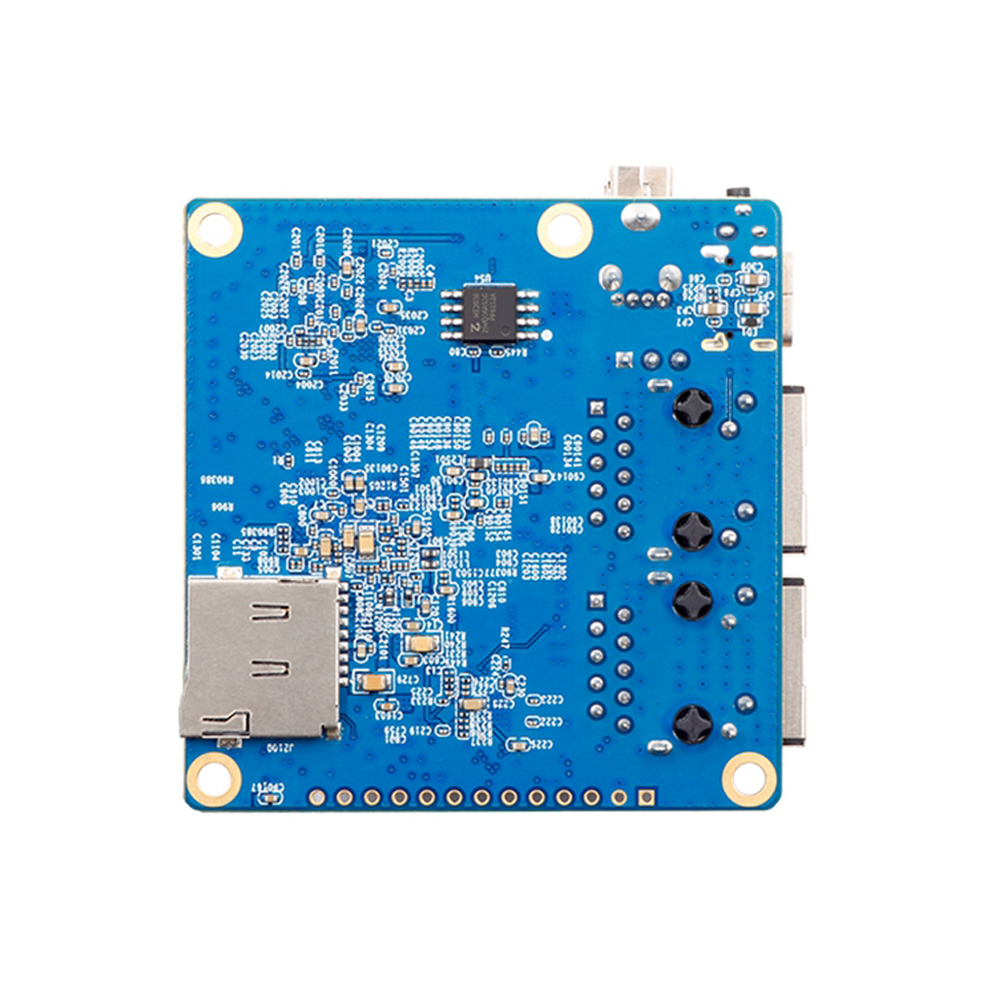

| Onboard Storage | - MicroSD Card Slot - 16MB SPI Flash |
| Onboard Network | 10M/100M/1000M Ethernet (YT8531C) 10M/100M/1000M USB Ethernet (RTL8153B) |
| Video Output | TV CVBS Output (Via 13Pin Interface Board) |
| Audio Output | 3.5mm Audio Port (Via 13Pin Interface Board) |
| Power Source | USB Type-C Interface 5V2A Input |
| USB | 1*USB 2.0 HOST |

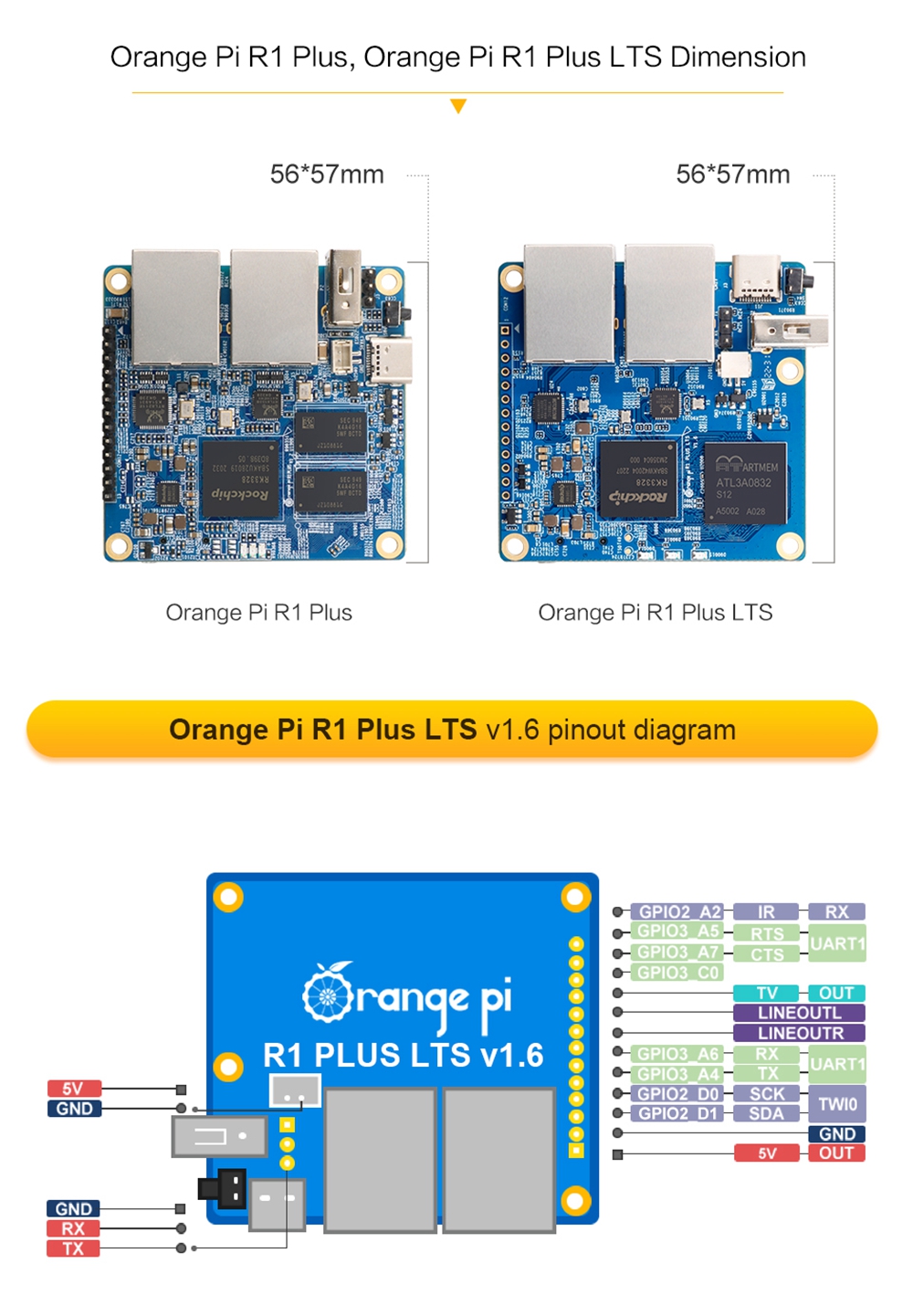

| Low-Level Peripherals | 13pin connector with UART, I2C, IR pin, Tv-out, AUDIO (no MIC), 2*USB2.0 (not supported) and 1 GPIO port Note: 13Pin Headers Will Not Be Welded |
| Debug Serial Port | UART-TX, UART-RX & GND |
| Button | 1*Reset Button |
| Fan Interface | 1*Cooling Fan Interface (5V) |

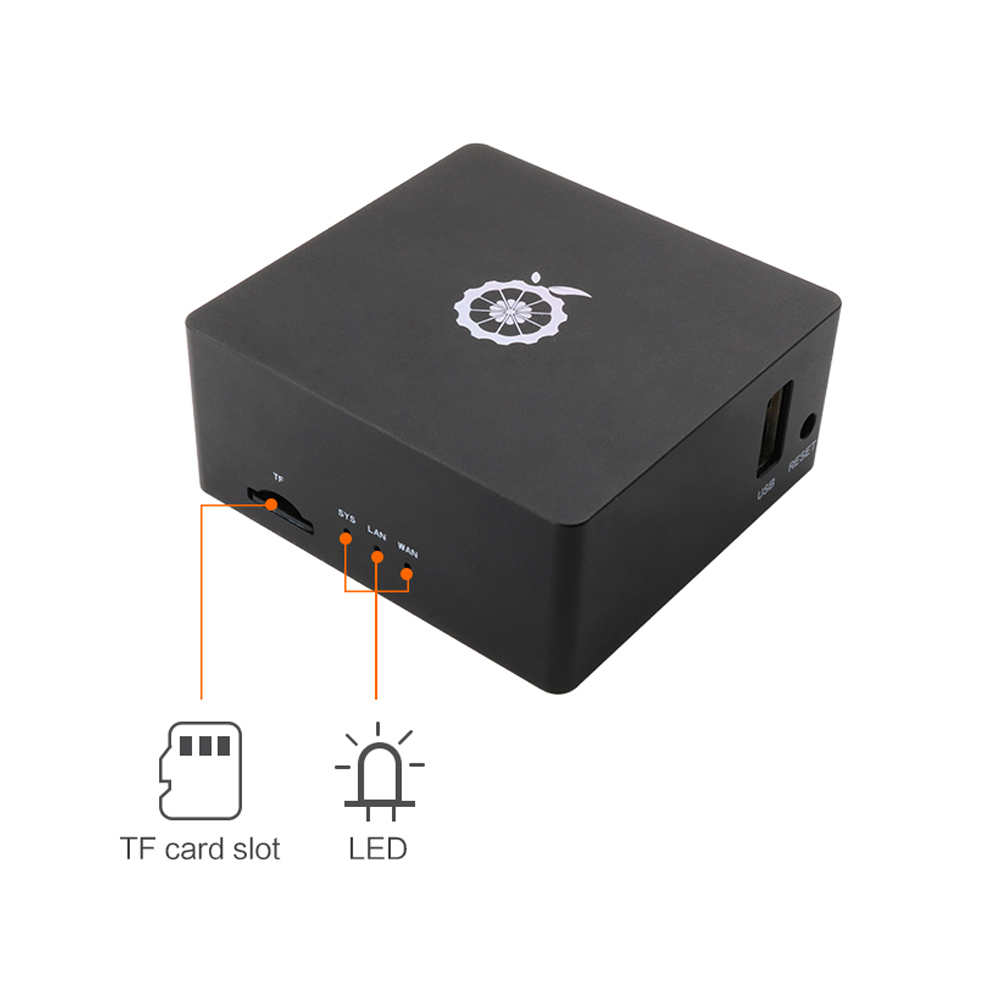

| LED | Power LED & Status LED |

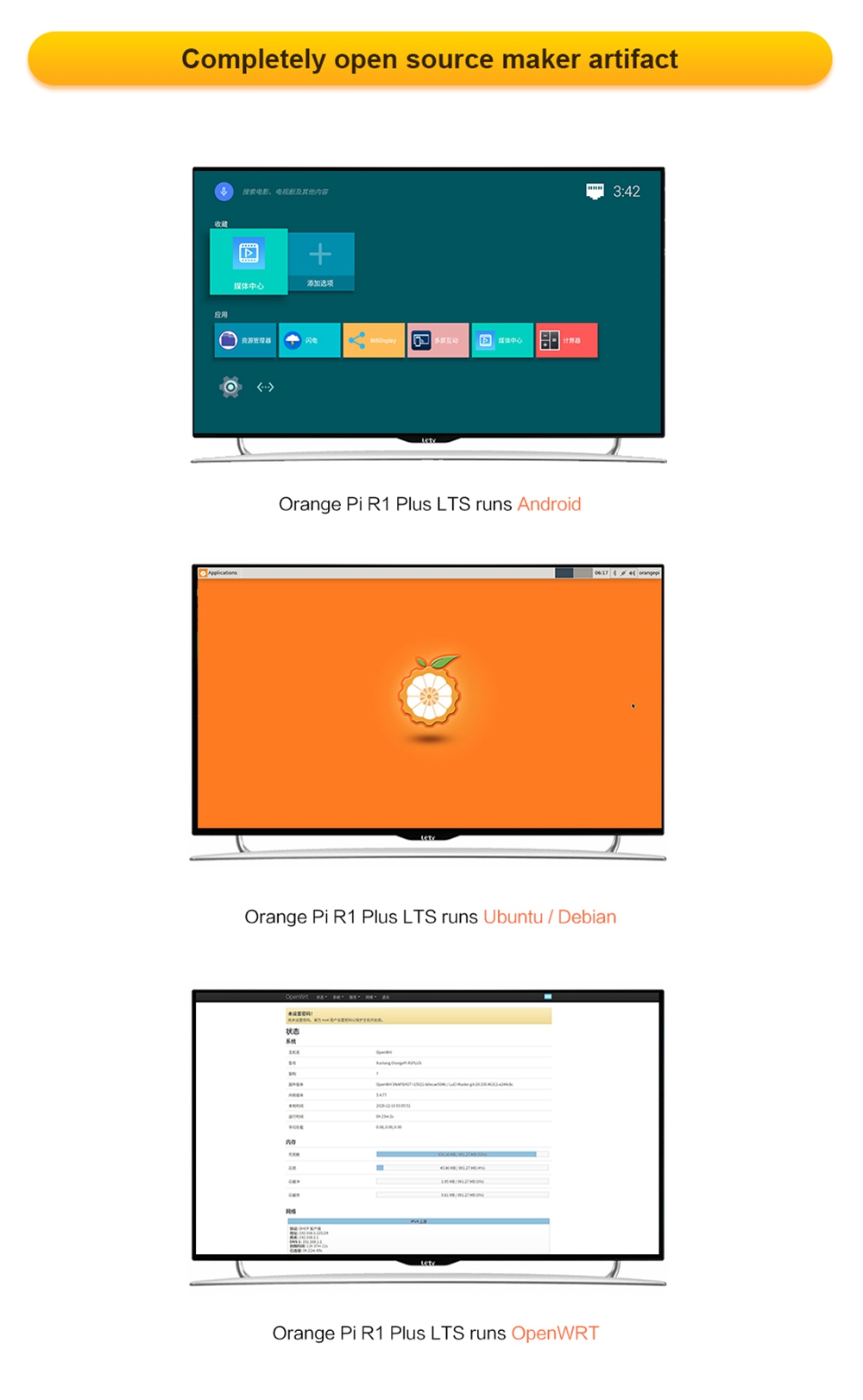

| Supported OS | Android 9, Ubuntu, Debian, OpenWRT |
| Appearance specification introduction | |
| Dimension | 56mm x 57mm |
| Weight | 29.5g |

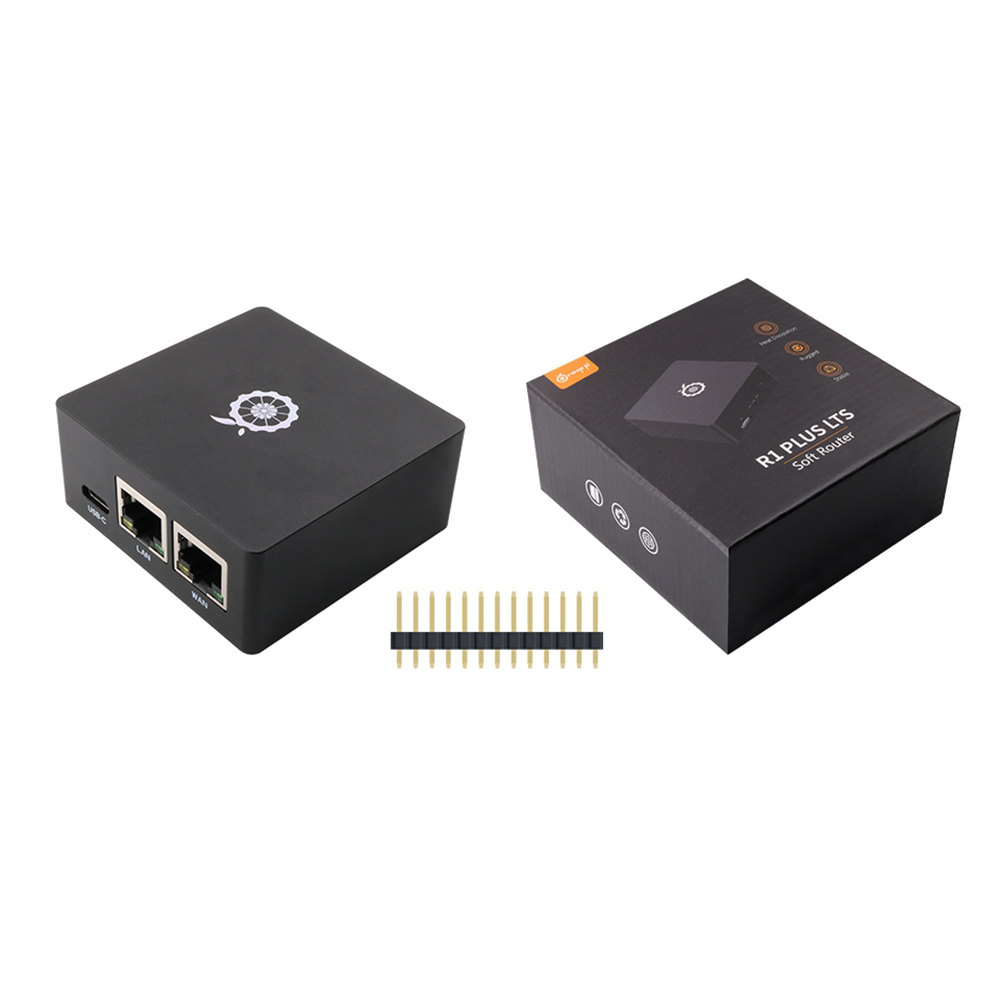

Package includes:
1 x Orange Pi R1 Plus LTS

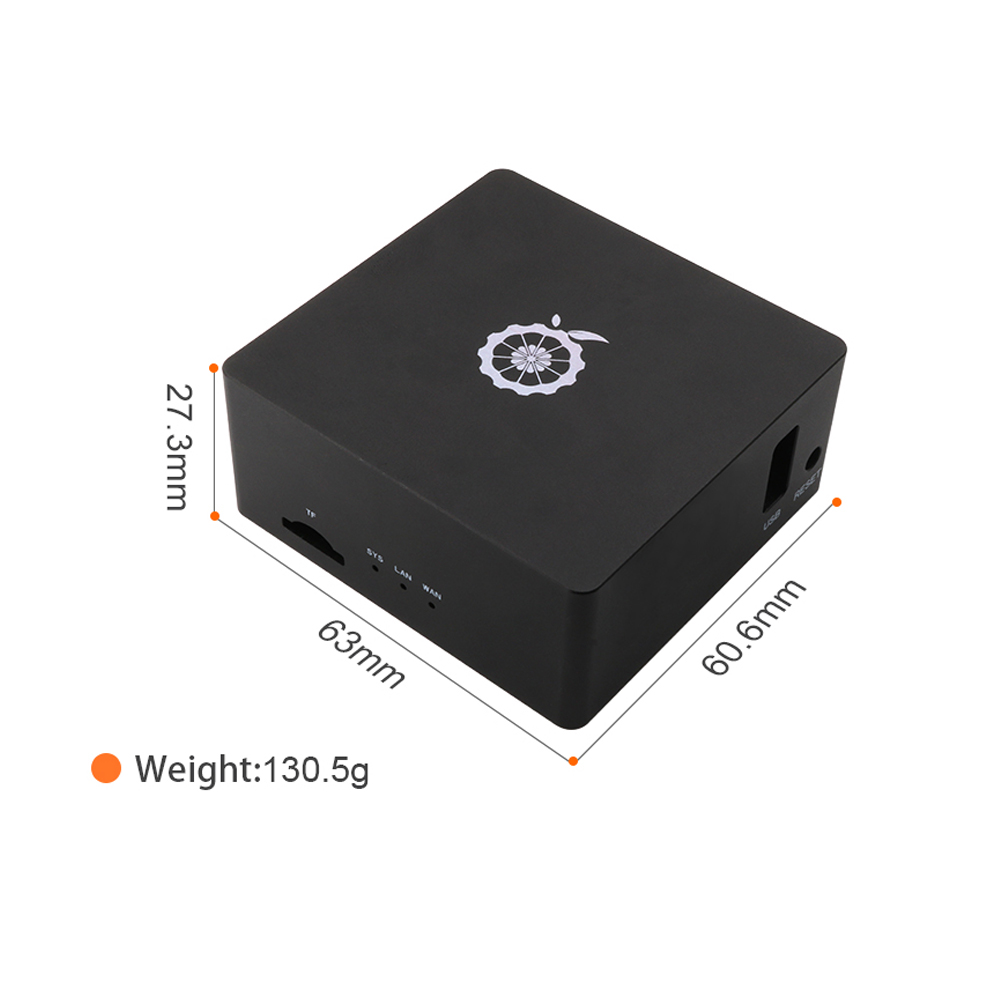

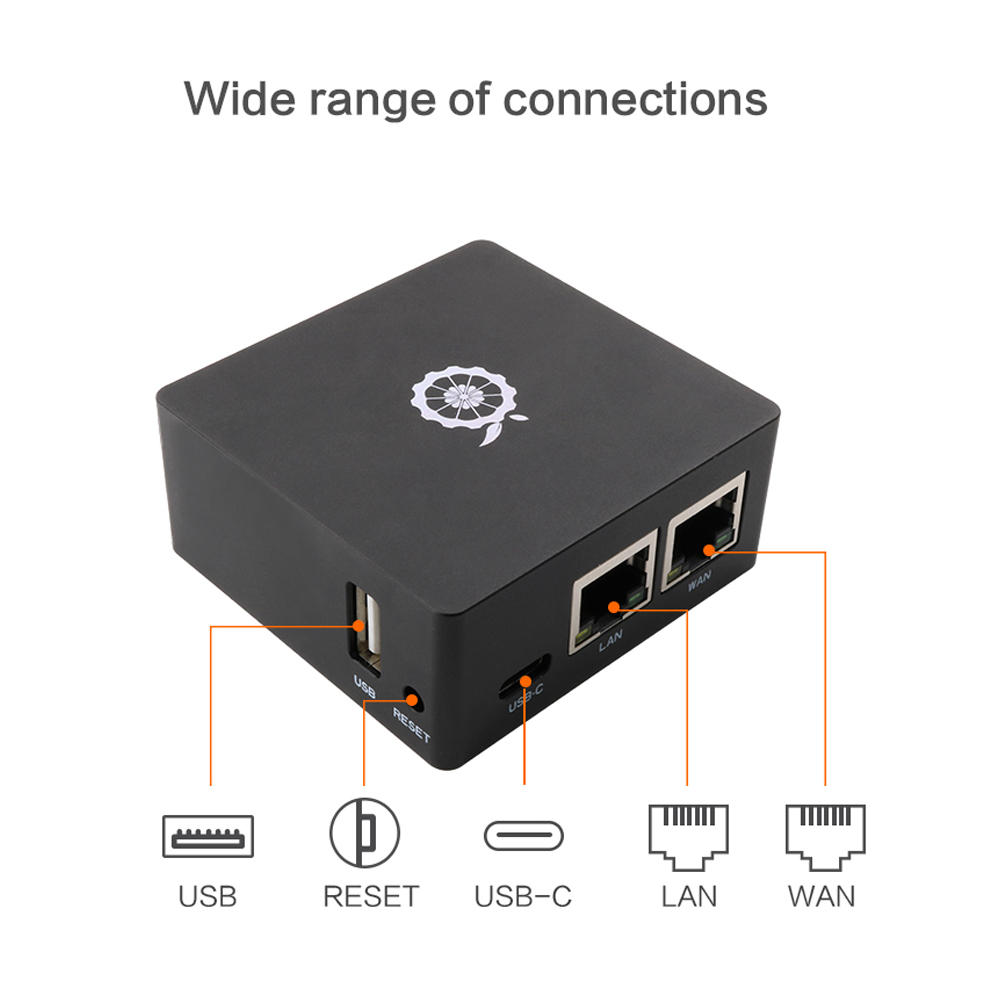

1 x Shell Metal
1 x 13pin headers
