USB to Serial Port Multi-function Converter Module RS232 TTL CH340 SP232 IC Win10 for Pro Mini STM32 AVR PLC PTZ Modubs
- Stock: In Stock
- Model: ST230047649
- SKU: ST230047649
$8.99
Ex Tax: $8.99
Description:
1. The USB driver IC is CH340, stable performance, fully compatible with USB1.1,USB2.0,USB3.0 , baud rate up to 256 kbps;
2. The RS232 bus IC is SP232,this is Industrial grade RS232 conversion IC
3. USB to RS232 serial port, 3 pin pin assignment as below : GND TX RX
4. USB to TTL serial port, 6 pin assignment as below : GND 5V RXD TXD CTS DTR
5. Compatible with PRO MINI download port

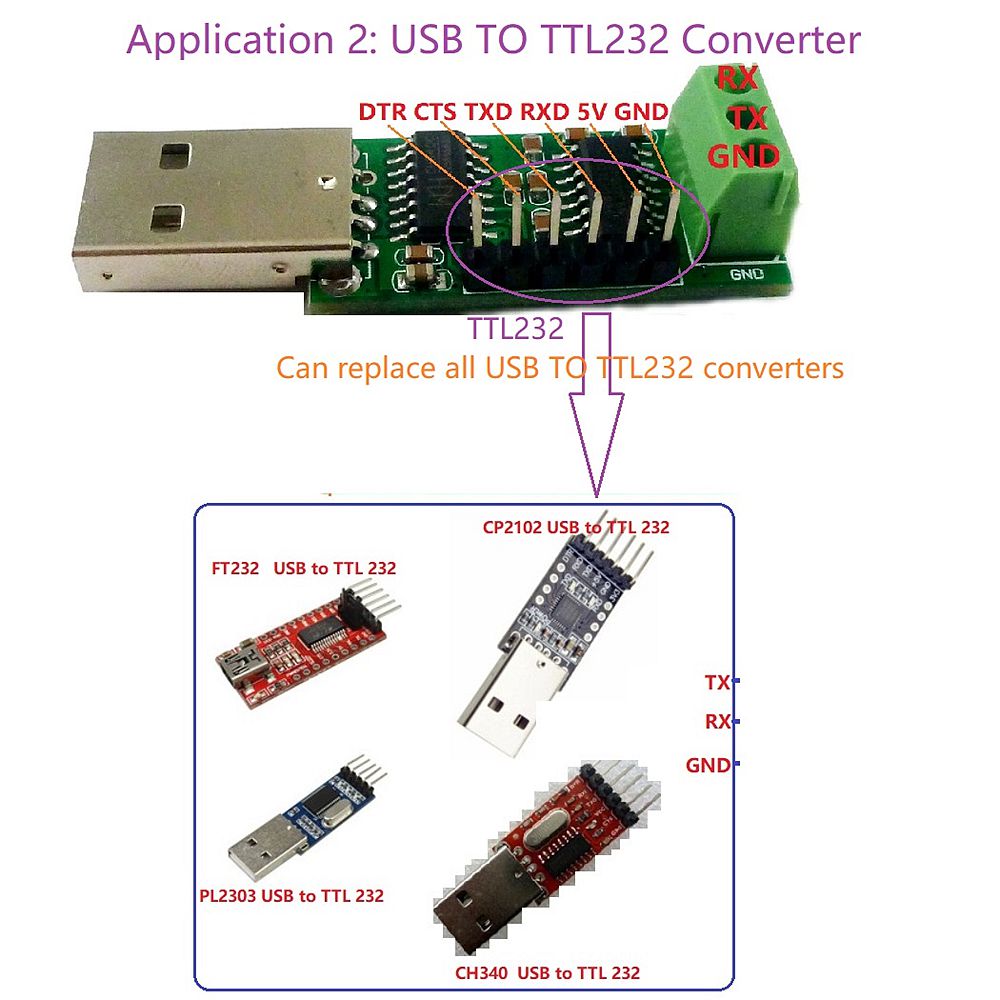

6. Uses : CH340 replace FT232 CP2102 PL2303 for Arduiuo Pro Mini Download
7. Size : 36 x 14 x 12 mm(Does not include USB ports )
Supports the following Windows OSes:
Windows 98SE
Windows ME
Windows 2000 SP4
Windows XP SP2 and above (32 & 64 bit)
Windows Server 2003 (32 & 64 bit)
Windows Server 2008 / 2008 R2 (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows 7 (32 & 64 bit)
Windows 8
Windows 8.1
Windows 10
Application :

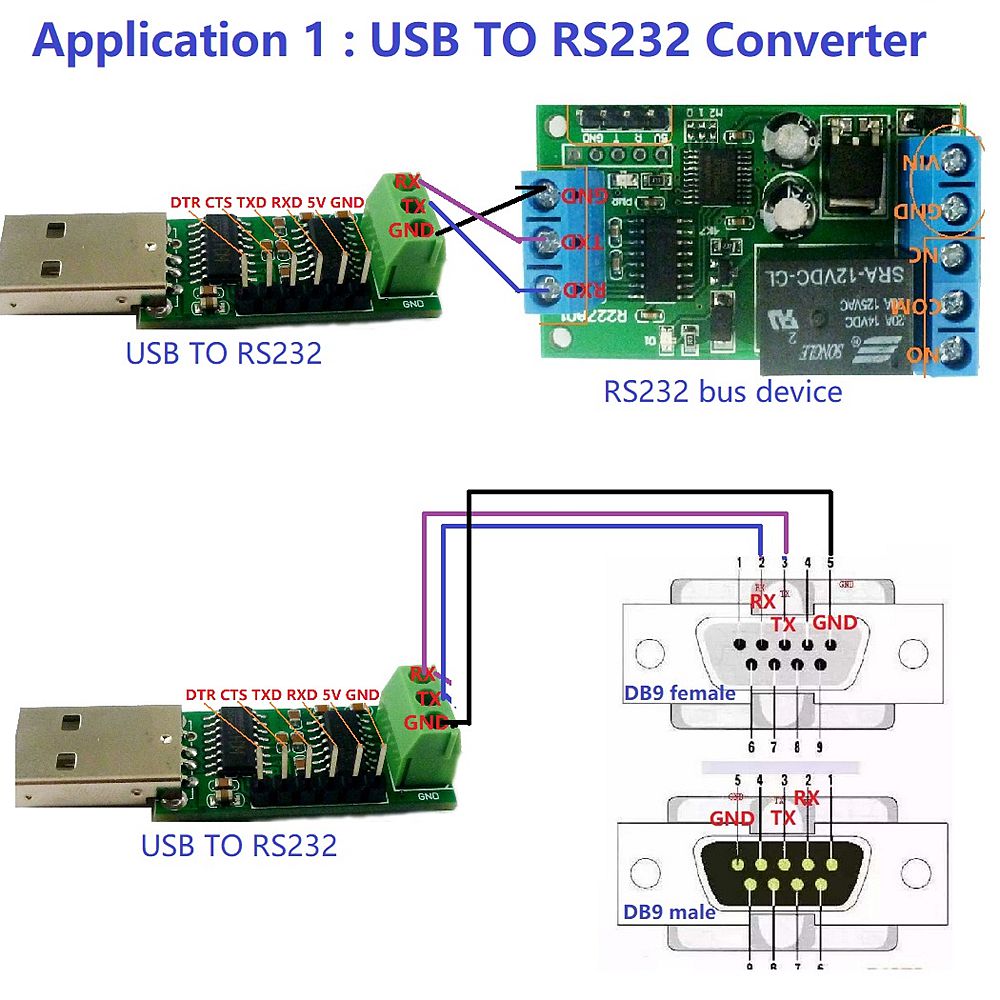

RS232 Bus device
TTL232 Communication MCU FPGA/CPLD ARM AVR PIC

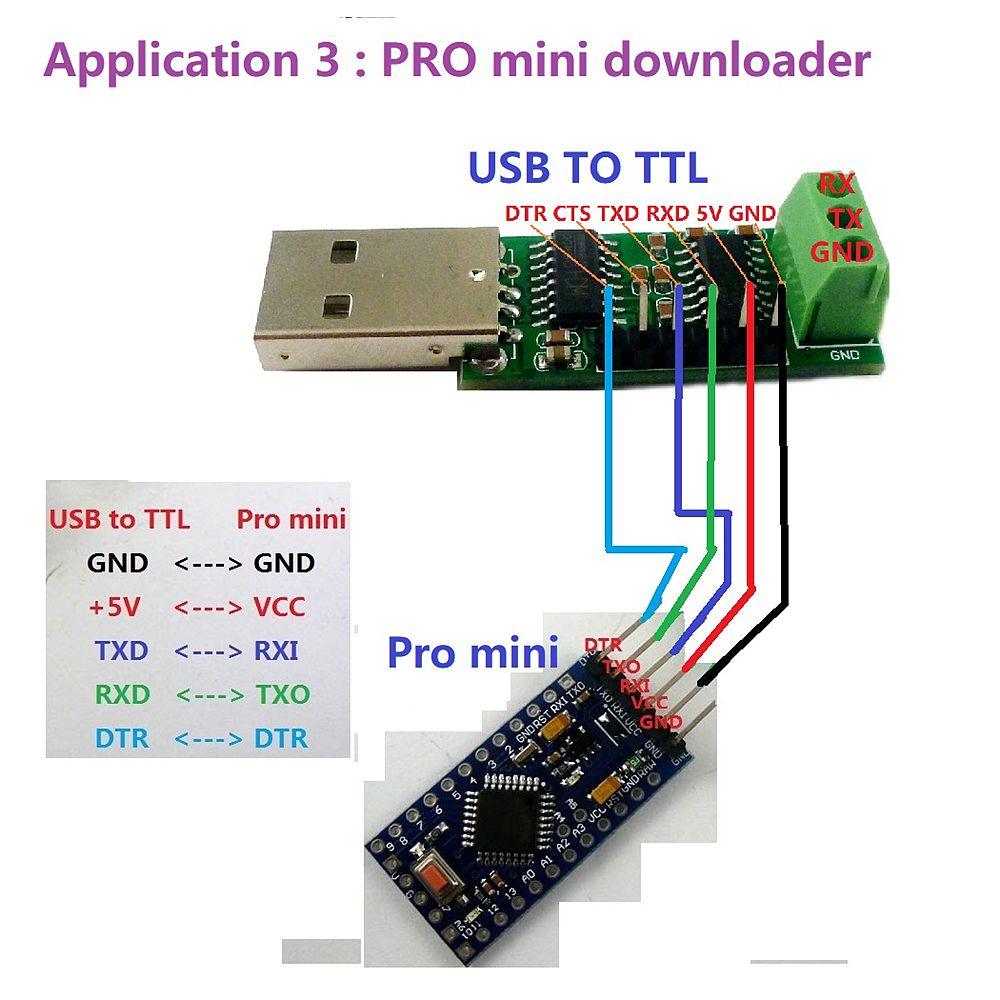

Ardunuo PRO mini downloader cable
PLC Modubs device
Camera PTZ
MODEM
Computer communication terminal
Package Included:
1 x USB to Serial Port Multi-function Converter Module
