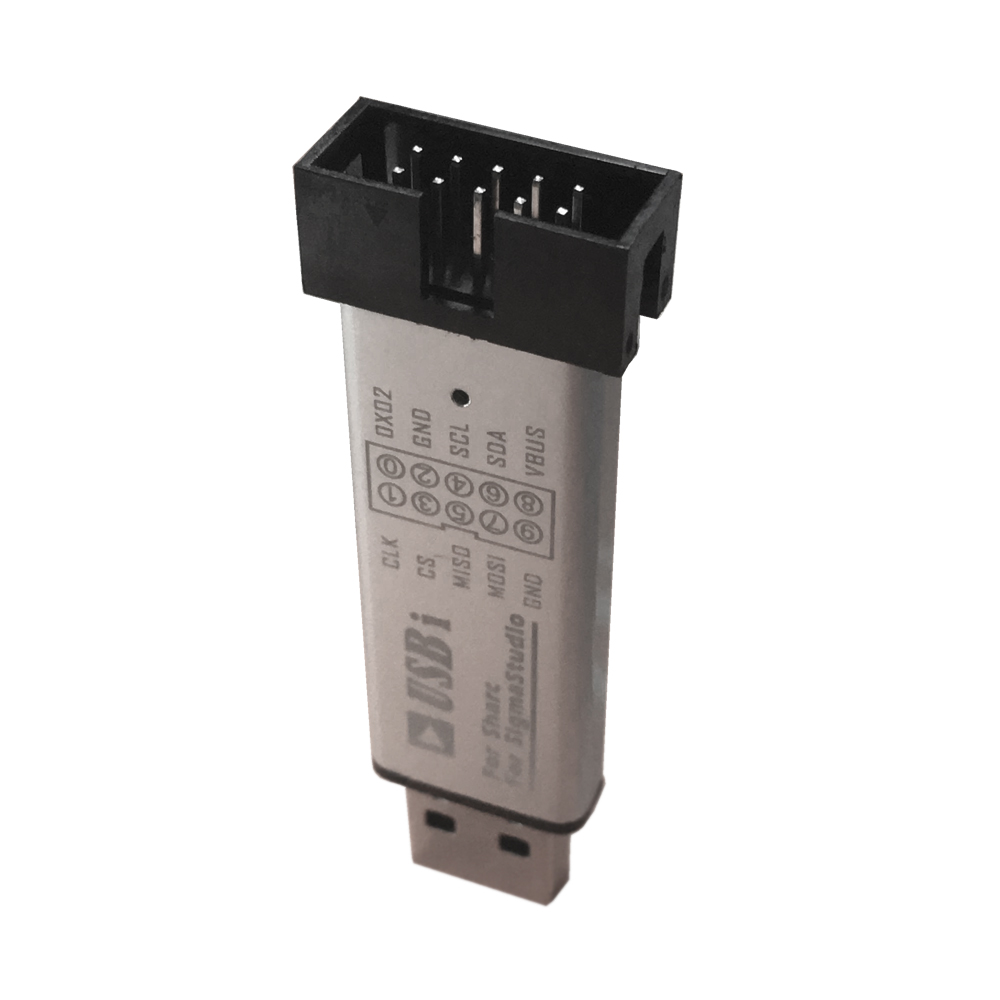

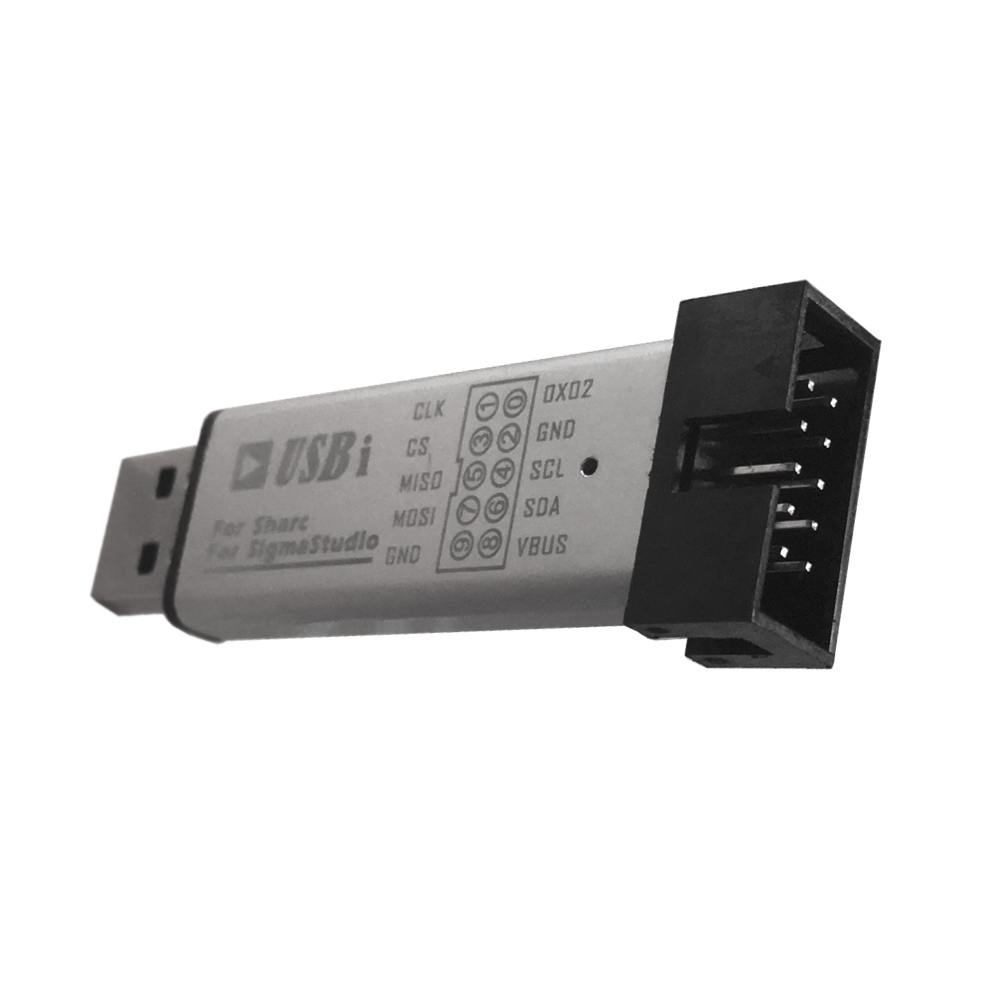

USBi Emulator ADAU1701 Emulator Burner EVAL-ADUSB2EBUZ

1. Can be used as a development simulation and production tool.

2. Added self-checking function to the official firmware; plug and play, no power-on arrange requirements; aluminum alloy shell, laser engraving will never fade;

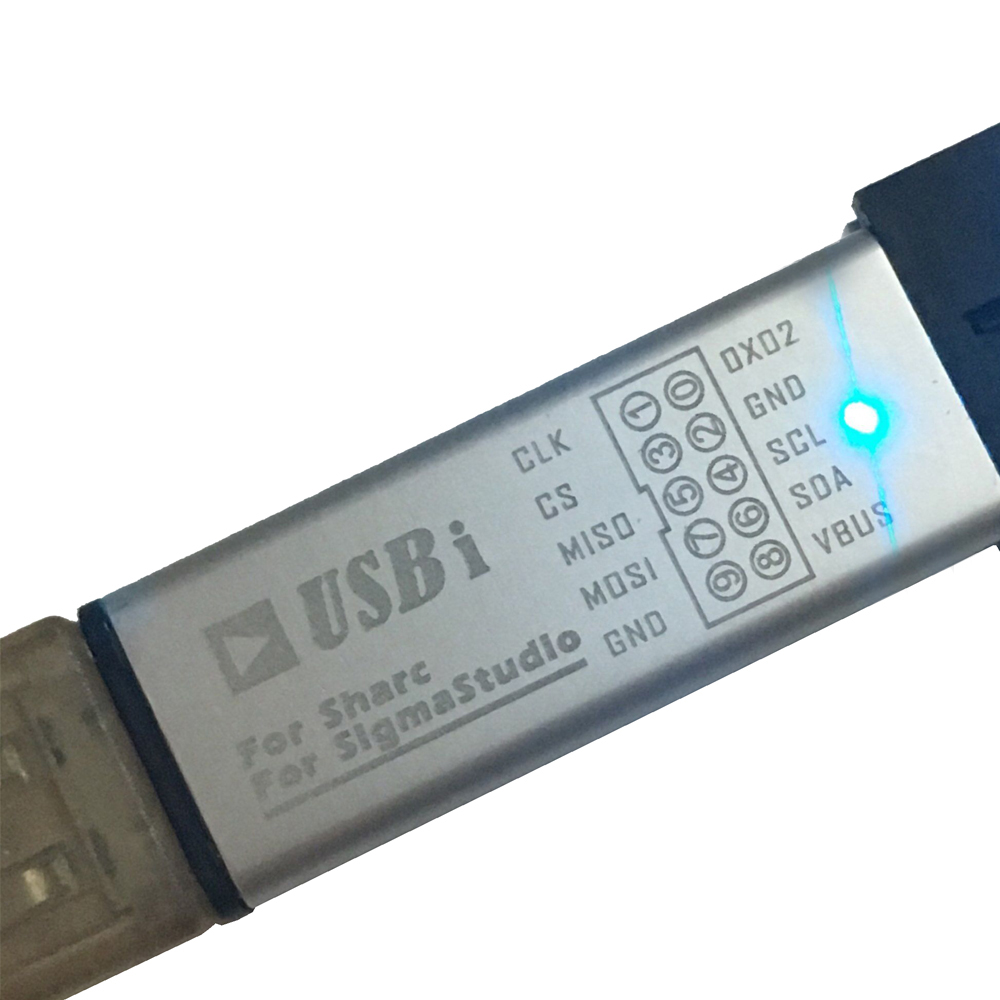

3. Three-color status indication: self-test (red)/SPI (blue)/I2C (green);

4. All SigmastudioDSP and SHARC series supported by official firmware are also supported.

5. USBi is disabled, the red LED indicates, and turns green after power-on, indicating that the device is recognized normally and the self-test has passed.

6. By default, it is equipped with 5P DuPont line, which can flexibly use SPI or I2C to communicate with DSP. SPI needs to be connected to DSP board with CLK/CS/MISO/MOSI/GND, a total of 5 lines for communication;

7. I2C only needs to connect three lines of SDA/SCL/GND. In actual use, it is not necessary to connect the lines according to the interface of the official schematic diagram;

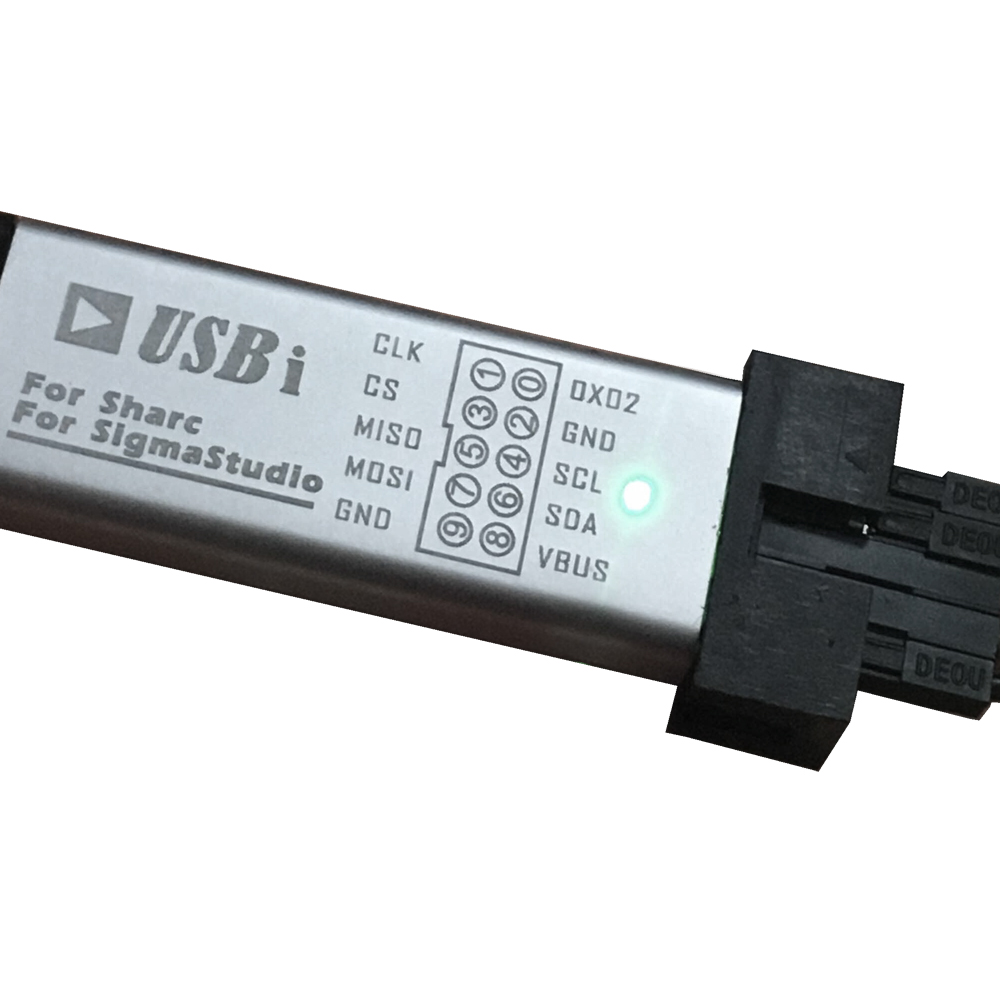

8. I2C connection status, green light display, flashing when there is data transmission.

1 x Emulator
