1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board

1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board
1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board
1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board
1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board
1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board
1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board
1PCS ICE50ASX2 BTL Version 100W Stereo Digital Power Amplifier Finished Board ICEPOWER Amplifier Module Board
  • Stock: In Stock
  • Model: ST230046499
  • SKU: ST230046499
$168.11
Ex Tax: $168.11
Function:

1.Overcurrent protection
Overtemperature protection ( need to add temperature switch ) ,The efficiency of 90%,The oscillation frequency 100KHz, ripple is less than 1%.
No feedback instantaneous output current can reach 5-10 times the normal current, very suitable for high-power amplifiers.
2.The switching frequency is designed to 100KHz, far more than the audio signal frequency modulation to minimize the distortion and between the so-called digital sound , the sound is more conducive to the reduction of distortion .
3.Professional Power Amplifier Loudspeaker Accessories
4.Product key performance with power Stereo Dual
Audio amplifier as the perfect , the sine wave signal without considering the size of the gain of the power amplifier , the input of a certain frequency , the output is not distorted ( no waveform distortion ) , the sine wave signal without noise .

Key Performance Parameters ICEpower50ASX2:

Rated power 1% THD + N, SE mode, 4, 1kHz 2 x 50 W
Rated power 1%, THD + N, BTL mode, 4, 1kHz 170 W
Maximum power 10%, THD + N, BTL mode, 4, 1kHz 220 W
Rated power 1%, THD + N, SE mode, 8, 1kHz 2 x 25 W
Rated power 1%, THD + N, BTL mode, 8, 1kHz 100 W
Maximum power 10%, THD + N, BTL mode, 8, 1kHz 130 W
Bandwidth 8,-3dB point, SE mode 130 kHz
Frequency response , 20Hz-20kHz, 2-8 load range + / - 0.5 dB
Damping factor 8, 100Hz more than the 500
Total harmonic distortion THD + N 1kHz, 1W 0.002 %
Dynamic range SNR , SE mode 120 dB
Dynamic range SNR , BTL mode 125 dB
colour:green
Material:Metal +pc
size:11 x 8 x 3.5cm

Package included:

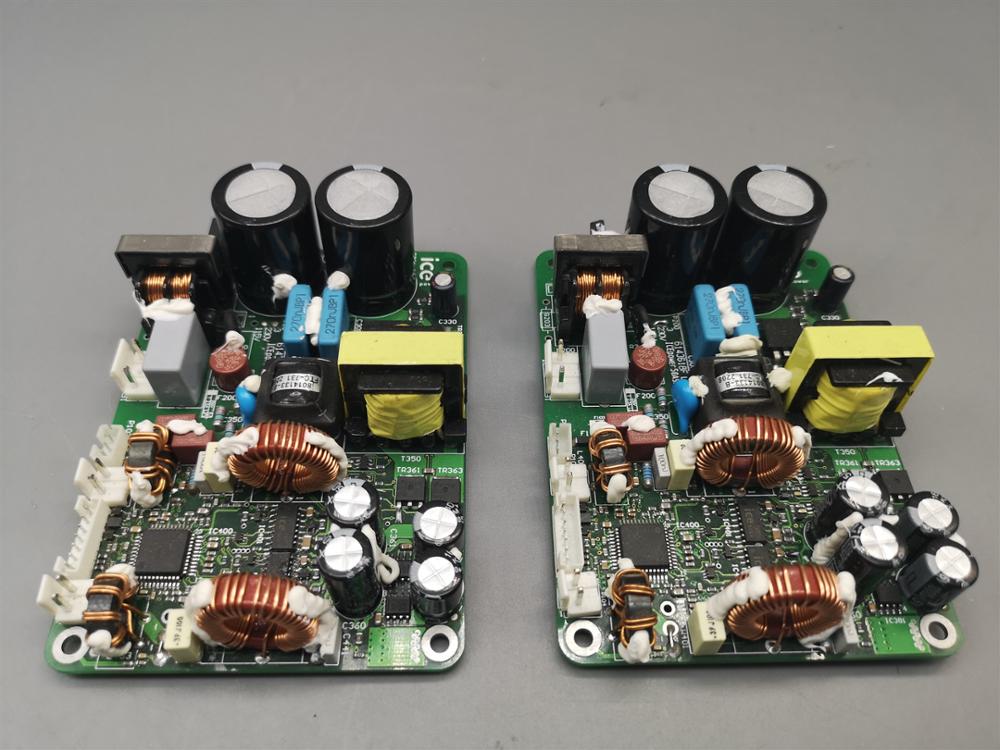

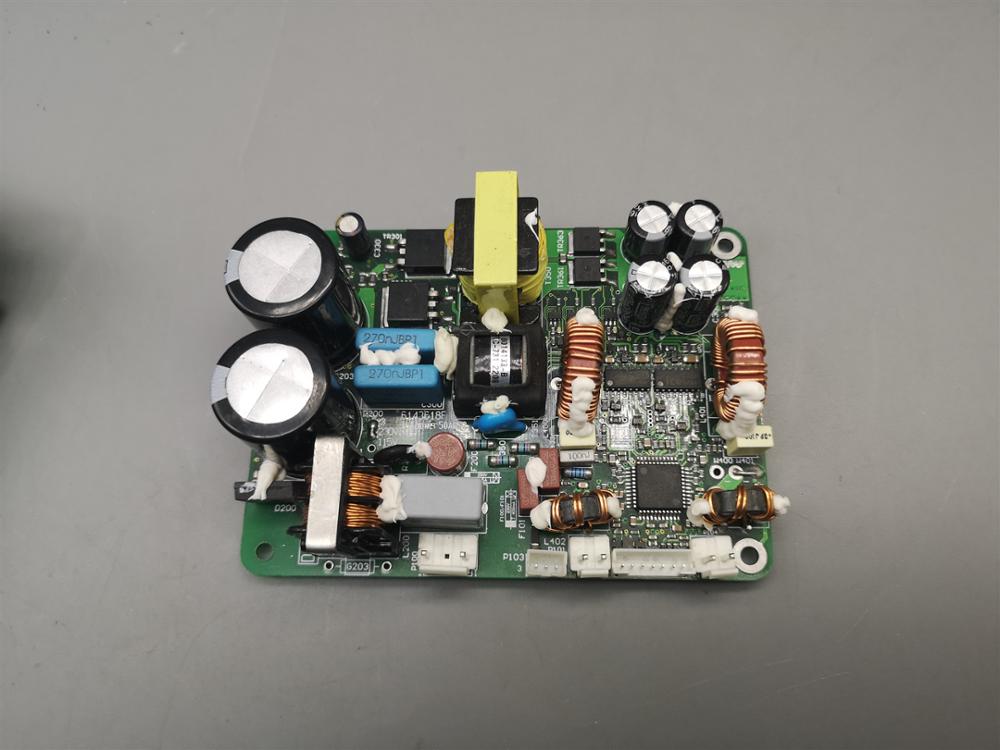

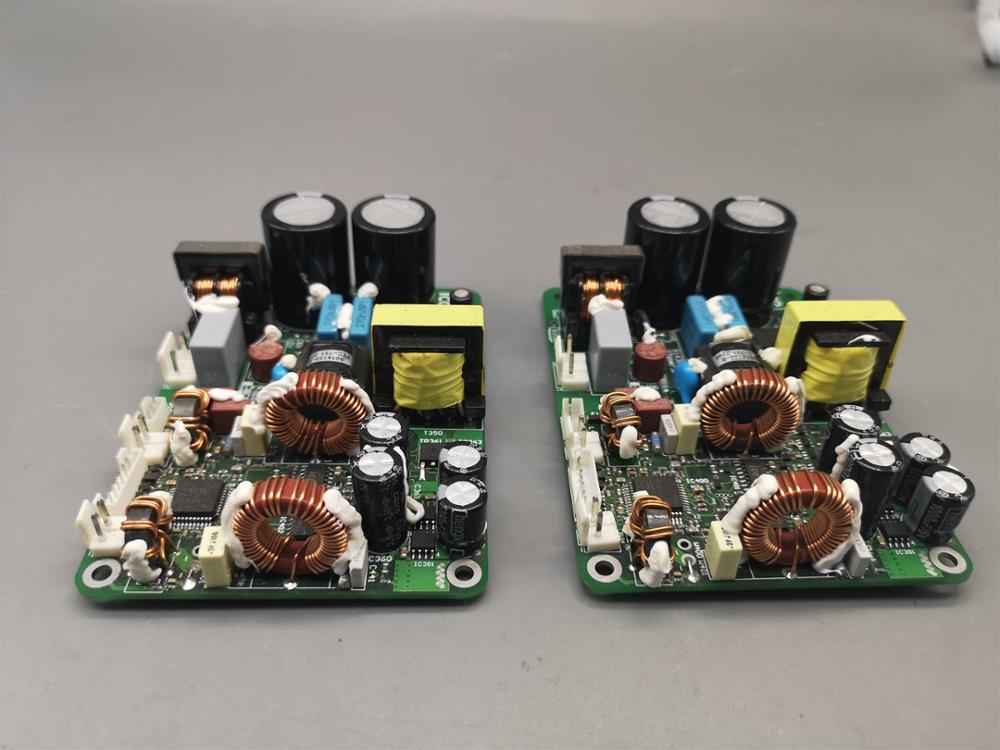

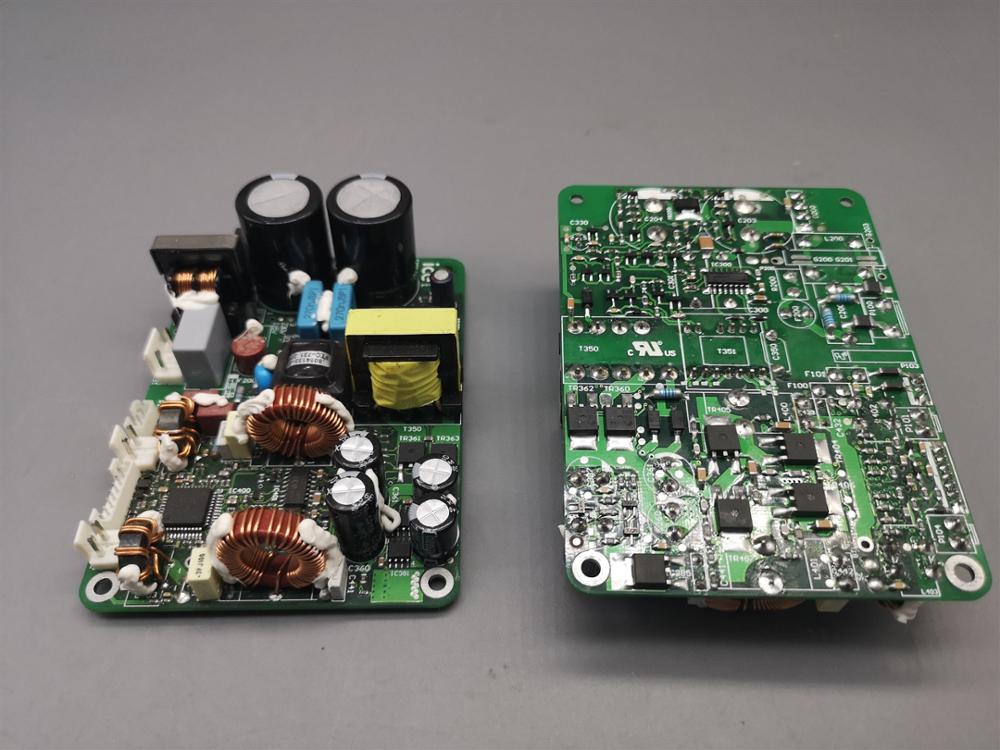

1 x ICE50ASX2 Power Amplifier Board

1PCS-ICE50ASX2-BTL-Version-100W-Stereo-Digital-Power-Amplifier-Finished-Board-ICEPOWER-Amplifier-Mod-1758208-1

1PCS-ICE50ASX2-BTL-Version-100W-Stereo-Digital-Power-Amplifier-Finished-Board-ICEPOWER-Amplifier-Mod-1758208-2

1PCS-ICE50ASX2-BTL-Version-100W-Stereo-Digital-Power-Amplifier-Finished-Board-ICEPOWER-Amplifier-Mod-1758208-3

1PCS-ICE50ASX2-BTL-Version-100W-Stereo-Digital-Power-Amplifier-Finished-Board-ICEPOWER-Amplifier-Mod-1758208-4
