- Stock: In Stock
- Model: ST22012010
- SKU: ST22012010
Descriptions:
Digital Power Module: high efficiency linear output, 0.25mV ripple wave, high-speed transient response, and supporting precise fine-tuning.
It is one modules of MDP (Mini Digital Power System) ,a system of programmable linear DC power supply.MDP-P905 Digital Power Supply Modules can be used independently.
More details about MDP (Mini Digital Power System)
| Mode | MDP-XP |
| Size | 107mm*66mm*136mm |
| Weight | 143g |
| Input | DC4.2V-30V(After startup 2.7V),100mA-6A,Support QC3.0 |
| Output | 30V/5A,90W |
| Adjustment rate | Load adjustment rate <±0.01^% |
| Power adjustment rate <±0.01^% | |
| Ripple and noise | 250uVrms/3mVpp |
| Transient response time | ≤4uS |
| Line loss compensation | 5mR-100mR |
| Protection | Input over-voltage,under-voltage, anti-reverse, output anti-backflow, over temperature |
| Data recording | Max storage: 7MB, Max recording time: 24 hours. |
| Others | Automatically shut down and enter micro-power mode |
| Support USB firmware upgrade | |
| Support user calibration |
※Applications:
General tests and teaching experiments in R&D laboratory
Maintenance of cellphones, laptops and other digital products
Power supply testing and data logger of RF and microwave circuits or modules
Supply purified power for high-accuracy digital-analog hiybrid circuits and Hi-Fi audio devices
Property verification and fault diagnosis of devices and circuits
Quality control and quality inspection
Emergency power supply for model airplanes and vehicles
Package Includes:
1 x MDP-P905 Digital Power Supply
2 x Output Line (4mm banana head to crocodile clip)
1 x User Manual

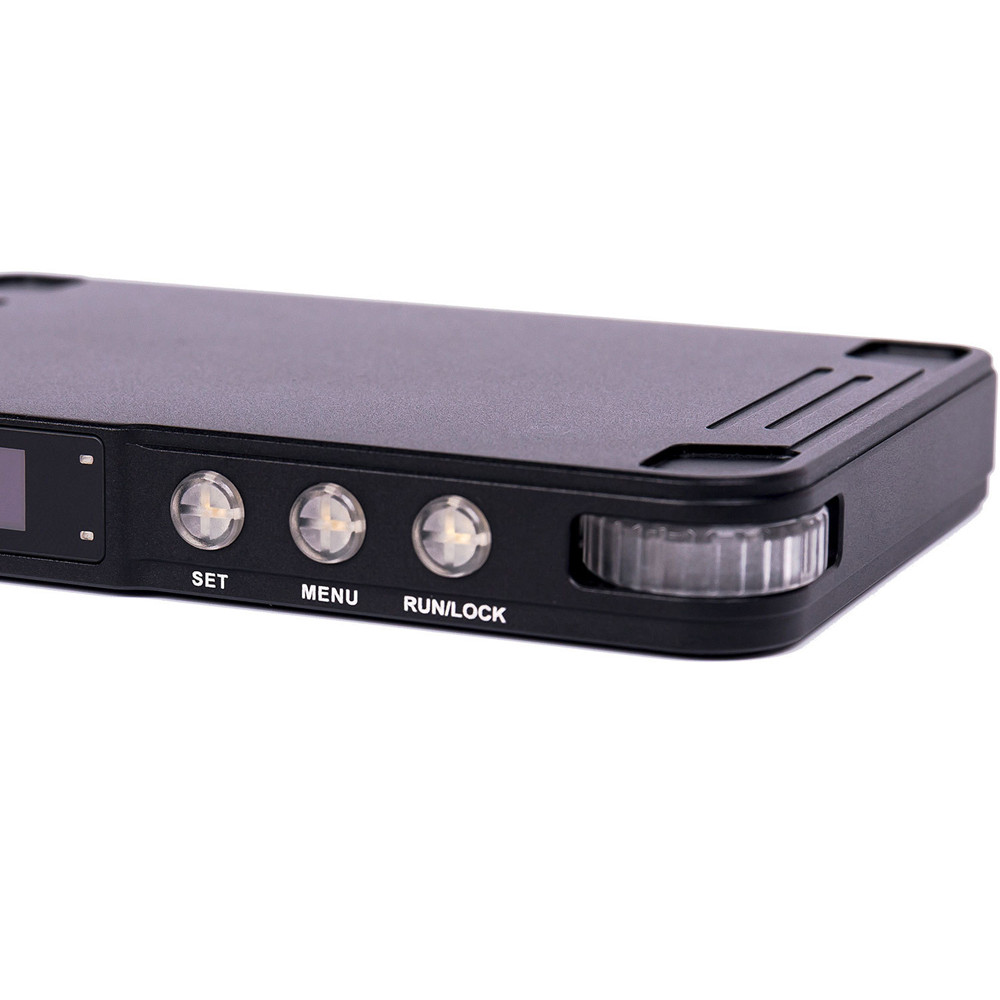

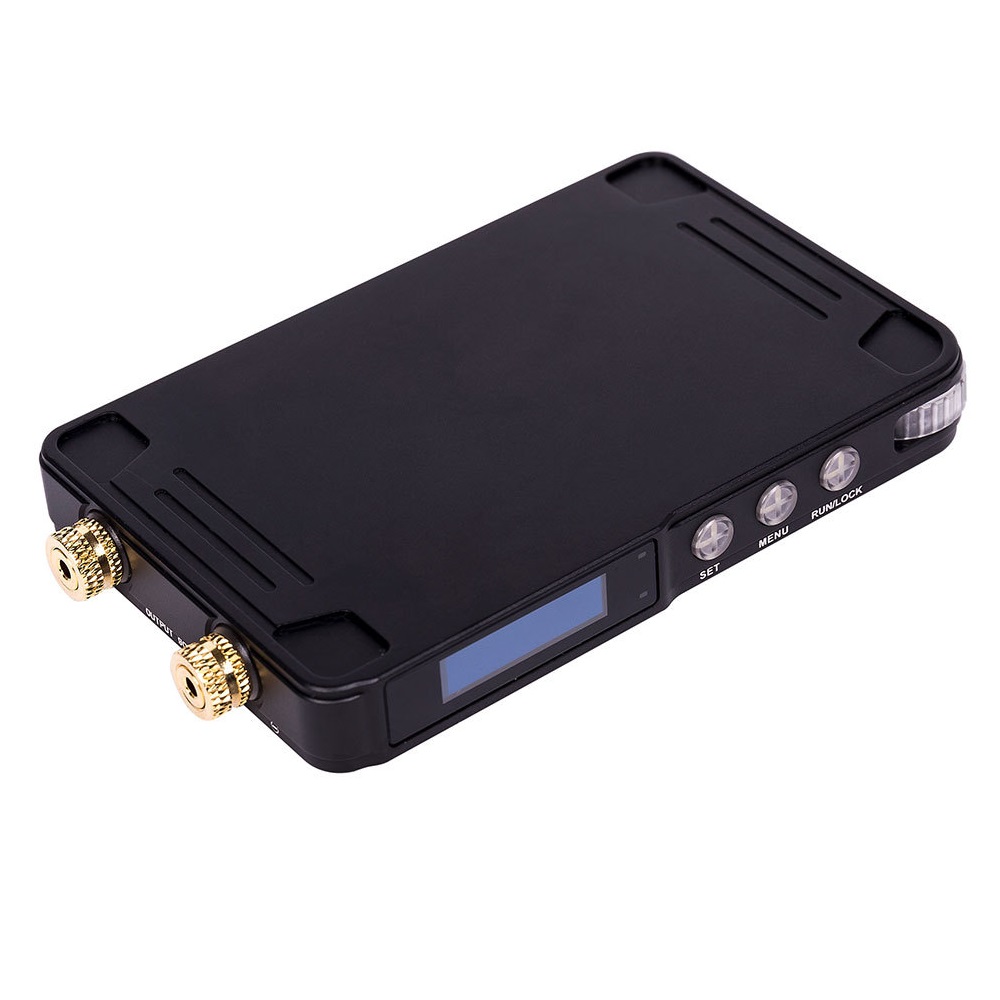

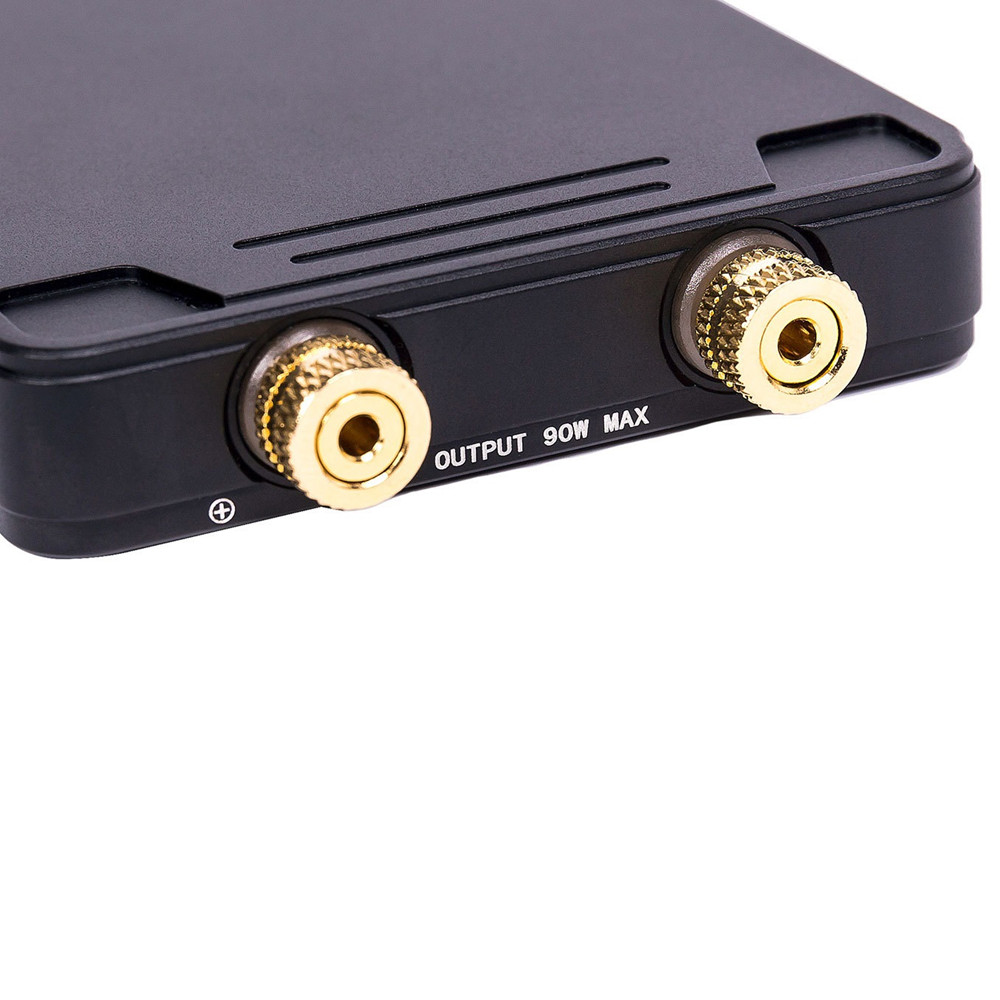

Details Pictures:
