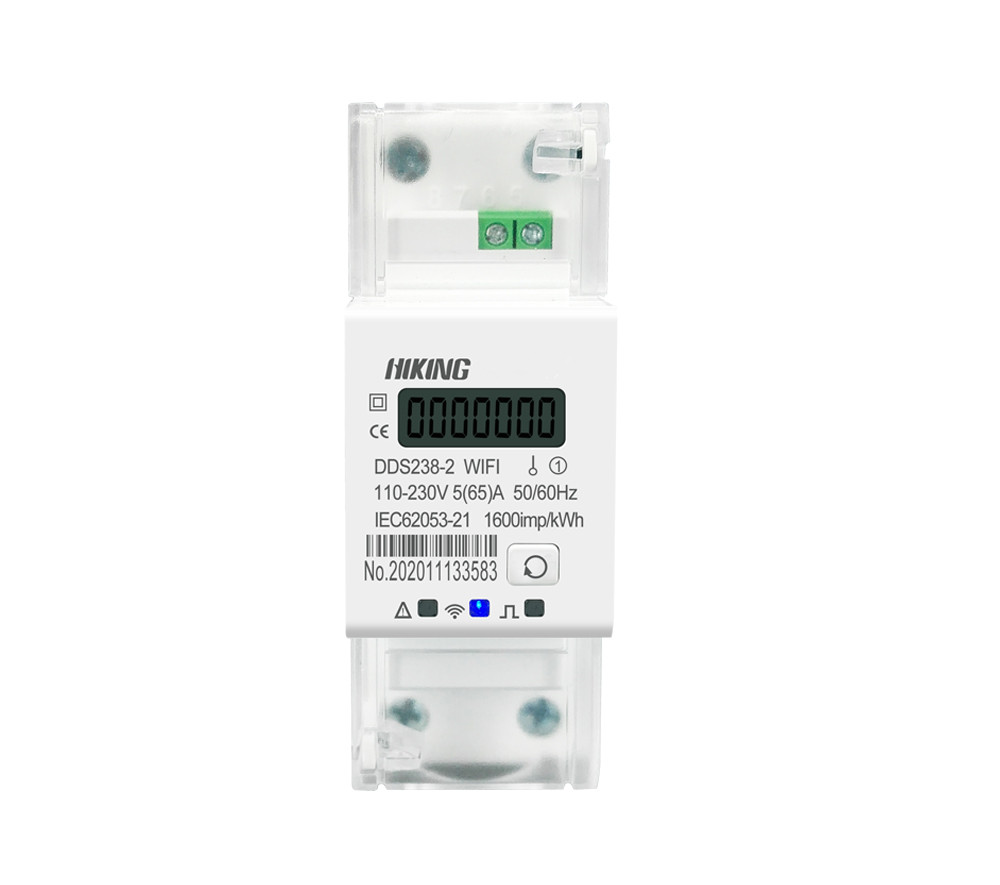

DDS238-2WIFI 90-300V 50/60Hz Single Phase 65A Din Rail WIFI Smart Energy Meter Timer Power Consumption Monitor kWh Meter Wattmeter

Description:

Please note, this TUYA wifi energy meter will update the Kwh data when disconnect with wifi, other type Metering circuit breaker will not increase the Kwh when discounnect with wifi.

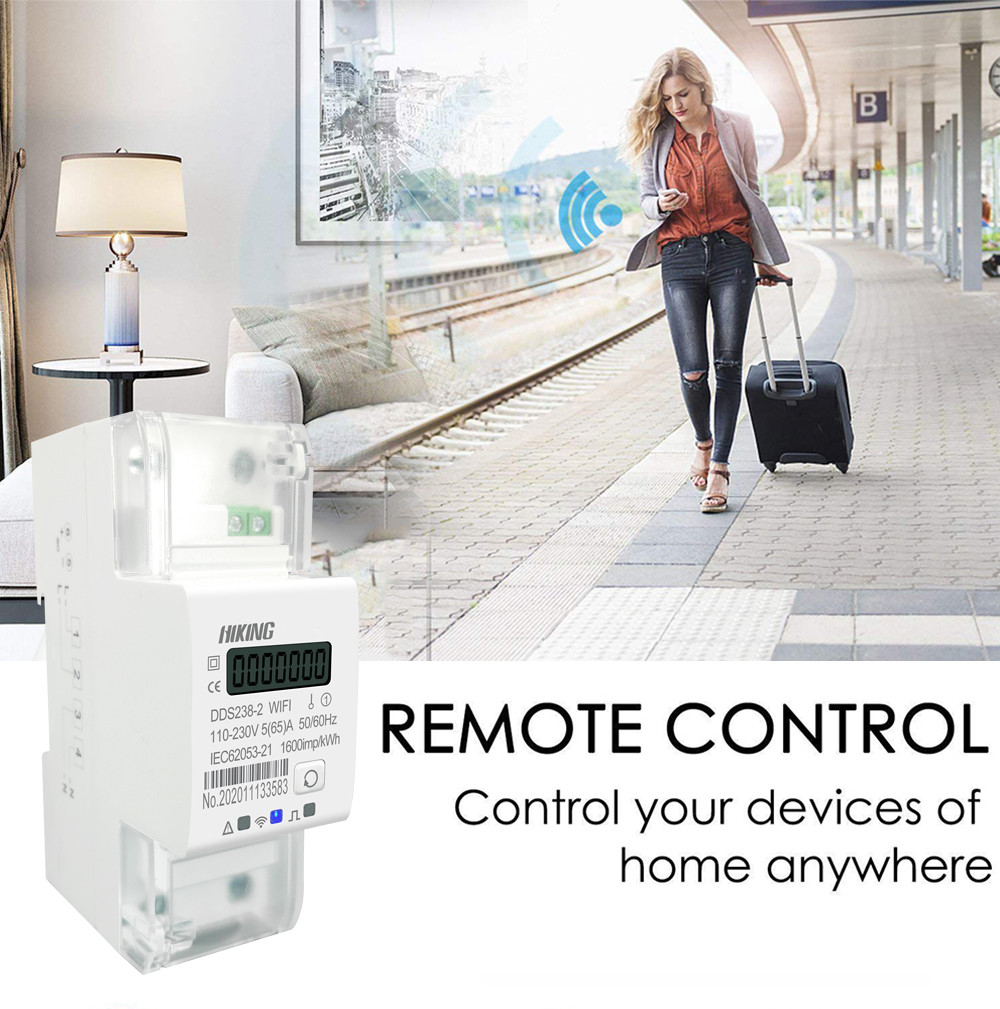

1. Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere

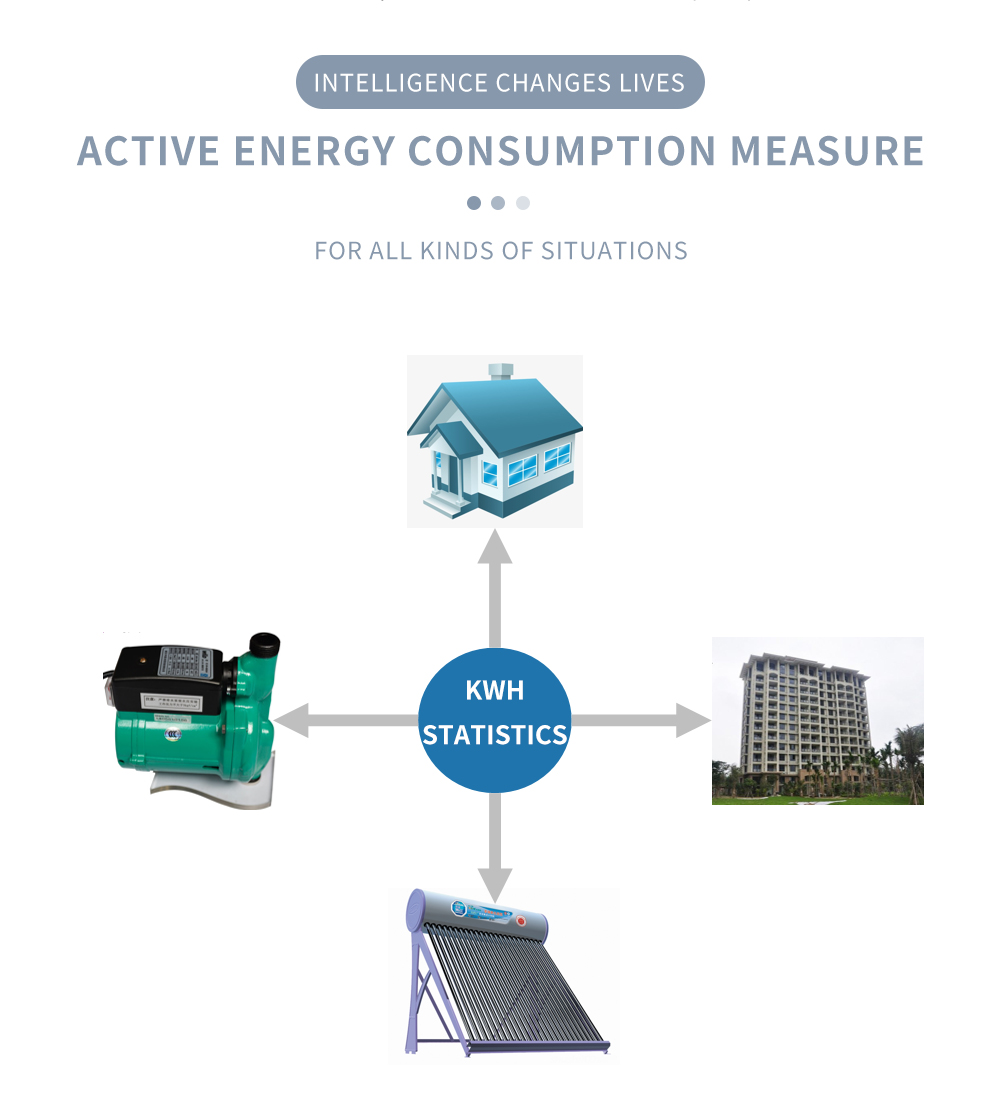

2. Total active energy kWh measure

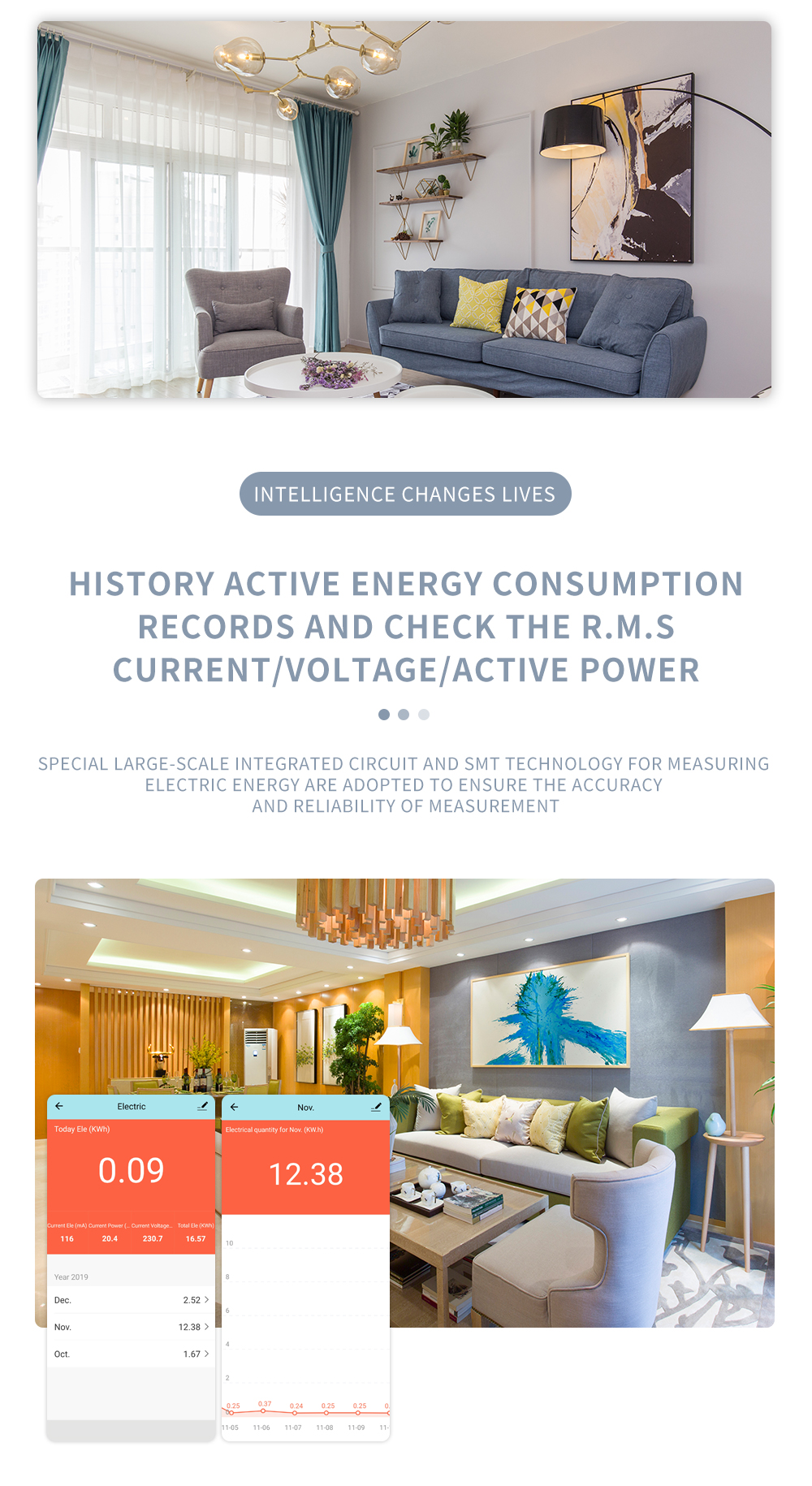

3. APP can read kWh , R.M.S current , voltage , active power

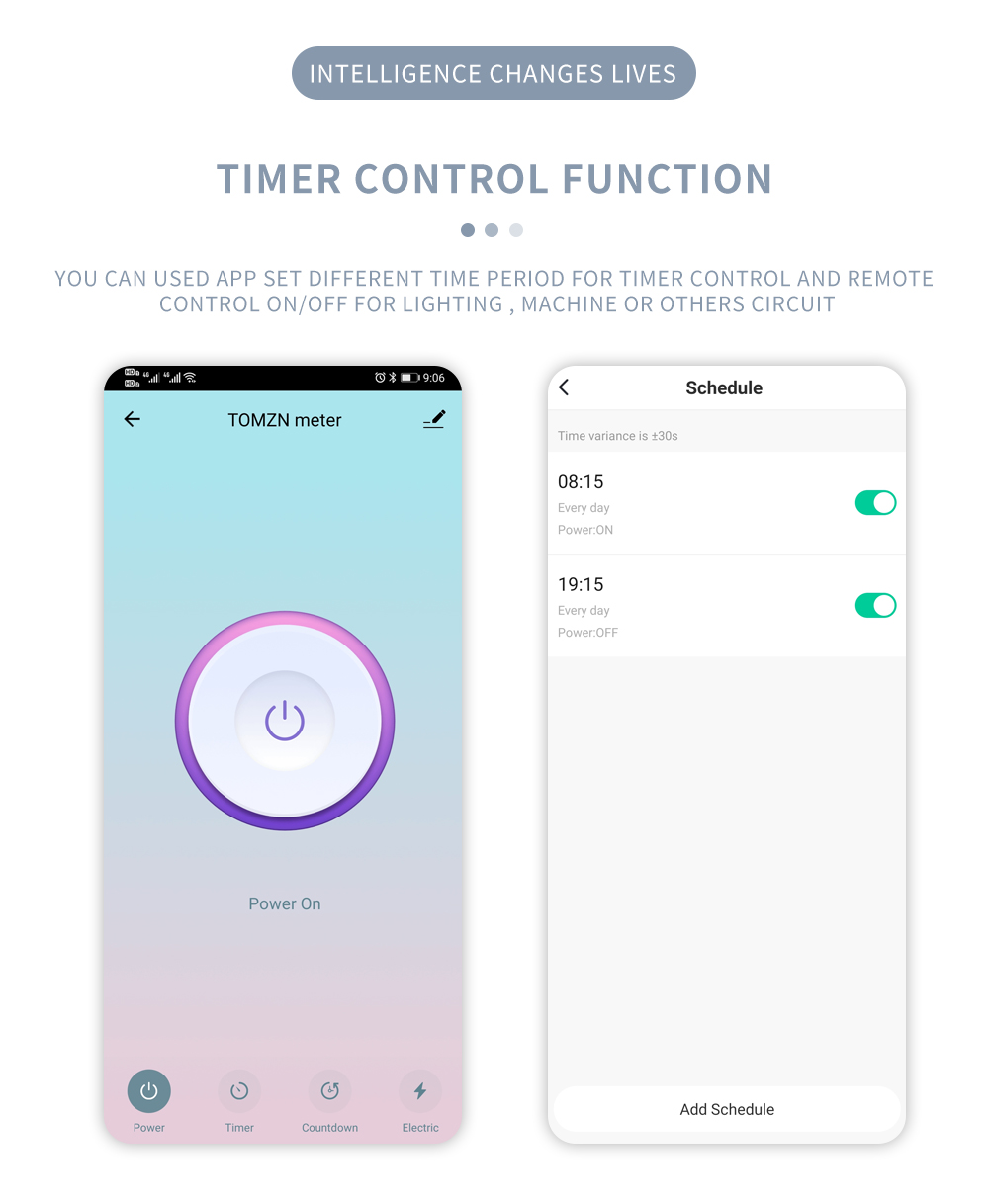

4. Timer control function

5. Delay time cut off function

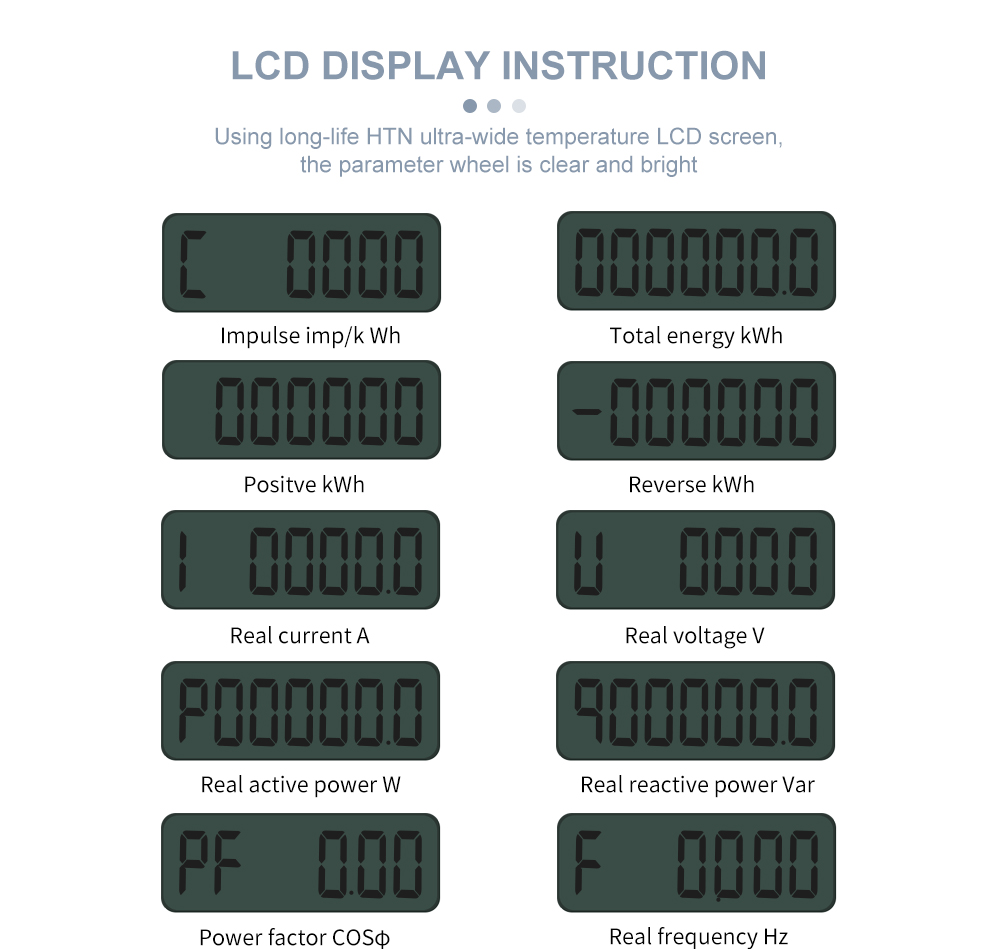

6. LCD display, Real-time display of Voltage, Current, Active Power, reactive Power, power factory ,frequence, total Energy kWh

7. Power Supply: 90-300V AC 50/60Hz

8. Rated Current: 65A

10. Pulse Frequency: 1600imp/kWh

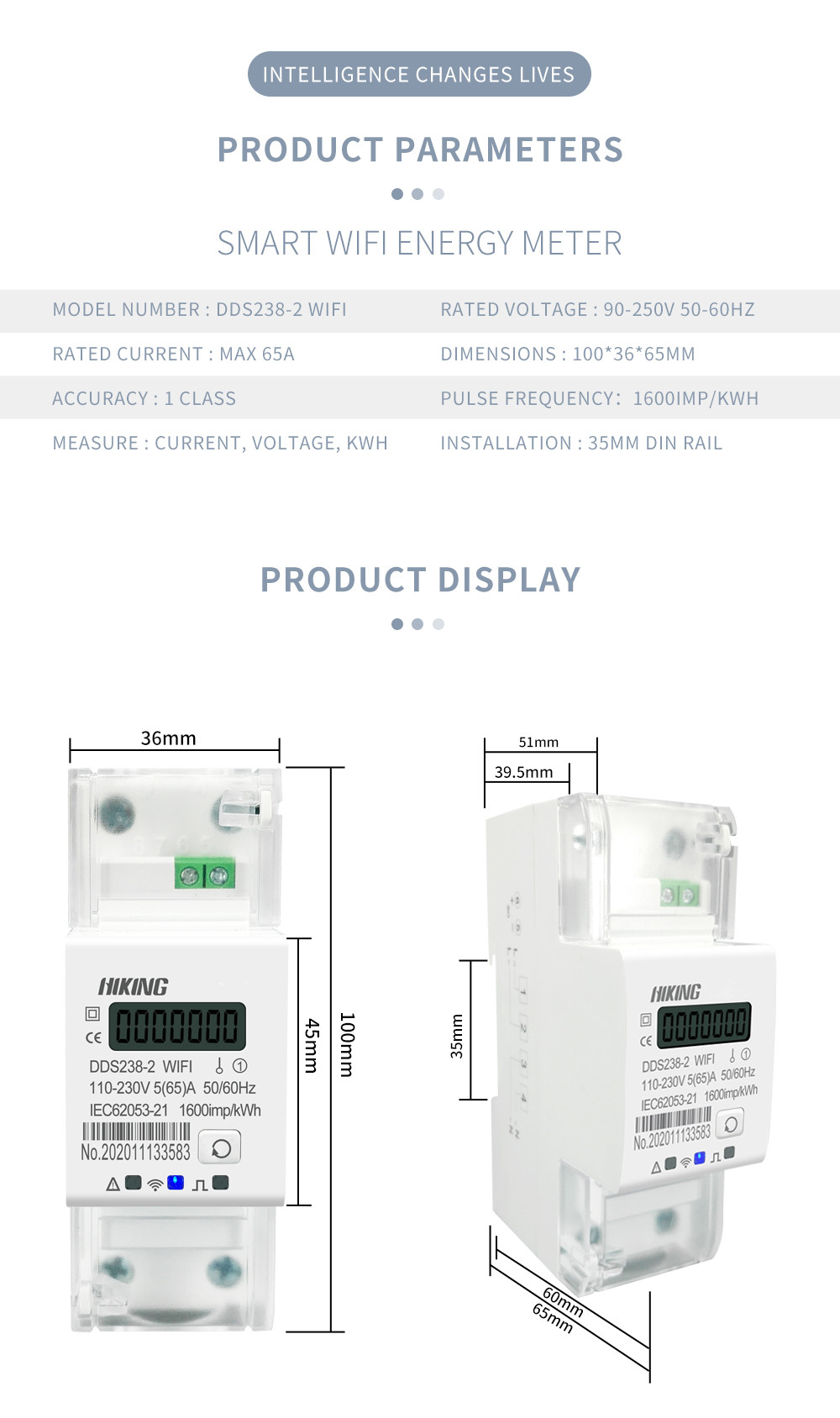

11. 35mm Din Rail install

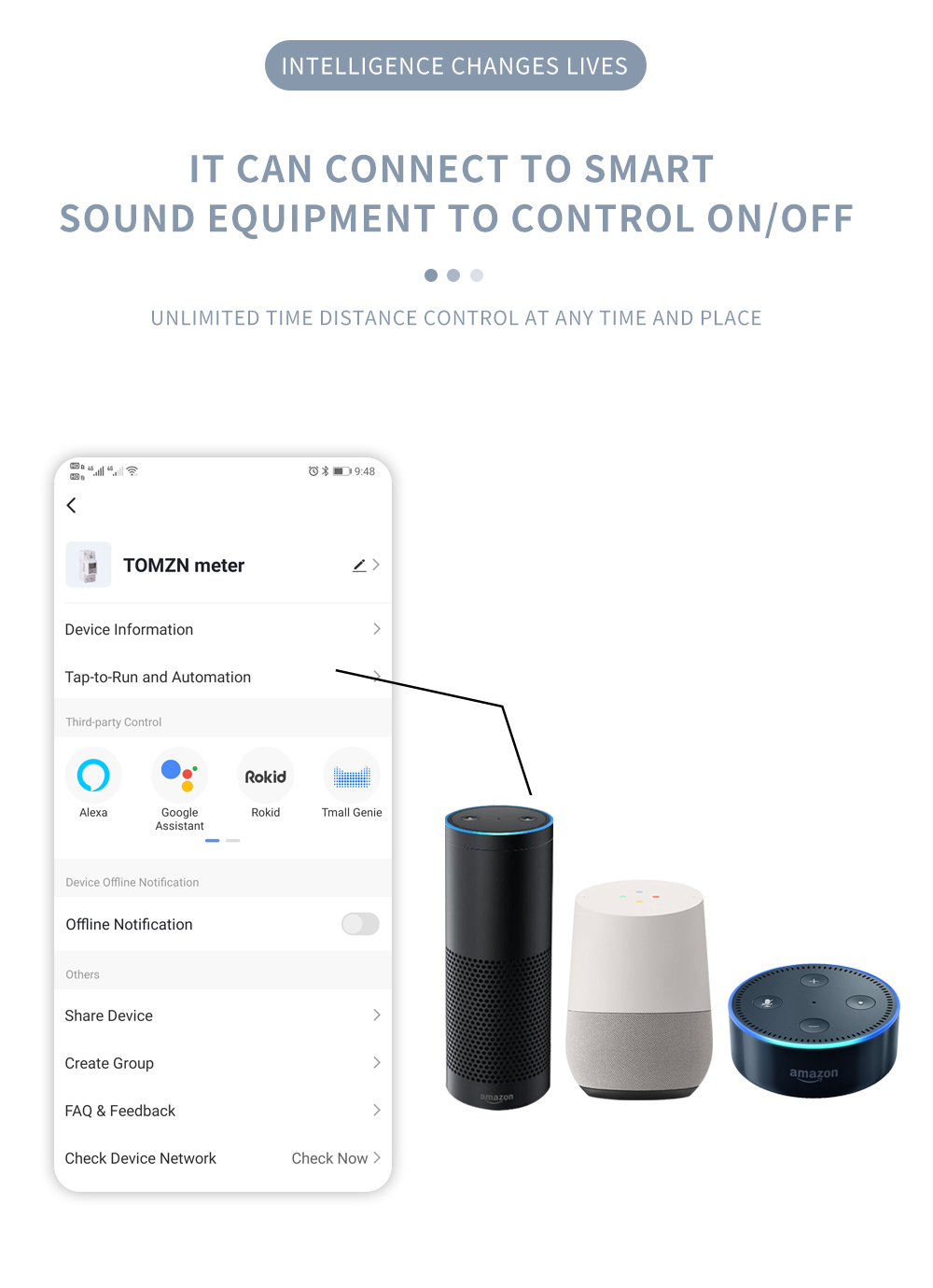

12. Can use same TUYA APP , compatible with other TUYA product such WIFI socket , led ,fans and so on

13. Active energy accurate is class 1 , IEC62053-21

14. Push the button last more than 10s , the WIFI led will flash quickly , then use APP to operation bear 400V /hour not damage

Note: This meter Only supports 2.4G Wireless Network, NOT for 5G

Package include:

1 x Energy Meter

Details picture:
