ETCR6000B DC/AC Clamp Leakage Current Meter 60A Non-Contact Automotive Leakage Current Clamp Meter
- Stock: In Stock
- Model: ST22012183
- SKU: ST22012183
$107.99
Ex Tax: $107.99
Feature:
1. AC and DC leakage current meter, support clamp CT, non‑contact measurement, safe and reliable.

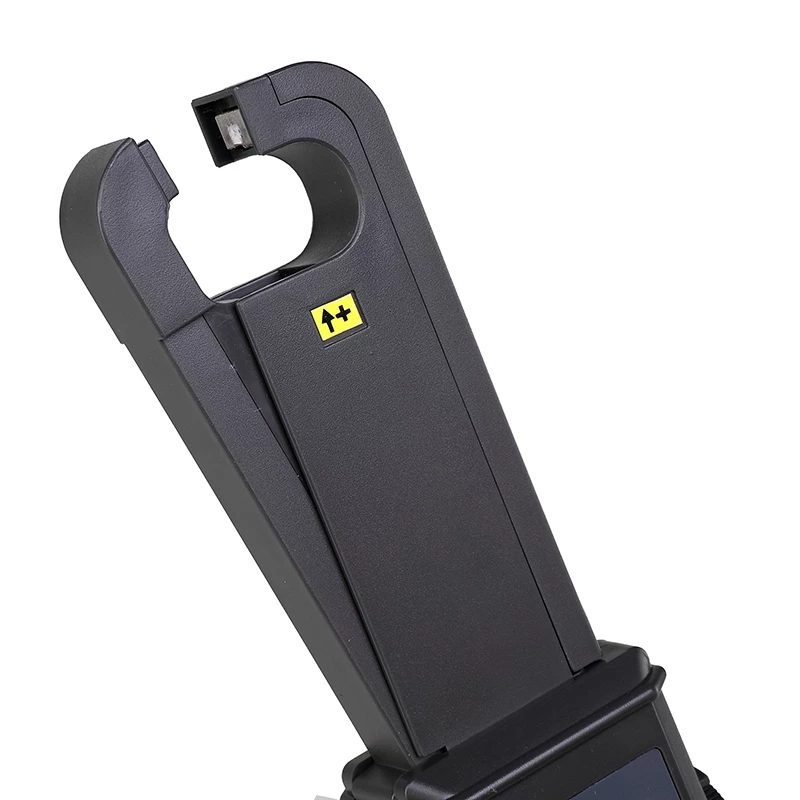

2. Precise winding head design, range is 0mA‑60.0A, high measurement accuracy.
3. Slender jaw design, strong adaptability, fully automatic switching gears, suitable for line testing of 600V and below.
4. Mainly measure automobile DC dark current, leakage current, etc., other AC and DC current, leakage current measurement.
5. Support knob zero adjustment, strong anti‑interference, support data retention, automatic shutdown.
Specification:
Item Type: Leakage Current Tester
Material: ABS
Model: ETCR6000B
Measurement Function: Automobile DC dark current, leakage current, etc., other AC and DC current, leakage current measurement
Power Supply: 1 x 6F22 9V Battery, 100 hours of continuous use (Battery Not Included)
Test Method: Clamp-on CT, non-contact measurement

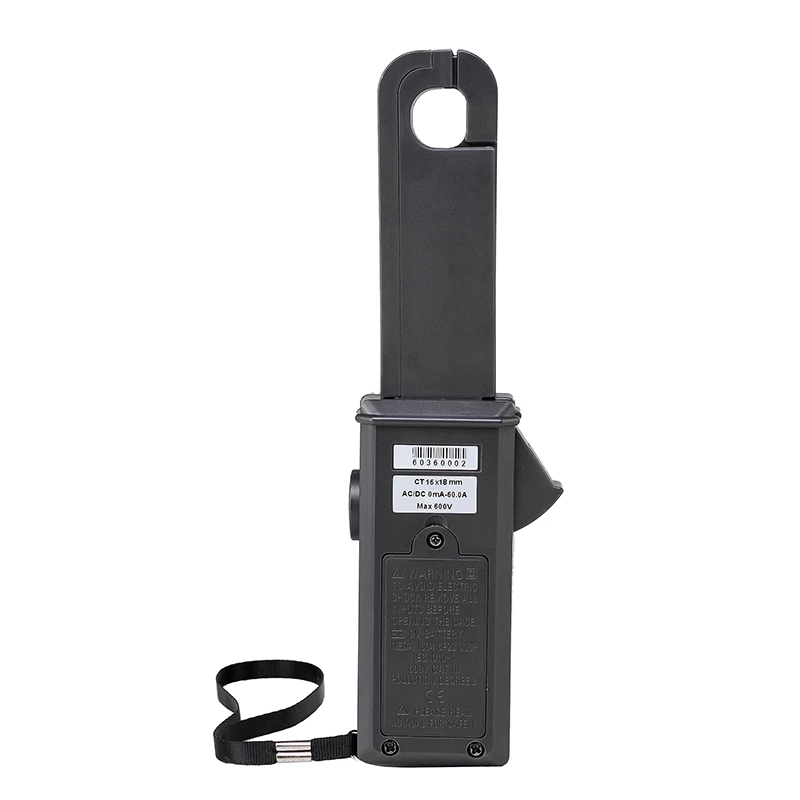

Jaw Size: Approx. 16x18mm / 0.6x0.7in
Range: 0mA-60.0A AC/DC
Resolution: 1mA AC/DC
Accuracy: ±2%rdg±5dgt (23℃±5℃, Below 75%Rh)
Display Mode: 4-Digit LCD Display
Sampling Rate: 2 Times/Sec
Frequency Response: AC 45Hz-400Hz
Polarity Indication: Automatic recognition when DC current is detected, display "-" sign
Wire Position: The wire to be detected is at the center of the jaws
Shifting: Fully automatic switching
Line Voltage: 600V and below line test
USB Interface: With a USB interface, the stored data can be uploaded to the computer, saved and printed
Communication Parameters: Baud rate 9600, data bit 8, stop bit 1, parity bit NONE
Support Functions: Data retention, overflow display, automatic shutdown, battery voltage
RS232 interface: with RS232 interface, the stored data can be uploaded to the computer, saved and printed
Data storage: 99 groups, flashing "FULL" symbol indicates that the storage is full
Data retention: data retention function: "DH" symbol display
Overflow display: over-range overflow function: "OL A" symbol display
Working Current: 10mA
Working Temperature and Humidity: -10℃-50℃; below 80%RH
Limit Temperature Error: -10℃-0℃ and 40℃-50℃, the maximum error increases by 2%rdg
Storage Temperature and Humidity: -10℃-60℃; below 70%RH
Insulation Strength: AC 3700V/rms (between core and box)
How to Use:
Get the product, open the back cover with a tool, install the battery, and the user can adjust the measurement range, and then you can use the measurement. The right knob is zeroed, which has strong anti-interference and better calibration to zero. HOLD is the data holding key. It is very convenient to measure by simply putting the wire into the jaws.

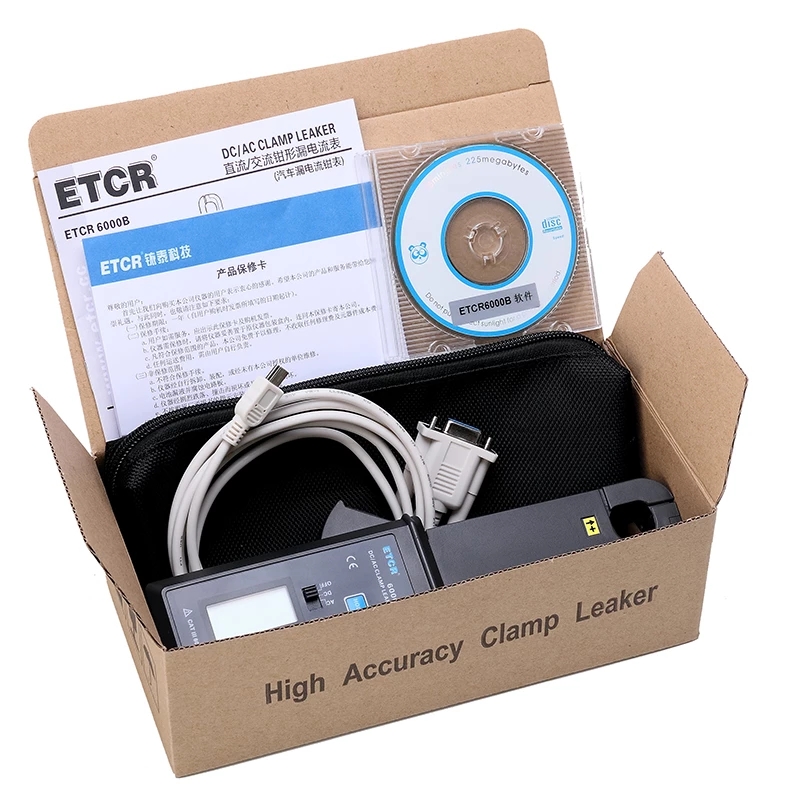

Package Includes:
1 x AC/DC Leakage Current Meter (Battery Not Included)
1 x CD
1 x USB Cable
1 x Manual
1 x Bag
Note:
1. Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Details Picture:
