DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes

DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
DSO2512G 2.8 Inch Dual Channel + Signal Generator 120M Digital Oscilloscope 500GS/s FFT Spectrum Analysis Three Trigger Modes
  • Stock: In Stock
  • Model: ST22011273
  • SKU: ST22011273
$149.99
Ex Tax: $149.99

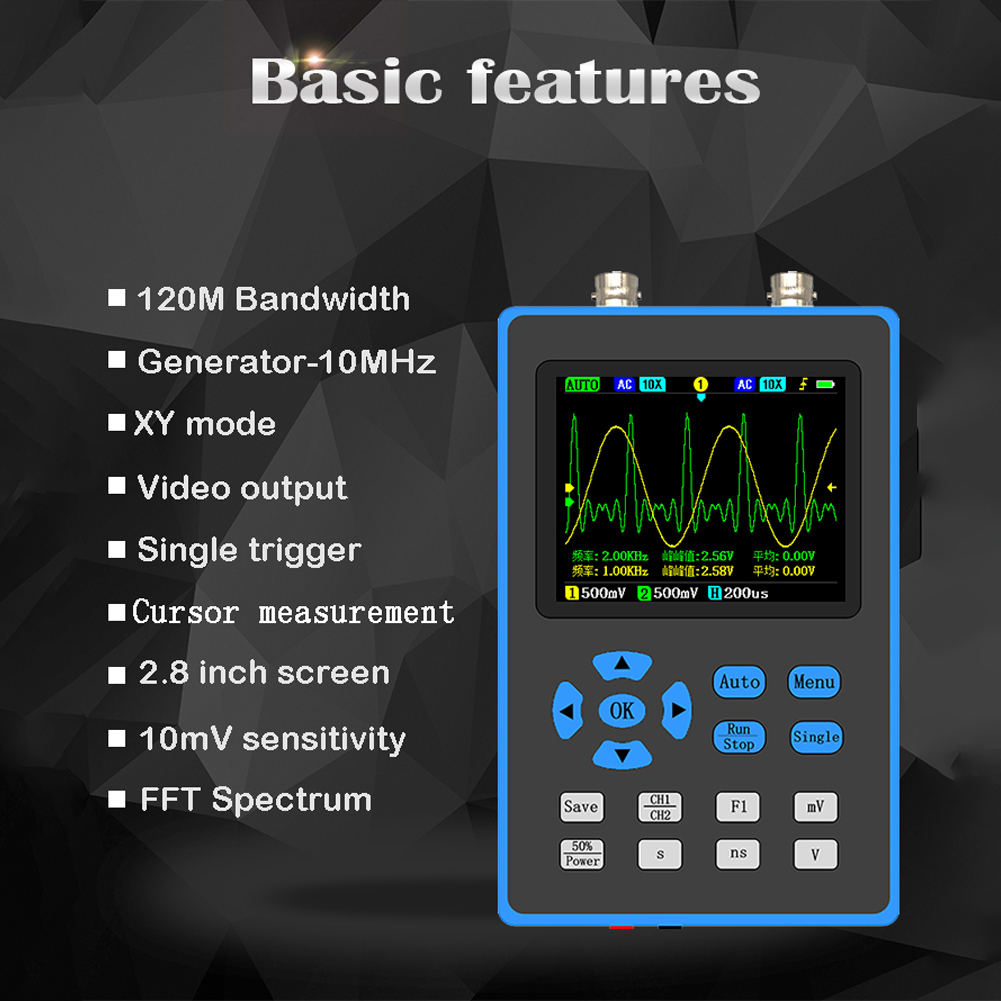

Features:

1. Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.
2. Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.
3. Cursor measurement. For some special signals such as non-periodic signals, noisy signals, or narrow pulses, you can also manually adjust the cursor to measure.

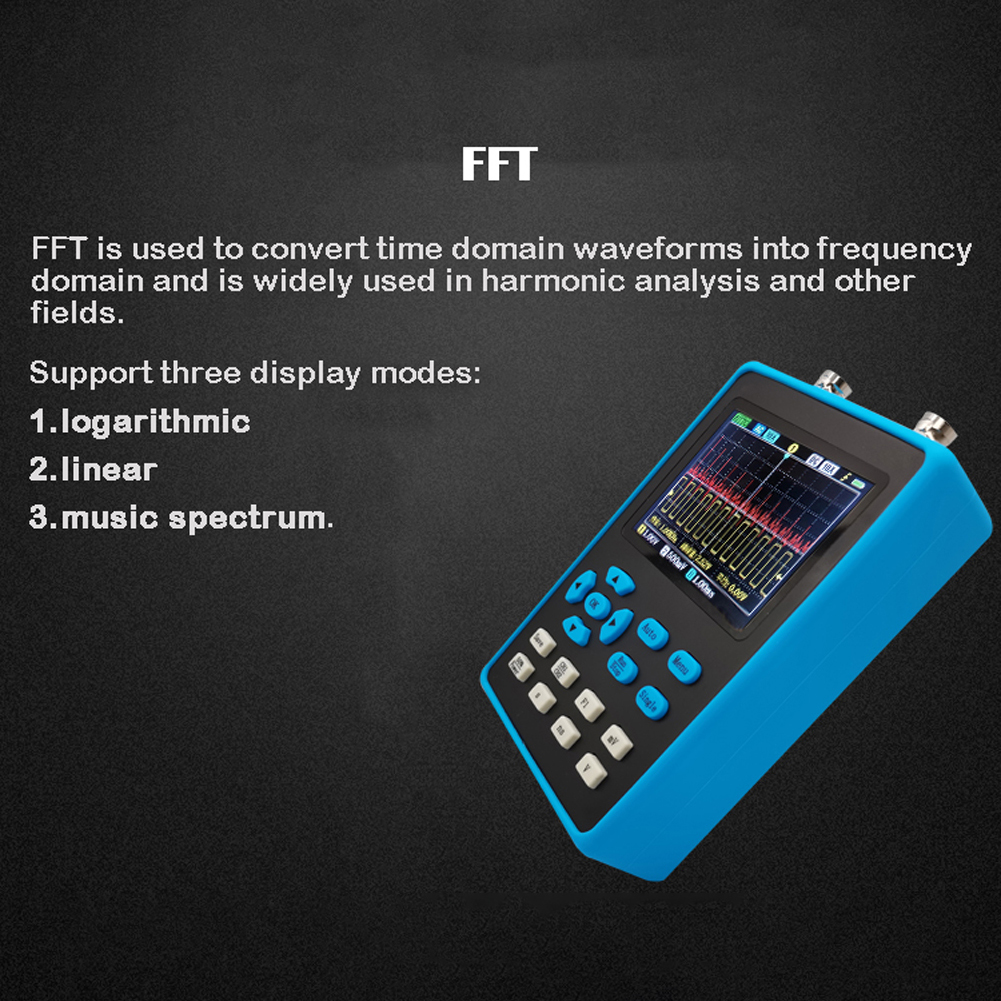

4. FFT spectrum analysis. It can convert time domain waveforms into frequency domain artifacts, which are widely used in harmonic analysis and other fields.
5. Abundant trigger functions. Support automatic trigger, normal trigger, single trigger.
6. Save and preview the waveform. One-key to save the screen waveform, enter the waveform preview page, click the thumbnail to observe in full screen, up to 250 waveforms can be kept, and redundant waveforms can also be deleted.
7. Export the waveform to the computer. Through the USB cable connection, the waveform diagram stored by the user can be exported to the computer, which is convenient and easy to operate.
8. Support zoom waveform after stopping. After stopping, you can drag the waveform left and right to find the desired place to expand and observe the details, and analyze the cause of the problem.
9. There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

Specifications:

  • Model: DSO2512G
  • Channel coupling: AC/DC
  • Number of channels: 2
  • One-click automatic: support
  • Screen size: 2.8 inches
  • Waveform measurement: 14 types
  • Screen resolution: 320*240
  • Measurement accuracy: ±2%
  • Analog bandwidth: 120M (single CH1), 60M (CH1+CH2)
  • XY mode: support
  • Sampling rate: 500M
  • Waveform save: support
  • Rise time: <3ns
  • Frequency accuracy: ±0.01%
  • Storage depth: 128Kb
  • Single trigger: support
  • Input impedance: 1M2
  • FFT: support
  • Time base range: 5ns-10s
  • Signal source amplitude: 2.5V
  • Vertical sensitivity: 10mV/div-100V/div
  • Signal source frequency: sine 0-10M, other 0-2M
  • Maximum measuring voltage: ±40V (probe 1x file) ±400V (probe 10x file)
  • Appearance size: Width * Height * Thickness 82 mm *137 mm *38mm
  • Trigger mode: Auto/Normal
  • Language: Chinese/English
  • Trigger type: Rising edge/falling edge
  • Battery capacity: 3000mA
  • Display mode: YT/XY/scroll
  • Charging plug: MicroUSB-5V
  • Afterglow time: none/1s/0
  • Charging equipment: computer or mobile phone charging first class

Package Included:

1 x Digital Oscilloscope
2 x Probes
1 x USB Cable


Notes:
1. Scratches on the screen are normal. The scratches on the lens are caused by friction during production, packaging, transportation, etc. The scratches are on the protective film and can be torn off by yourself.
2. In addition, the silicone sheath will deform to varying degrees when squeezed. The characteristic of flexible silicone has the advantage that Shougang is very good.
