- Stock: In Stock
- Model: ST22011745
- SKU: ST22011745
Screen | Multimeter | Voltage Test Pen | Phase Sequences Meter |
| A3007 | Normal LCD Screen | √ | x |
| A3008 | Color Screen | √ | √ |
Description:
A3007/A3008 is a pocket type 3 5/6 digits pen-type smart multimeter, with true RMS. It will automatically identify DC voltage/AC voltage/resistance and measure, with no need to turn the dial to switch. Also, it features with stable performance, high precision, auto-off after 5min non-operation for energy saving, capacitance/diode/more test, overload protection, continuity test, non-contact voltage measurement(NCV), zero live line measurement, etc. A perfect tool for professional, factory, school, enthusiast or family use.
Features:
Multi-function pen multimeter: voltage/resistance/capacitance/diode/frequency/temperature, continuity, neutral line
and non-contact phase sequences detection.
Fast responses and high precision: ANENG A3007, 6000 counts digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement.

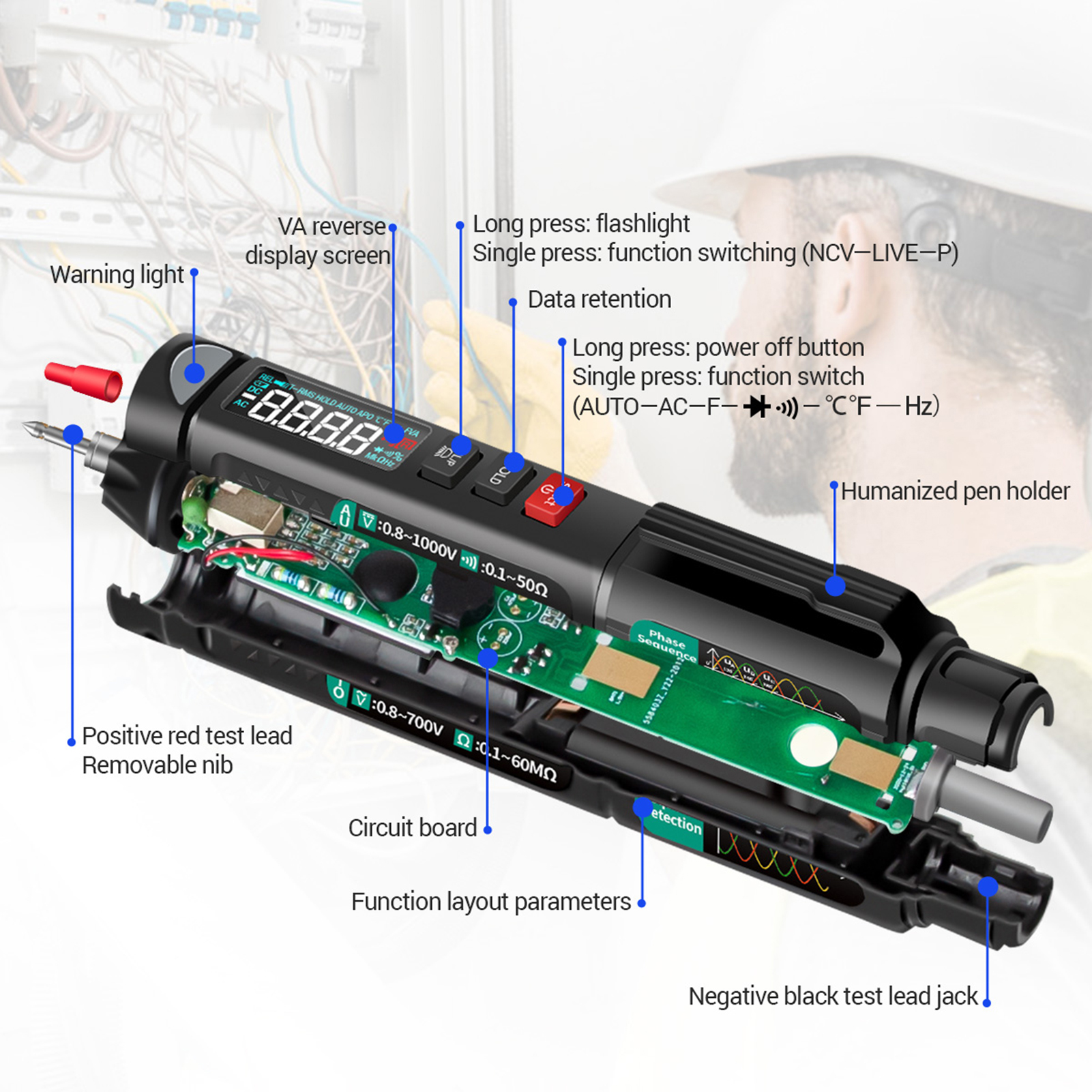

Easy operation: It has LCD clear screen, easy to read the measured values, flashlight available for darkness, data retention function convenient to query data, alarm beep when in use.
Durable materials and portable size: The meter, made from selected electronic components and sturdy plastic housing, is designed with light weight and easy-to-carry pocket size, comfort to grip.
Wide range of applications: The digital multimeter--a handy instrument and assistant, for testing, diagnosing and solving a variety of automotive and daily household electrical problems safely and accurately.

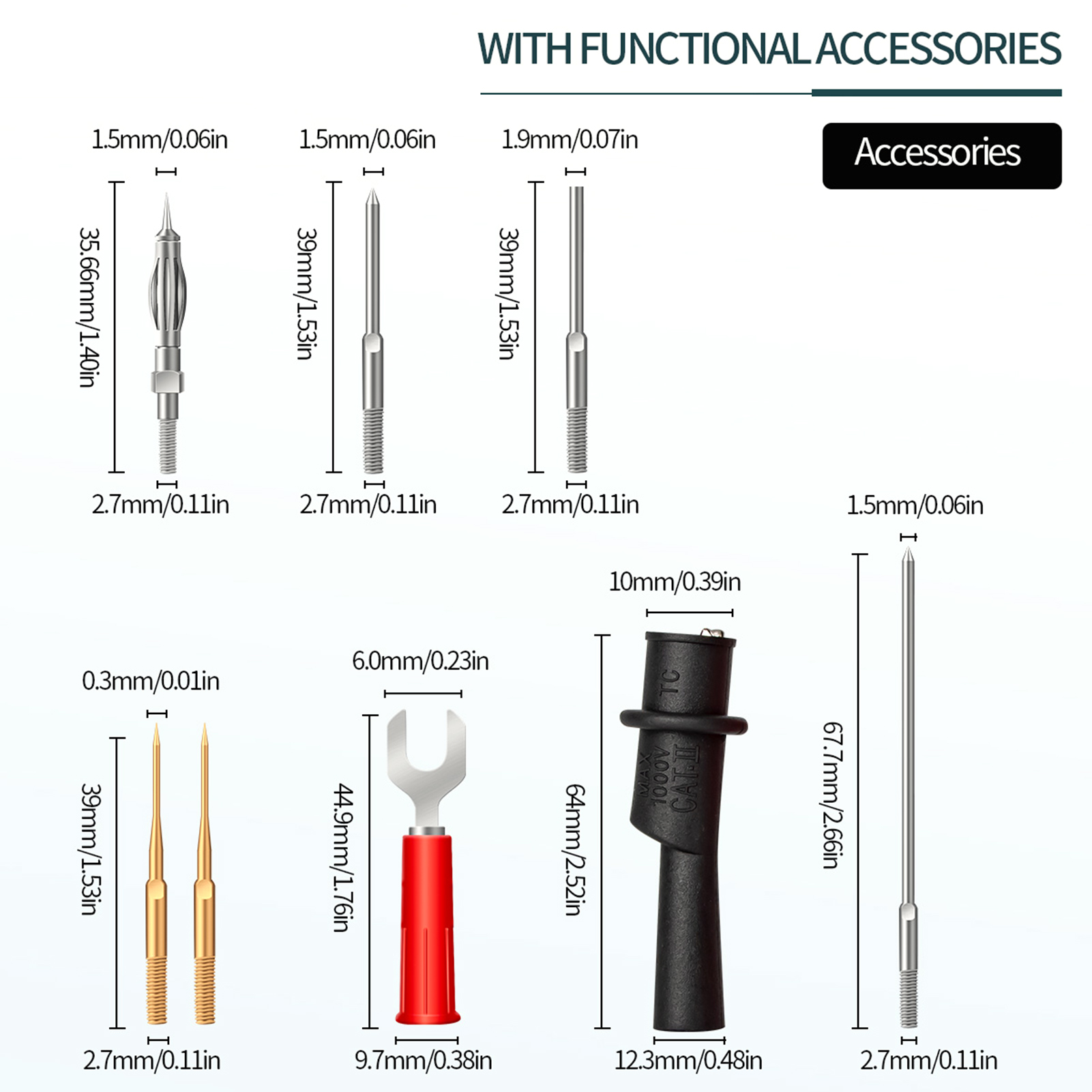

Variety of accessories: 1 × U-shaped insert, 1 × alligator clip, 2 × extra tip, 1 × nickel-plated copper needle, 1 × tapered needle, 1 × extended nickel-plated copper needle, 1 × banana tip are included.
Measurement Range & Accuracy:
DC Voltage: DC6V/DC60V/DC600V ±(0.5%+4); DC1000V ±(0.8%+10)
AC Voltage: AC6V/AC60V/AC600V ±(0.5%+4); AC700V ±(0.8%+10)
Resistance: 600Ω ±(0.8%+5); 6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3); 60MΩ ±(2.5%+3)
Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF ±(3.5%+20); 60mF ±(5%+3)
Temperature: -20~50℃,±(1.0%+5)＜50℃; 0~122℉,±(0.75%+5)＜122℉

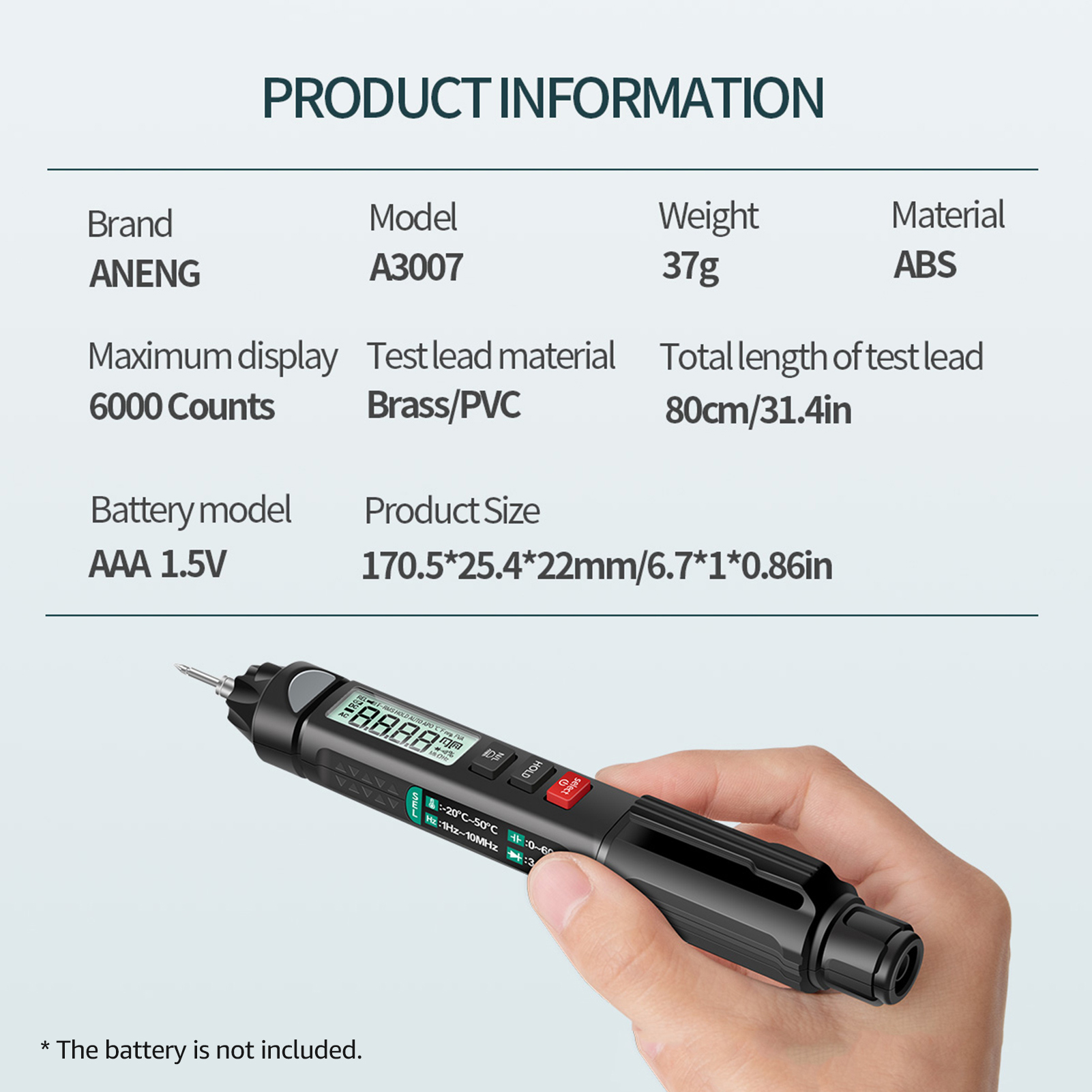

Specification:
Brand: ANENG
Model: A3007/A3008
Material: ABS
Test Line Material: Brass / PVC
Main Color: Black
Screen: LCD display
Maximum Display: 5999 (3 5/6) automatic polarity display
Measurement Method: Double integral A/D conversion
Sampling Time: About 3 times / second
Over-range Indication: "OL" is displayed on the highest position
DC Voltage Test: Yes
AC Voltage Test: Yes
Resistance Test: Yes
Capacitance Test: Yes
Diode Test: Yes
Continuity Test: Yes
Non-contact Phase Sequences Test: Yes(Only A3008)
Color Screen: Yes
NCV: Yes
Neutral / Fire Test: Yes
Full Unit Symbol: Yes
Backlight: Yes
Auto Power Off: Yes
True RMS: Yes
Data Hold: Yes
Temperature (℃/℉): Yes
Hz: Yes
Flashlight: Yes
Working Condition: 0～40℃ temperature, <80% relative humidity
Power Supply: 1* 1.5V AAA battery (NOT included)
Test Lead Length: 117.4mm / 4.62in
Product Size: 170.5*25.4*22mm / 6.71*1.0*0.86in
Product Weight: About 50g / 1.76oz
Package Size: 190*80*35mm / 7.48*3.14*1.37in
Package Weight: 170g / 5.99oz
