- Stock: In Stock
- Model: ST220011530
- SKU: ST220011530

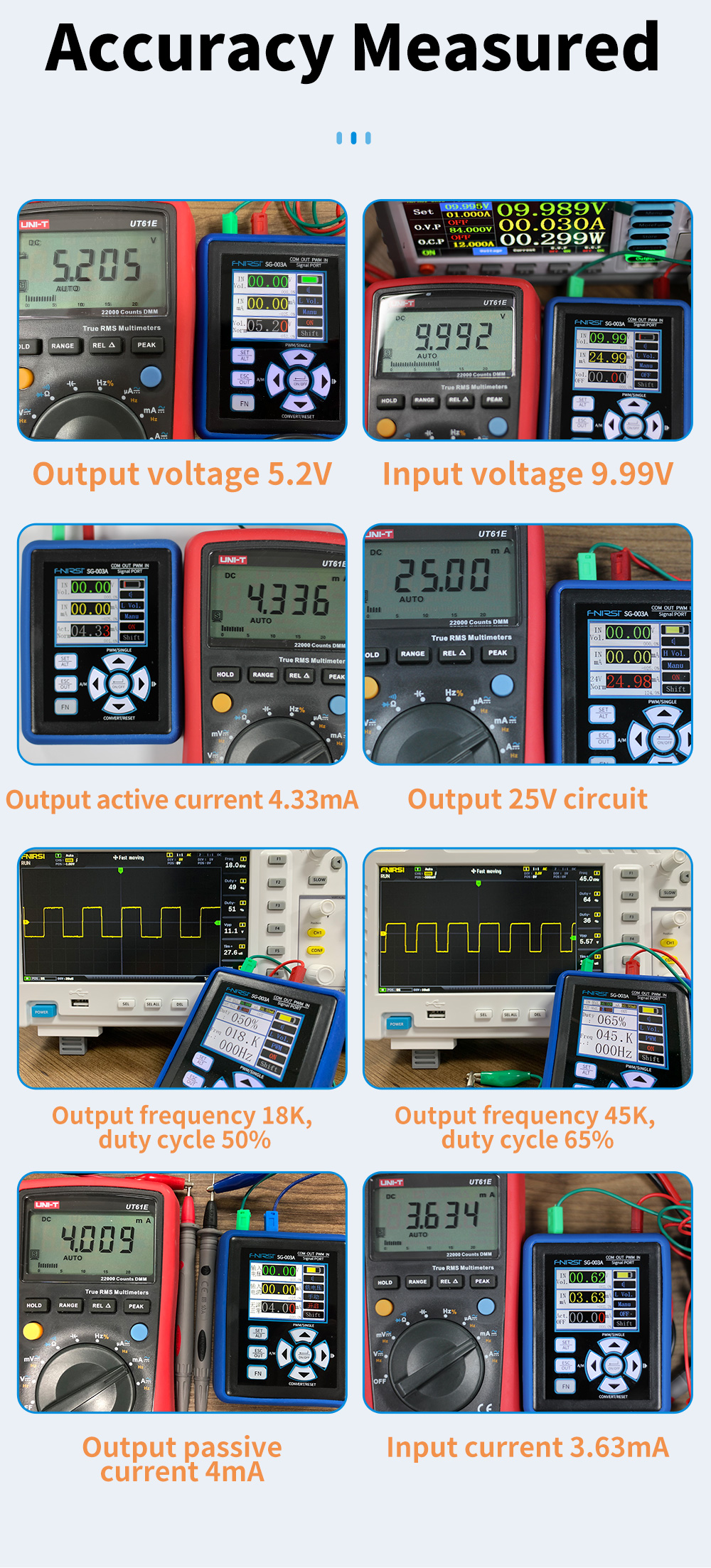

| Active current output | |||
| Range: 0-24mA | Resolution: 0.01 mA | Maximum load: 750Ω | Accuracy:±(0.1% + 0.005) |
| Passive current output | |||
| Range: 0-24 mA | Resolution: 0.01 mA | External power supply up to 30V | Accuracy: ± (0.1% + 0.005) |
| Voltage output | |||
| Range: 0-12 V | Resolution: 0.01v | Maximum current 30mA | Accuracy: ± (0.1% + 0.005) |
| 24V voltage output | |||
| Drive current: 24mA | Resolution: 0.01 mA | / | Accuracy: ±(0.1% + 0.005) |
| Current input measurement | |||
| Range: 0-24 mA | Resolution: 0.01 mA | Input impedance: 100Ω | Accuracy: ±(0.1% + 0.05) |
| Voltage input measurement | |||
| Range: 0-30 V | Resolution: 0.01 V | Input impedance: 2MΩ | Accuracy: ± (0.1% + 0.05) |
| PWM output (frequency) | |||
| Range: 0-20K, 45K, 90K, 180K | Resolution: 1Hz | / | Accuracy: ±2% |
| PWM output (duty cycle) | |||
| Range: 0-100 | Resolution: 1% | / | Accuracy: ±2% |
| Working environment | |||
| 0°C-50°C | |||
Description:
FNIRSI SG-003A signal generator is mainly used for the debugging of industrial field PLC, process instrumentation, electric valve, etc. The friendly operation interface is easy to use
FNIRSI SG-003A signal generator is small in size, light in weight, but has long standby time, high precision, and is easy to carry when going out to work. Adjustable button backlight and high-definition TFT color LCD screen make user operation more convenient at night and during the day
Feature:
1. With the conventional signal input and output functions
2. Voltage and current have automatic output function, and you can choose three modes of single rise, single fall and cycle
3. With input to output conversion, voltage conversion active current mode, passive mode and current conversion voltage mode
4. The output has a self-defining function, and the upper and lower limits of the output can be set arbitrarily
6. Voltage input diagram, current input diagram, frame rate is 10 frames
7. The frequency and duty cycle of PWM output can be set separately
8. Real-time curve: Real-time observation of voltage and current changes
9. It is powered by a large-capacity lithium battery and has a Type-c interface (5V) for charging. Lithium battery capacity is 3000mHA, long working time
10. High-definition TFT color LCD screen, the reading is more eye-catching. The resolution is 240 x 320. Low power consumption, maximum power consumption: 0.32W
11. Internal reverse and overcurrent protection. Protection voltage: 30V
12. Power supply: A 3.7V 3000mAh lithium battery. Standby time is 26 hours. According to the usage, the use time will be different (continuous output 20mA may be 8-10 hours)
13. Size: 92 x 72 x 30mm
Package Included:
1 x FNIRSI SG-003A Signal Generator (Other products are not included)
1 x Black Storage Bag
4 x Test Clip
1 x FNIRSI SG-003A Silicone Protective Cover
1 x USB Charging Cable
1 x EU Charger
