DS18B20 Waterproof Digital Temperature Temp Sensor Probe 1M 2M 3M 5M 10M 15M

Description :

DS18B20 Waterproof Digital Temperature Temp Sensor Probe 1M 2M 3M 5M 10M 15M
Features :
Flexibility resistance, Better thermal conductivity.
Length of Cable : 1M / 2M / 3M / 5M / 10M / 15M optional~ Size of Stainless steel sheath : 6 x 30mm
Power supply range : 3.0V to 5.5V
Operating temperature range : -55°C to +125°C (-67°F to +257°F)
Storage temperature range : -55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C : ±0.5°C.

Application : Thermostatic Controls; Industrial Systems; Consumer Products; Thermometers; Any Thermally Sensitive System.

Connect:

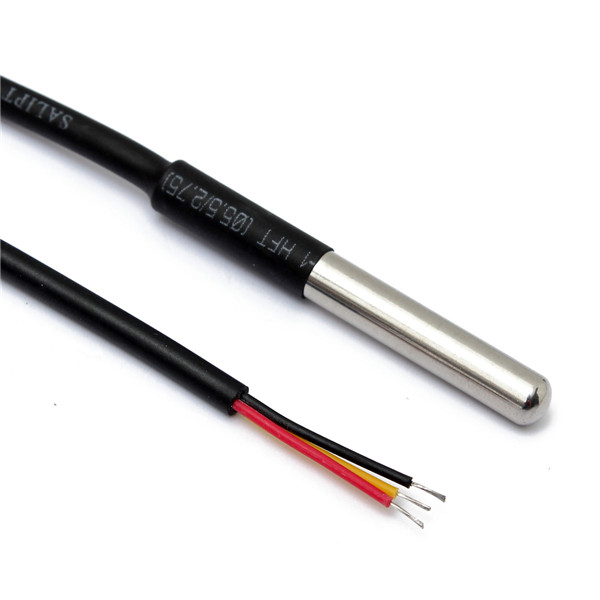

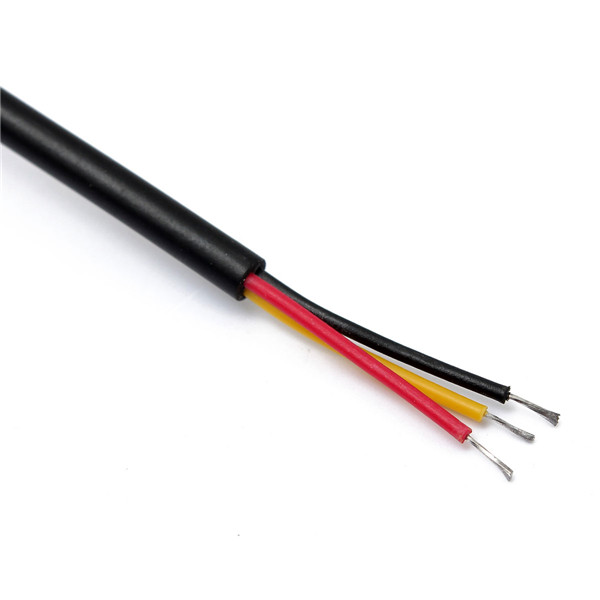

Probe's wire received is Red, Yellow and Black, conncet your probe as Output lead : Red (VCC), Yellow(DATA), Black(GND) : )
Package includes :
1 x Thermal probe/sensor DS18B20 (1M / 2M / 3M / 5M / 10M / 15M for optional~)

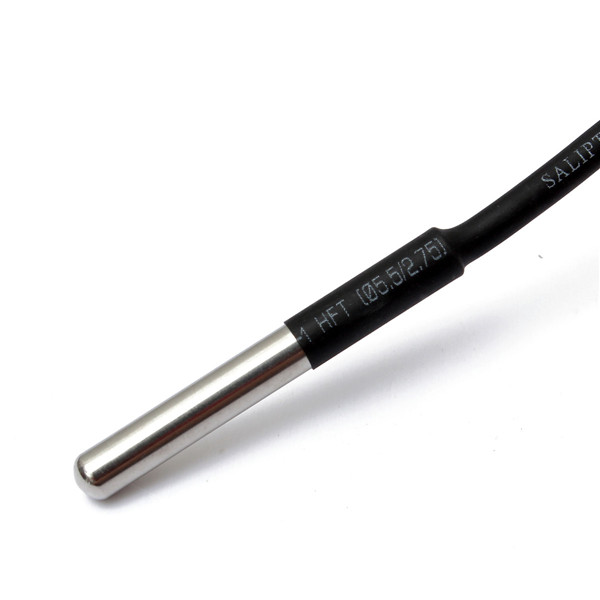

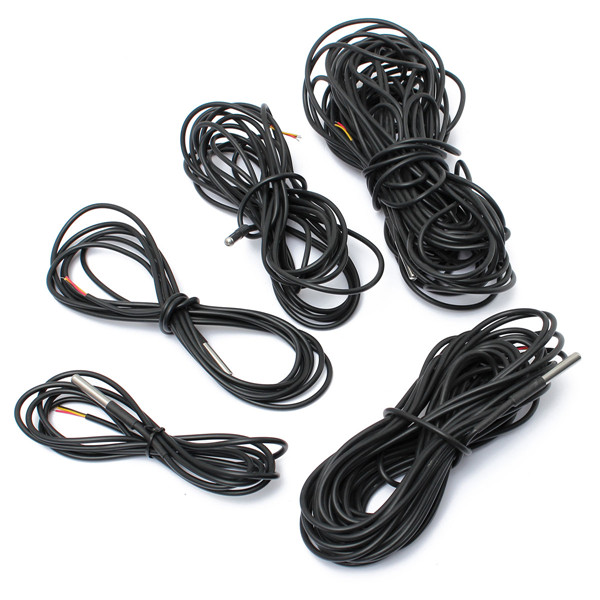

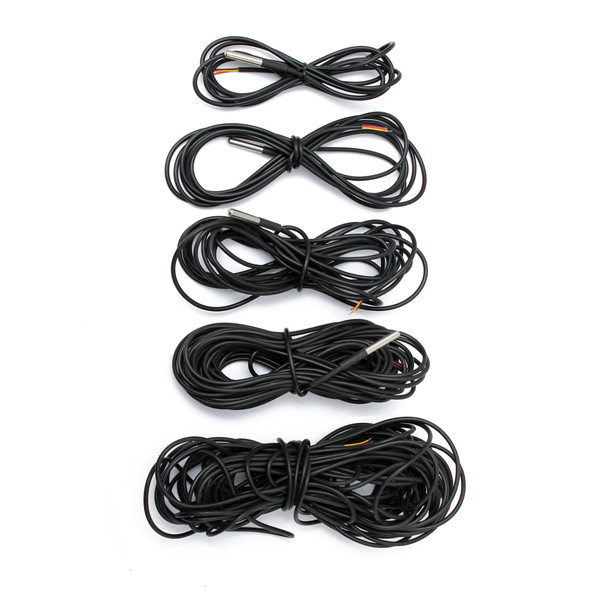

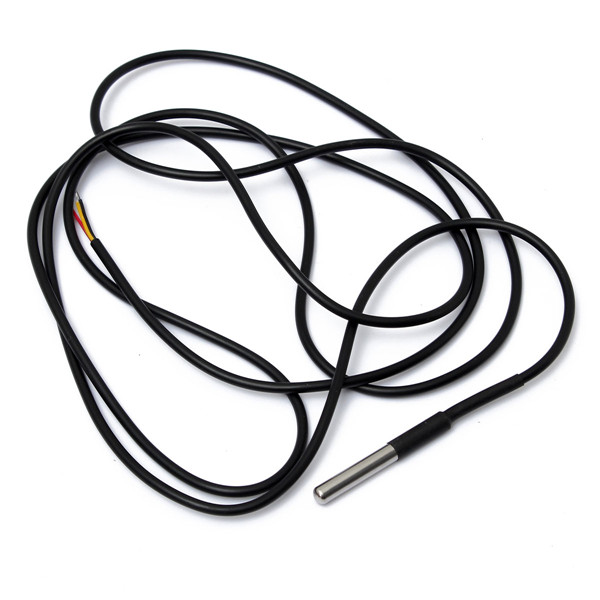

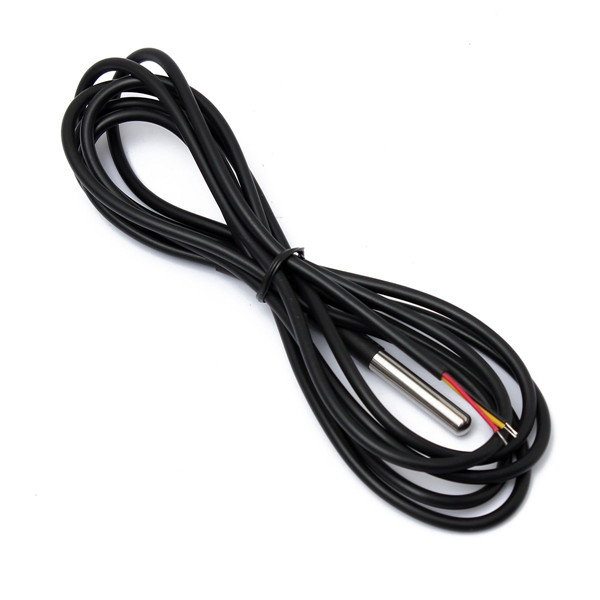

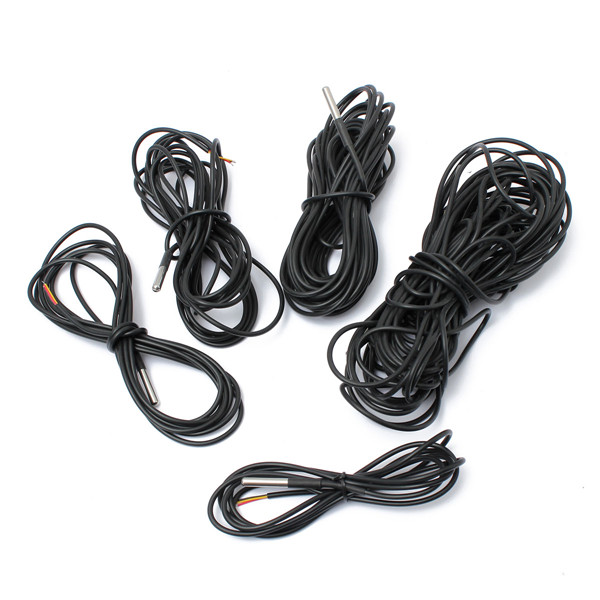

Details pictures :
