DIY Pump RC Robot Arm ABB Industrial Robot Art With Digital Servo For /16-way bluetooth Control
- Stock: In Stock
- Model: ST22000770
- SKU: ST22000770
$120.11
Ex Tax: $120.11
Description:

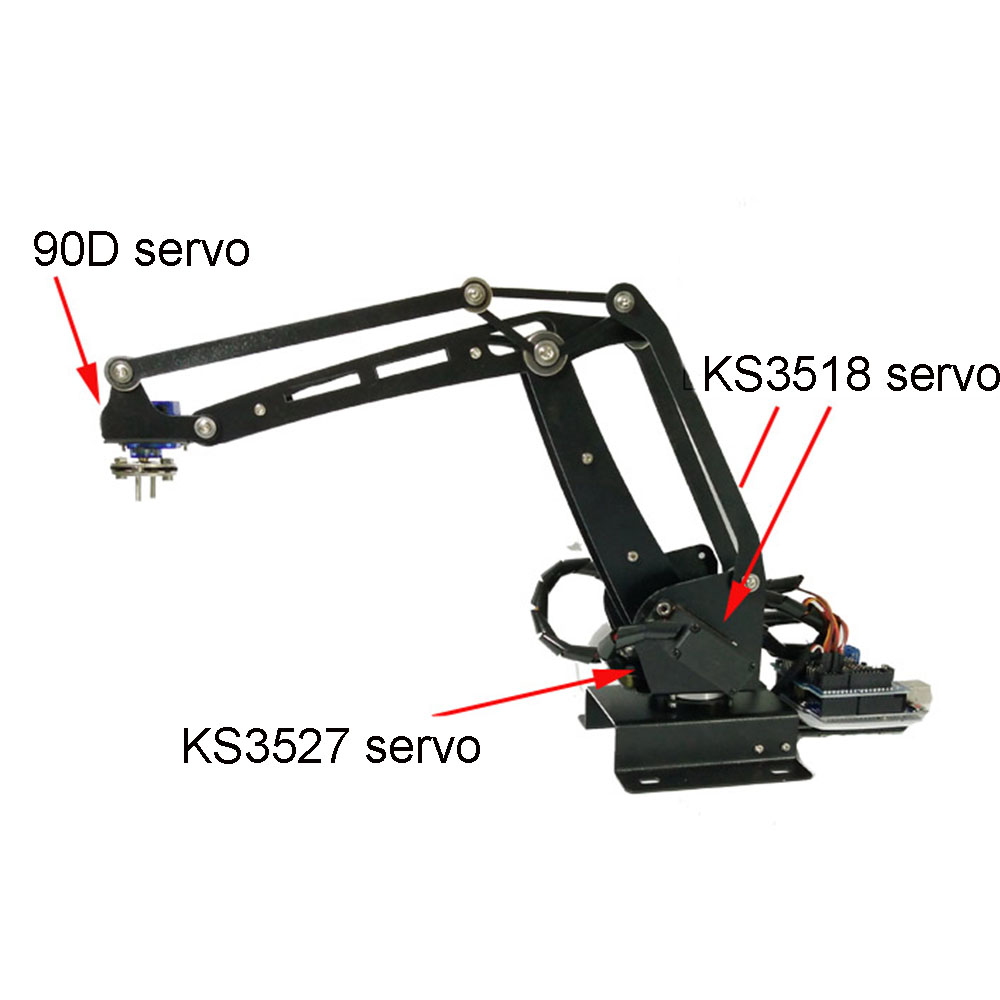

Product: DIY RC Robot Arm
Materials: Metal
Main Board: /16-ways bluetooth Control
Servo: Digital Servos
KS3527 Digital Servo
Neutral Position:1500μs
Pulse Width: 500μs-2500μs
Angle: 135°*2
Voltage Range: 4.8V-6.64V
Operating Speed(6.6V): 0.16sec/60°
Stall Torque: 20kg/cm
No-load Current: 80-100mA
Dimensions: 40*40.5*20mm
Weight: About 60g
Connector Wire Length: 300mm
KS-3518 Digital Servo
Angle: 90°*2
Voltage Range: 4.8V-6.6V
Operating Speed(4.8V): 0.09sec/60°
Operating Speed(6.0V): 0.07sec/60°
Stall Torque(4.8V): 18kg/cm
Stall Torque(6.6V): 20kg/cm
Gear: Metal
Bearing: Ball Bearing*2
Weight: About 55g
Features:
- DIY design, free to assemble at any time.
- Support control.
- Acrylic materials, it is very lightsome and movo freely.
Note: The main board are not included
Package:
1* Robot Arm Kit
