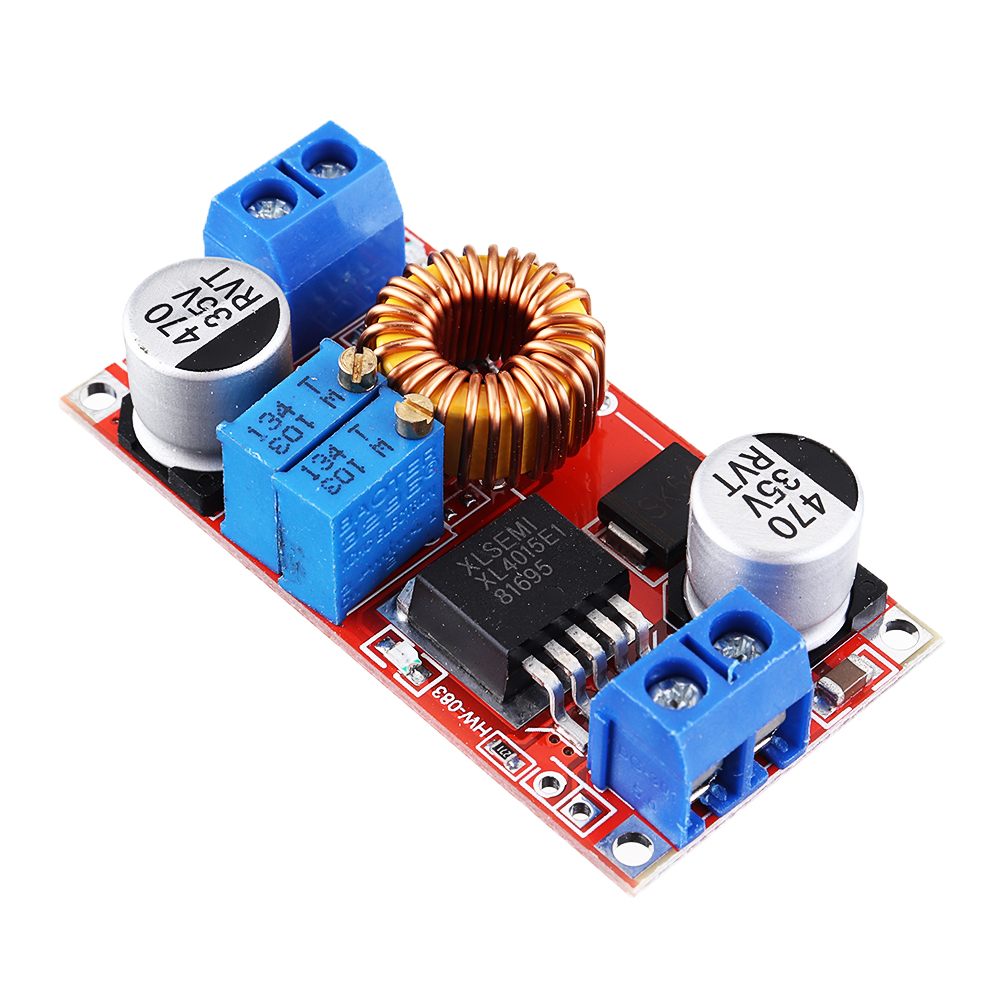

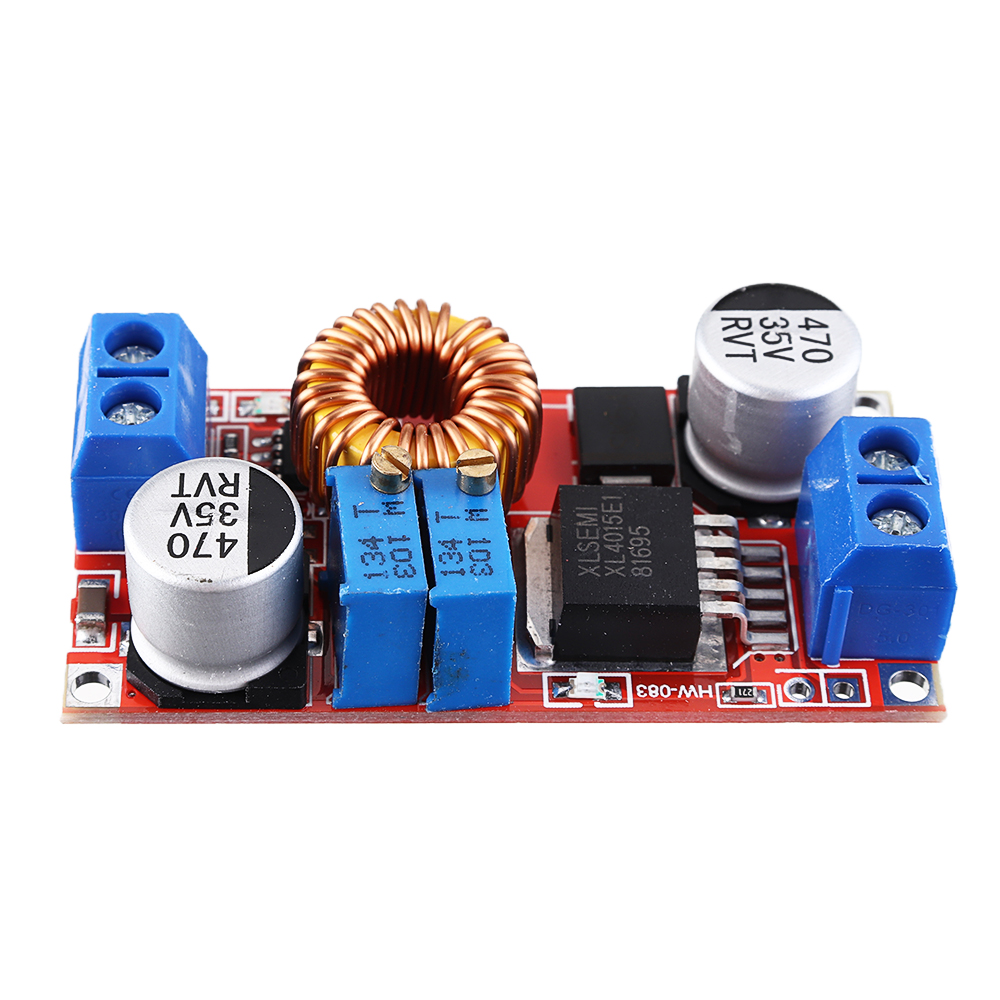

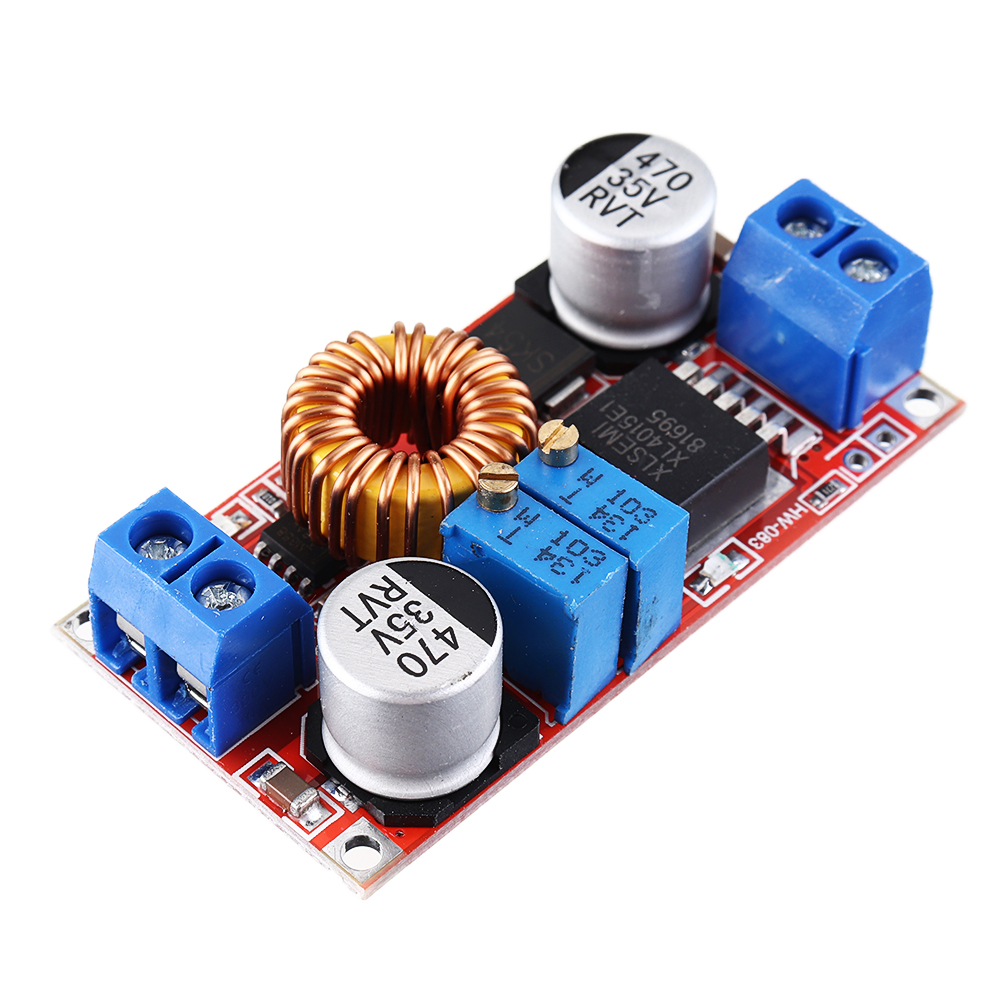

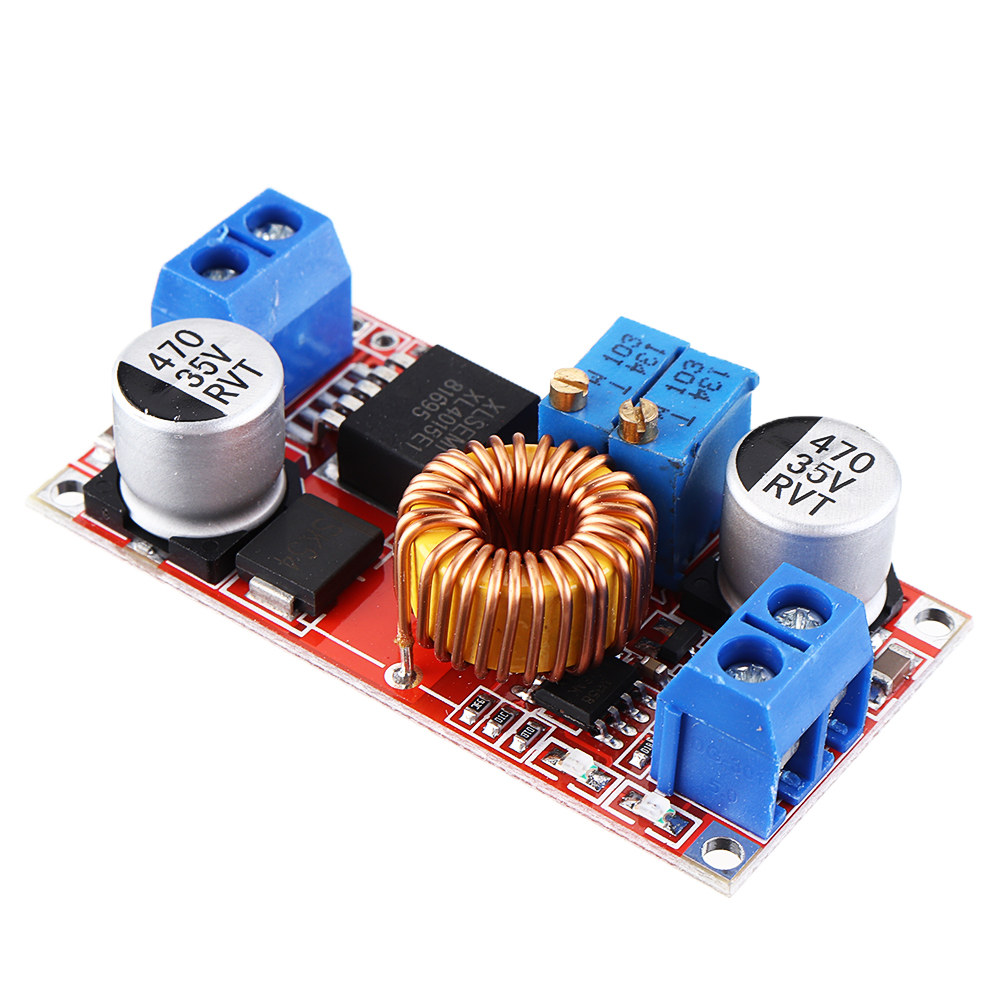

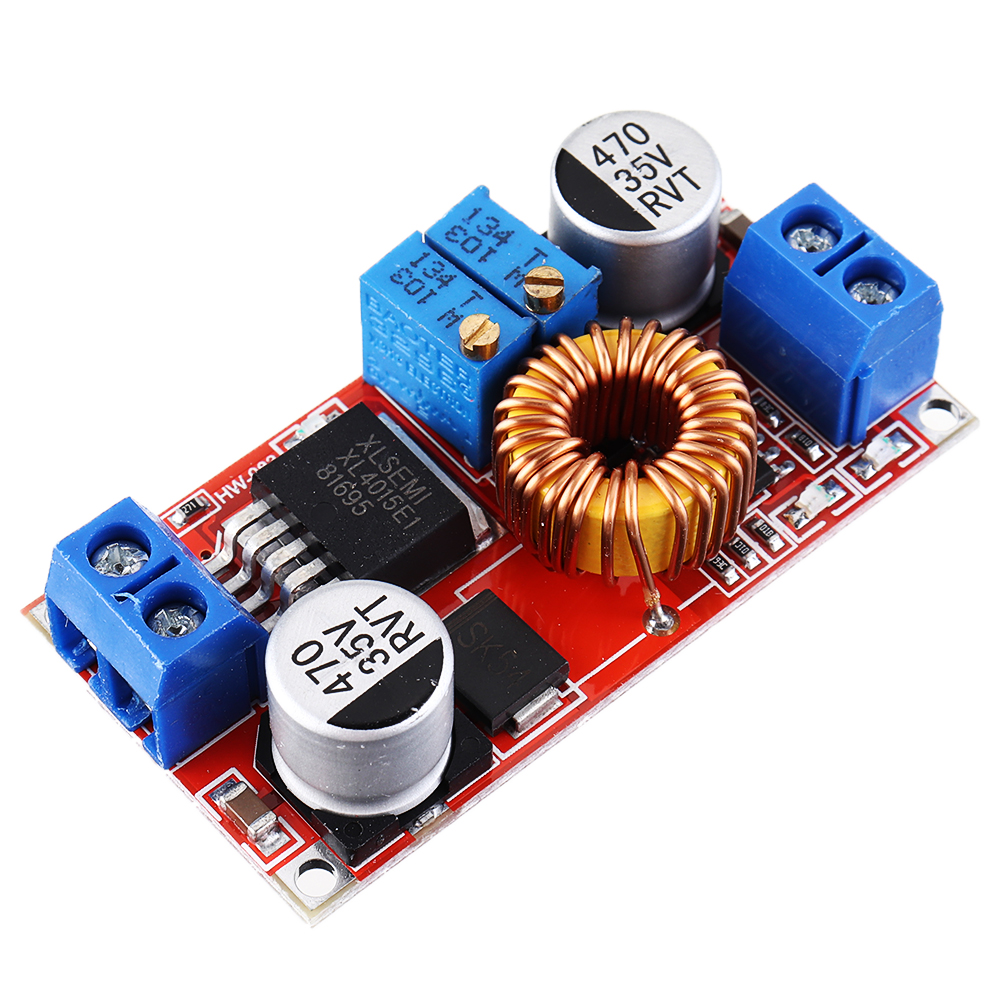

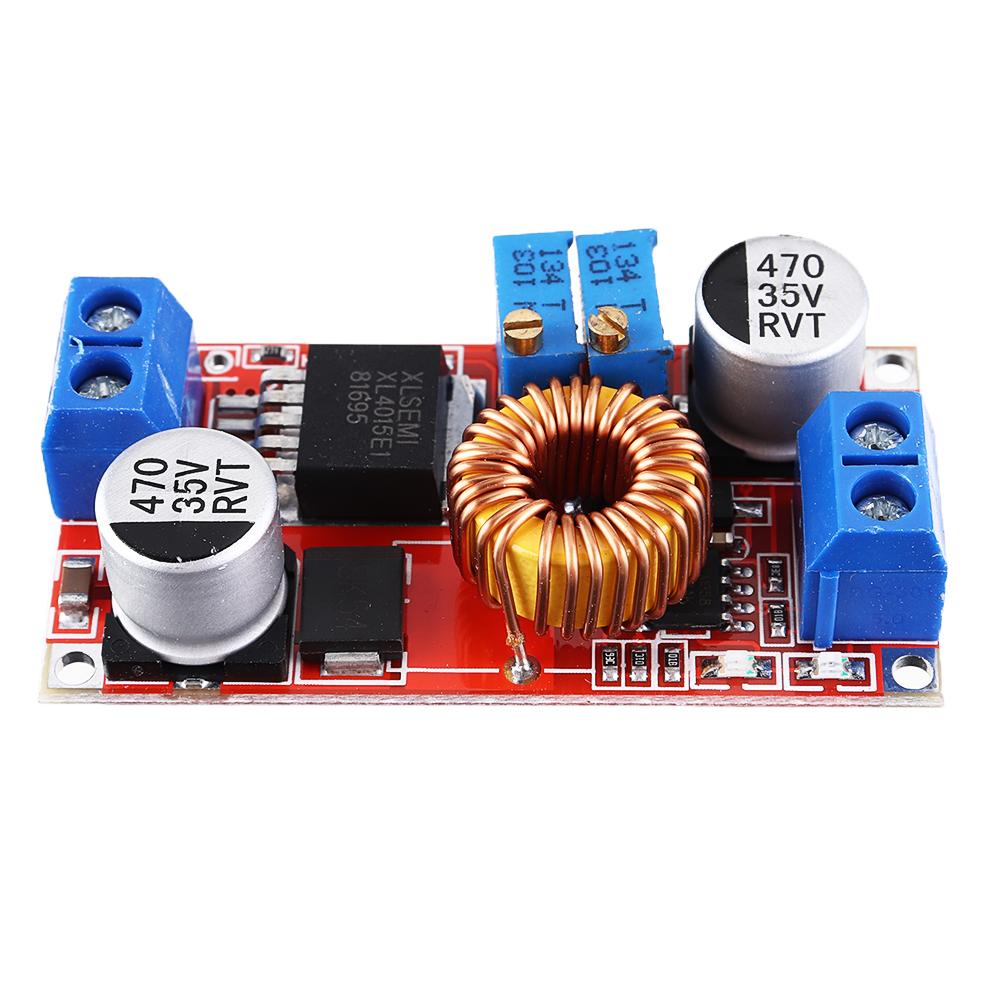

DC-DC 5-32V to 0.8-30V Power Supply Step Down Module Adjustable Buck Regulator 5A Constant LED Driver Battery Charging Voltage Board
- Stock: In Stock
- Model: ST230048202
- SKU: ST230048202
$3.99
Ex Tax: $3.99
Overview:
The module uses high-quality chips, high efficiency (up to 95%), low heat generation, maximum 5A current, and TI's op-amp control output current, making the overall output very stable.
This module uses a low-ESR filter capacitor to reduce ripple voltage to 50mV!
Features:
Module nature: non-isolated buck module
Rectification mode: asynchronous rectification

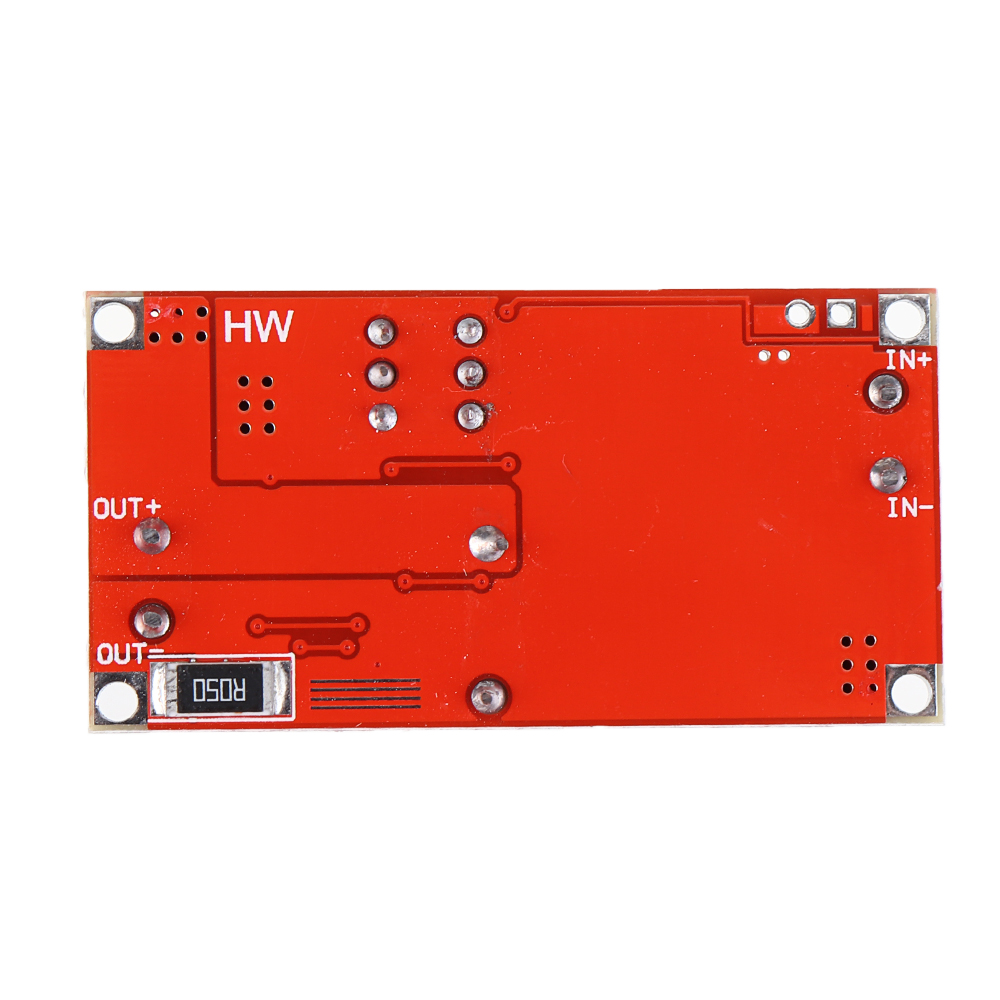

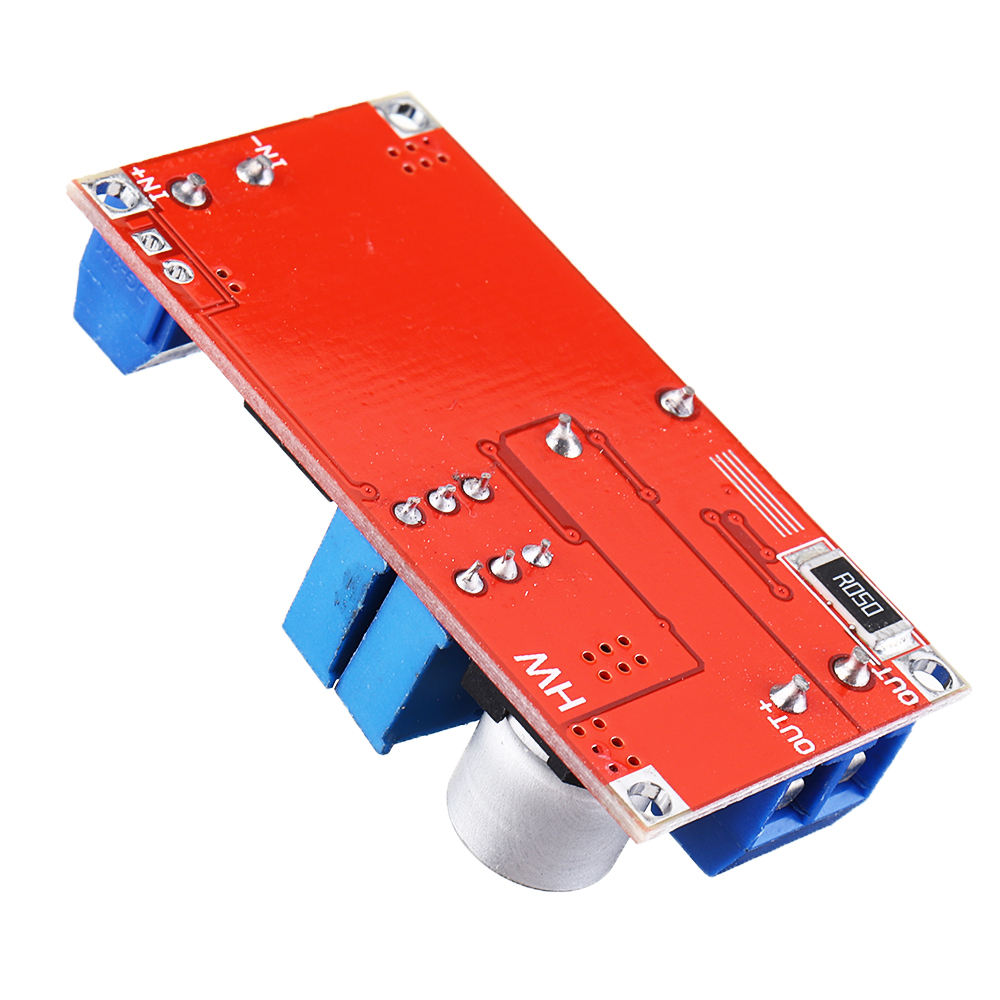

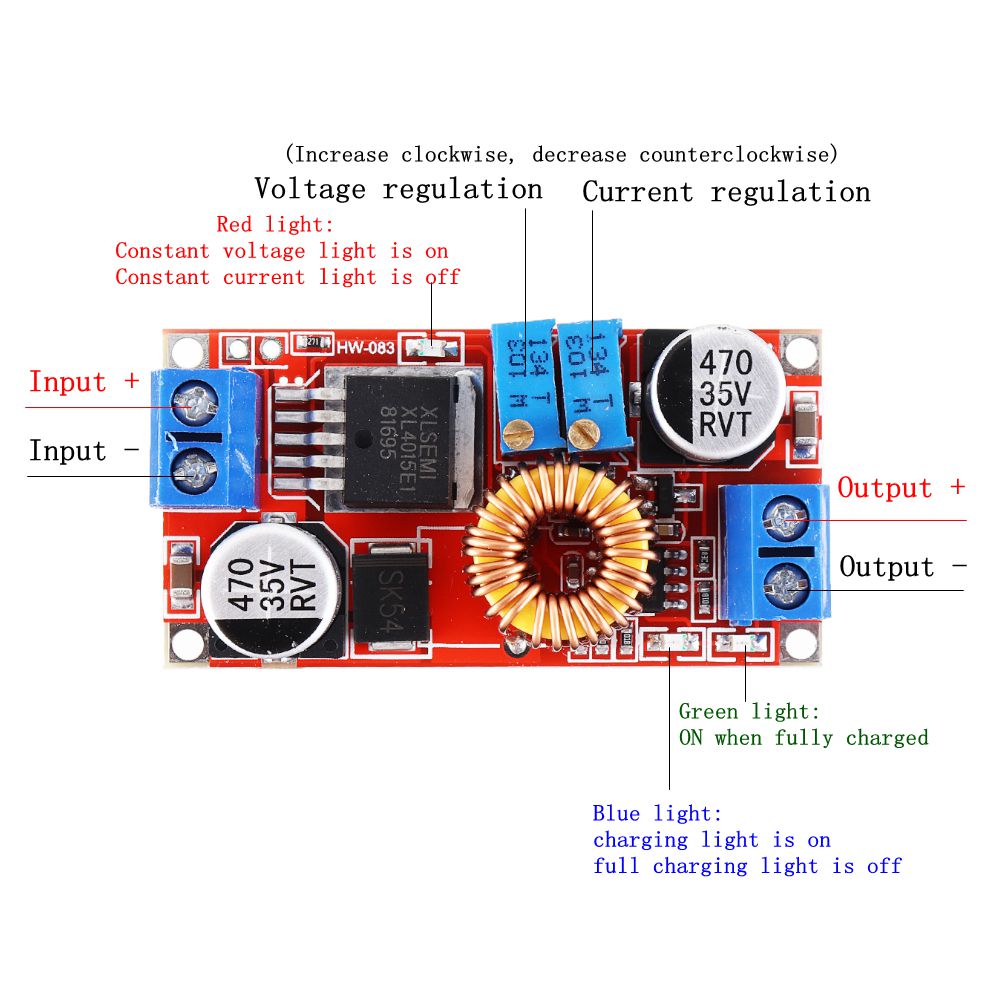

Wiring port: Input mode: IN+ input positive, IN- input negative
Output mode: OUT+ output positive, OUT-output negative
Input voltage: DC 5V-32V
Output voltage: DC 0.8V-30V
Output current: Adjustable , Max 5A
Conversion efficiency: 95% (maximum)
Switching frequency: 300KHz
Output ripple: 50mV (maximum) 20M bandwidth
Load adjustment rate: +/-0.5%
Voltage regulation rate: +/- 2.5%
Operating temperature: -40°C to +85°C

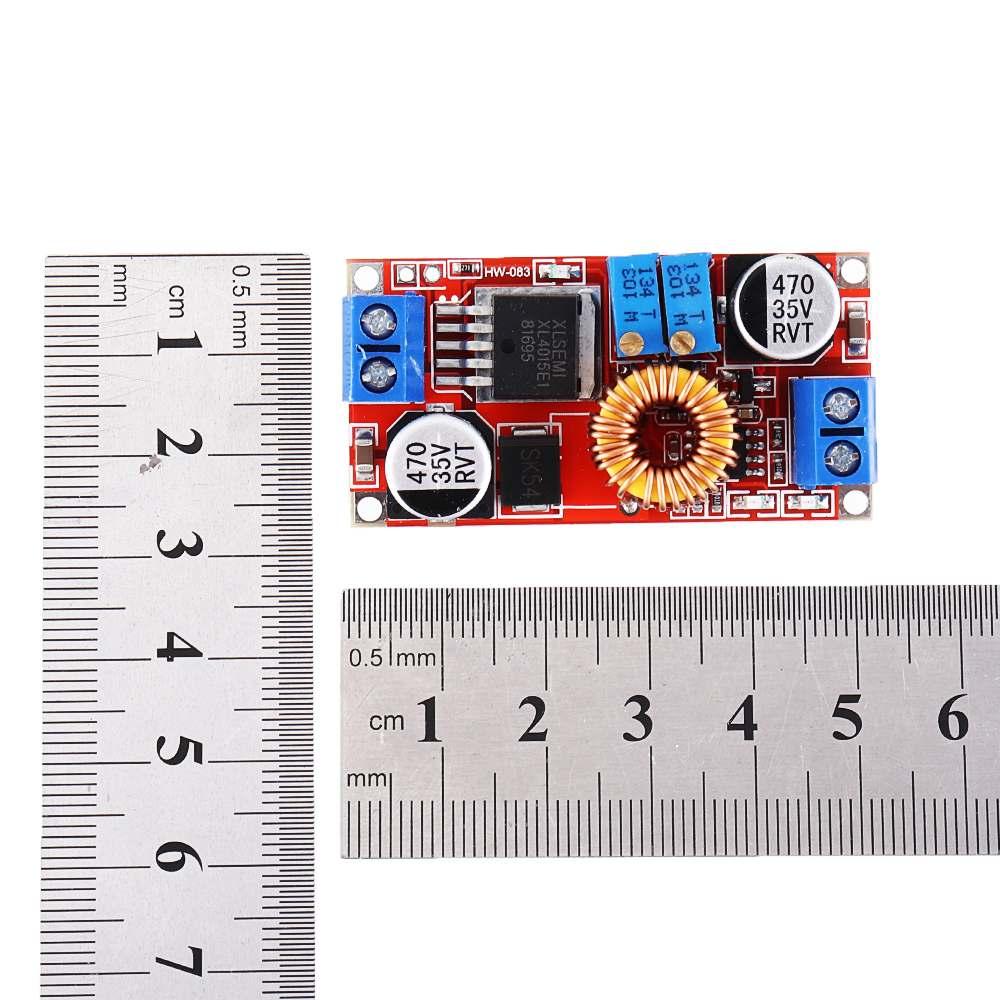

Size: 51 x 26.3 x 14 (length x width x height) (mm)
Package Included:
1 x DC-DC 5A Adjustable Buck Regulator Power Supply Module
