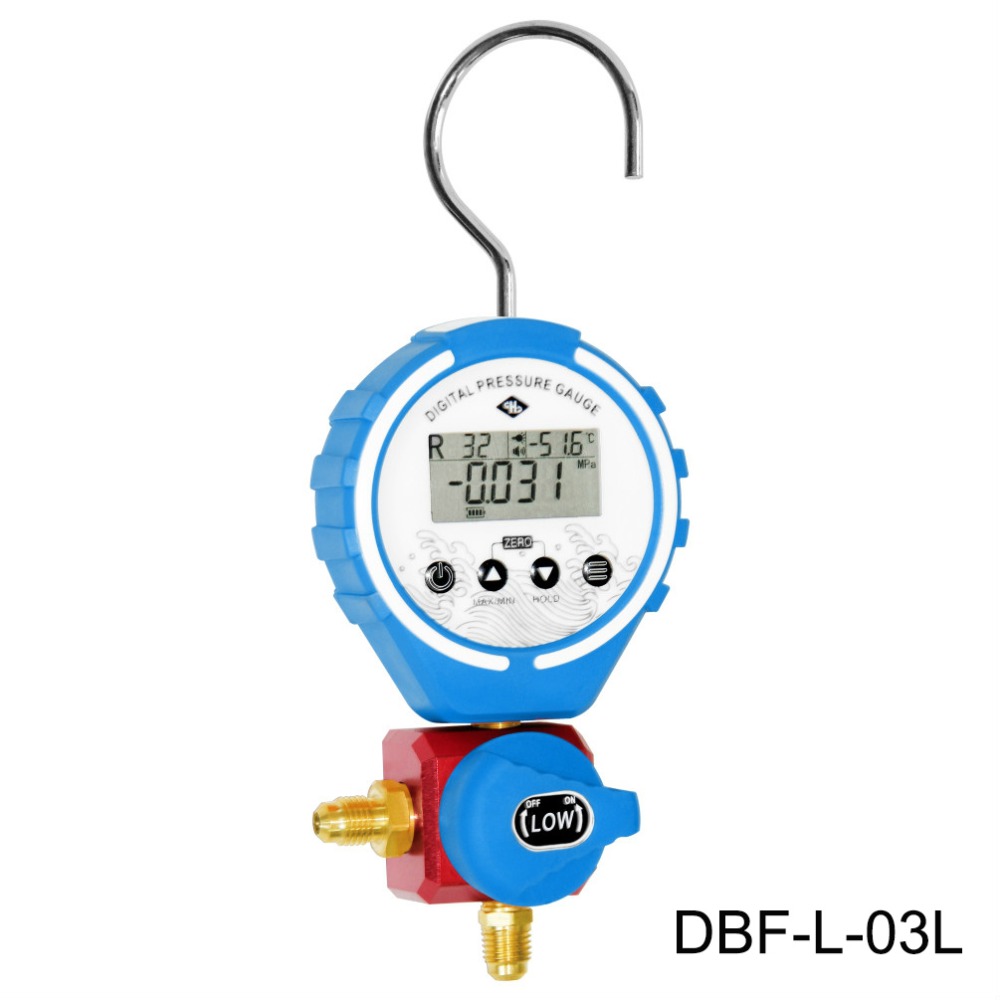

DBF-L-03L Pressure Gauge Refrigeration Digital Manifold Tester Vacuum Pressure Meter HVAC Temperature Tester Freon Pressure Gauge
- Stock: In Stock
- Model: ST22012341
- SKU: ST22012341
$60.99
Ex Tax: $60.99
Description:
1.Digital refrigerant pressure gauges are made of the latest microcomputer controllers, 24-bit AD converters and high- precision pressure sensors. It not only can accurately measure the pressure of gas and liquid, but also can measure the vacuum pressure.
2.The pressure gauge has no movable parts, so it has long service life, high measuring accuracy and good long-termstability.
3 It contains the pressure and temperature parameters of common refrigerant, and the measured parameters of refrigeration system such as pressure, condensation temperature, evaporation temperature and so on are clear at a glance.
4.Widely used in refrigeration equipment, air conditioning refrigerant tools, snow seed pressure measurement, vacuum equipment, pneumatic equipment and other hydraulic, pneumatic measurement occasions.
Features:
1.Can measure commonly used gas, liquid.
2.The vacuum can be measured.
3.Contains pressure and temperature gauges for common refrigerants.

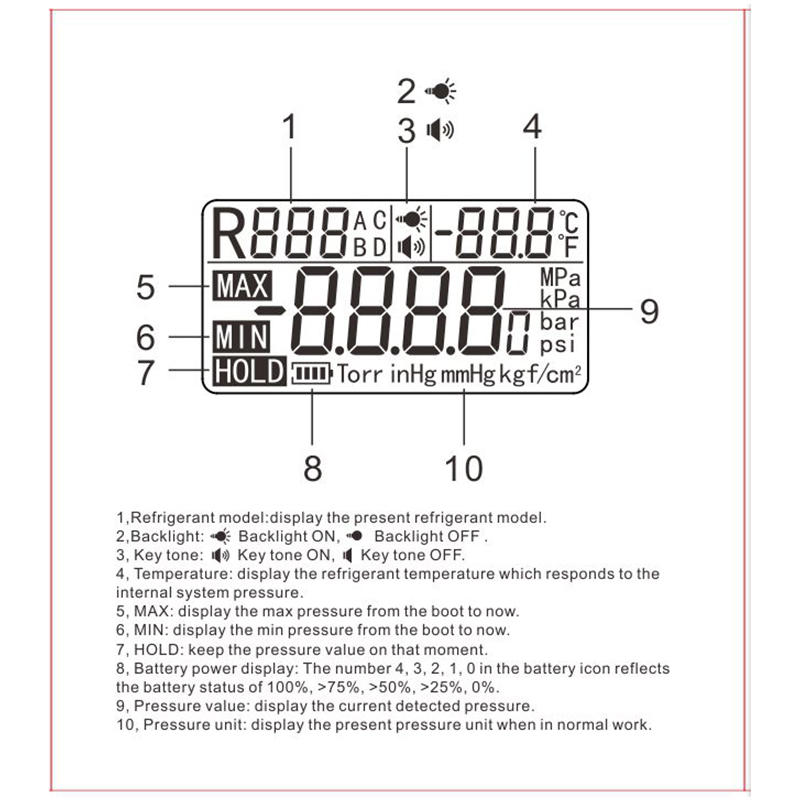

4.LCD with backlight.
5.Long battery life, no power consumption after shutdown.
6.Can be measured are: R12, R22, R32, R123, R134A, R290, R404A, R407C, R410A, R502, R507, R600A .
7.Pressure units can be selected from Mpa, kPa, bar, psi, kgf/cm2, mmHg, inHg, Torr

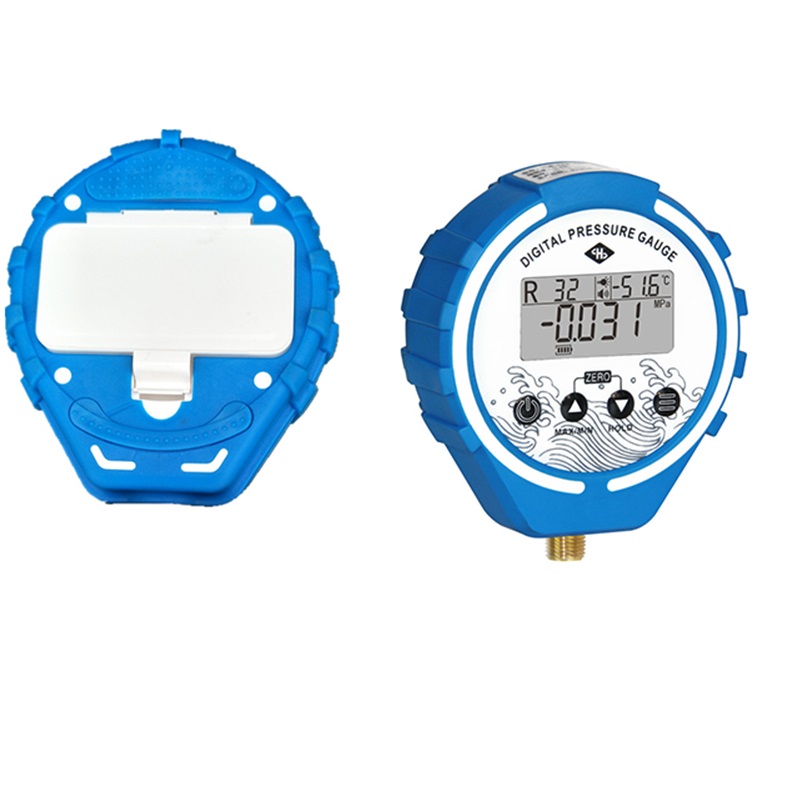

8.The outer casing is covered with rubber and is more durable.
Specification:
1.Model: DBF-L-03L
2.Permissible overload pressure：Range 110%
3.Breaking pressure of sensor： Range 300%.
4.Measuring speed：1 time / sec

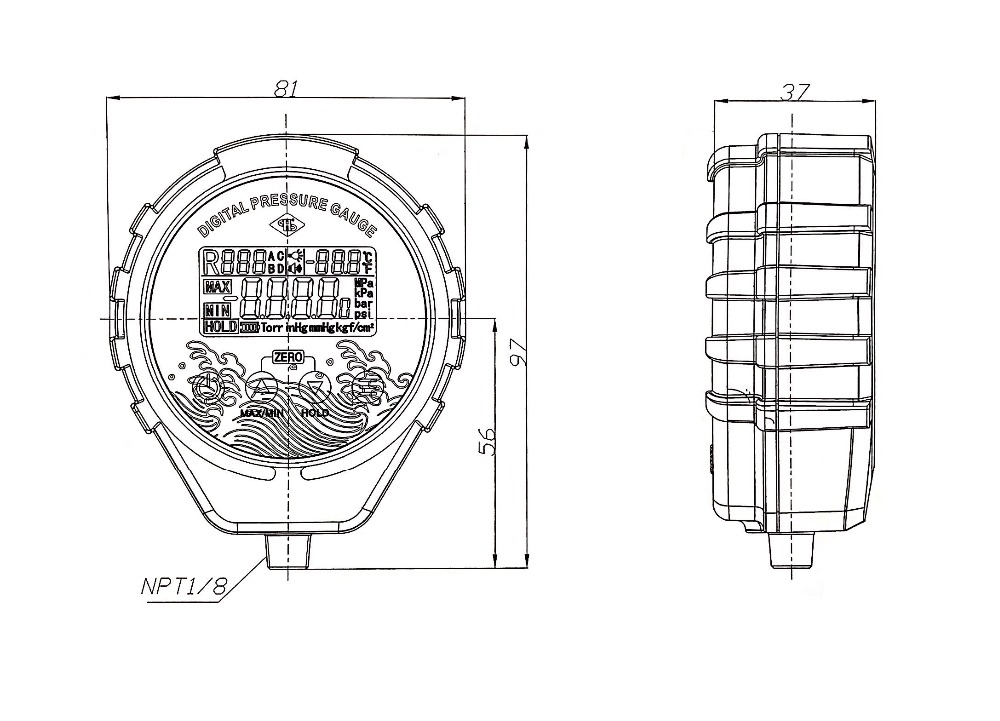

5.Pressure interface：NPT1/8
6.Working humidity：10~900%RH
7.Working temperature：-10~50℃
8.Temperature to ensure accuracy：20 ±5 ℃

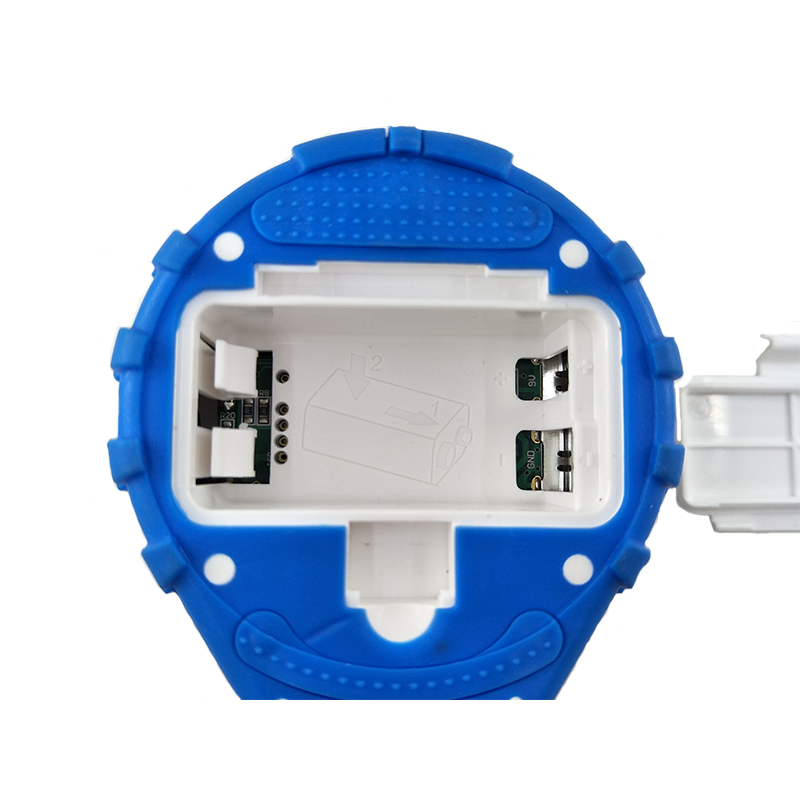

9.Battery：6F22 9V Battery (Not included)
10.Protection grade：IP66
11.Measure speed: 1 time / second
12.Range：-0.1 ~ 5.0MPA
Package Included:
1 x Digital pressure gauge
1 x English user manual
1 x Giftbox

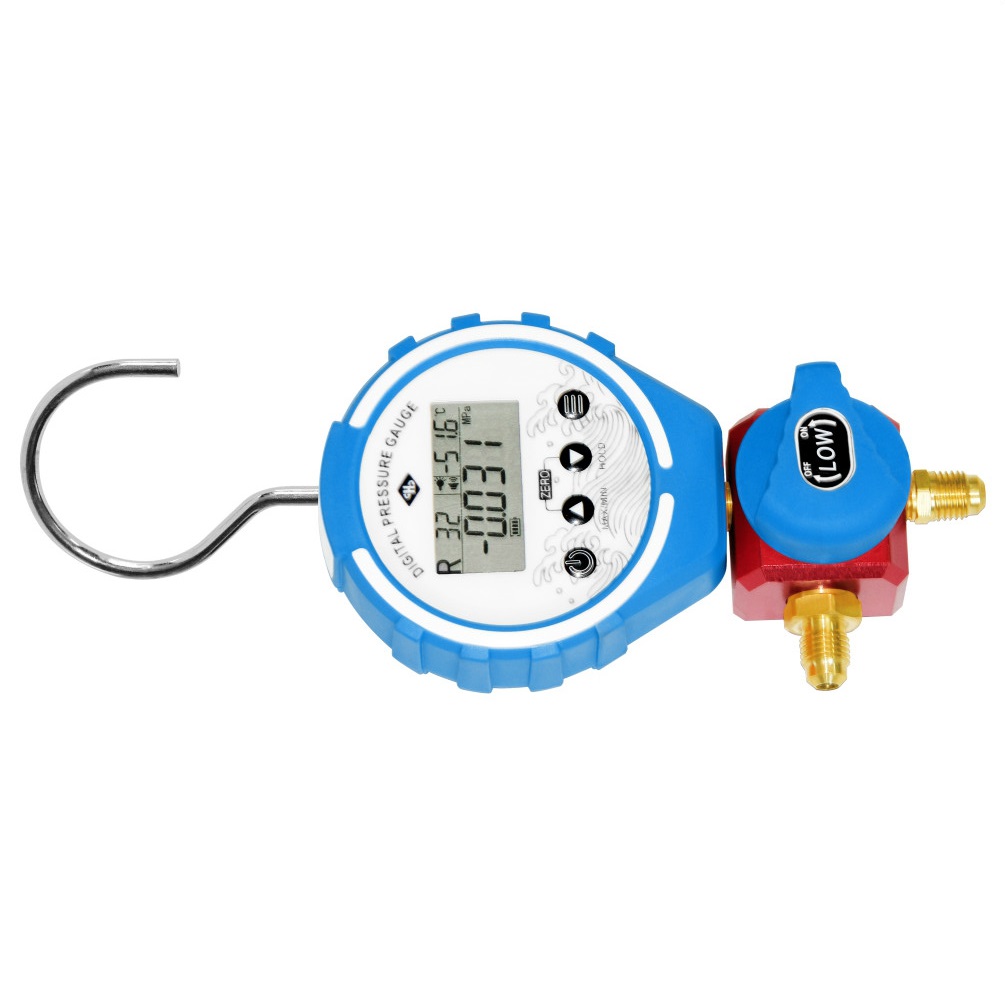

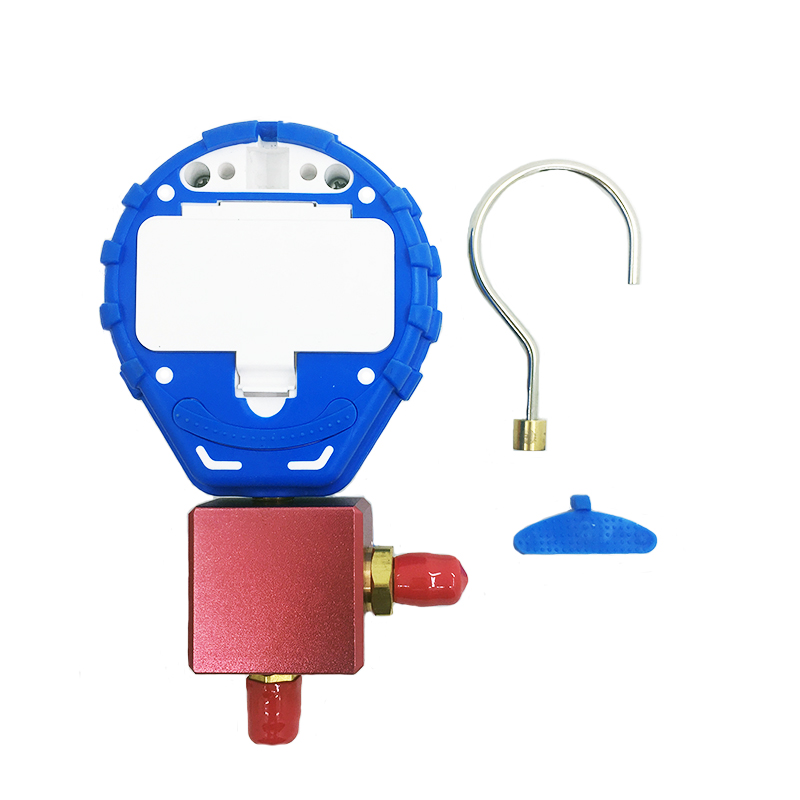

Details Pictures:
