- Stock: In Stock
- Model: ST230046606
- SKU: ST230046606
Specifications:
Brand | ISIGAL |
Model | AC1200 |
Main chip | RTL8812BU |
Wireless standard | IEEE802.11ac/a/n/g/b |
Interface | USB3.0 |
Antenna | 2 * External 5dBi intelligent omnidirectional dual band antenna |
Transmission distance | Indoor Max: 100m (depending on the environment) |
Working frequency | 2.412-2.484GHz; 5.15-5.825Ghz (according to country and region) |
Transmit power | 802.11b(CCK)11Mbps: 18+/-1dBm 802.11g(OFDM)54Mbps: 15+/-1dBm 802.11n(OFDM)54Mbps: 15+/-1dBm 802.11ac(AC80)MCS9: 12+/-2dBm |
EVM | 11b 11Mbps.<-15db 11a 54Mbps: <-27db 11ac MCS9: <-30db |
Receiving sensitivity | 802.11b: -76 + / -1dBm; 802.11g: -65 + / -1dBm 802.11n ( HT20 ), -70 + / -1dBm; 802.11n ( HT40 ), -65 + / -1dBm AC80-MCS9: -55 + / -1dBm |
Wireless transmission rate | 11b: Max 11Mbps 11g: Max 54Mbps 11n: Max 150Mbps AC: Max 433Mbps |
Operating system | Windows XP/win 7/vista/win8/win 10 Macintosh OS: version 10.6-10.14 Linux:( kernel2.6.18~4.15) Android1.6~2.3, 4.0~7.0 |
Wireless security support | WPA/WPA2/WEP/802.1X/WMM |
Size | 6 * 2.5 * 11.5mm (bare metal with antenna - L * W * H) |
Features:

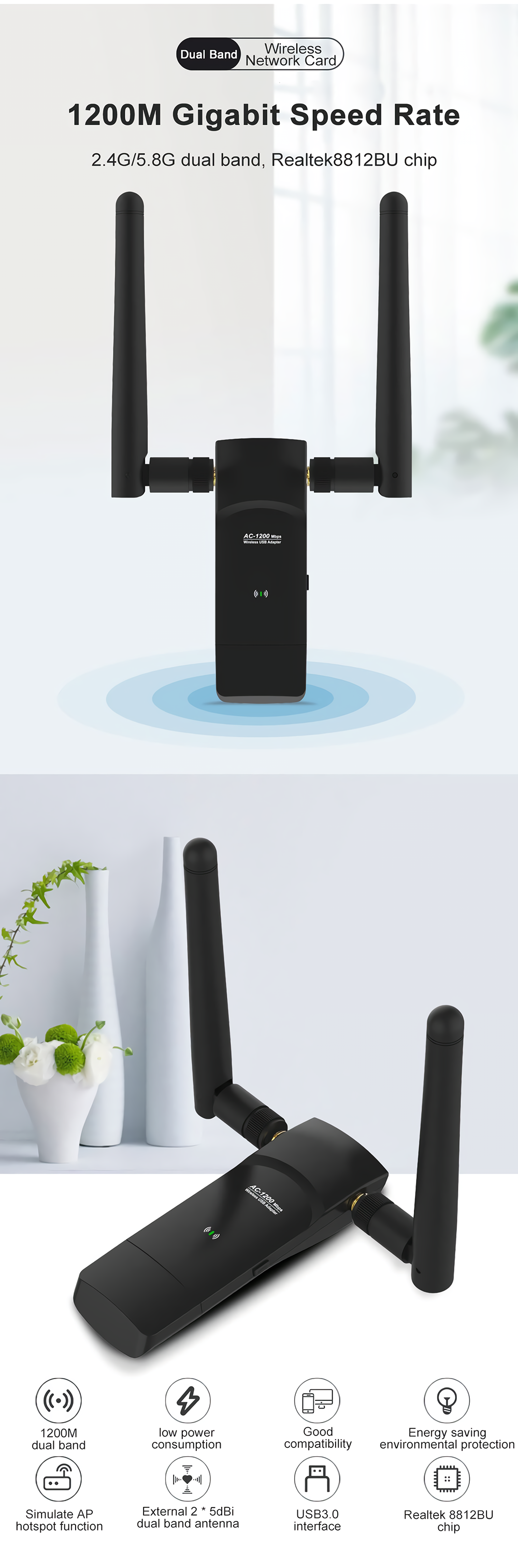

* Realtek 8812BU chip scheme.

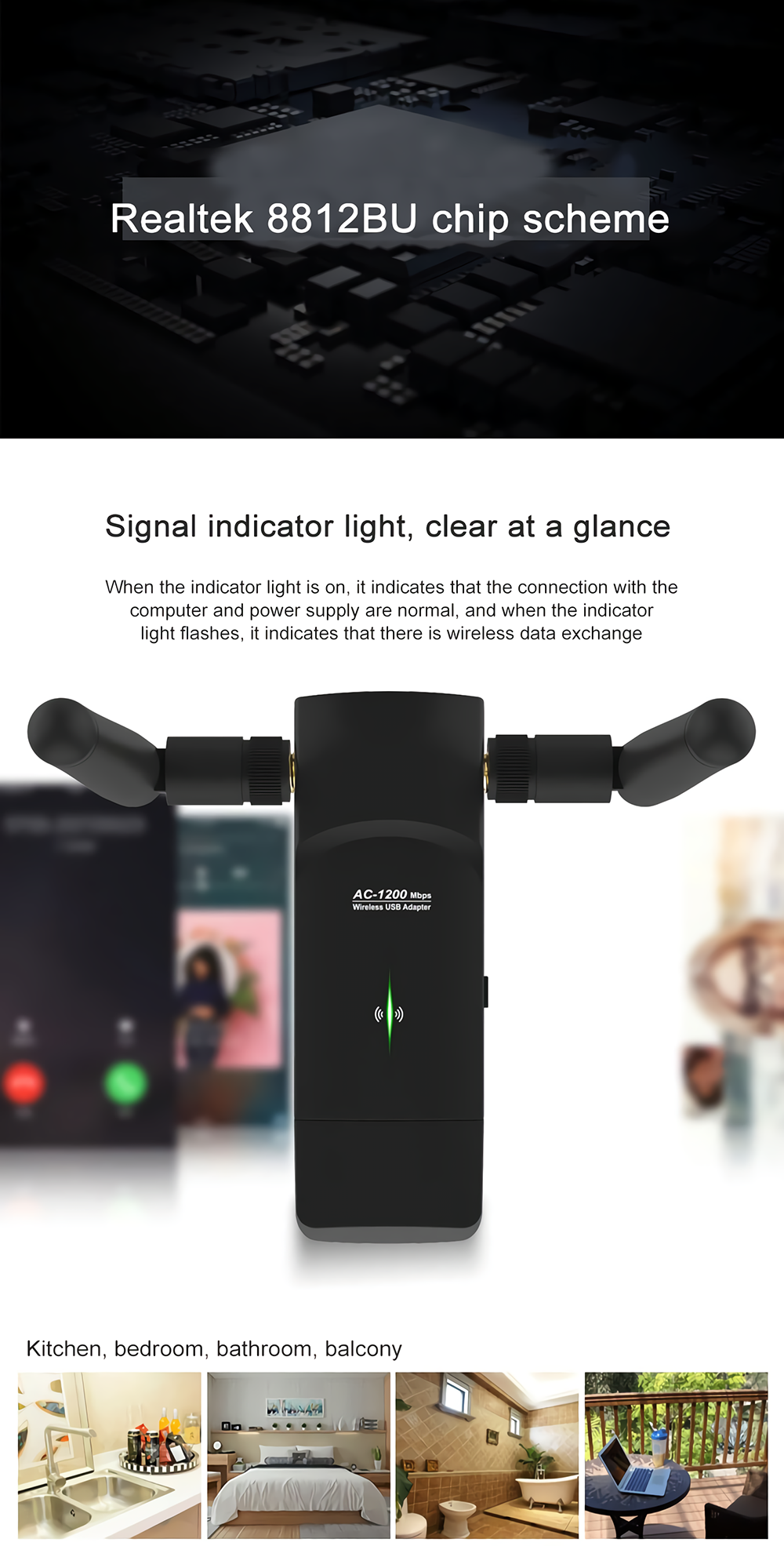

* Signal indicator light, clear at a glance.

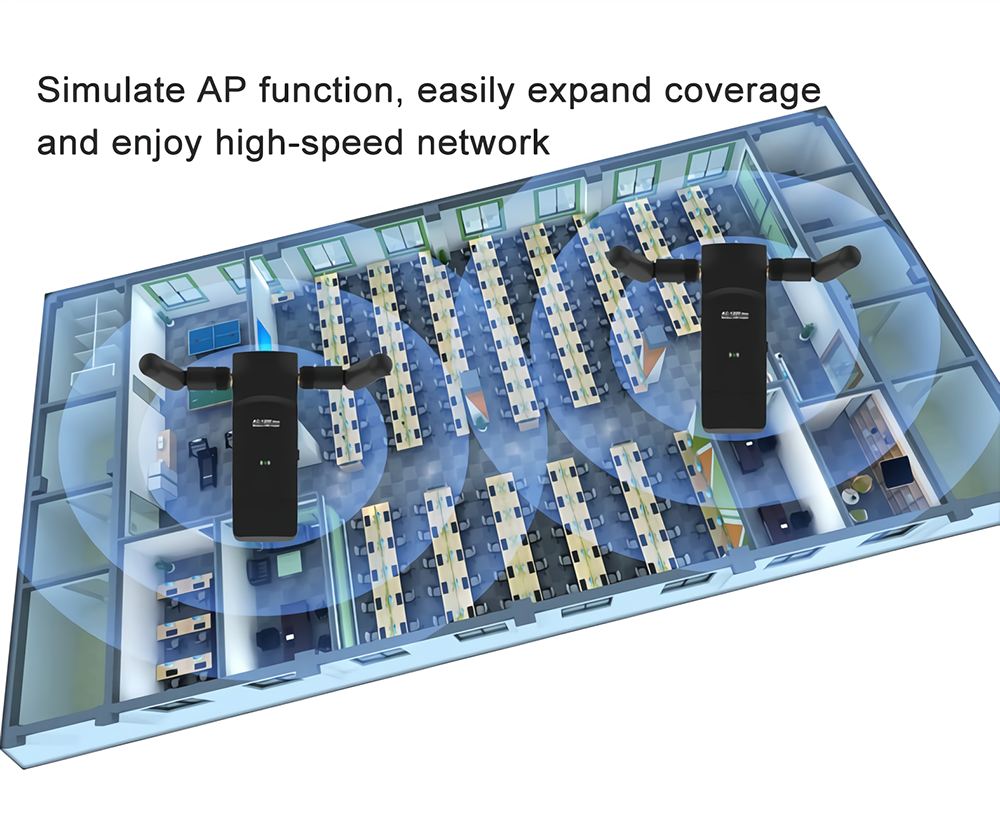

* Simulate AP function, easily expand coverage and enjoy high-speed network.

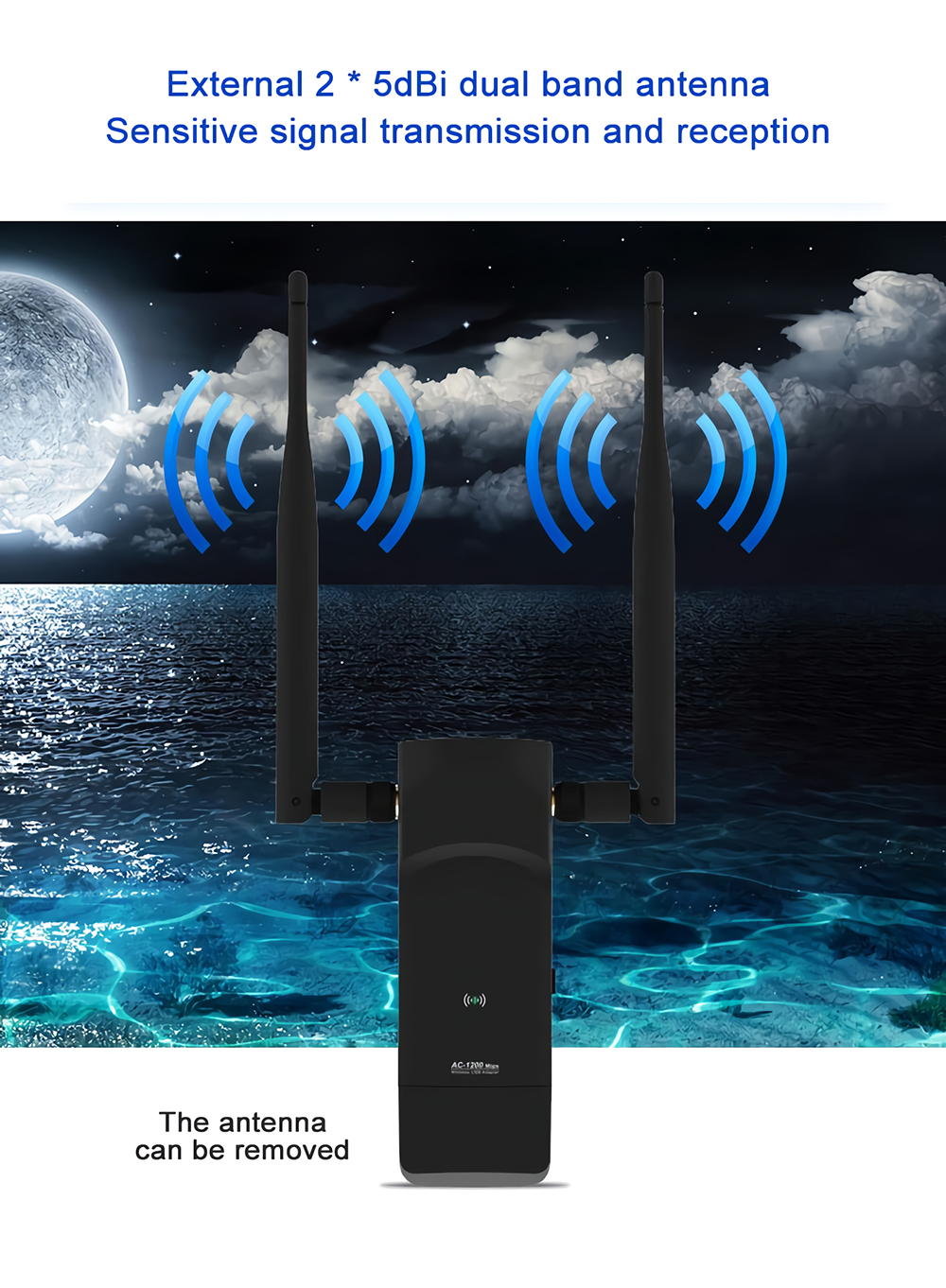

* External 2 * 5dBi dual band antenna, sensitive signal transmission and reception.

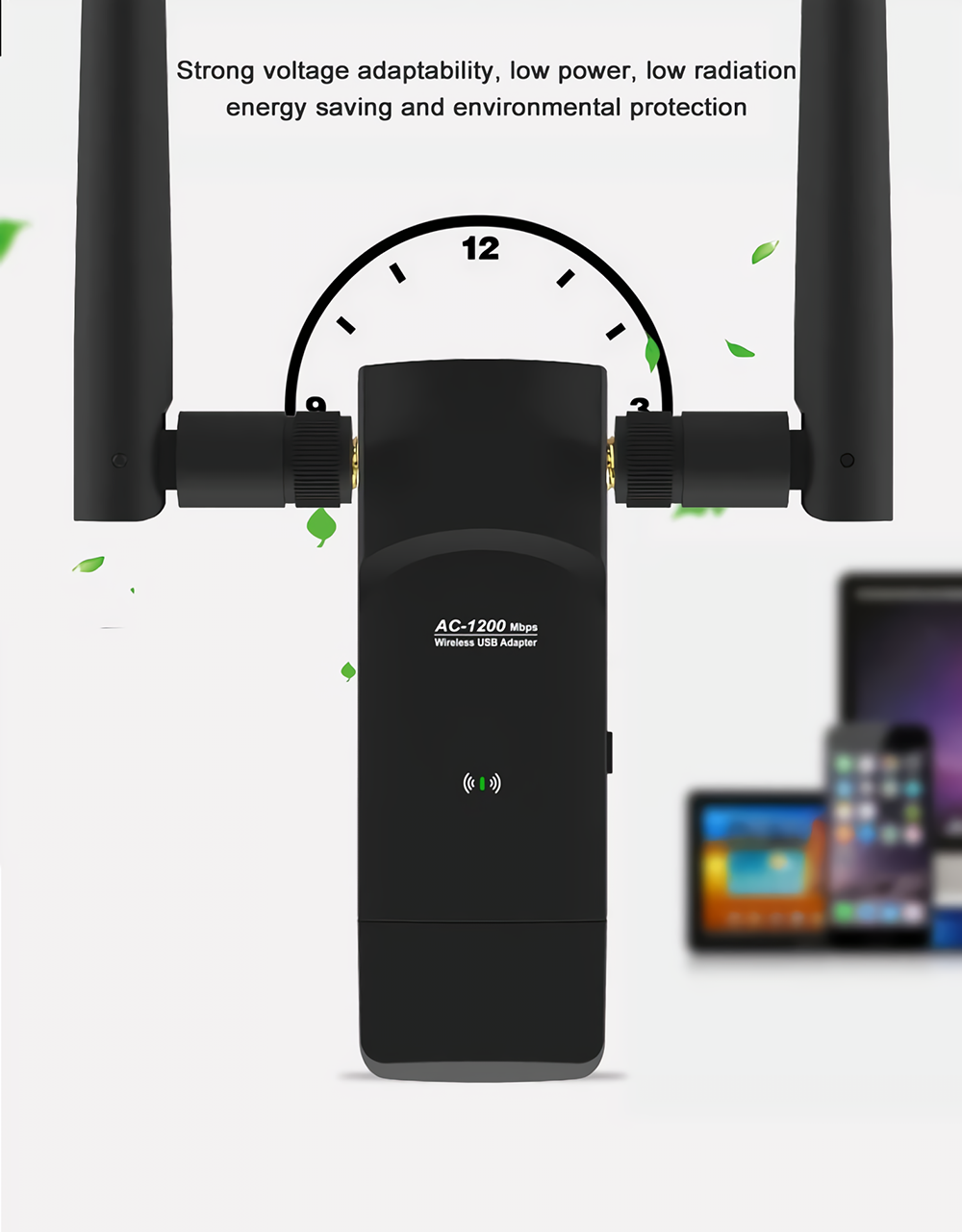

* Strong voltage adaptability, low power, low radiation, energy saving and environmental protection.
* Using the new generation 11ac wireless technology, the wireless transmission rate can reach 1200mbps.
Package Included:
1 *
