- Stock: In Stock
- Model: ST22001537
- SKU: ST22001537
Introduction:

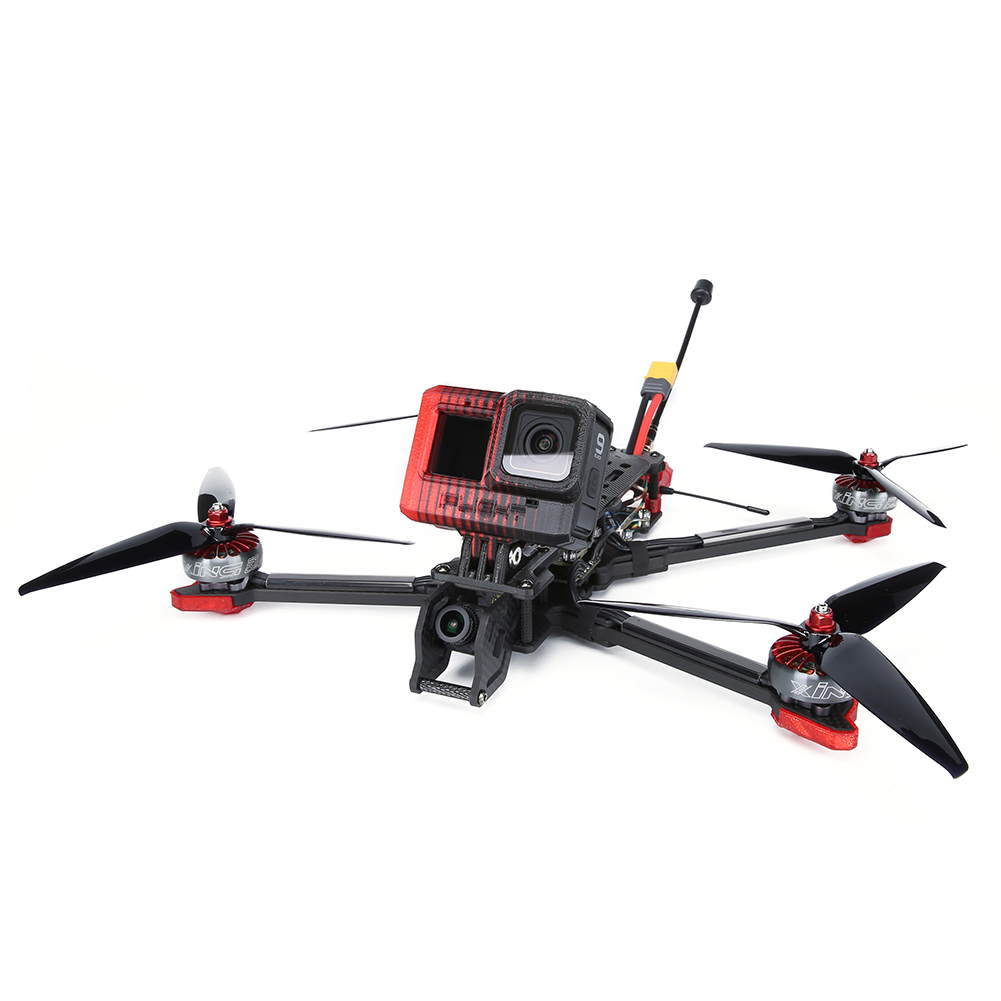

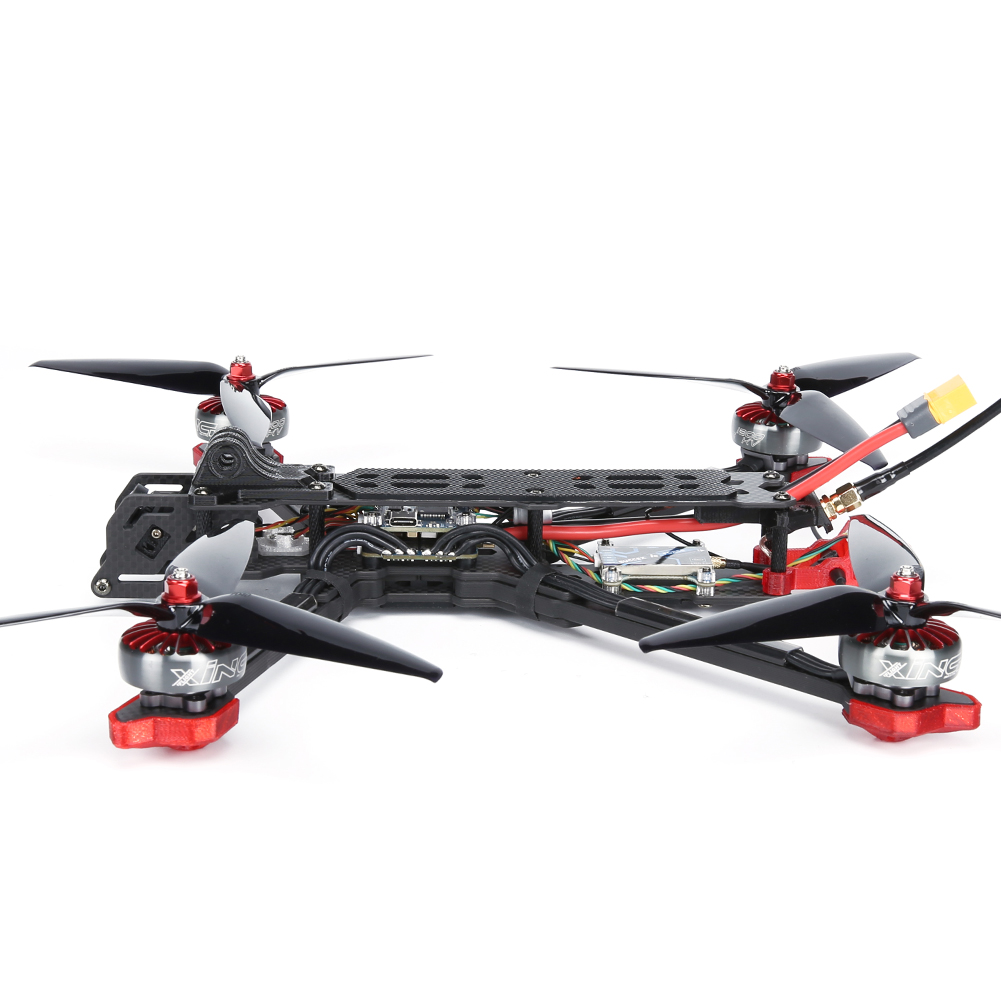

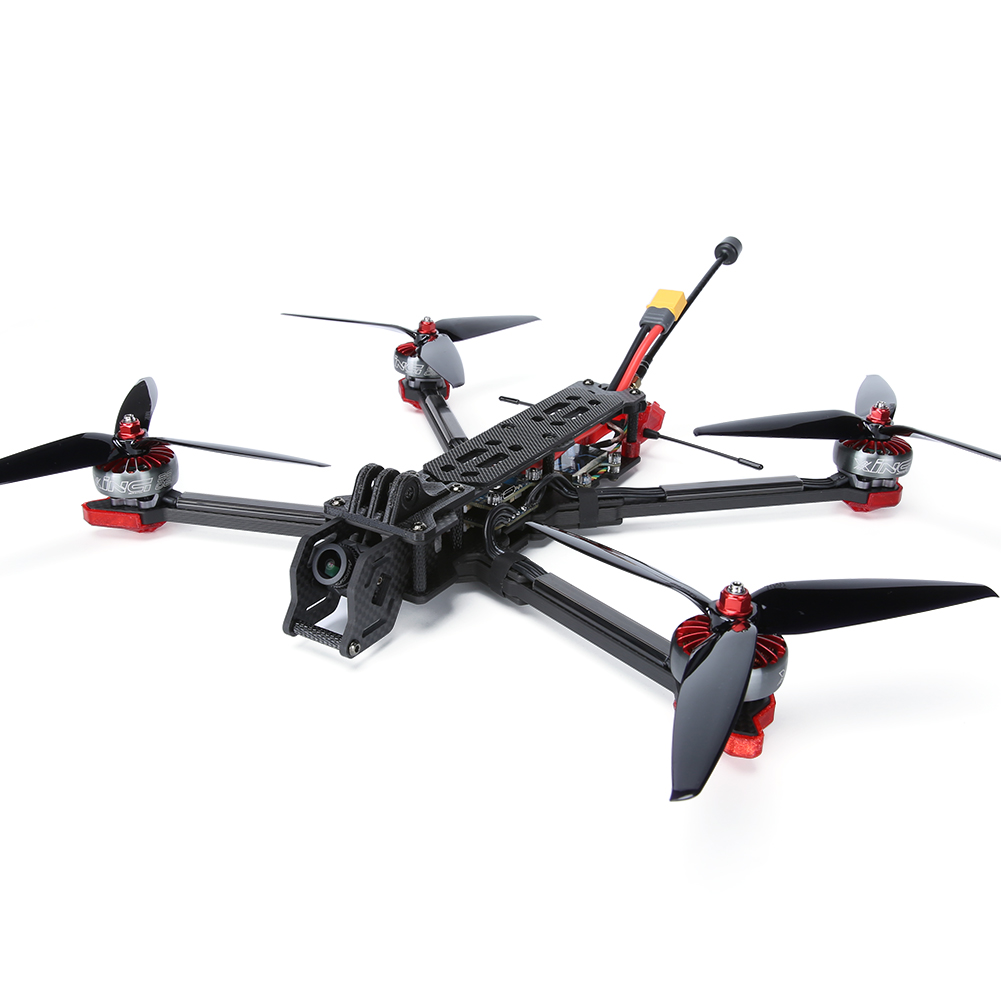

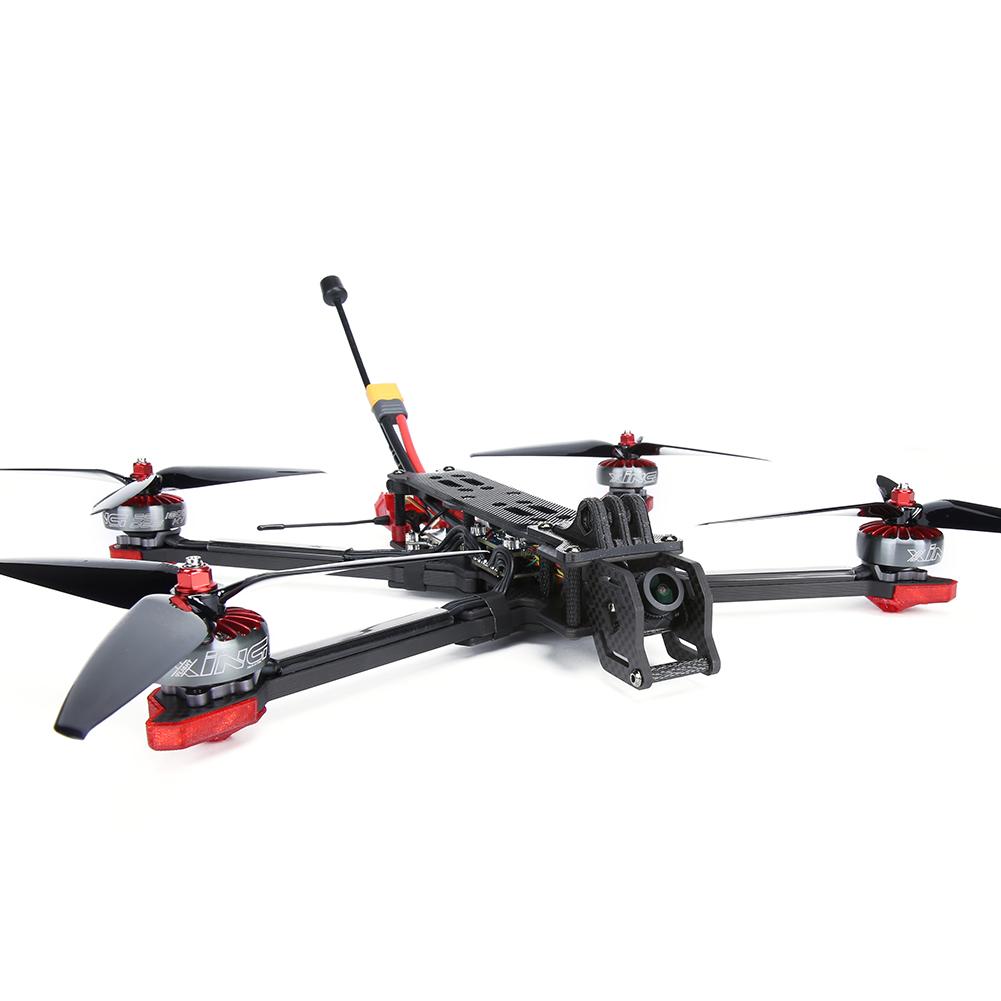

7inch Long-Range Drone can carry bigger batteries to get the flight time to surf the swiss alps if you want!
Super stiff frame for minimum resonance and 2806.5 motors for maximum 7inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or 6S 2.500mAh above.
GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Vertical and horizontal TBS Crsf antenna mounts included to cover you and your antenna dead ends .

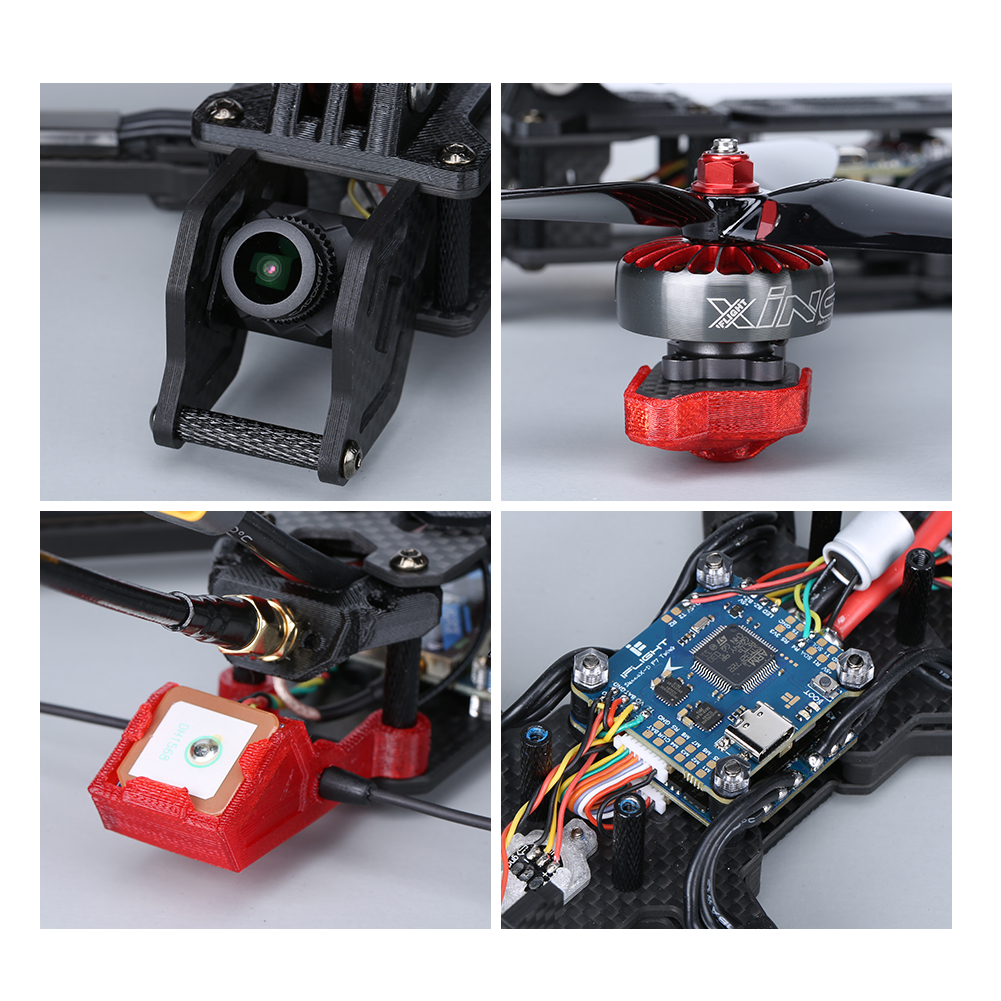

Features:
- 6mm rigid arm design for more stiffness
- Top- and bottom battery mount option
- XING 2806.5 efficient wide stator motors
- GPS pre-installed for more safety at distance
- 800mW high power adjustable VTX
- TPU bottom stand for Gopro Mount is included. ( TPU Camera Mount is NOT Included)
- 360° TPU protection, FPV cam protection and antenna mounts
- Battery voltage LED status light (illuminated IF logo on the bottom)
Specification:
Brand Name: iFlight
Model: Chimera7 LR Analog
Item Name: 320mm F7 4s / 6S 7 Inch Long Range FPV Racing Drone
Drone Wheelbase: 320mm
Optional KV Version: 1300KV ( for Long Range); 1800KV ( for Freestyle)
Optional Receiver Version: PNP ( without Receiver)
TBS CRSF Nano RX ( Built-in DJI Receiver & External TBS CRSF Nano Receiver)

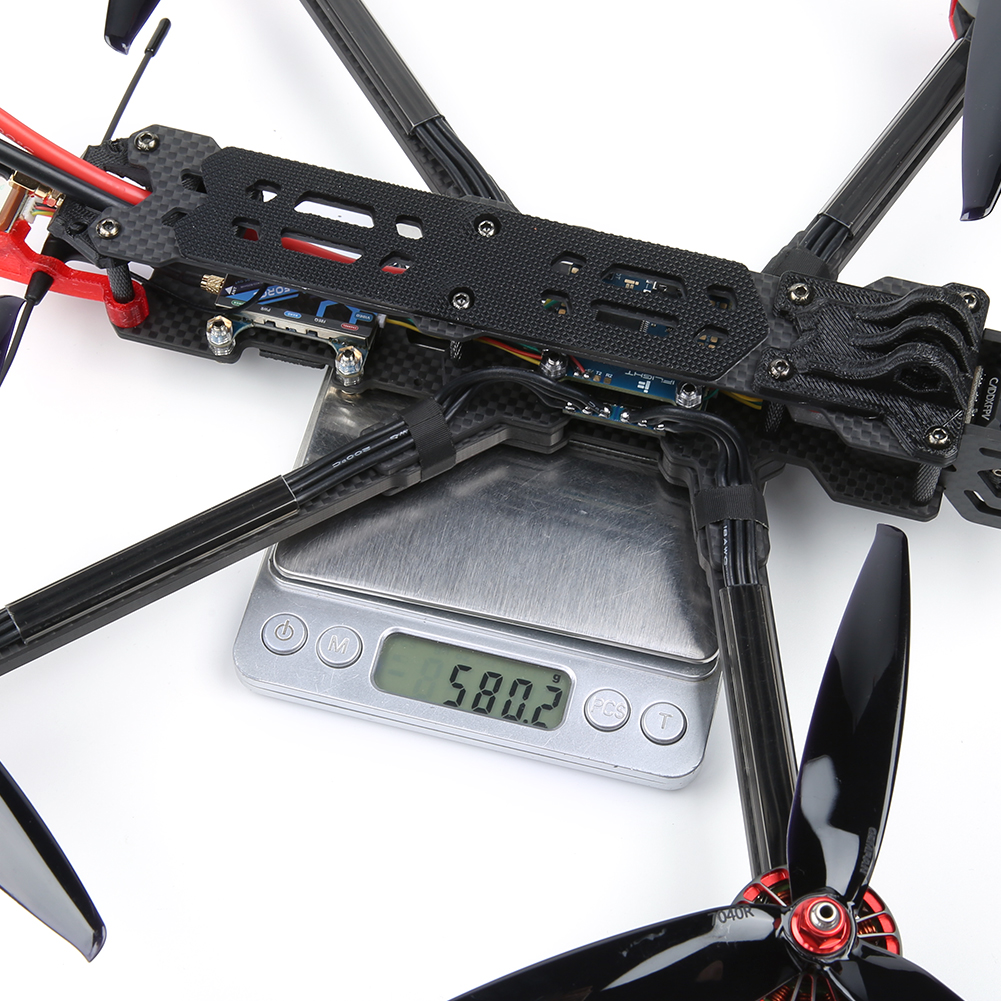

Weight: 580.2g ( without Battery)

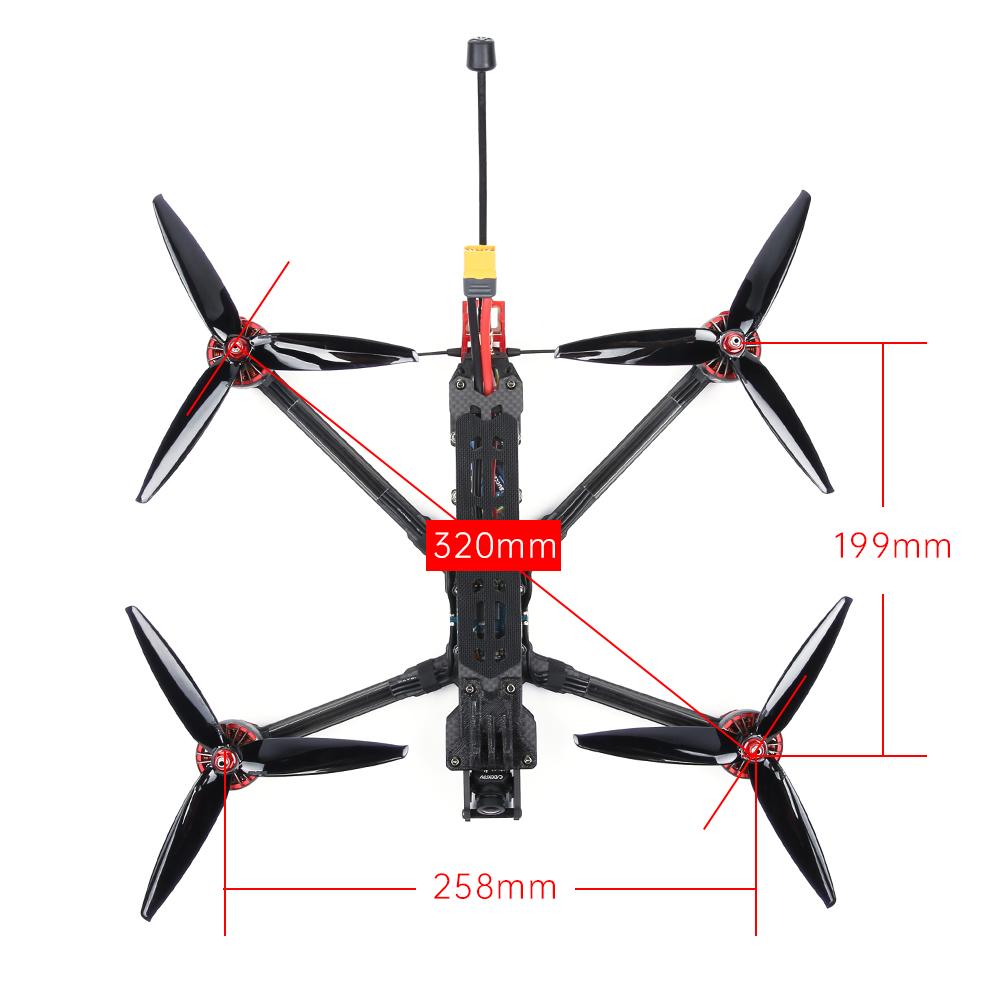

| Chimera7 320mm Frame Kit | Wheelbase: 320mm Main body dimension: 258*199mm Bottom to top distance: 20mm Arm thickness: 6mm Bottom plate thickness: 3mm Top plate thickness: 2mm Upper(middle) plate thickness: 3mm Camera plate thickness: 3mm (included TPU inserts) |
| SucceX-D F7 V2.1 TwinG Flight Controller | MCU: 216MHz STM32F722 Gyroscope: 2x ICM20689 Barometer: NO Blackbox: 32MB Betaflight OSD: YES BEC: 5V 2.5A / 9V 2.5A Current sensor scale: 100 Inverter for SBUS input (UART2-RX) Smartaudio & Tramp VTX protocol supported Beeper pad: Yes RSSI input pad: No UARTs: 5 Motor outputs: 8 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5) 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V) BLHeli32 Telemetry：RX5 Input voltage: recommended 2-6S, MAX 8S Firmware Target: IFLIGHT_F722_TWING Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm Dimensions: 36x36mm Weight: 7.5g USB type-C |
| SucceX 50A BLHeli_32 4in1 ESC | MCU: STM32F051 Up tp 48kHz PWM frequency Capacitance: 470uF/50V Current Sensor: Yes Input: 2-6S LIPO Constant: 50A / Burst: 60A BlHeli32 telemetry: Yes BEC: No Supports up to Dshot1200, Proshot, Multishot Target: iFlight-BL32-4IN1 Weight: 14.4g Size: 43x39mm (including the power pads) Mounting Hole: 30.5x30.5mm/Φ3mm |
| XING 2806.5 1300KV / 1800KV Motor | Voltage: 2-6S KV: 1300KV / 1800KV ( Optional) Configuration: 12N14P Bearing: NMB 11*5*5 Stator Diameter: 28 Stator Length: 6.5mm Shaft Diameter: M5 No.of Cells(Lipo): 2-6S Weight: 49.5g(with a short cable) Motor mount hole: 19x19 φ3mm |
| Gemfan 7040 3-Blade Propeller | Quantity: 2 CW & 2 CCW Color may vary |
| SucceX Force 5.8G 800mW VTX | Item: SucceX-Force 800mW adjustable VTX Input Voltage: 7-36V Output Voltage/ Max current: 5V 1A 12V Input Current: 40mA@PIT MODE, 95mA@25mW, 185mA@100mW，250mA@400mW, 380mA@800mW Channel: 40CH Size: 36x36x3mm - PIT/25mW/100mW/400mW/800mW |
| Caddx Ratel 1200TVL FPV Camera | Brand Name: Caddx Item Name: Ratel Lens: 2.1mm Image Sensor: 1/1.8" Inch starlight HDR sensor Horizontal Resolution: 1200TVL FOV: 180 Degree Min. Latency: 8ms TV System: NTSC & PAL (changeable) WDR: Super WDR (HDR) Dimensions: 19x19x19mm Wide Power Input: DC 5-40V Weight: 8g (N.W.)/ 40.5g (G.W.) |
| Optional Receiver Version | PNP Without Receiver Version: NOT Included receiver TBS CRSF Nano RX Version: include a TBS CRSF Nano RX |
| Lipo Battery ( NOT Included) | For 1300KV Version: Recommend 6S 4000-4500mAh Lipo Battery For 1800KV Version: Recommend 6S 2600-3000mAh Lipo Battery |
Package Included:
1x Chimera7 Analog Drone
1x TPU bottom stand incl. lock screw ( for Installing TPU Camera Mount)
1x Caddx Ratel FPV Camera ( Built Well on Drone)
1x 5.8G 800mW VTX ( Built Well on Drone)
1x 5.8G Albatross RP-SMA Antenna LHCP 150mm
2x Gemfan 7040 Propeller CW
2x Gemfan 7040 Propeller CCW
4x 20x250mm PU Leather Battery Strap (Color May Vary)
