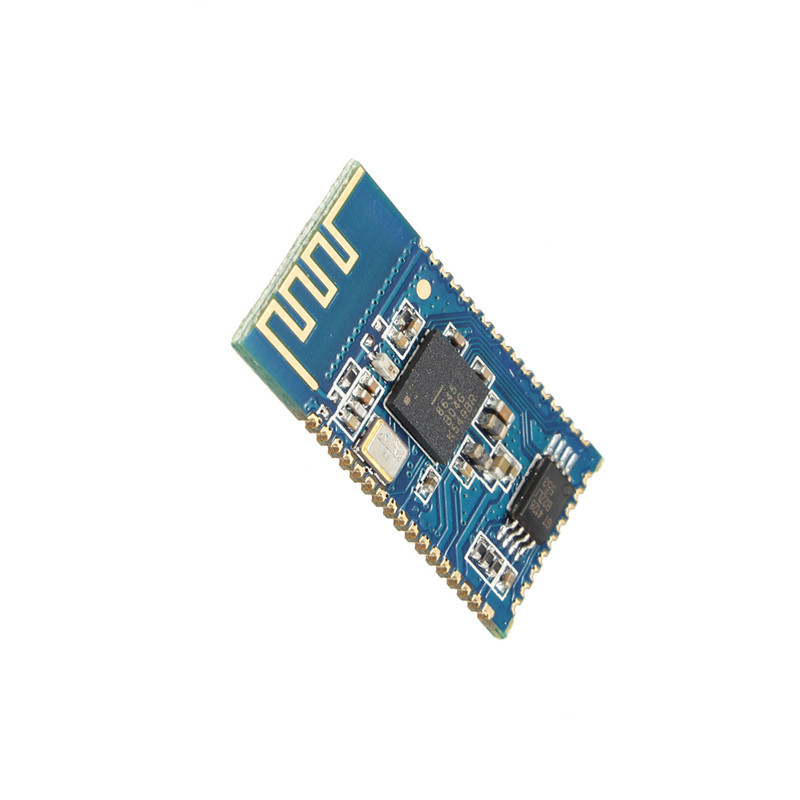

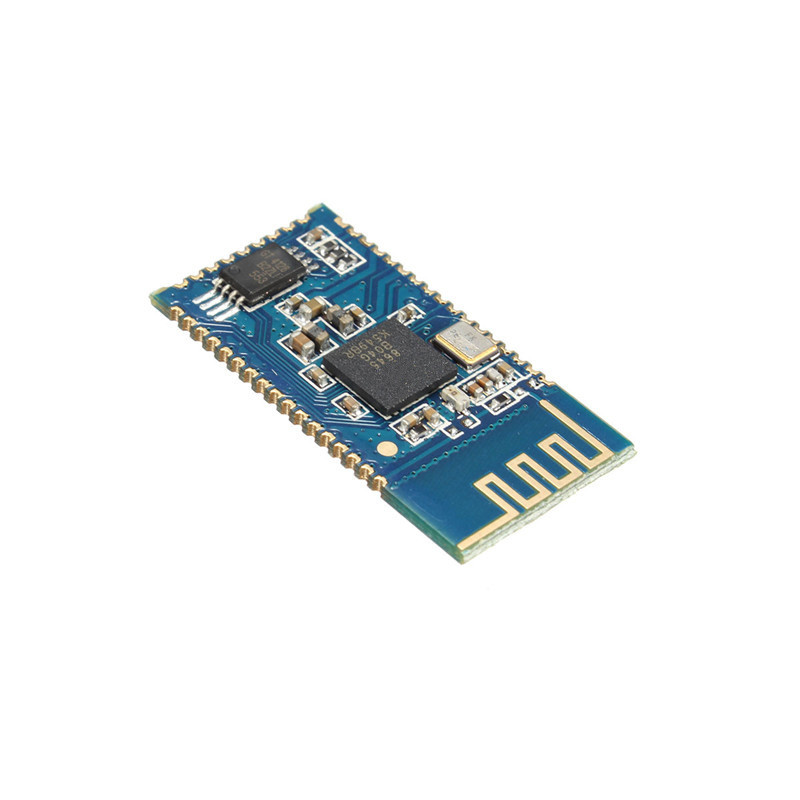

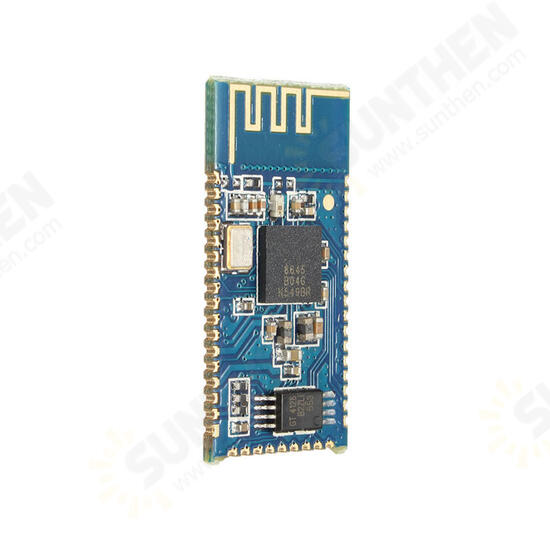

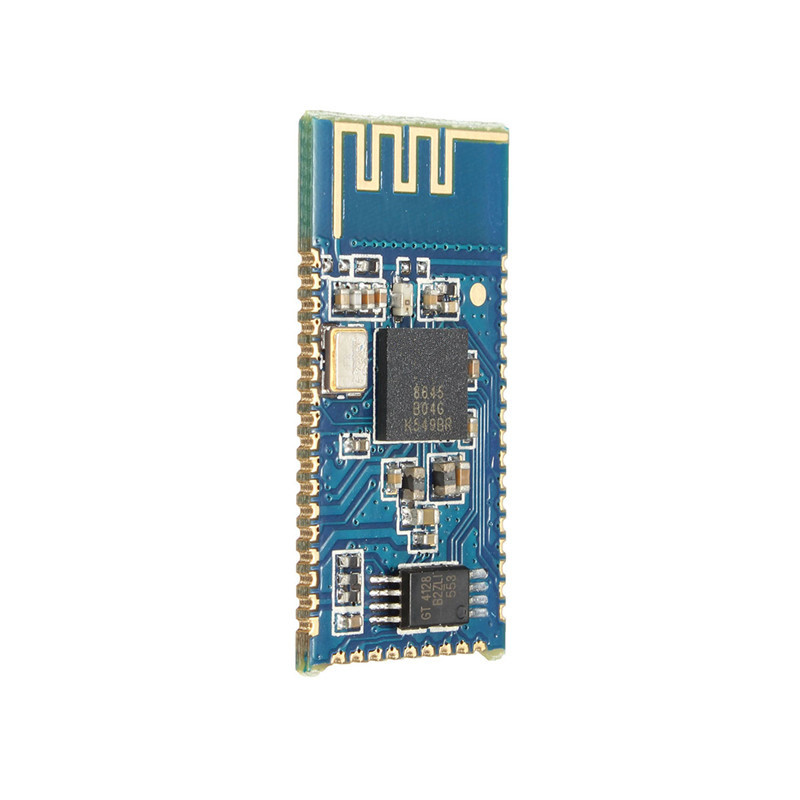

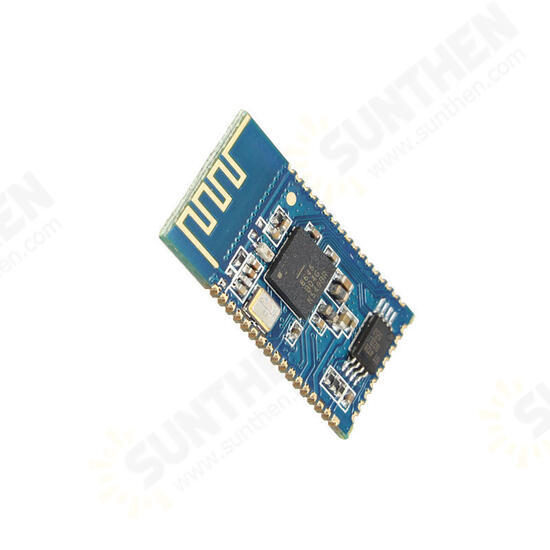

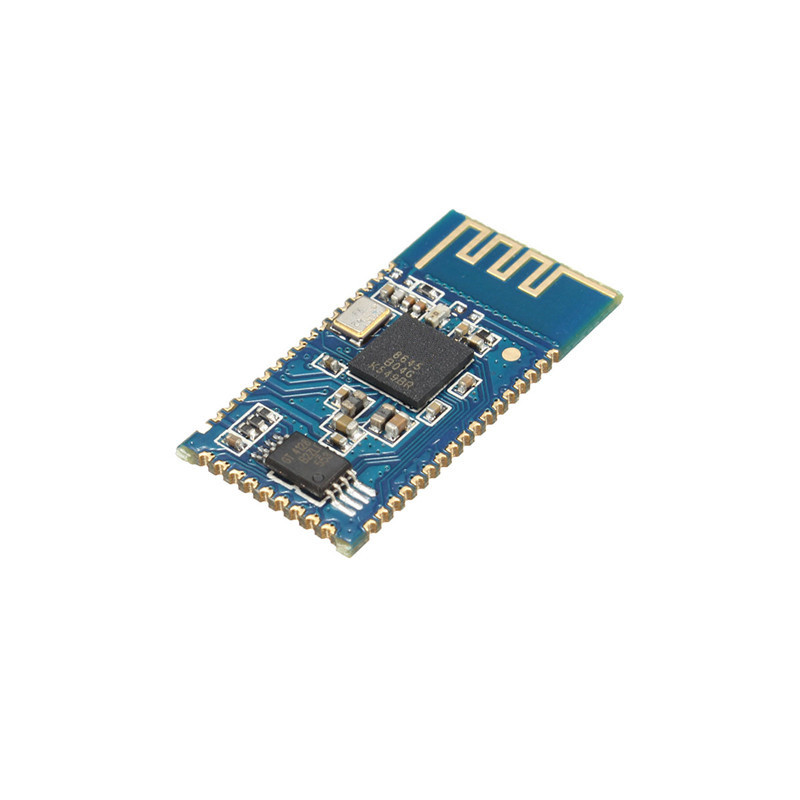

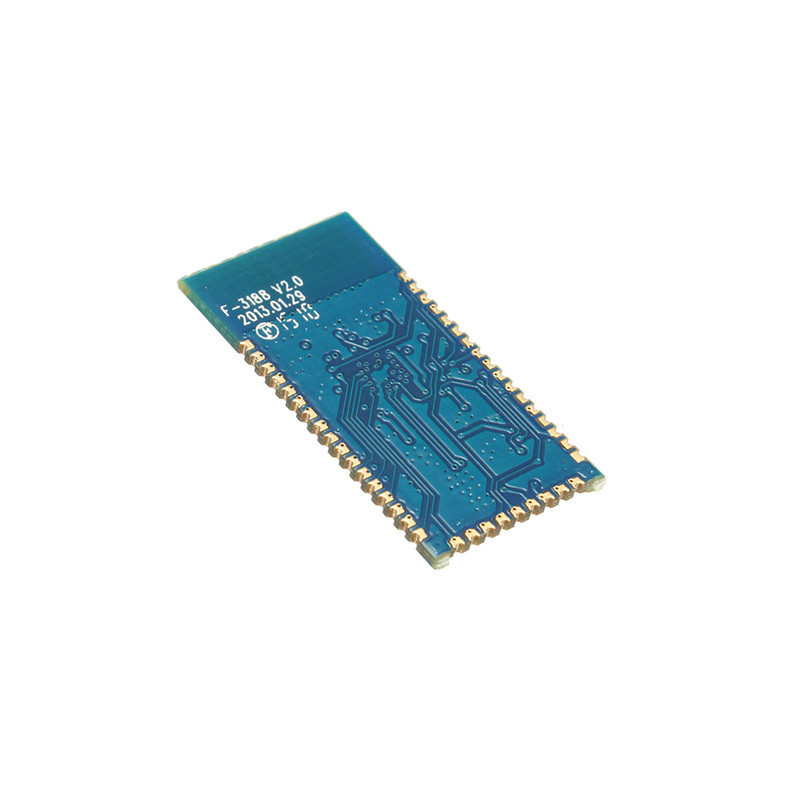

CSR8645 4.0 bluetooth Stereo Audio Module Low Power Consumption
- Stock: In Stock
- Model: ST230047785
- SKU: ST230047785
$6.99
Ex Tax: $6.99
>>>Manual: Click here to open<<<
Feature:
1.Type: F-3188
2.bluetooth Specification: v4.0
3.Voltage: DC3.3V-4.2V
4.bluetooth protocol: HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2
5.Working Current: ≤30mA
6.Standby Current: <50uA
7.Temperature range: -40 Celsius ~ +80 Celsius
8.Wireless transmission range: > 10m
9.Transmission power: CLASS1/CLASS2/CLASS3,9dbm(MAX)
10.Sensitivity: -80dBm<0.1%BER
11.Frequency Range: 2.4GHZ ~ 2.480GHZ
12.External Interface: PIO/SPI/I2S/PCM/USB
13.Audio Performance: AAC/MP3/SBC/AP TX
14.Audio SNR: ≥75dB

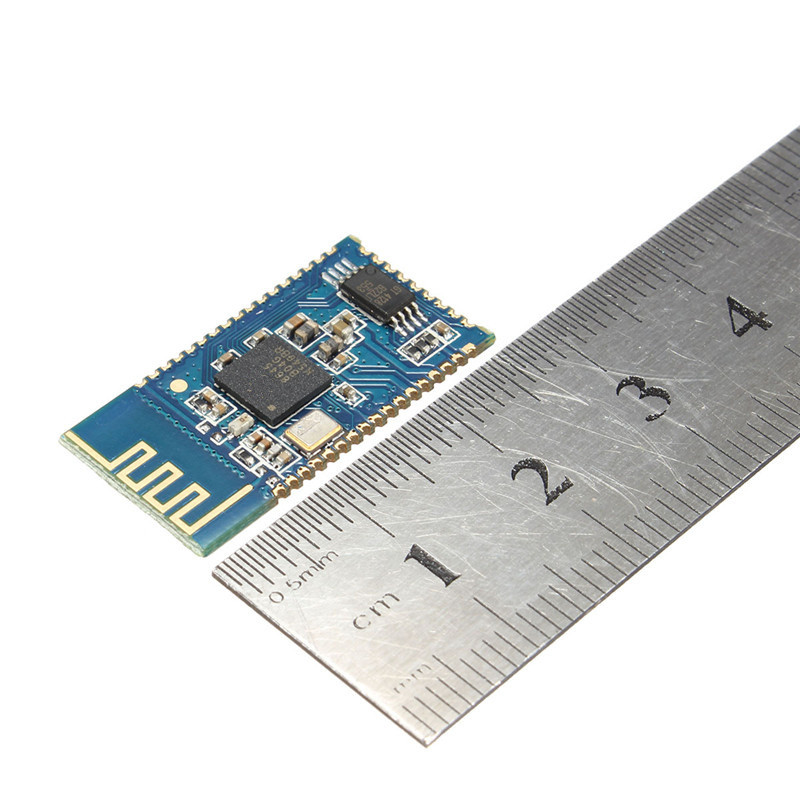

15.SIZE:16x26mm approx
Package included:
1 x CSR8645 4.0 bluetooth Stereo Audio Module
Feature:
1.Type: F-3188
2.bluetooth Specification: v4.0
3.Voltage: DC3.3V-4.2V
4.bluetooth protocol: HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2
5.Working Current: ≤30mA
6.Standby Current: <50uA
7.Temperature range: -40 Celsius ~ +80 Celsius
8.Wireless transmission range: > 10m
9.Transmission power: CLASS1/CLASS2/CLASS3,9dbm(MAX)
10.Sensitivity: -80dBm<0.1%BER
11.Frequency Range: 2.4GHZ ~ 2.480GHZ
12.External Interface: PIO/SPI/I2S/PCM/USB
13.Audio Performance: AAC/MP3/SBC/AP TX
14.Audio SNR: ≥75dB
15.SIZE:16x26mm approx
Package included:
1 x CSR8645 4.0 bluetooth Stereo Audio Module
