- Stock: In Stock
- Model: ST22011501
- SKU: ST22011501
Description :
Portable Colorimeter CS -10 developed according to the measuring requirements on different products and gain many optimal achievements with high cost performance. The most convenient colorimeter Environmental, low energy consumption instrument, Comfortable observation with real screen display Exquisite and delicate.
Features :
- Both Chinese and English language menu
- Ultra stable performance
- Display accuracy 0.01
- Repeatability accuracy E standard deviation 0.08
- Measure at multiple spots for average
- Enhance the measure accuracy through white and black board calibration
- Large data storage space
- Multiple modes of color values
- PC software and data control
- USB for data transmission
- Provide accurate test time settings
- Suitable for a company's internal and external color evaluation and data control
Application:
The colorimeter is applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments, paints, inks, printing, metal, photography, toys, and other industry color quality control, color control, color analysis, sampletesting, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color.
Specifications:
| Illumination system | 8/d(8°/diffused illumination) specular component included(SCI) |
| Display modes |
Colorimetric values: L*a*b,L*C*h,△E*ab,XYZ,relative RGB values; Color difference values: △(L*a*b),△(L*C*h); |
| Measuring caliber | About 8mm |
| Measuring conditions | CIE 10° standard observer; CIE D65 light source |
| Measuring range | L*:1-100 |
| Repeatability | Standard deviation within△E*ab*,0.1(condition: measure the white calibration board 30 times for average |
| Storage | 100 sets of standard samples; up to 100 under each standard sample |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| Interface languages | Chinese,English |
| Power source | Four AA1.5V Alkaline battery or nickel-metal hydride batterys;Exclusive DC5V adapter |
| Port | USB2.0, Printer (Optional Accessories) |
| Weight | 550g |
| Size | 77x86x210mm |

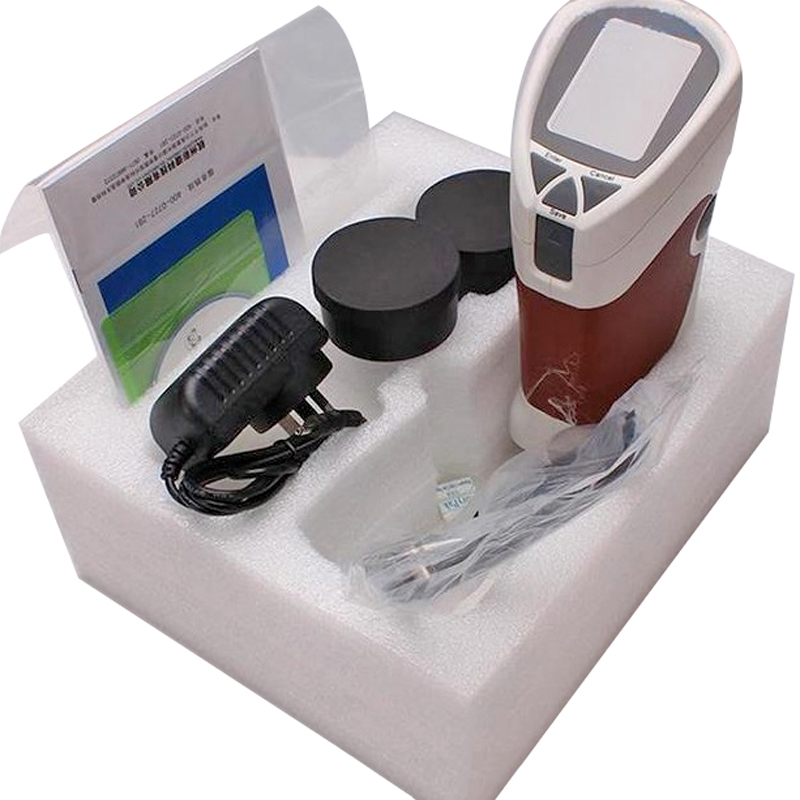

Package Includes:
1 x Colorimeter
1 x CD
1 x Power Adapter

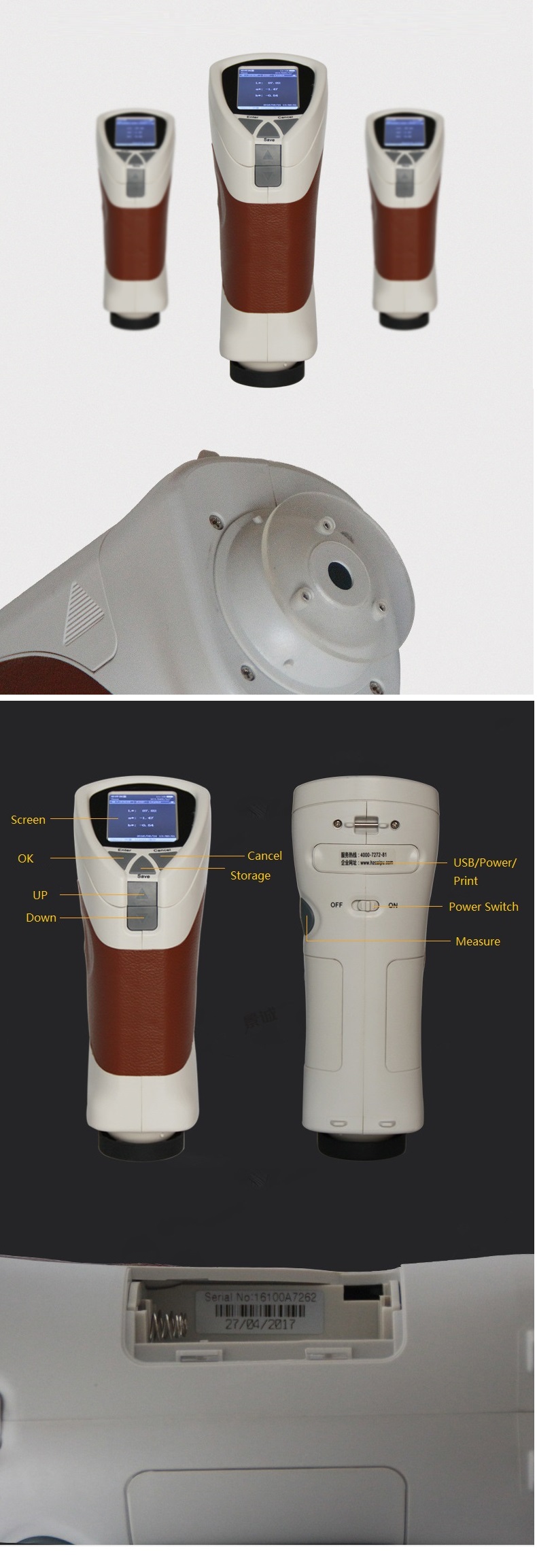

Details Pictures:
