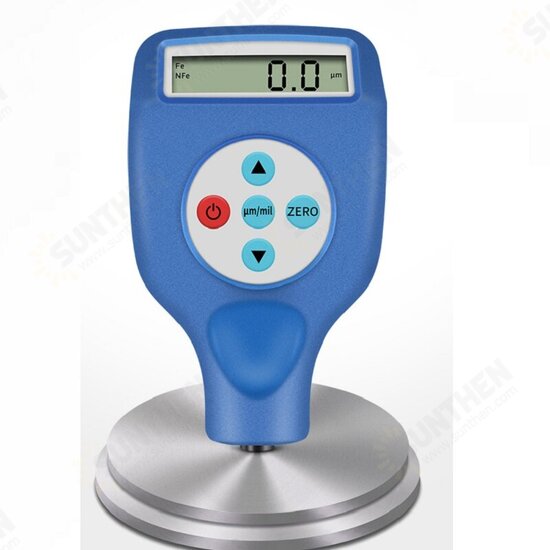

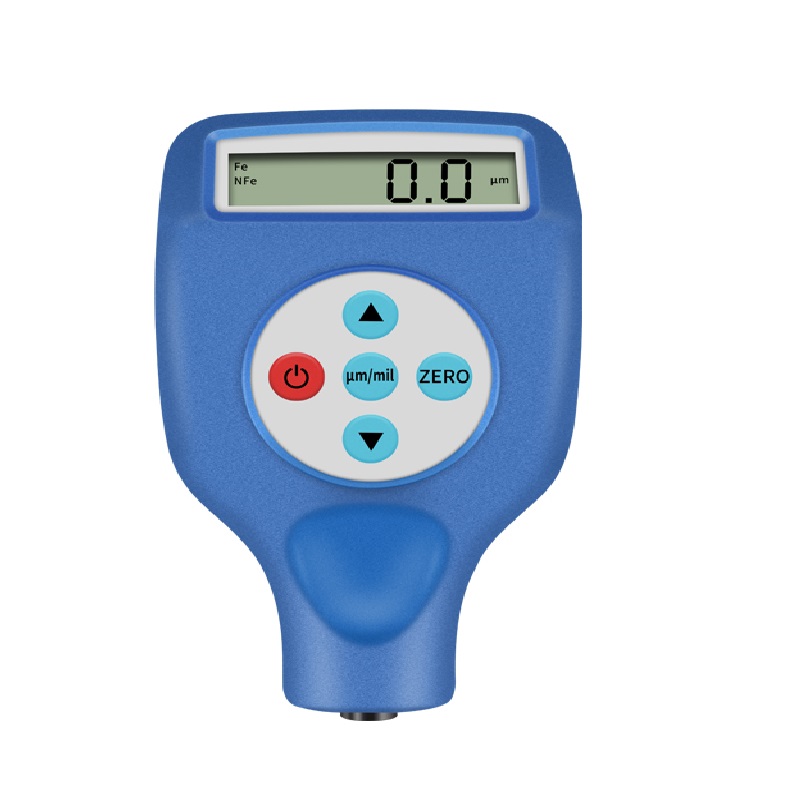

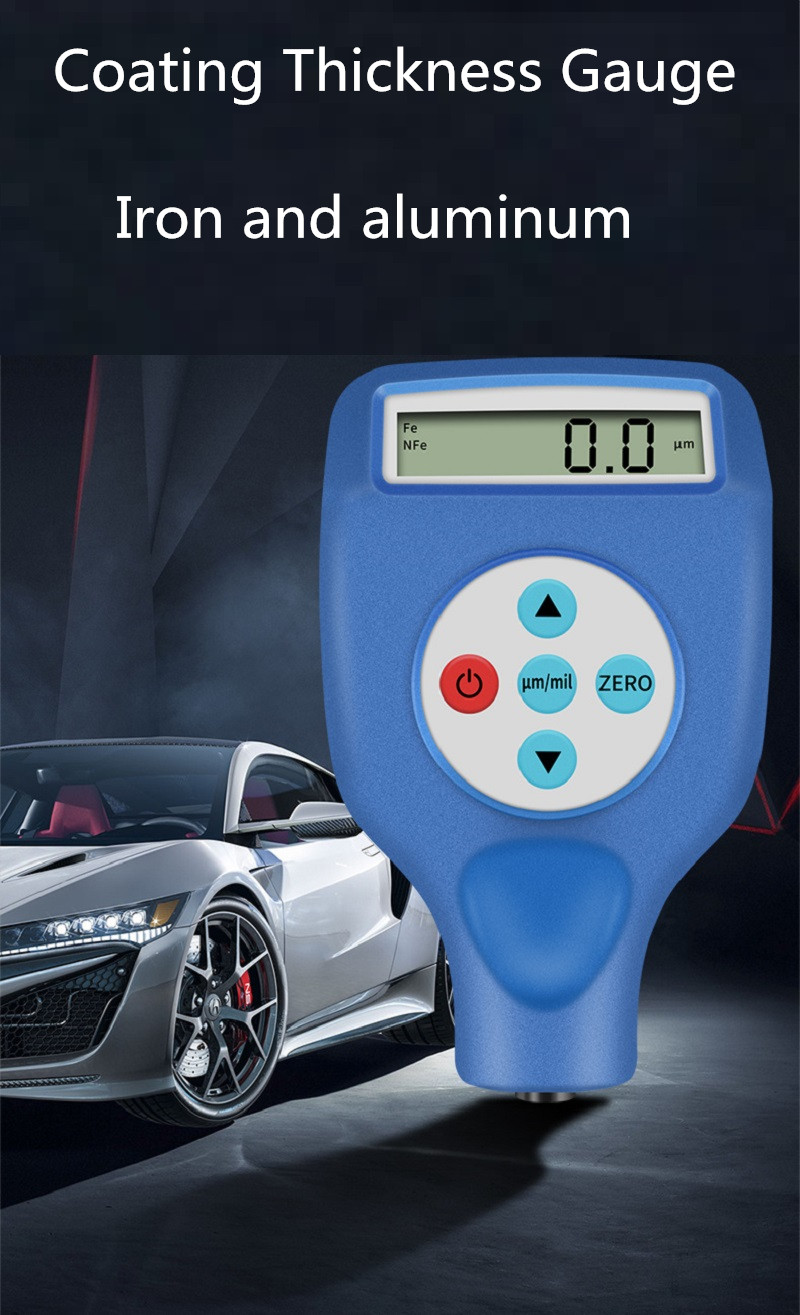

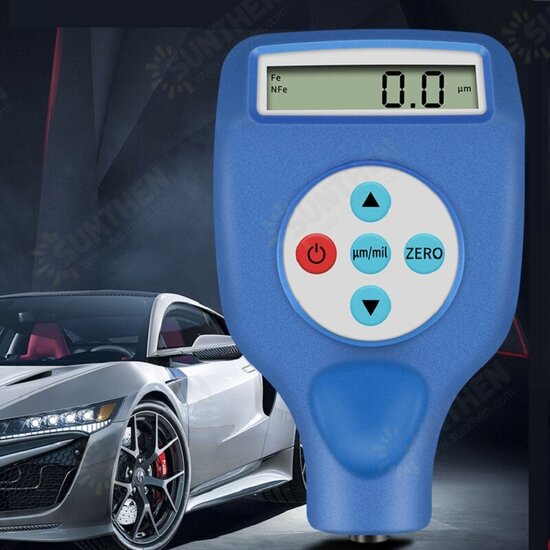

CM-8825F Coating Thickness Gauge Handheld Car Paint Film Thickness Tester

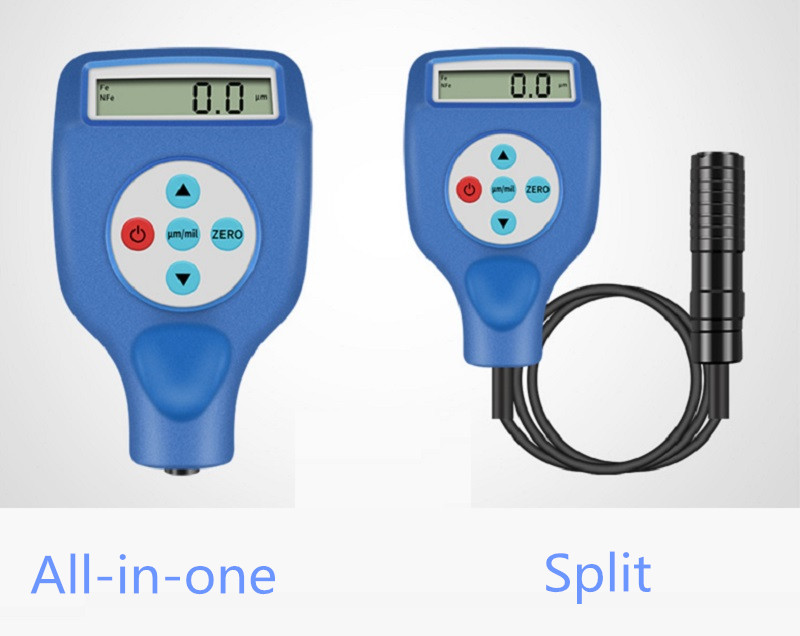

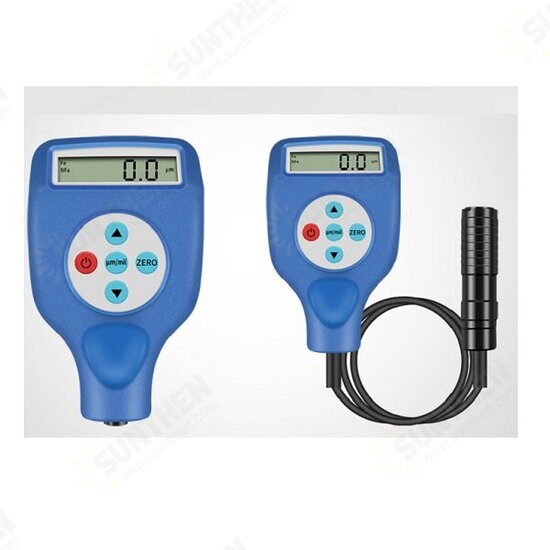

All-in-one

Split

Suitable for used car evaluation test

or factory evaluation test

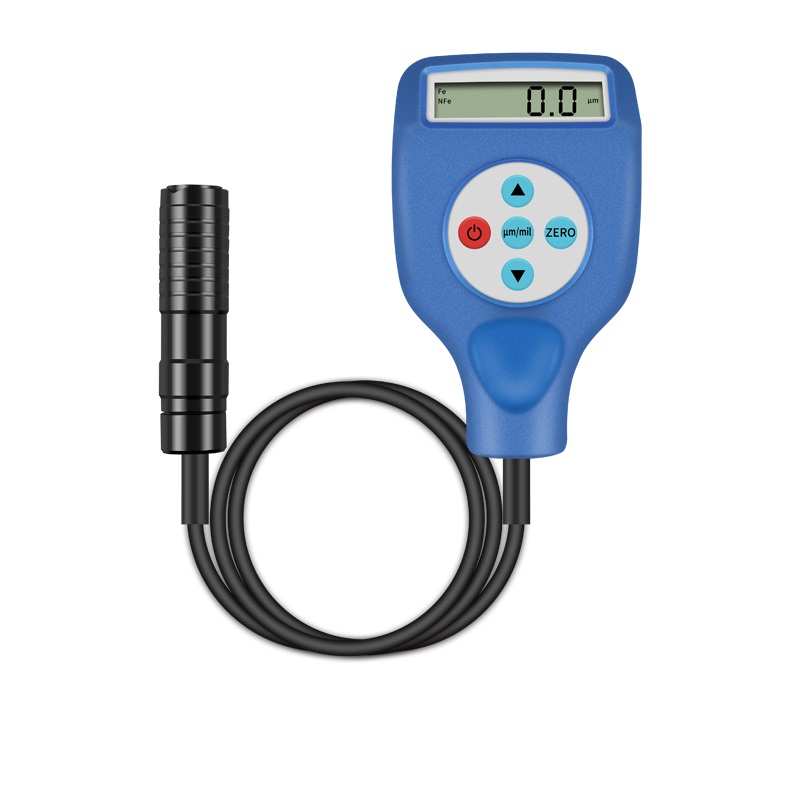

With line probe, suitable for measuring pipes/

cylinders,arcs, narrow places, etc.

Measuring range: 0-1250µm

Lower limit resolution: lµm (0.1µm below 100µm)

Zero point calibration: ± (1.5+3%H)µm

Two-point calibration: ±[(1%~3%)H+1.5]µm

Lower limit curvature: convex 5mm, concave 5mm

Diameter of the lower limit area of the base: 10mm

Lower critical thickness: 0.4mm

Ambient temperature: 0~40°C

Relative humidity: <85%RH

Shutdown mode: automatic

Power supply: two AA batteries (not included)

Dimensions: 102 x 62 x 28mm
