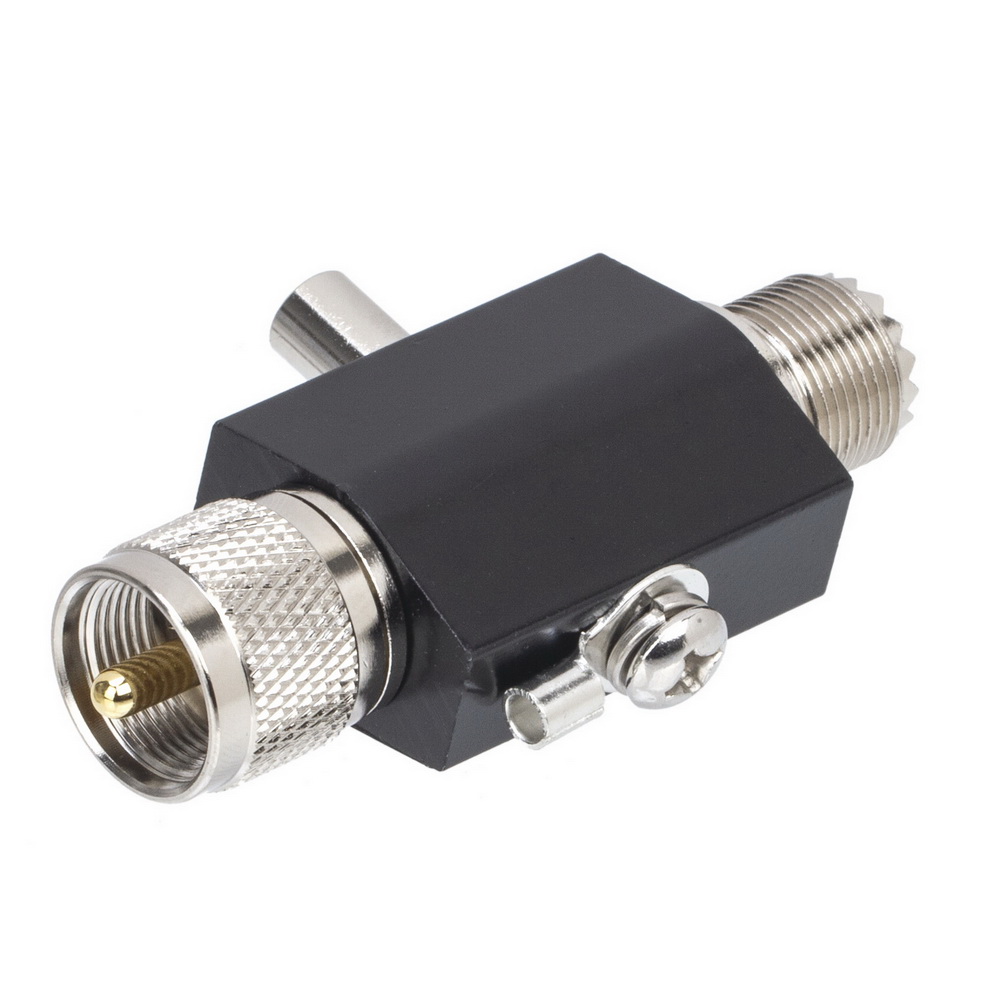

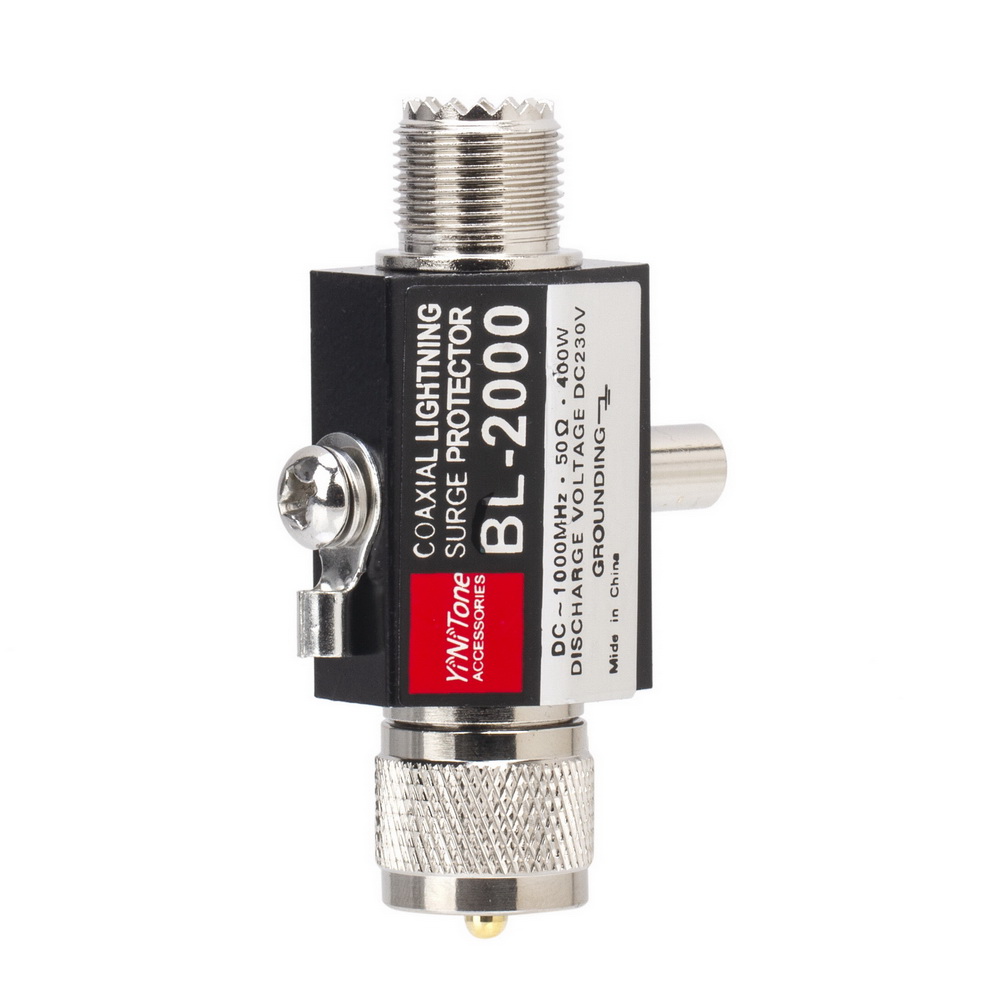

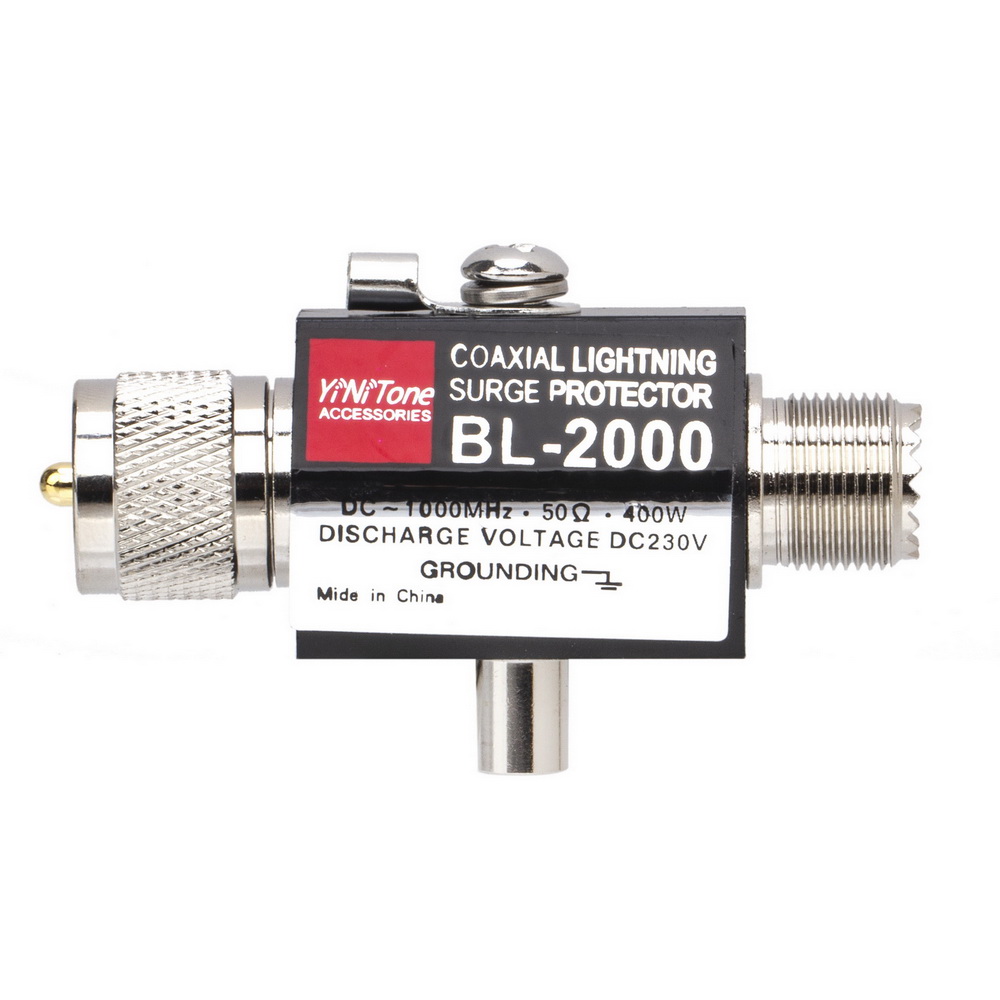

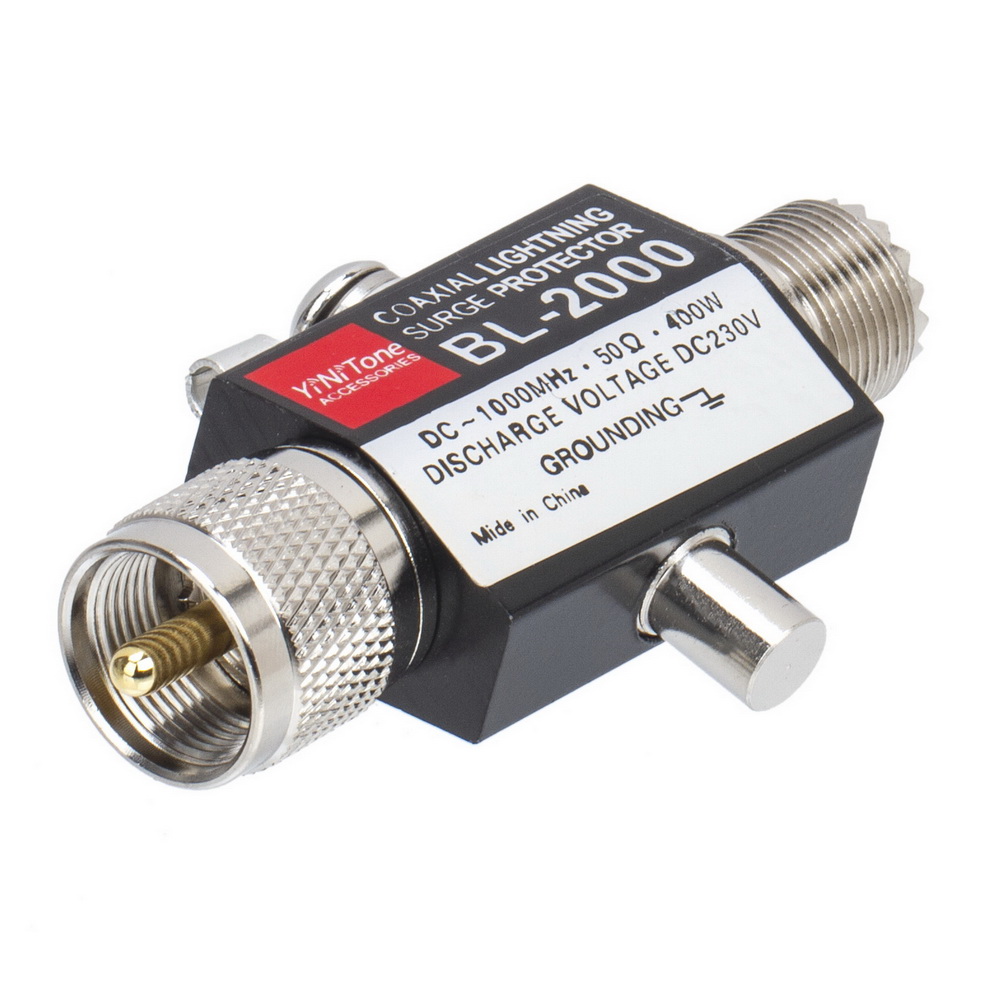

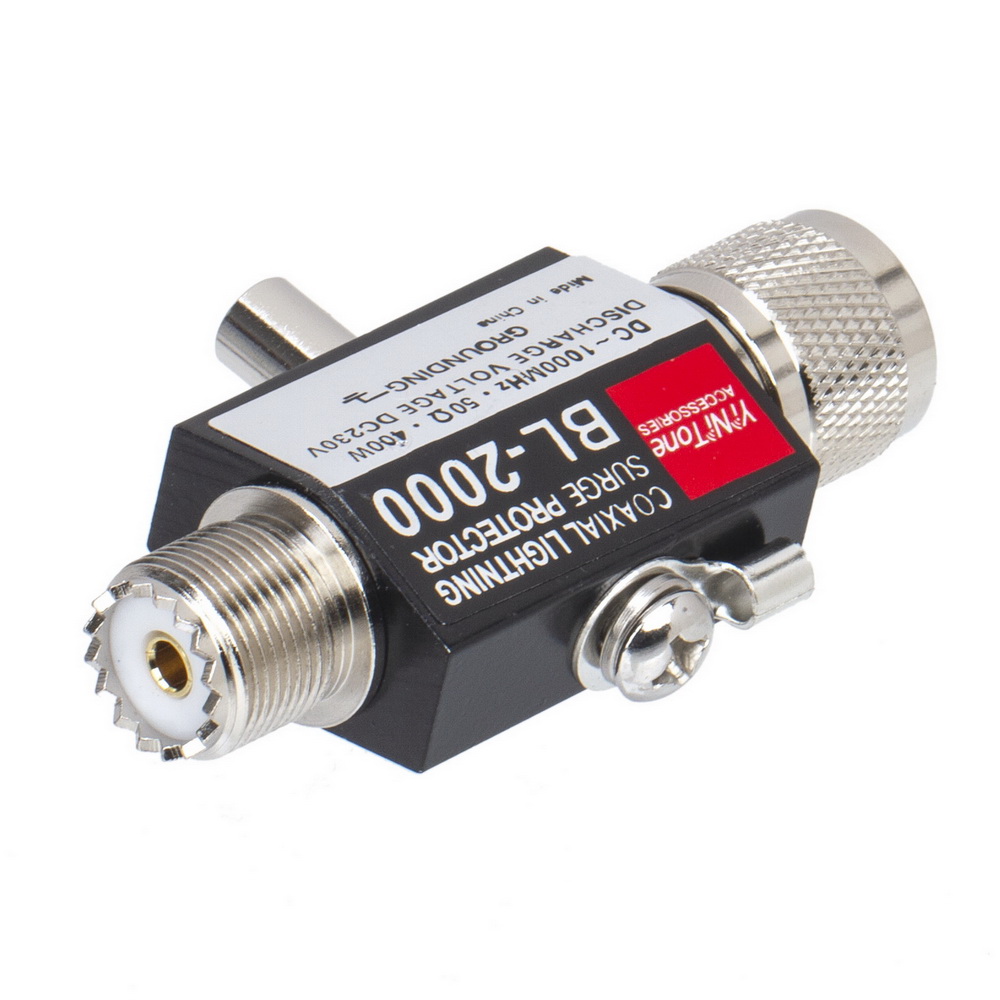

BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment

BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
BL-2000 Coaxial Lighting Surge Protector PL259 Male to PL259 Female 400W 50 Ohm Coaxial Lighting Arrestor for Communication Equipment
  • Stock: In Stock
  • Model: ST230048110
  • SKU: ST230048110
$15.99
Ex Tax: $15.99
Specification:

Item Type: Coaxial Lighting Arrestor
Material: Iron
Model: BL-2000
Connector: PL259 male to PL259 Female
Frequency Range: DC~1000MHz
Voltage VSWR: ≤1.1
Peak Power: 400W
Impedance: 50 Ohm


Features:

1. Comprehensive Protection: Absorbs and grounds lighting surges from antennas on top of buildings, providing complete protection for transceivers, receivers, etc.
2. Safety Guarantee: Designed with high safety in mind, the built in inflatable lighting arrester element discharges and grounds the surge when the surge voltage exceeds a specified level.
3. Convenient and Practical: Surge discharge and recovery action can be repeated as needed. If the lighting arrester components are damaged, they can be easily replaced with new components.
4. Superior Performance: The coaxial structure of the lighting surge protector ensures excellent high frequency characteristics, wide bandwidth, low loss and VSWR.
5. Easy Installation: The coaxial lighting surge arrester adopts 1/4 wavelength short circuit principle, good lighting protection. Simple structure, sturdy and easy to install.

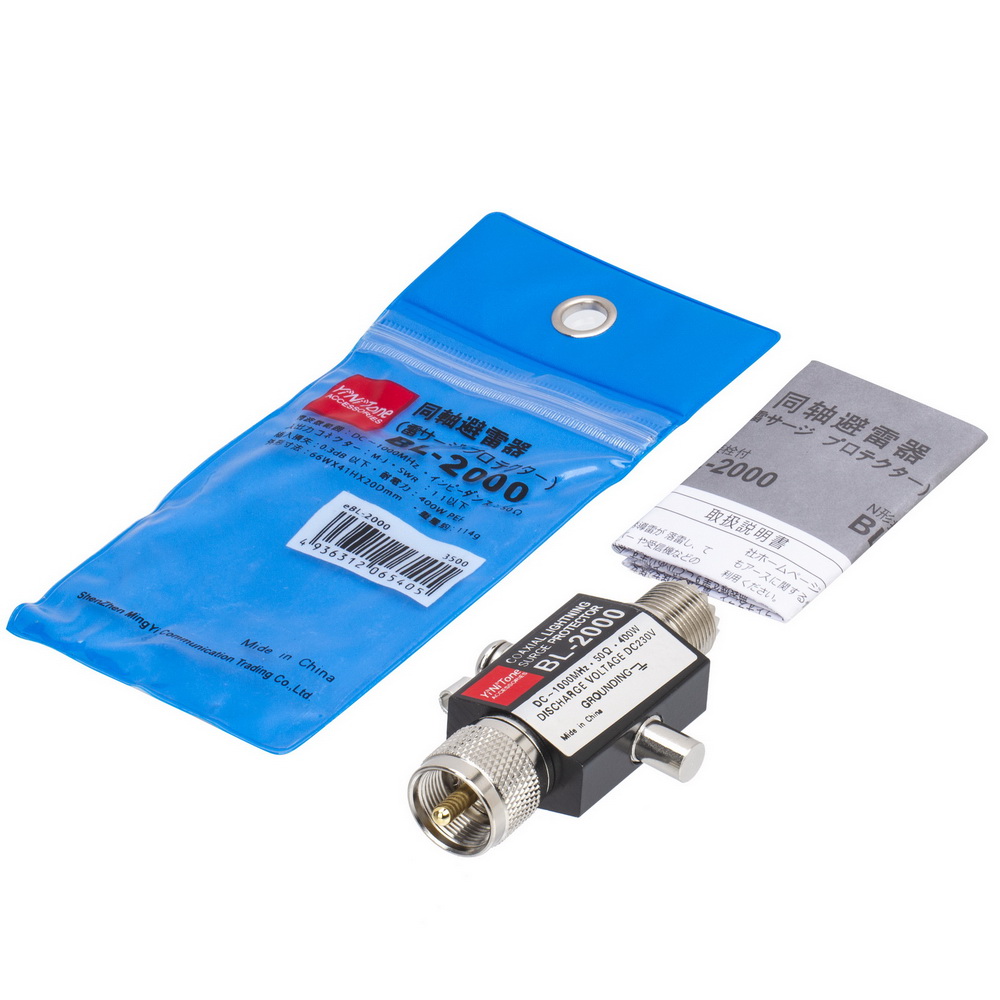

Package Include:

1×Coaxial Lighting Arrestor
1×Manual

BL-2000-Coaxial-Lighting-Surge-Protector-PL259-Male-to-PL259-Female-400W-50-Ohm-Coaxial-Lighting-Arr-1973808-1

BL-2000-Coaxial-Lighting-Surge-Protector-PL259-Male-to-PL259-Female-400W-50-Ohm-Coaxial-Lighting-Arr-1973808-2

BL-2000-Coaxial-Lighting-Surge-Protector-PL259-Male-to-PL259-Female-400W-50-Ohm-Coaxial-Lighting-Arr-1973808-3

BL-2000-Coaxial-Lighting-Surge-Protector-PL259-Male-to-PL259-Female-400W-50-Ohm-Coaxial-Lighting-Arr-1973808-4

BL-2000-Coaxial-Lighting-Surge-Protector-PL259-Male-to-PL259-Female-400W-50-Ohm-Coaxial-Lighting-Arr-1973808-5

BL-2000-Coaxial-Lighting-Surge-Protector-PL259-Male-to-PL259-Female-400W-50-Ohm-Coaxial-Lighting-Arr-1973808-6
