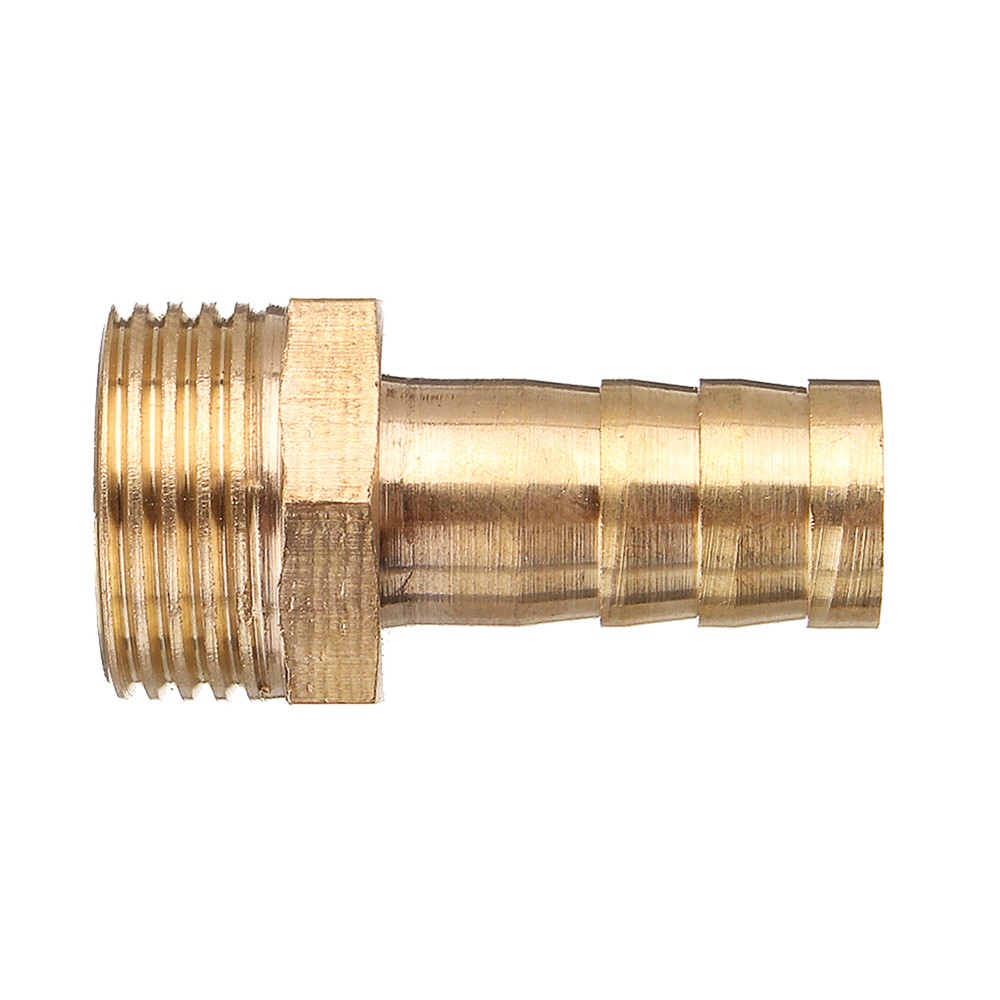

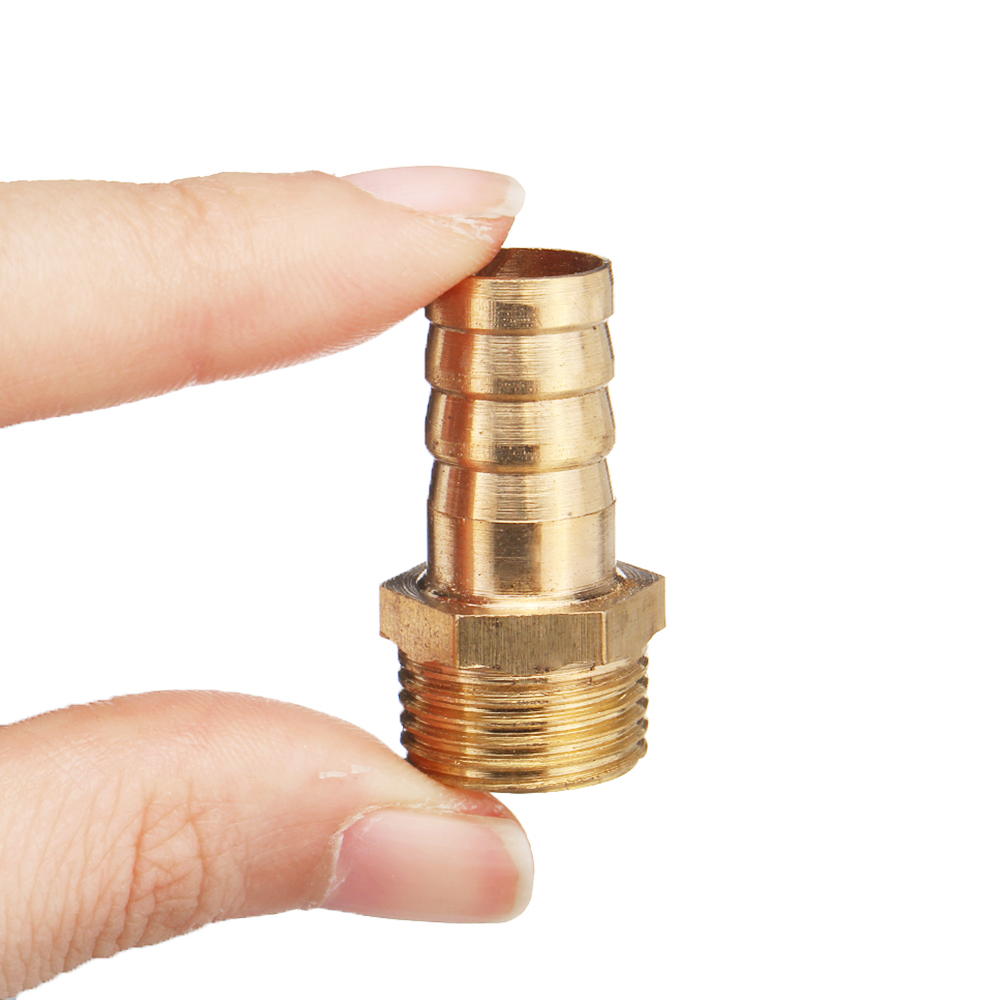

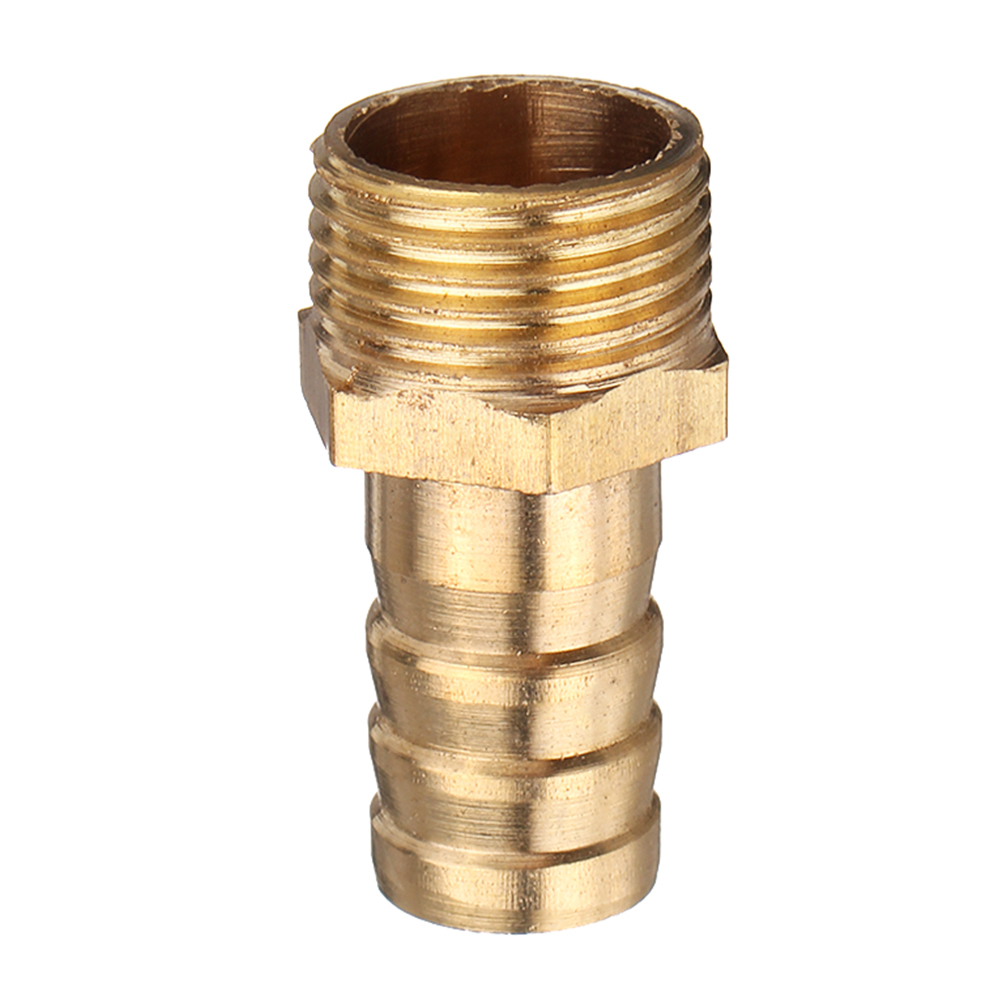

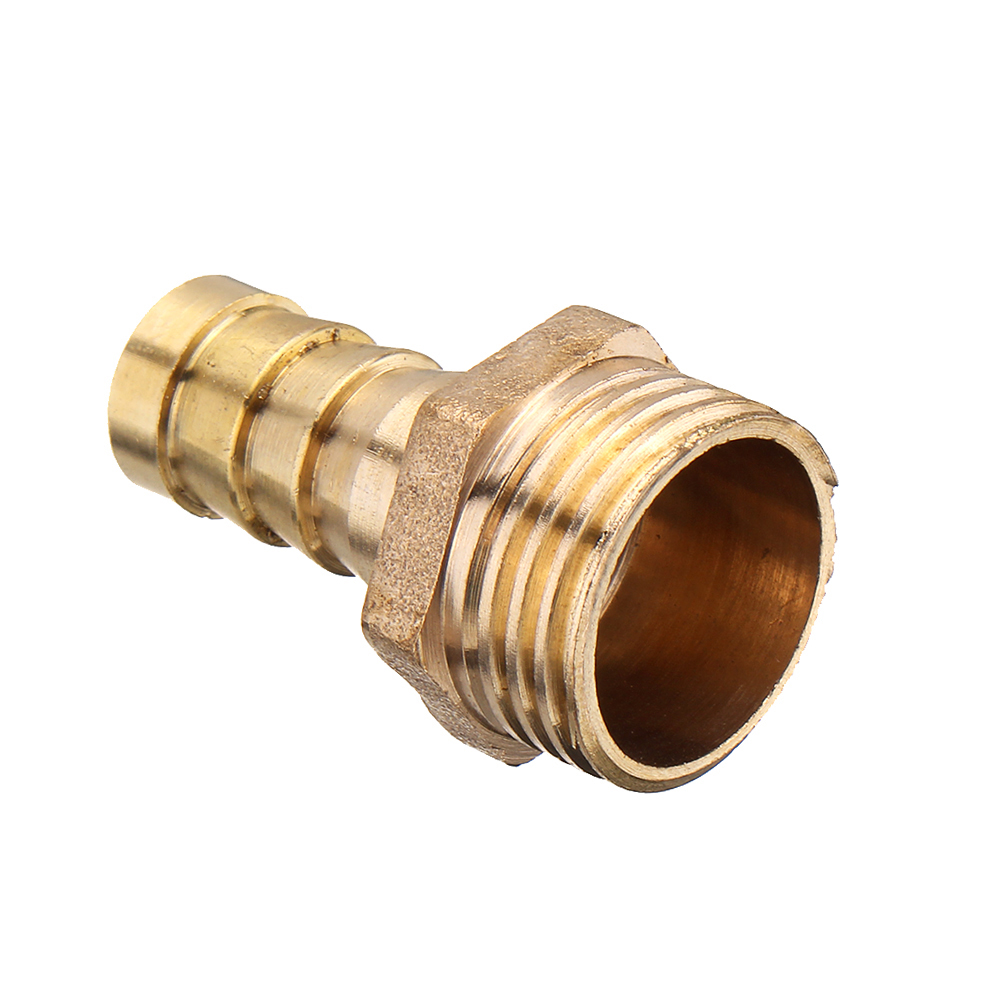

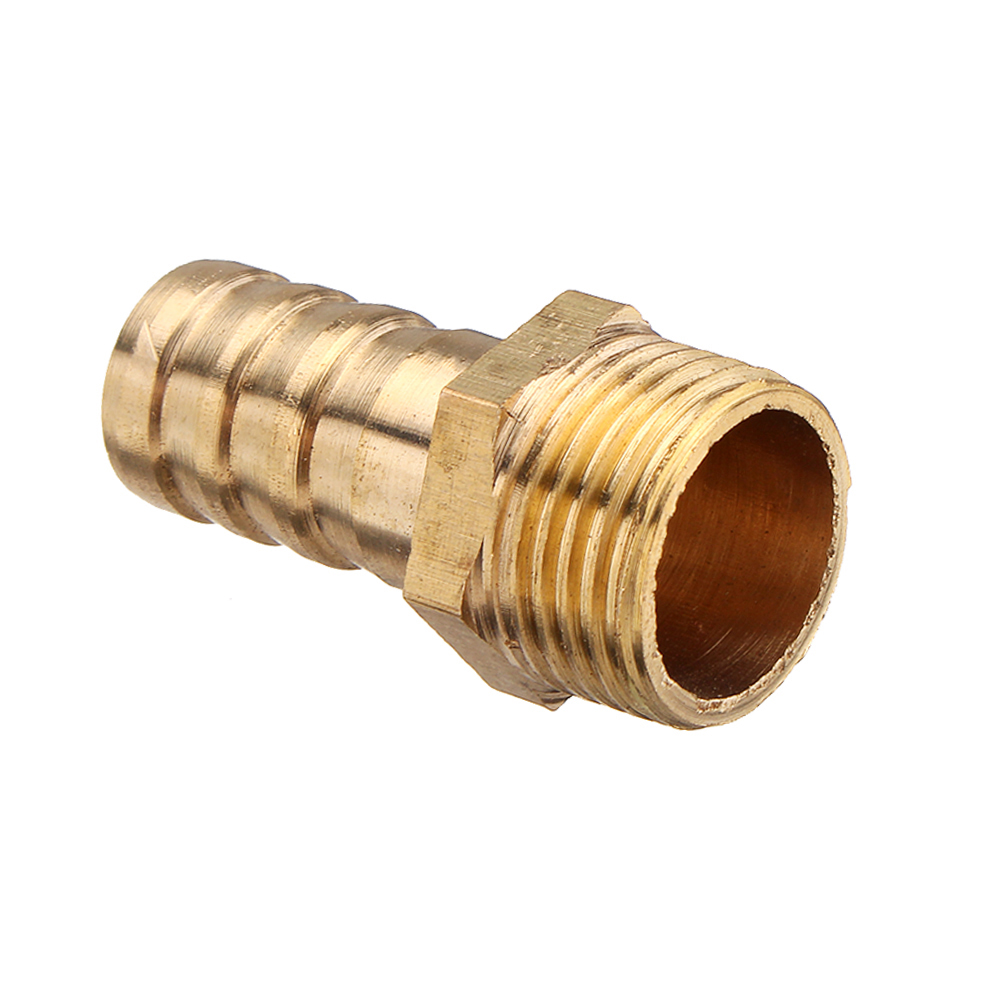

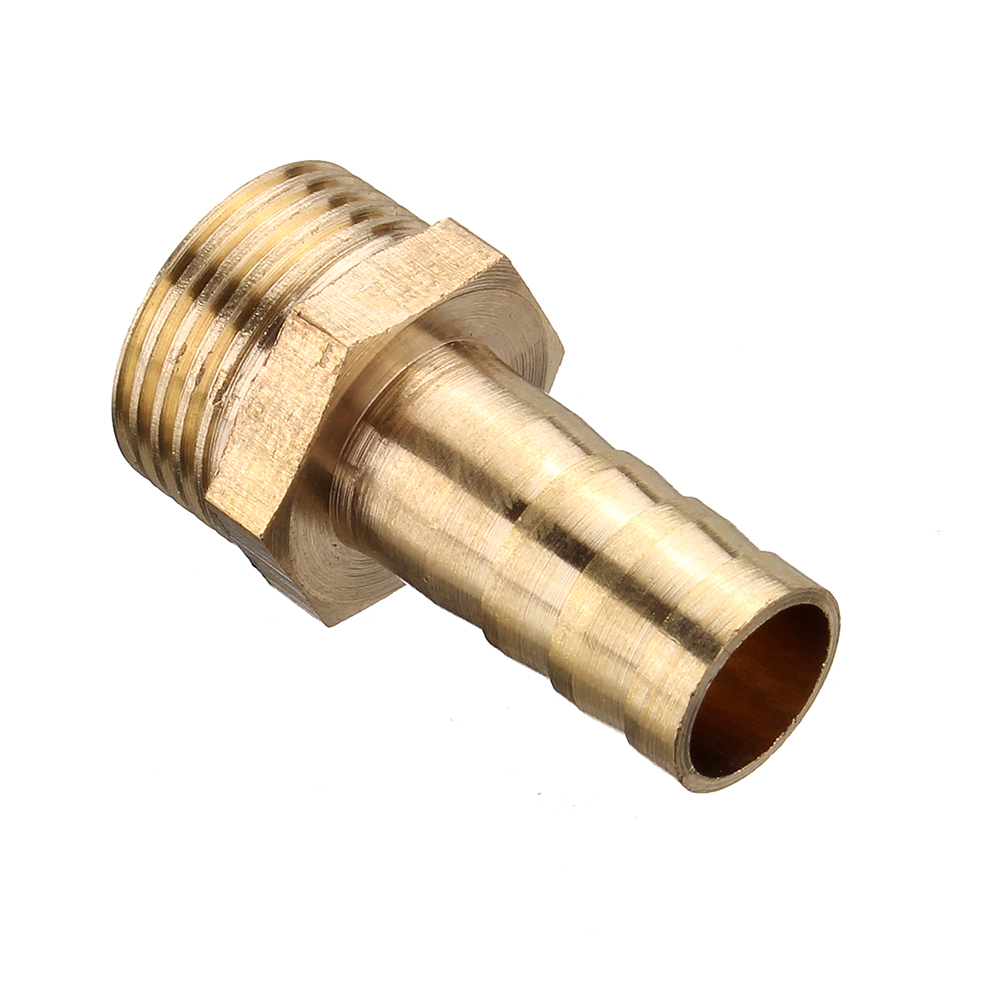

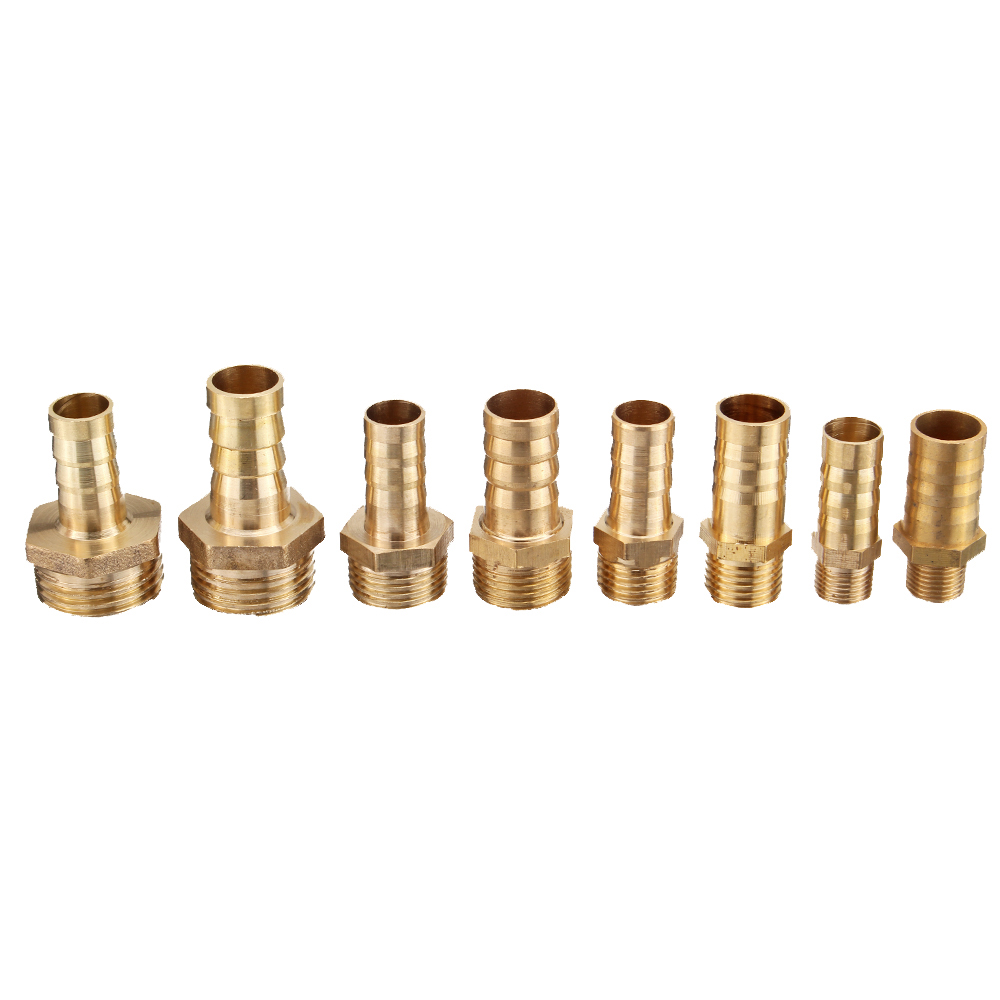

Adapter PC10/12 - 01-04 Male Thread Copper Pneumatic Component Air Hose Quick Coupler Plug

Description: Pagoda adapter, PC10/12 - 01-04 male thread copper pneumatic component, air hose quick coupler plug.

Specification: Material: Brass
Heat resistance: 100 ℃
Pressure resistance: 100 (MPa)
Fluid: Clean compressed air, vacuum
Max. working pressure: 1.32Mpa (13.5kgf/c㎡)
Normal operating pressure: 0-0.9Mpa (0-9.2kgf/c㎡)
Low service pressure: -99.99-0Kpa (-750-0mmHg)
Environment and fluid temperature: 0-60℃
Connection: Quick twist
Use hose: PU tube, Nylon tube

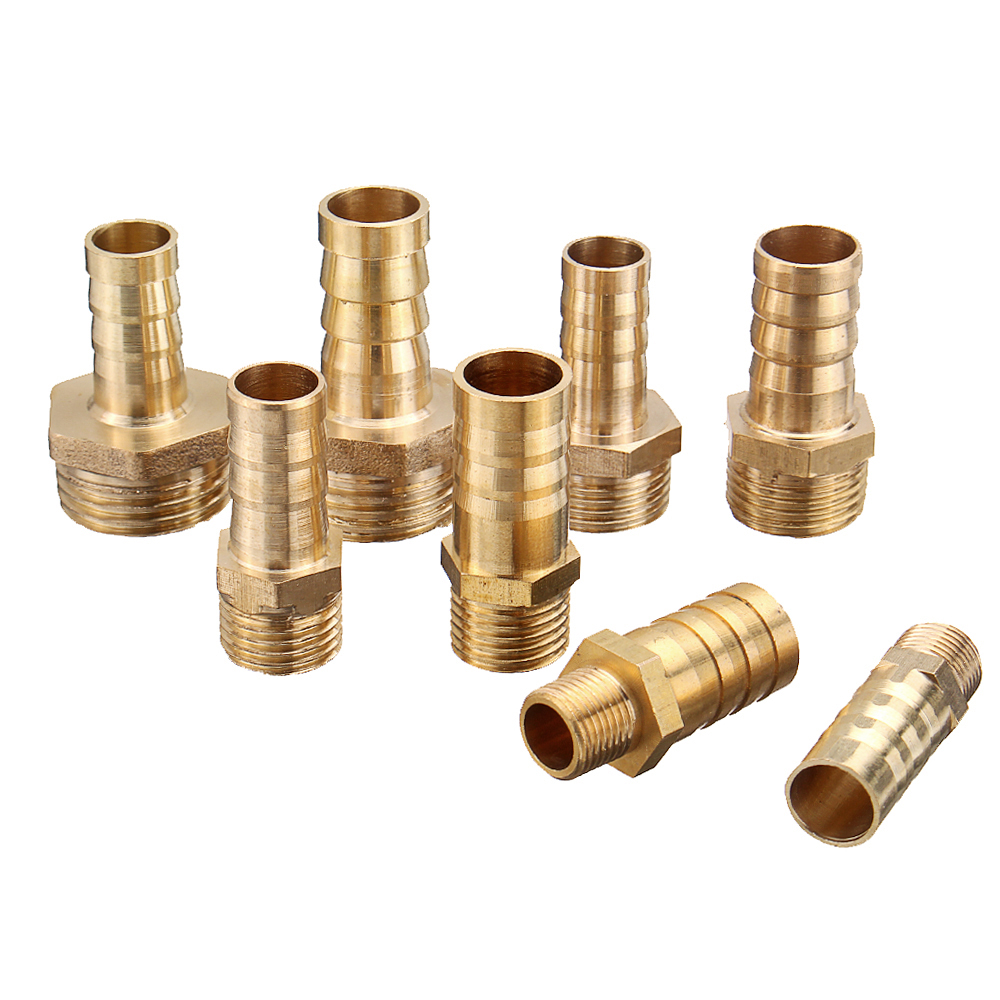

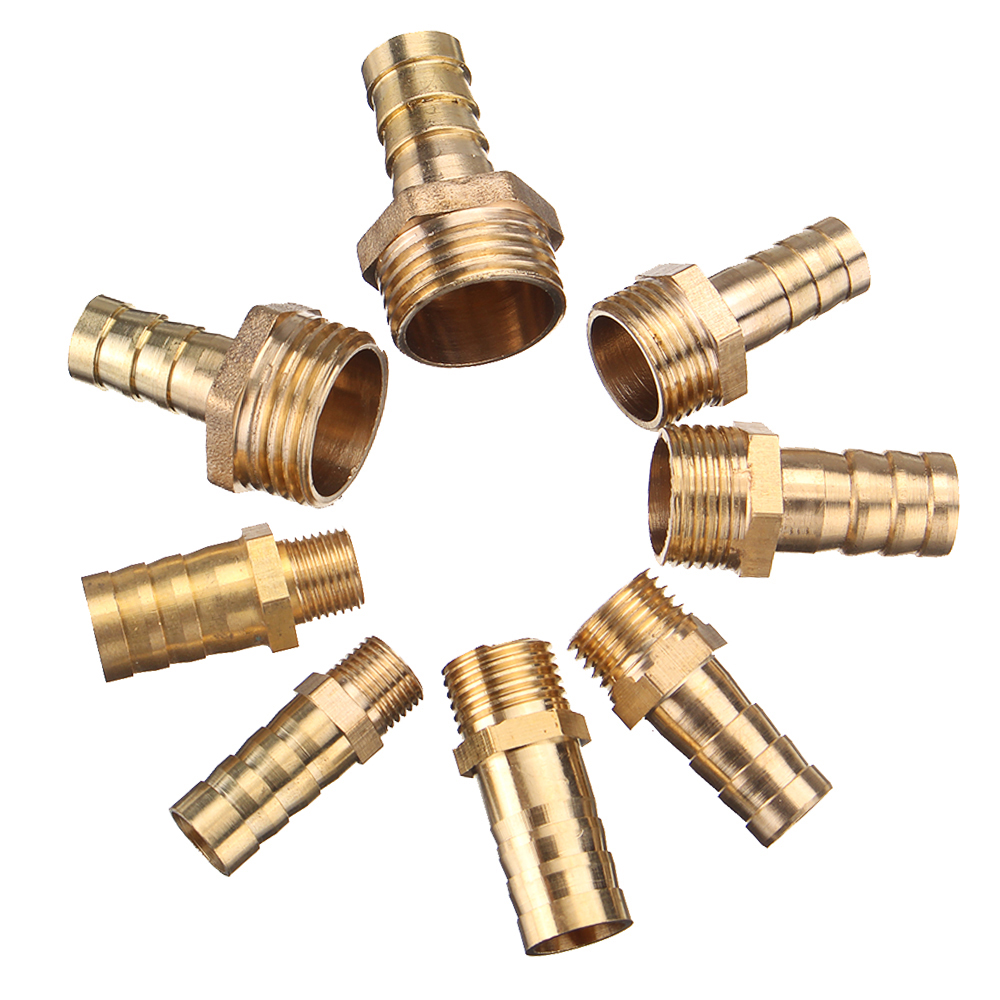

Model	I.D of tube	Screw Size
10-01	6mm	9.5mm*1/8''
10-02	6mm	12.5mm*1/4''
10-03	6mm	16.2mm*3/8''
10-04	6mm	20.3mm*1/2"
12-01	8mm	9.5mm*1/8''
12-02	8mm	16.2mm*3/8''
12-03	8mm	16.2mm*3/8''
12-04	8mm	20.3mm*1/2"

Features: - Made of brass castings, thickened walls, fine threads, durable.
- Molding technology is adopted.It has the advantages of anti-leakage, quick connection and long life.
- The valve body is extra thick with the standard of inch thread, which can effectively prevent it from bursting due to excessive pressure during operation.
- The PPR pipe is elaborately built with good sealing performance, smooth inner wall and smooth water outlet, preventing from scaling and leakage.
- After multiple precision stamping, the extremely high metal fatigue resistance is easy to install and free of air leakage.

Package Included: 1 X Adapter
