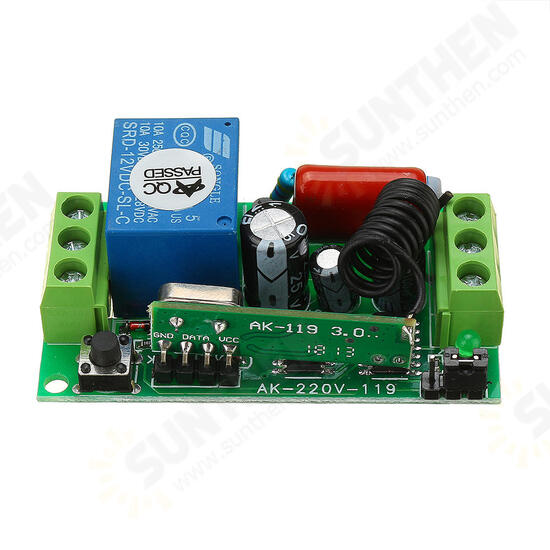

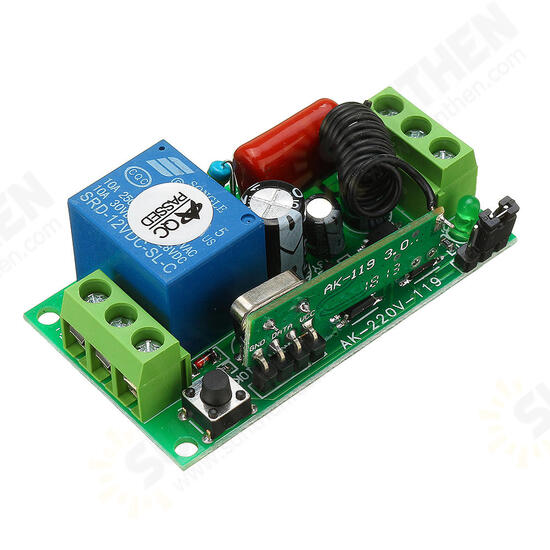

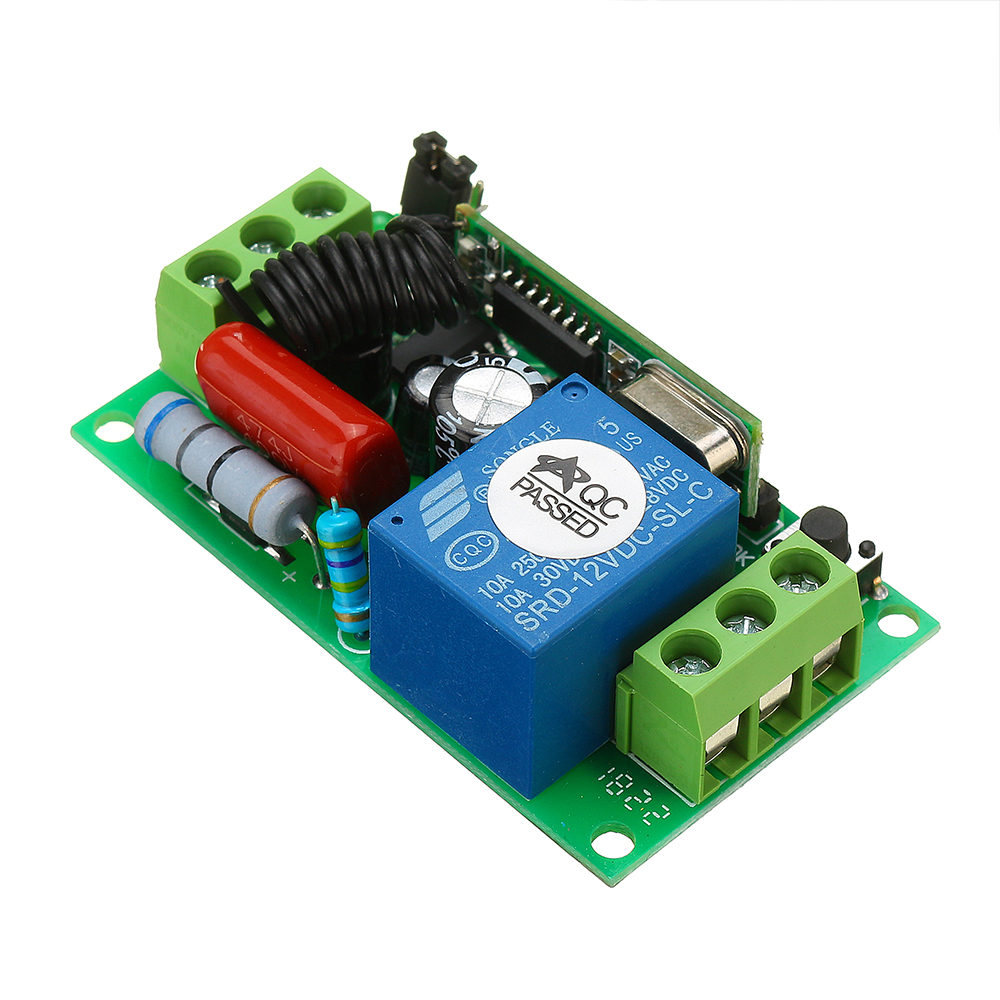

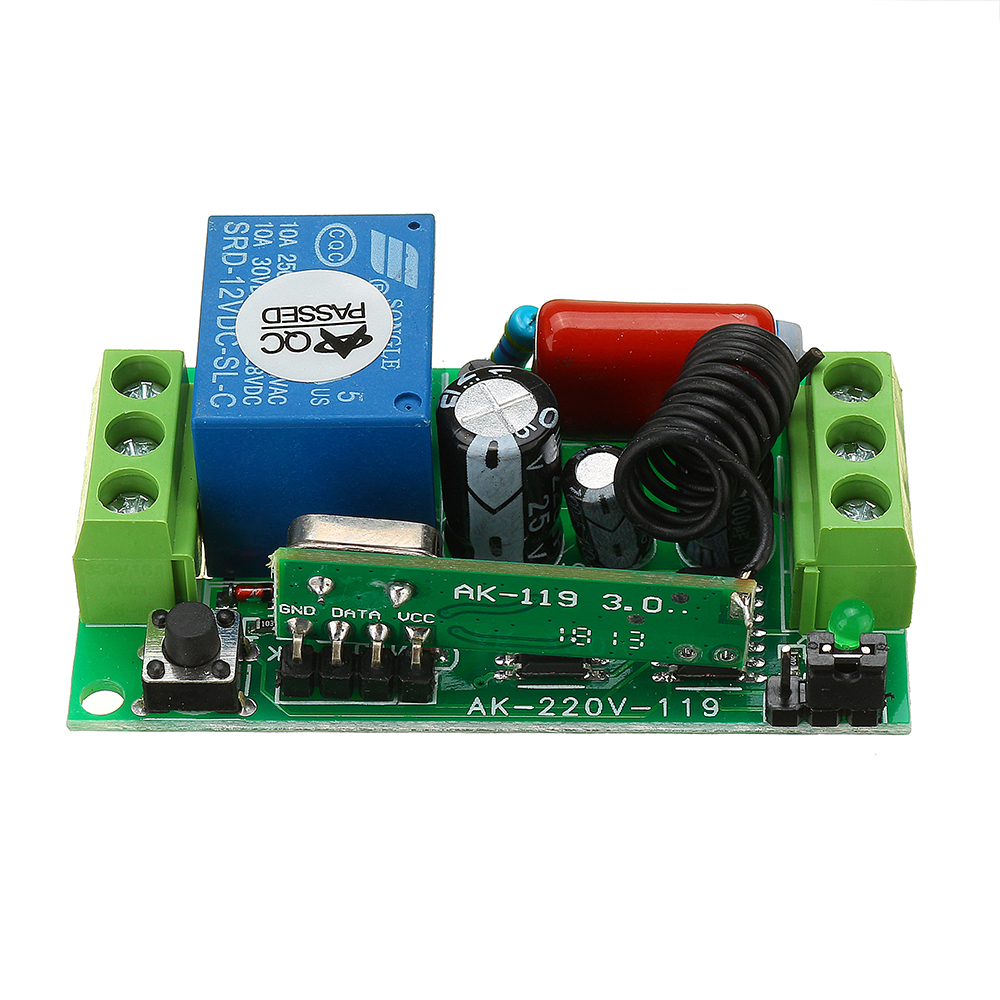

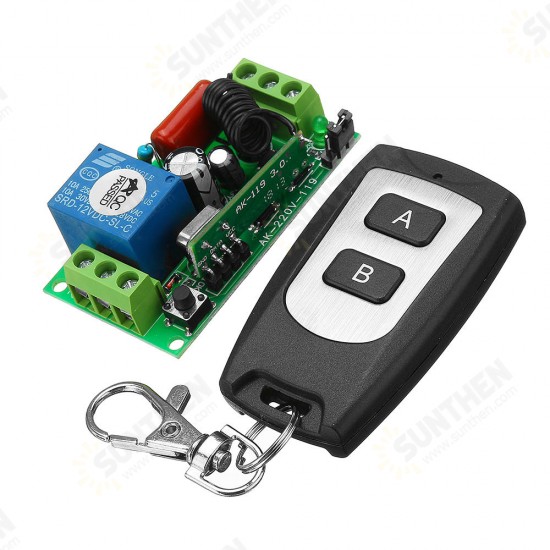

AC220V 1CH 10A Wireless Remote Control Switch Relay Output Radio Receiver Module With Waterproof Transmitter
- Stock: In Stock
- Model: ST230044657
- SKU: ST230044657
$13.99
Ex Tax: $13.99
Specification:
1. Input Voltage: AC85V-AC220V
2. RF Frequency: 315/433MHZ (optional)
3. RF Working mode: Super heterodyne receiver
4. Receiver Sensitivity: -107dBm
5. Remote Control Distance: >100 meter(In open environment)
6. Decoding Way: MCU Software decoding
7. Can store the number of remote control: 32
8. Support remote control type: Fixed code, learning code
9. Channel: 1CH
10. Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)
11. Wiring Method: Fixed wiring terminal
12. Rated load: 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
About Learning and clearing Method:
Learning: Press the learning key, it means the controller putting in the learning state when the indicator goes on, then please press any buttons of the remote control to transmit signals, the indicator will flash ,, which means successfully studied.
Clearning: Hold press learning button about 8 seconds,,indicator from on to off,then press remote ,receiver did not work ,it means clearning code successful.
Package includeds:

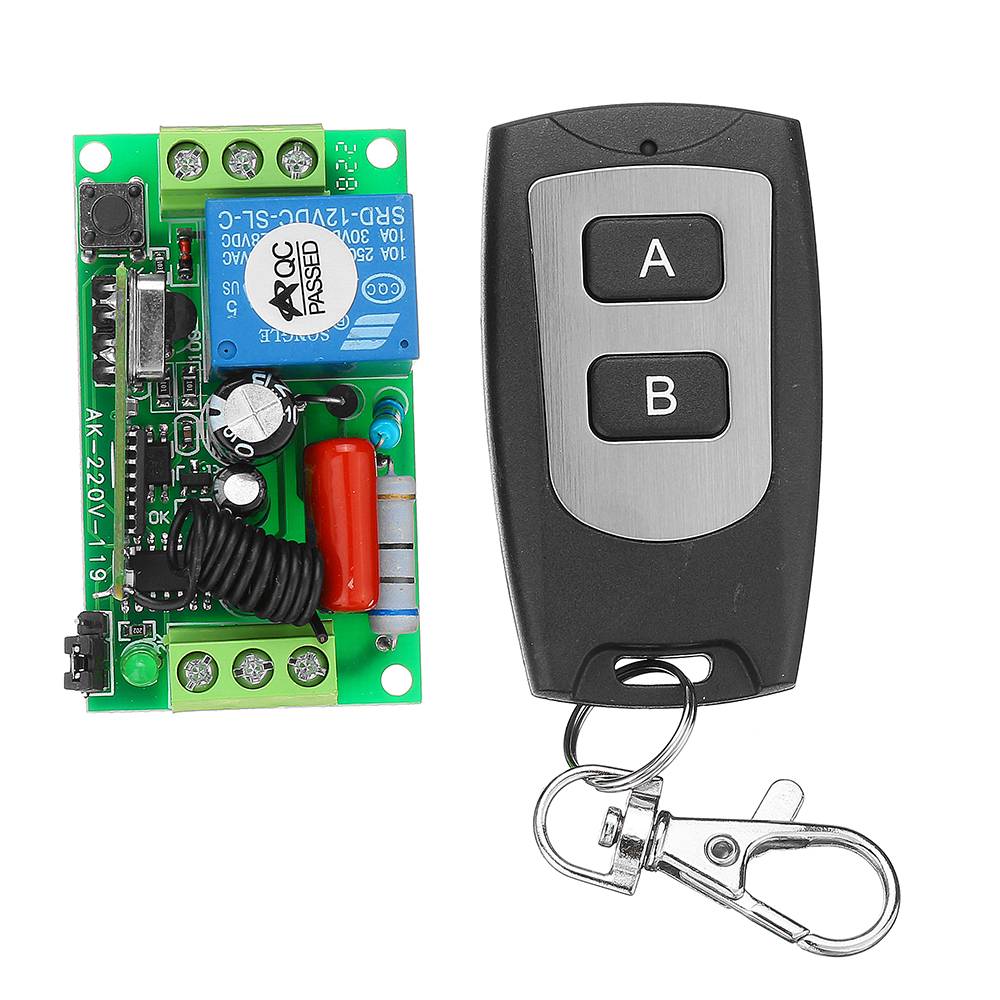

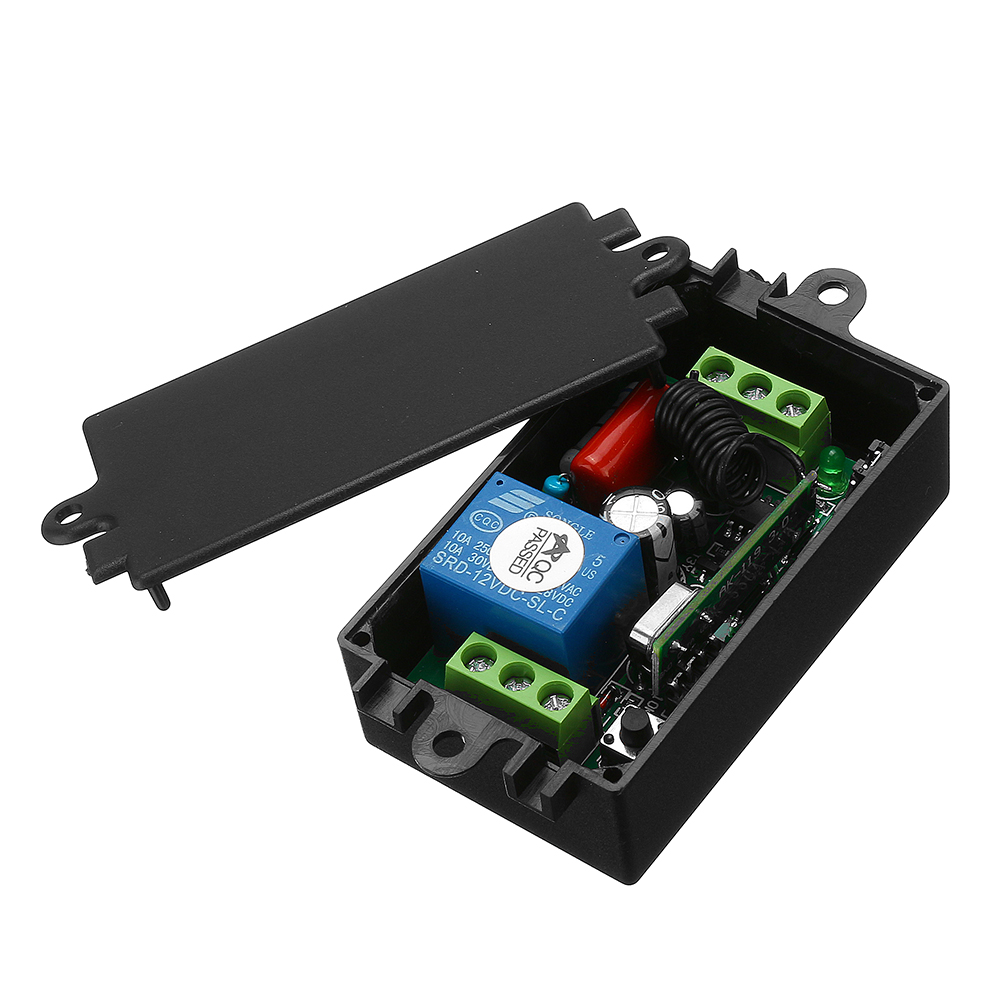

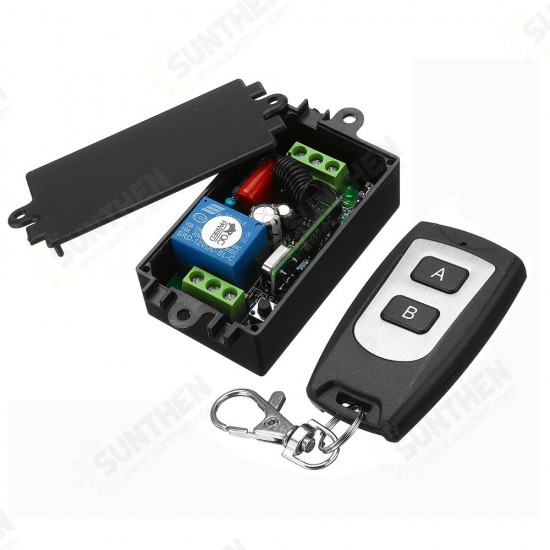

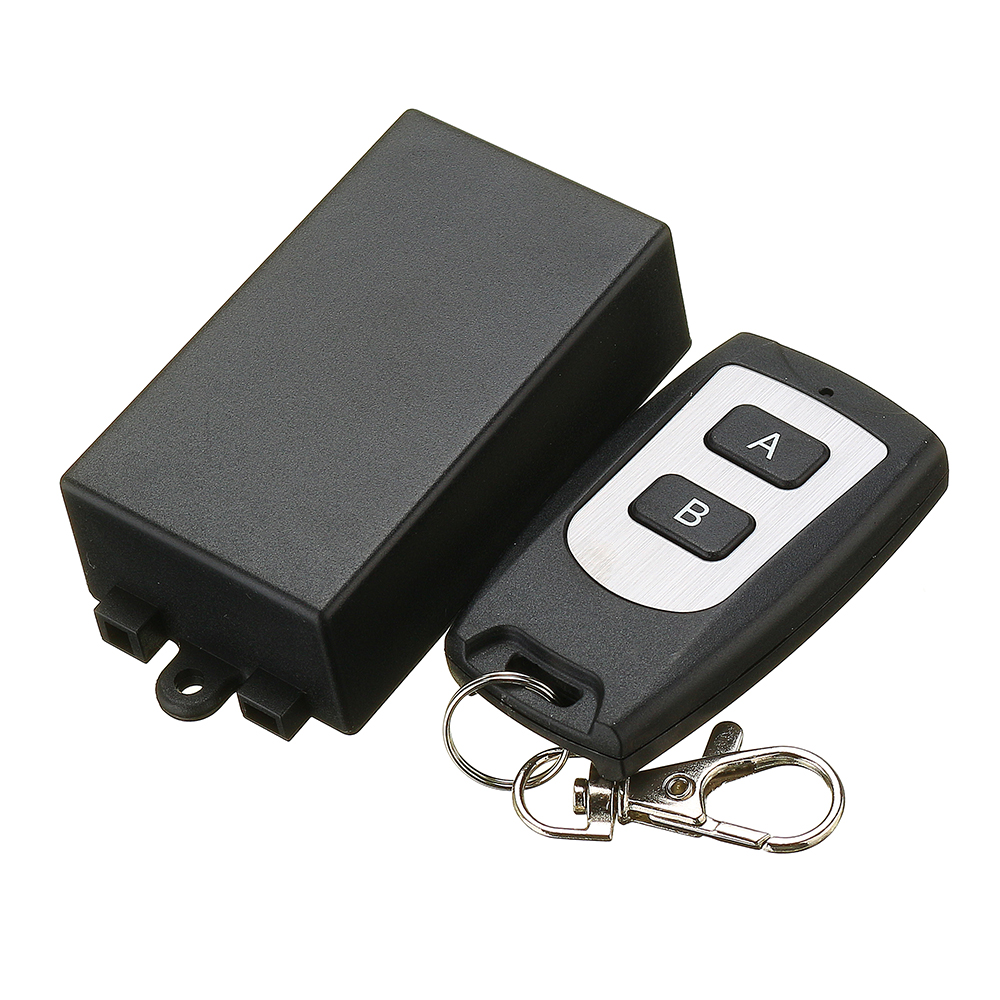

1 x Remote Control Switch with case

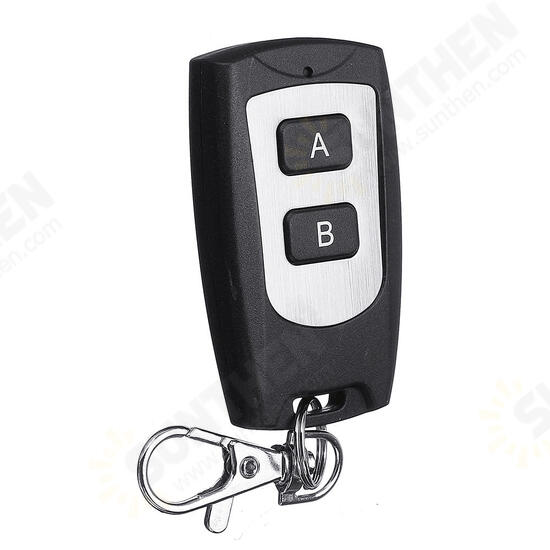

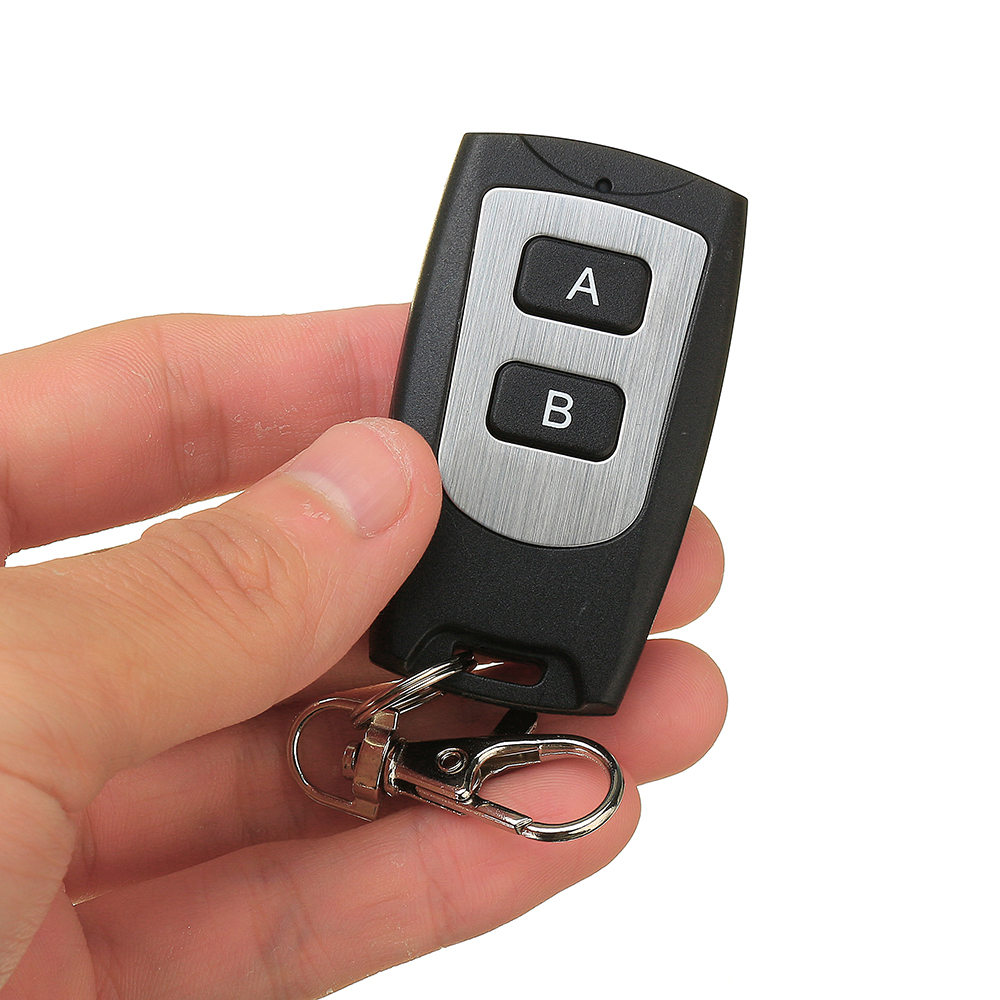

1 x Remote Control
1 x Remote Control Switch with case
1 x Remote Control
