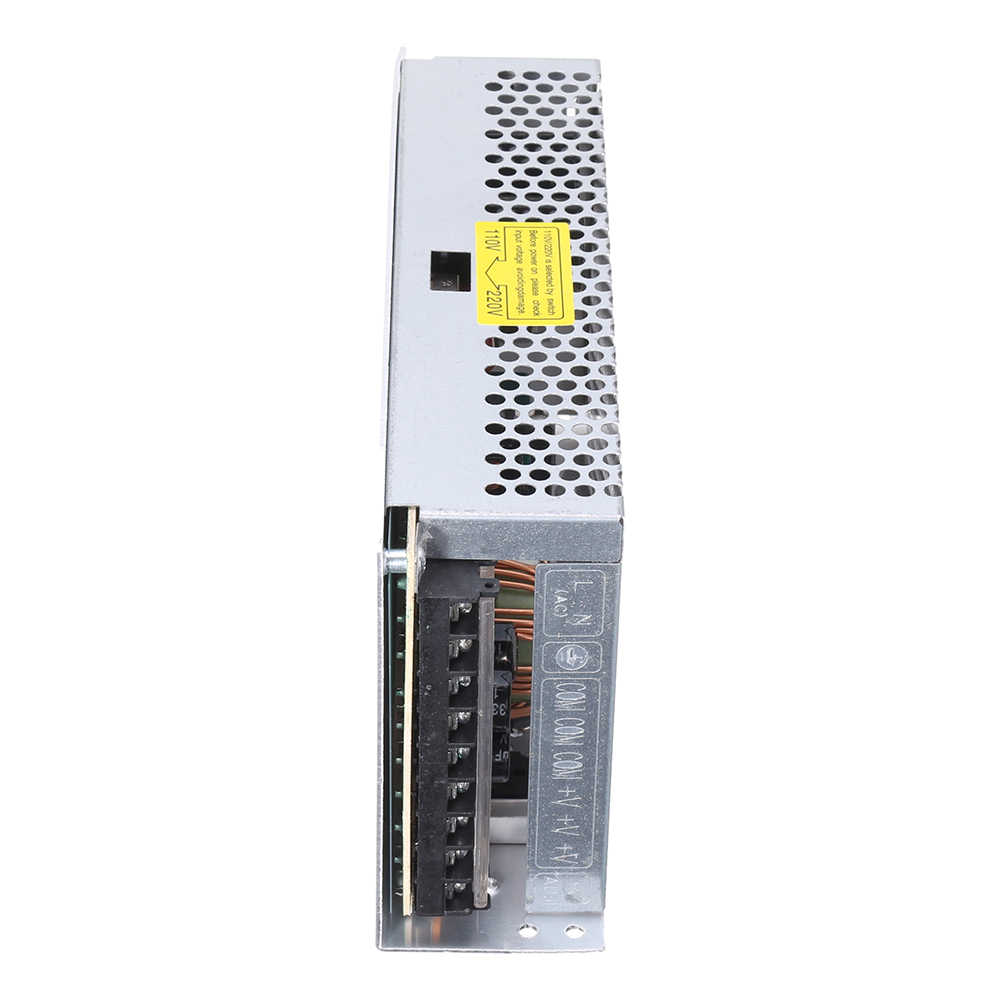

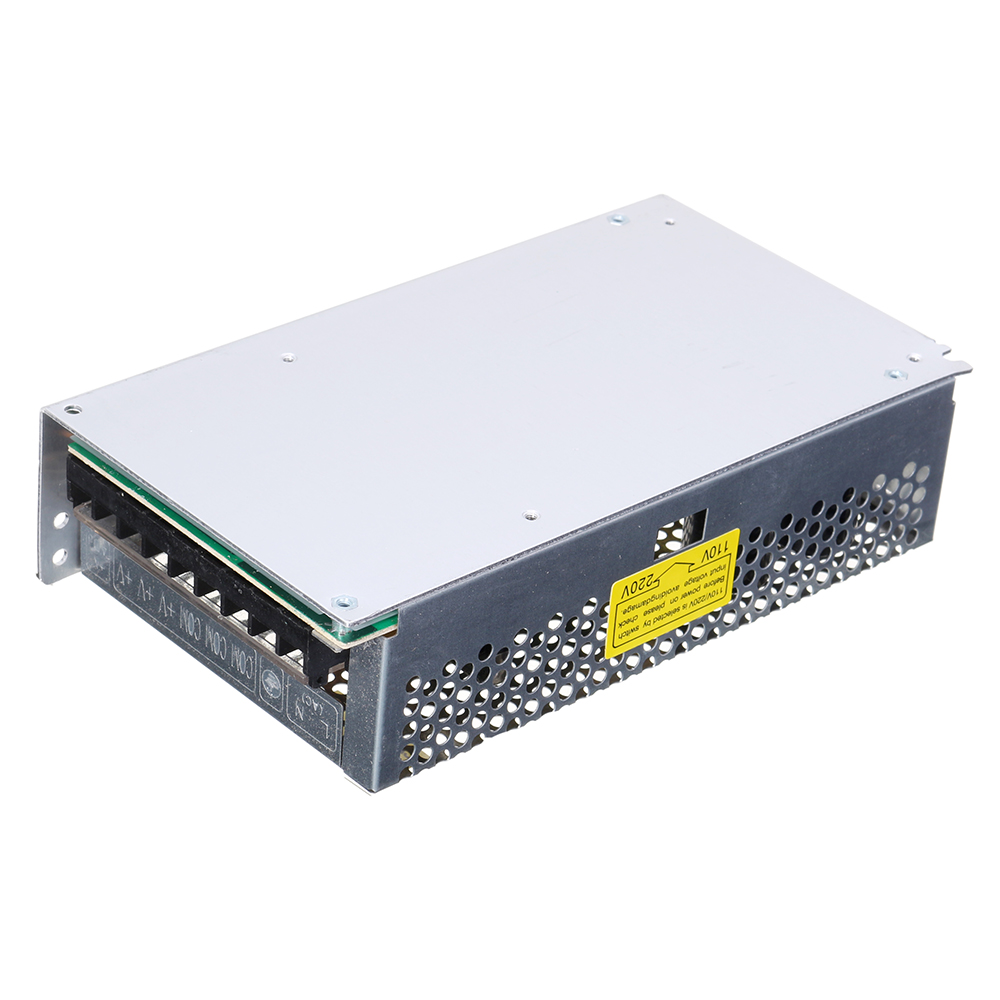

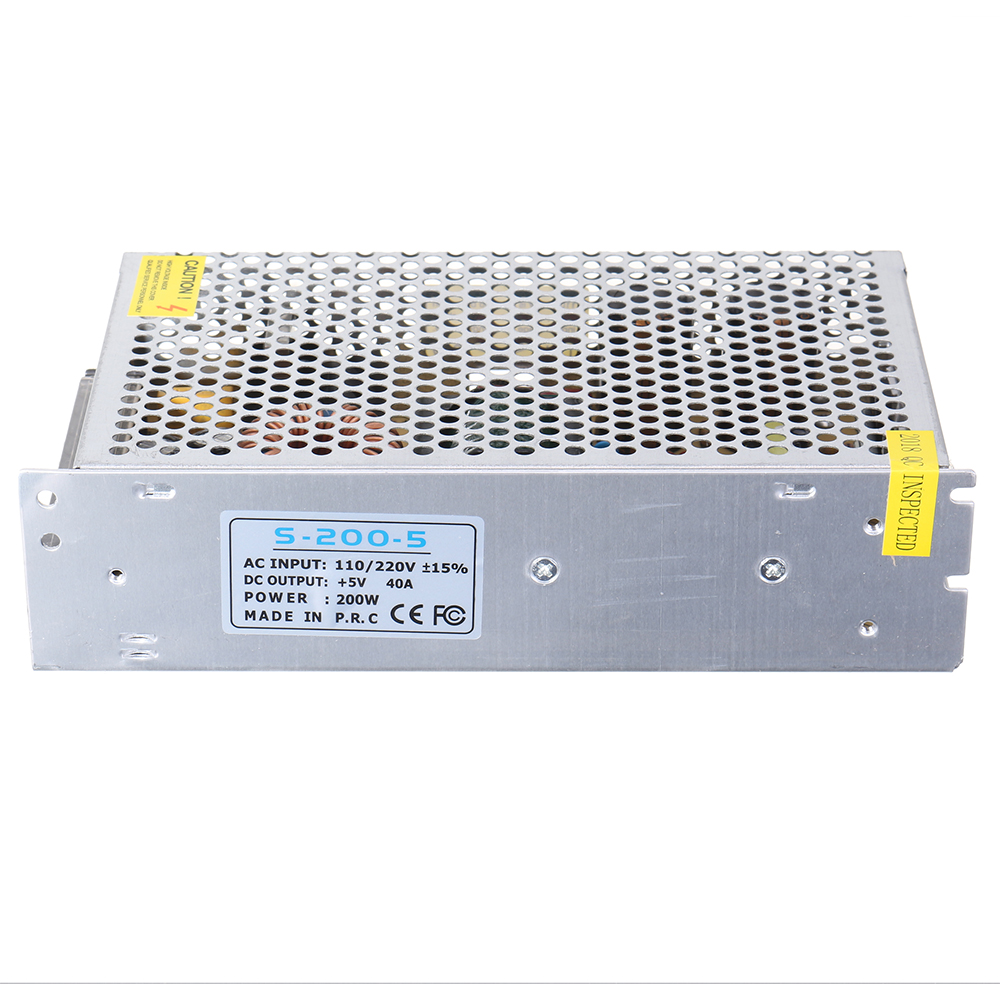

AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm

AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
AC110V/220V to DC5V 40A 200W Switching Power Supply 200*110*50mm
  • Stock: In Stock
  • Model: ST230043381
  • SKU: ST230043381
$16.37
Ex Tax: $16.37
Technical Parameters:
Project Technical indicators Remarks
basic requirements 5V 40A  200W Common (No fan)
Dimensions 200*110*50mm
Operating temperature -10°C to +50°C, 20% to 95% RH (no condensation)
Storage temperature -20°C to +85°C, 20% to 95% RH (no condensation)
Temperature Coefficient 0.02~0.05%/°C
Heat dissipation method Natural cooling
Rated voltage range 220VAC AC
Input voltage range 110/240V AC
Input frequency range 50 to 60 Hz Except DC input
Input undervoltage protection 115 to 150% intermittent mode
Input undervoltage recovery Automatic recovery
Input overvoltage protection 115 to 150% intermittent mode
Input overvoltage recovery Automatic recovery
Electric shock ≤1% Maximum input voltage full load
Machine efficiency ≤0.5% Rated input full load
Output voltage range 5V ± 0.5% Three channel output
Output current 40A Three channel output
Ripple and noise ≤150 mVp-p
Rise Time ≤50 ms
Output delay ≤5 S
Voltage regulation ≤0.5%
Load Regulation ≤1%
Output overcurrent protection Current drooping
Output short circuit protection IGBT
Output overvoltage protection Soft start protection
Input to output >30MΩ
Input to the earth >30MΩ
Output to the earth >30MΩ
Insulation resistance >50MΩ
MTBF 100000H

Feature:

1. International AC input range
2. High efficiency, low working temperature
3. Short circuit,overload,over-current protection
4. 100% fully load burn-in test
5. Built-in EMI filter, low ripple noise
6. Low cost, high reliability
7. CE and FCC approval

Specification:

1. LED switching power supply using pulse width modulation (PWM) switching technology designed to ensure power supply stability and high efficiency.
2. Product interference, through the EMC testing, ripple ≤ 50MV.
3. Efficiency above 80%, temperature ≤ 25 °C.
4. LED switching power supply with overvoltage protection, short circuit protection, overload protection.
5. Constant current output to ensure the stability of the power, so that LED lighting effects better and live longer.
6. Products have the anti-interference ensures long-life LED strips, reducing the LED lighting decline.

Package includes:

1 x Power supply
