936A Soldering Station OLED 0.96inch STC Controller Electronic Soldering Iron with Holder T12 Soldering Iron Tip

Specification:

Main Menu Introduction:

Long press the encoder to enter the first level menu, rotate the encoder to select the second level menu you want to enter, and short press to enter the second level menu. Rotate the encoder again, move the cursor to the specific parameter that needs to be modified, and short press the encoder to select the content (the option value is displayed behind the text after selection). Rotate the encoder again to modify the value. After the modification is completed, short press the encoder to cancel the selection (the option value disappears after canceling the selection). Rotate the encoder again to move the cursor to other parameters. To exit the first-level menu and the second-level menu, you need to long press the encoder, and the long press time is 1s.

Temperature Set

1. Standby

When the soldering iron enters the "standby mode", the working temperature is set to 50-500℃. If the value of this option is less than 50, it will not be heated during sleep;

2. Boot-Temp

Enter Boot-Temp, you can set the default set temperature of the soldering iron required after booting. If you want the soldering station to save the set temperature value at the last shutdown, you can set this option to "0";

3. Temperature-CAL

0~500℃: Click to select the 100℃ to 500℃ option, the soldering iron will be heated according to the temperature table corresponding to the soldering iron tip number set in the "Tip Selection", and the heating will automatically stop after unchecking. During the calibration process, if the actual temperature is lower than the set temperature, increase the AD value; if the actual temperature is higher than the set temperature, decrease the AD value. 0°C and 600°C are generally the default values without adjustment. When calibrating the soldering iron tip, remember that this set of data must be strictly increased from small to large, otherwise the temperature is invalid. For example, if before calibration: 100℃, AD=110; 200℃, AD=270; 300℃, AD = 380, when calibrating 200℃, the temperature is less than 200℃, you need to increase the AD value from 270, but its size It cannot exceed the AD value of 380 at 300°C. If the temperature cannot reach 200°C when the temperature is adjusted from 270 to 380, it means that the value of 380 at 300°C is also too small. You need to increase the 380 at 300°C first.

Automatic Sleep

1. Sleep Time

Press and hold the encoder for 2 seconds to enter Other Set, Sleep-tim---according to your choice, the setting range is 0-60 minutes, the default is 1minutes, when in sleep state, the temperature of the soldering iron tip will be reduced to protect the life of the soldering iron tip, Press 2 sencond quit

2. RESET

Press and hold the encoder for 2 seconds to enter Other Set, If you need to restore the factory settings, set the position to 1, and the soldering iron will restart after exiting the menu, and all parameters will be restored to the factory settings.

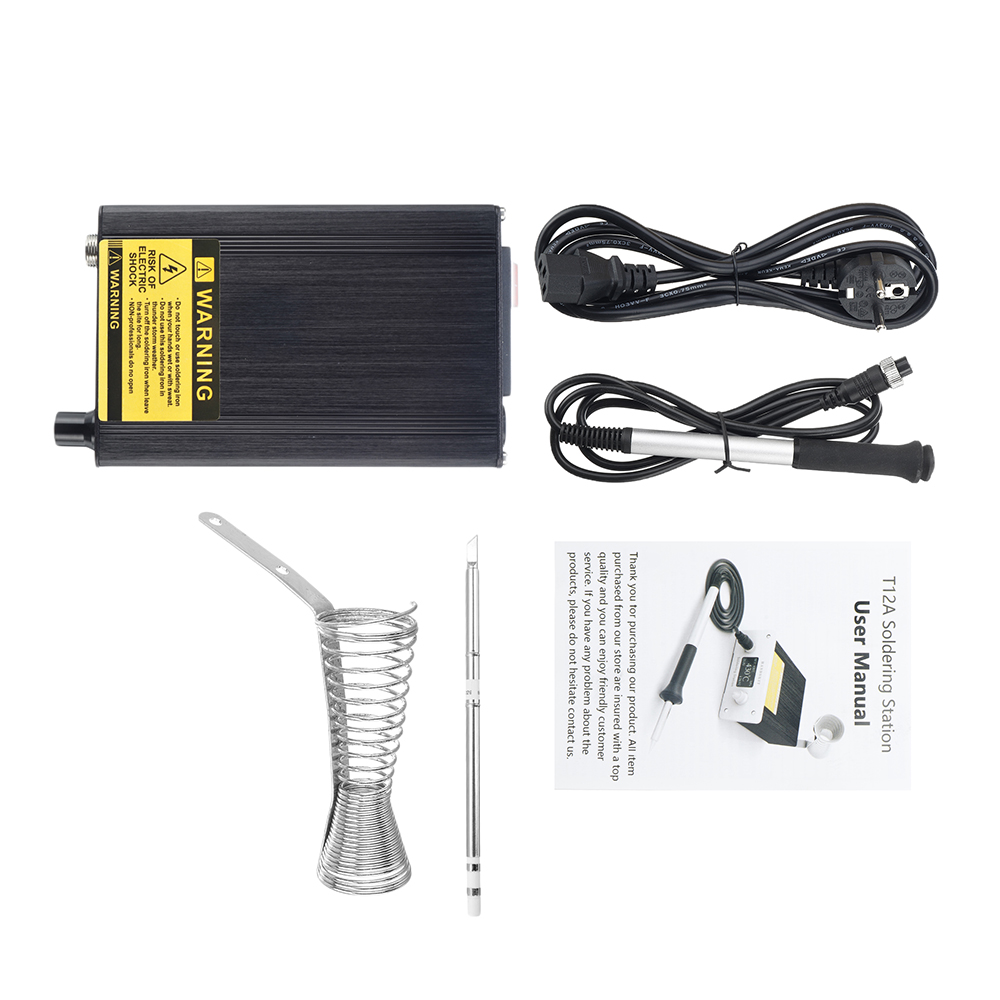

Package Included:

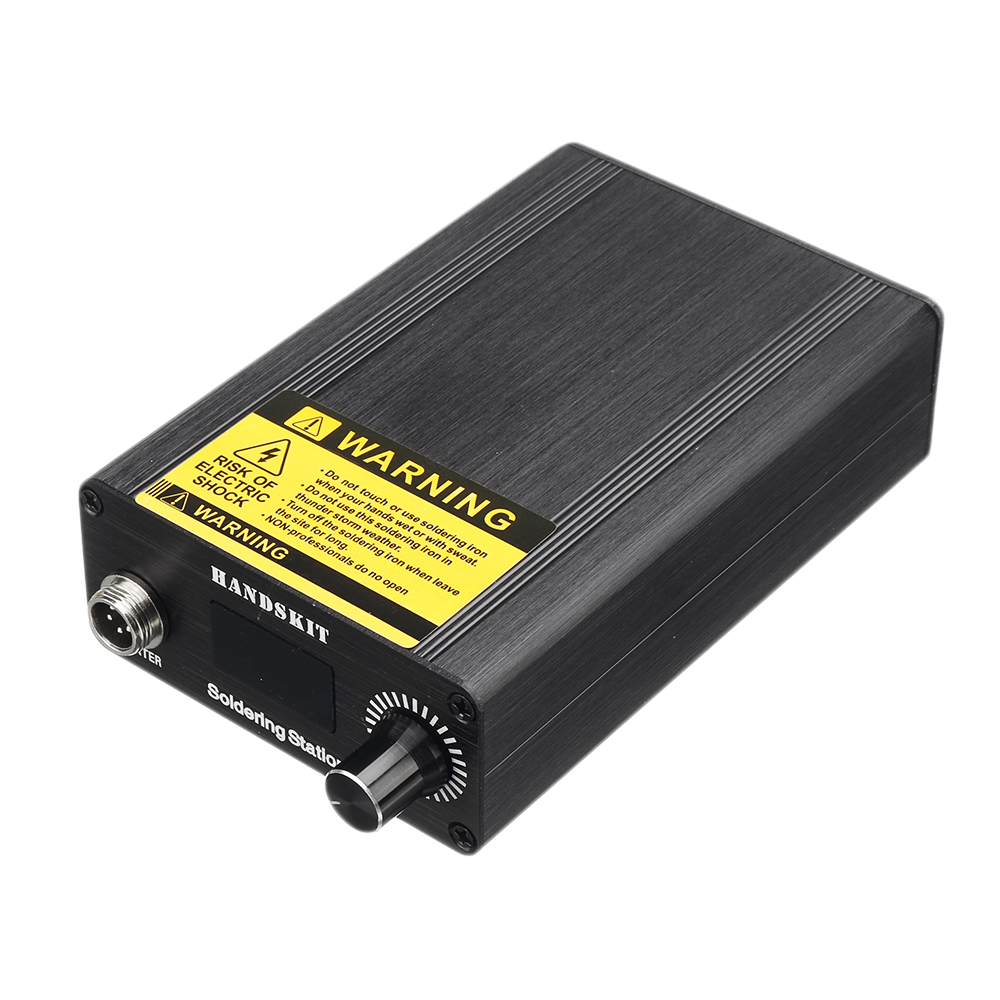

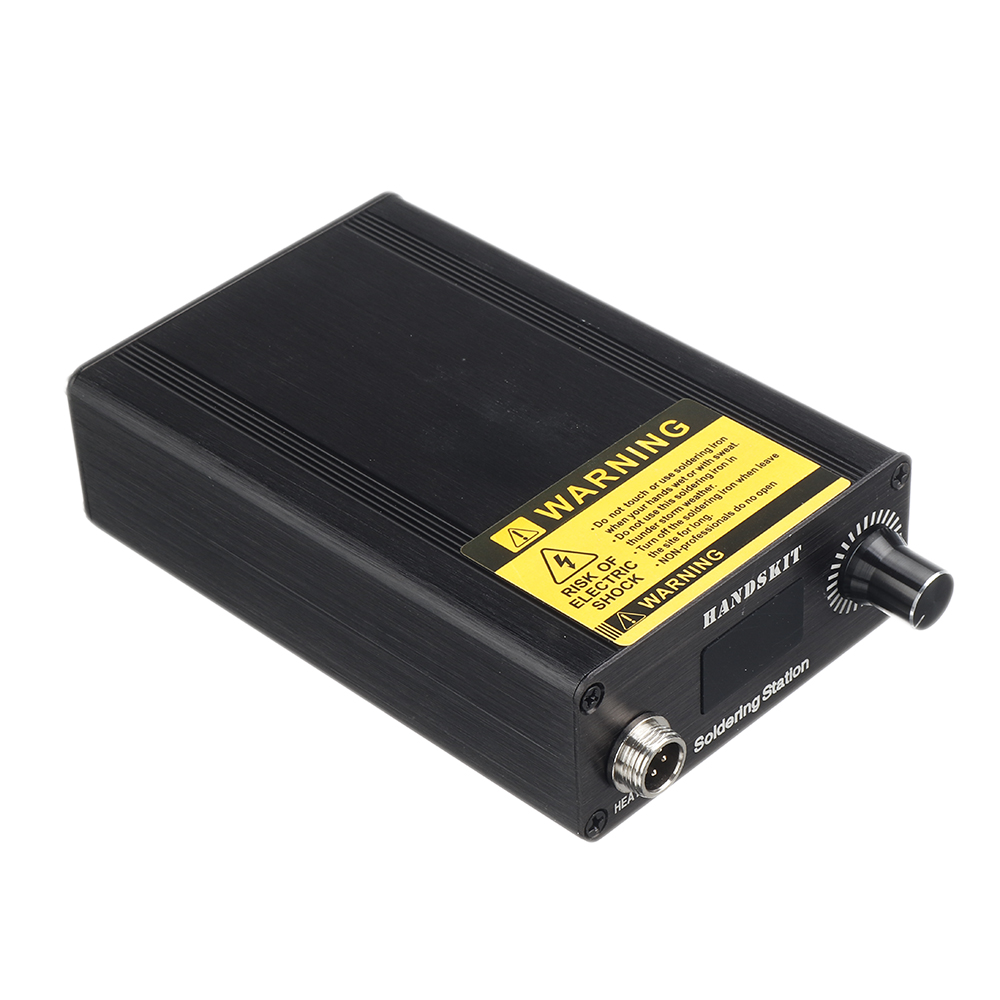

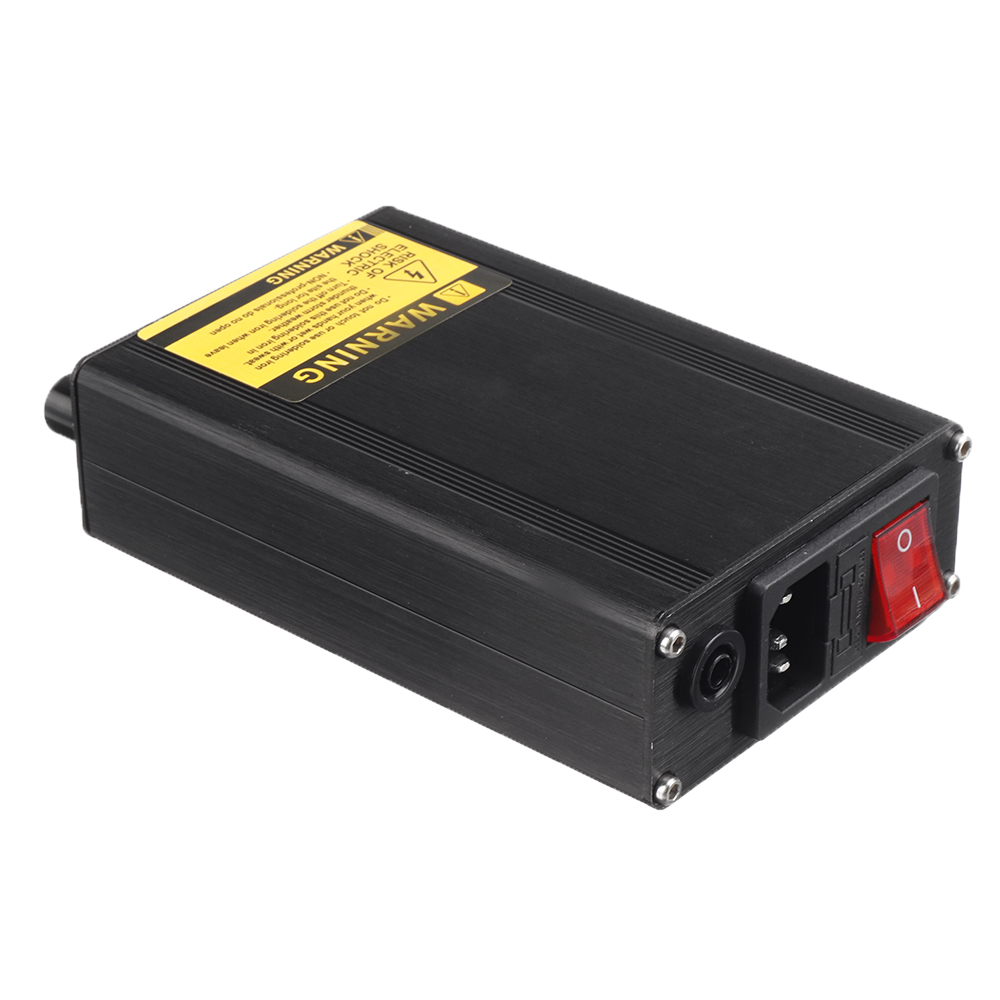

1 x 936A Soldering Station

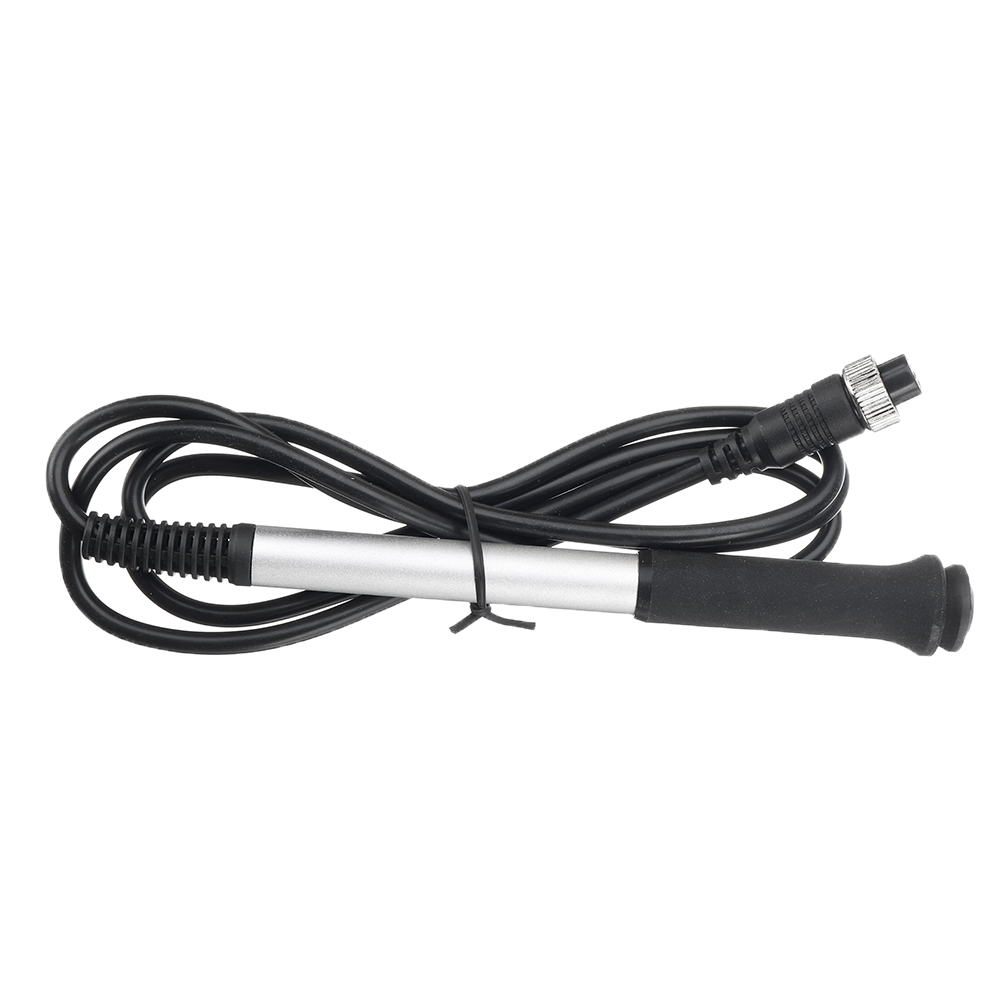

1 x Handle

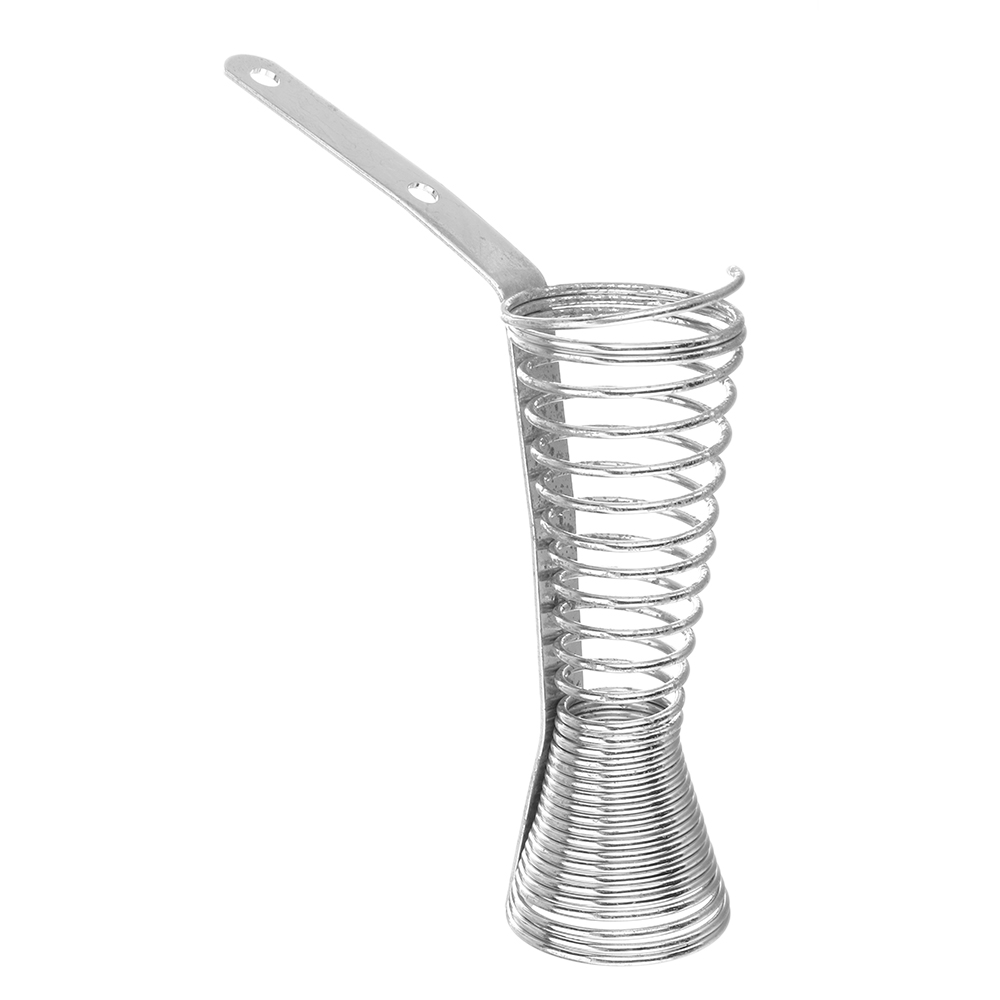

1 x Holder

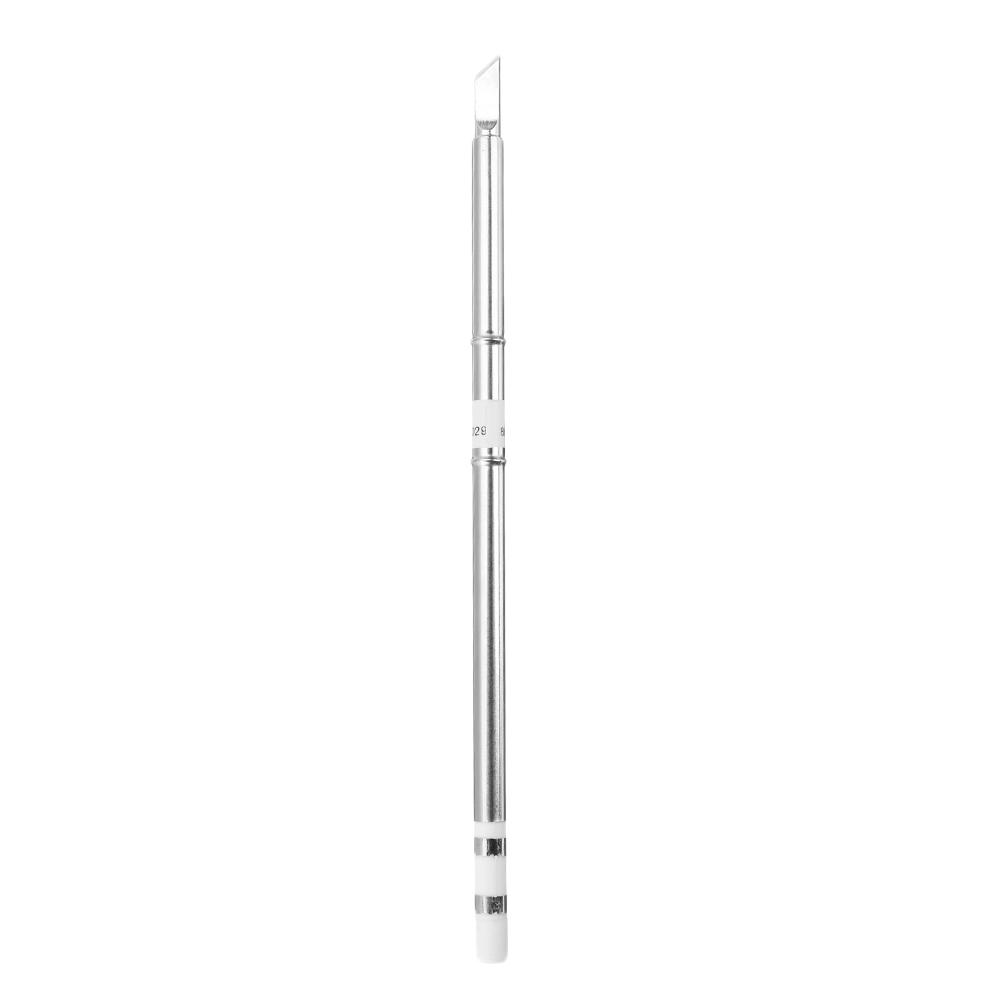

1 x T12-k Tip

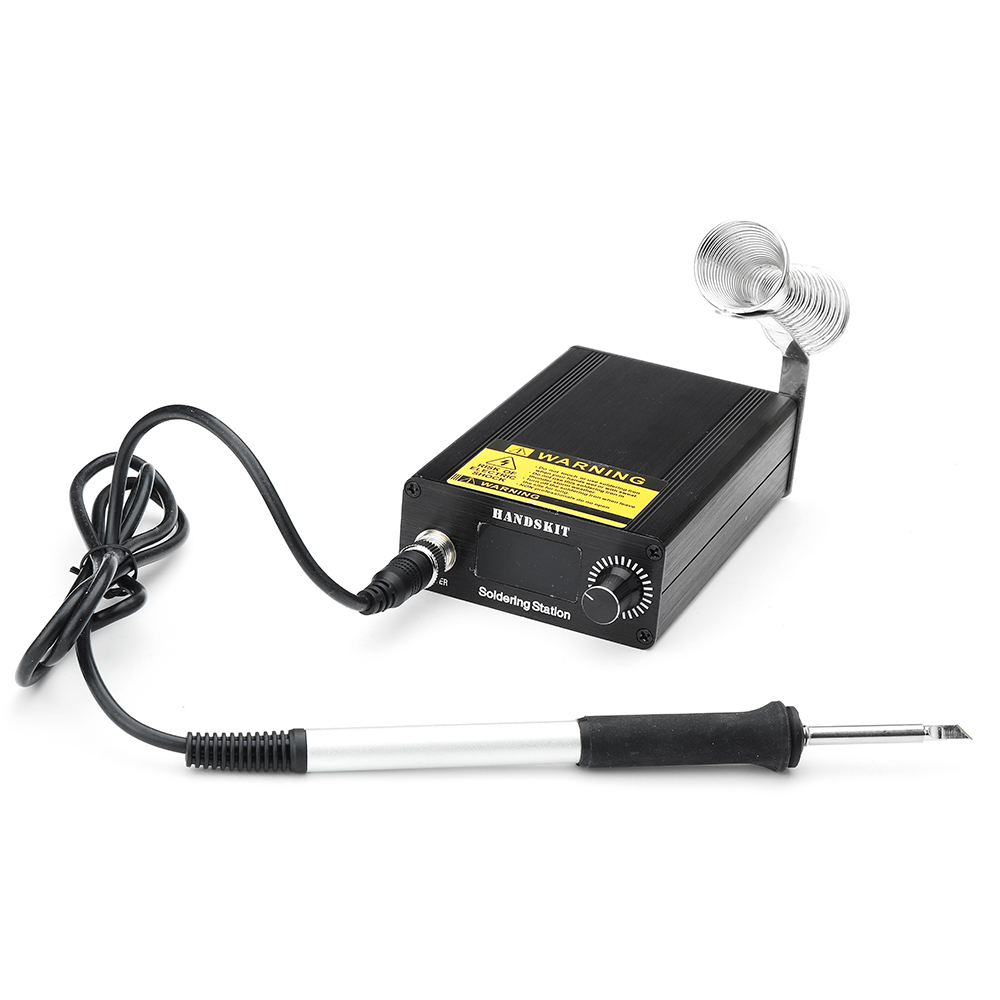

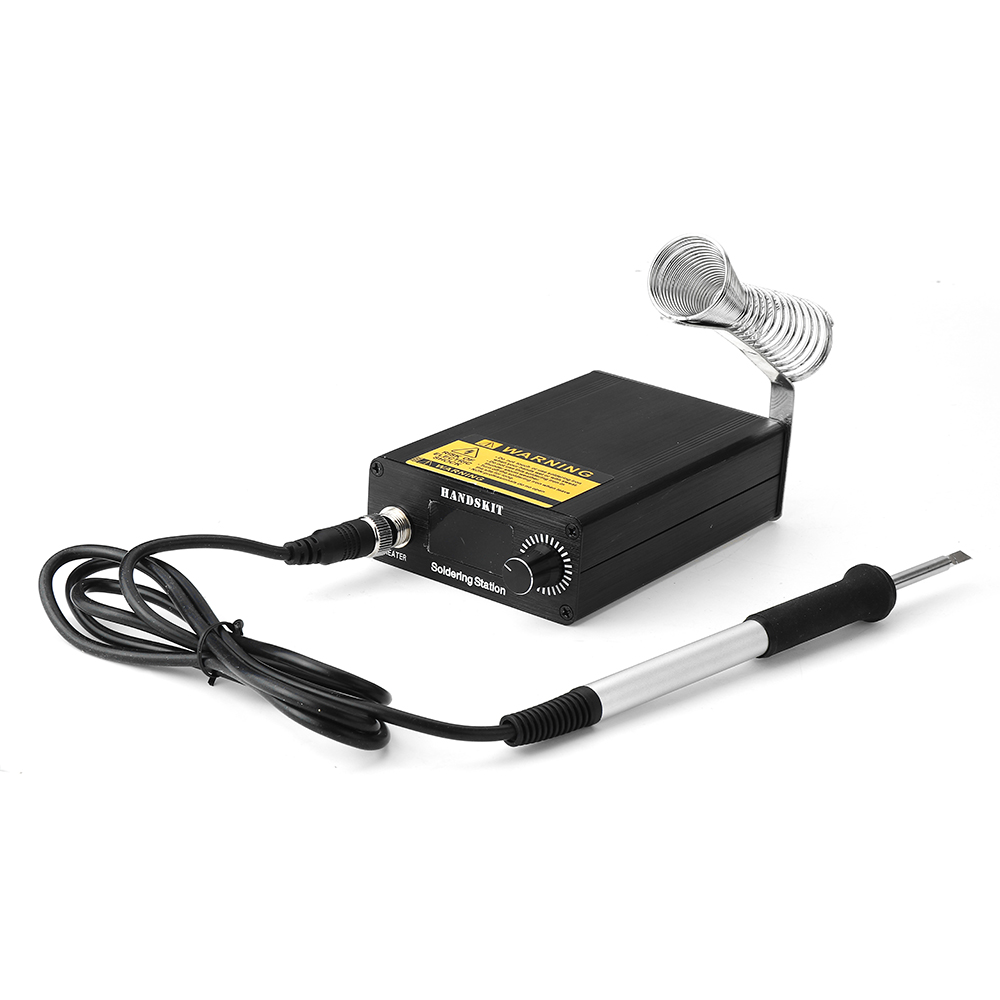

Detail Pictures:
