  • Stock: In Stock
  • Model: ST22008119
  • SKU: ST22008119
$75.89
Ex Tax: $75.89

Available Options


Description :

Model 8878D series “portable microcomputer hot air gun”, it is our company new design type.
Which are applicable to repair SMT electronic products, portable soldering tool.
This product uses the long life far infrared heating .element and the special temperature components.
And the precision microcomputer control of hot runner technology, make the gun temperature control curve fully conform to the requirements of the SMT production process of soldering.
The soldering iron adopts a long life 1321 white core, and the precise PID temperature control technology makes the temperature error of the soldering iron small, and the work is stable and reliable.
At the same time, the functions of air gun manual and automatic, soldering iron sleep and temperature compensation are increased.
Make the products with energy saving, small size, convenient, long-life, security and so on.

Specification :

  Air gun Soldering iron
Operating frequency 50-60Hz 50-60Hz
Operating voltage AC110V±10%/AC220V±10% AC110V±10%/AC220V±10%
Adjustable temperature 100-480℃ 200-480℃
Adjustable pressure 1-10
Storage humidity 35%-45% 35%-45%
Manual/automatic function Yes No
Compensation temperature -99℃ to 99℃ -99℃ to 99℃
Sleeping time   0-99minutes
Rated power 700W 200W

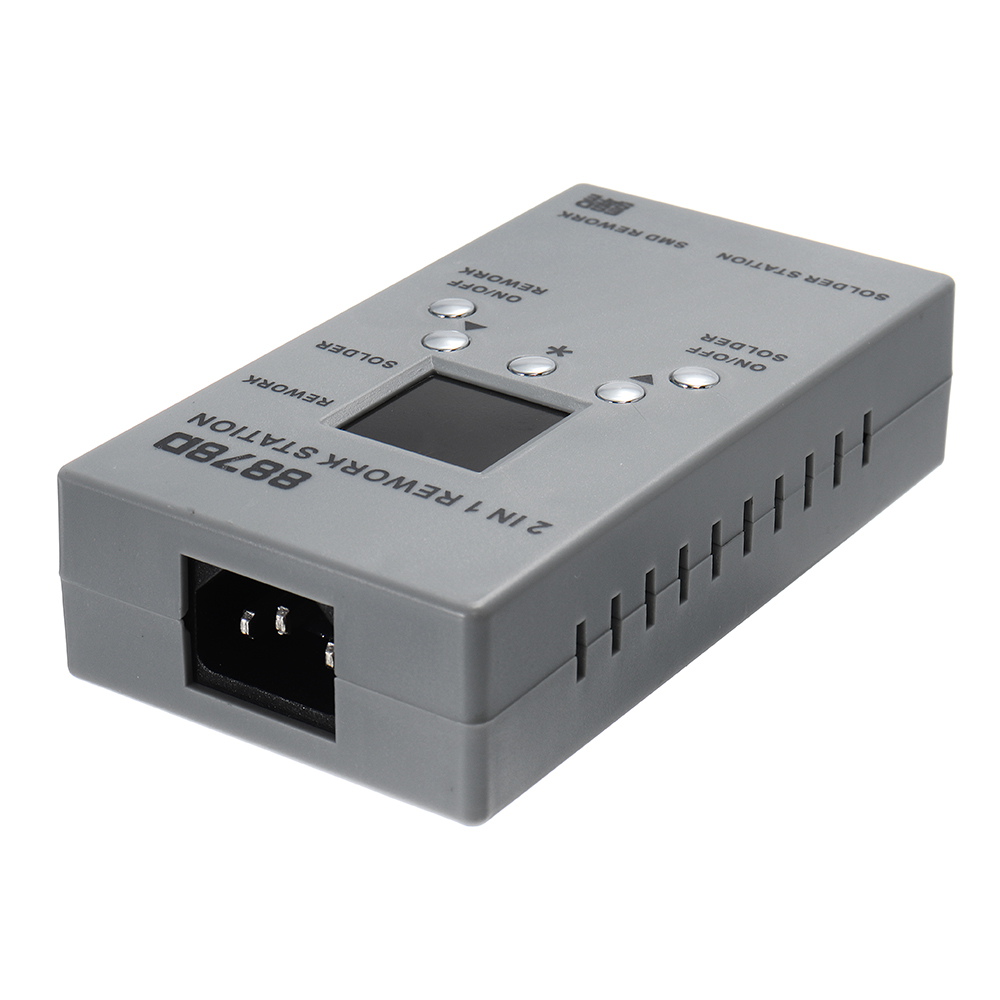

Machine size(mm) 128*70*31
Net weight 1.2KG

Instructions :

1. When the power is connected, the buzzer will ring, indicating that the power is initialized.
2. Turn on the air gun, shor t press the air gun switch, the air gun is turned on.
3. Turn on the soldering iron, shor t press the soldering iron switch, the soldering iron is turned on.

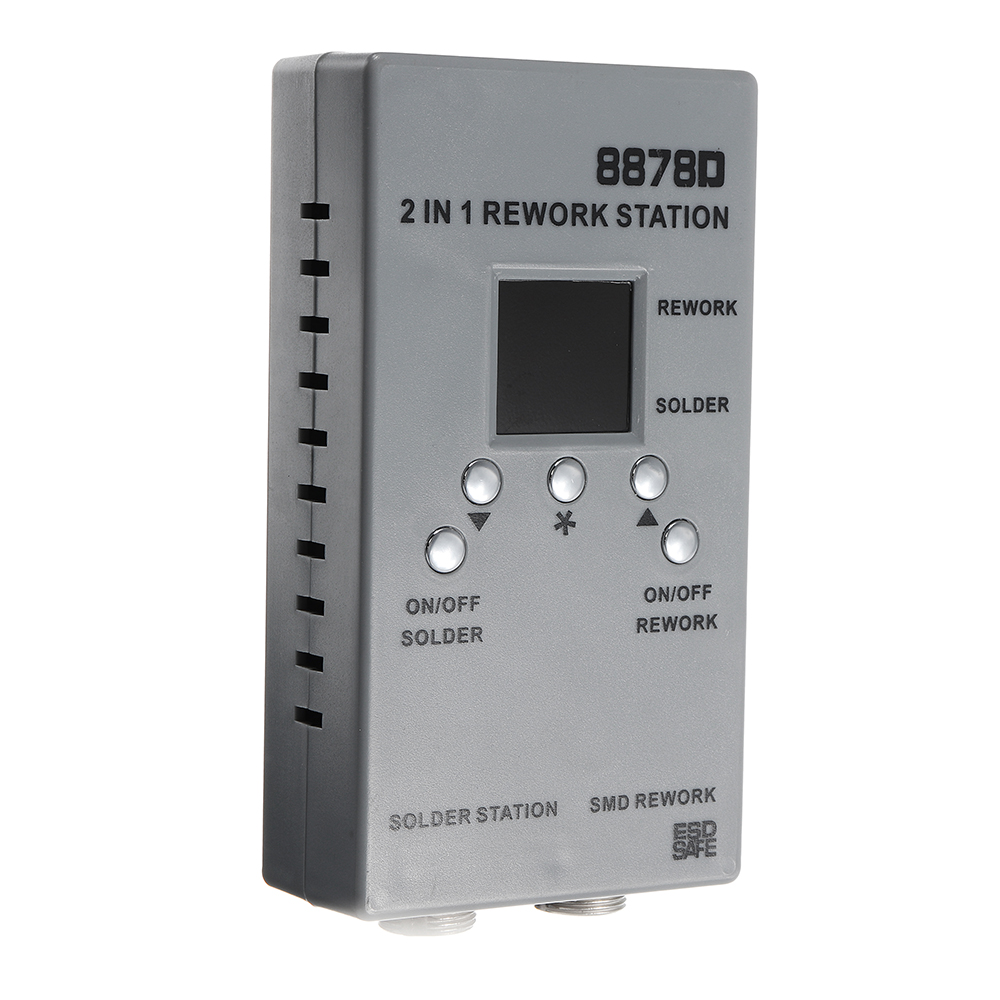

4. Set the temperature of the air gun, shor t press the "*" button until the number of the air gun display screen is the first time to flash. Press the "▲" or "▼" button to set the temperature needed for the air gun.
5. Set the air volume of the air gun, shor t press the "* " button until the number of the air gun display screen is second time to flash. When the air gun display screen displays "F" and air volume number, press the "▲" or "▼" button to set the air volume needed for the air gun.
6. Set the air gun manual / automatic function, shor t press the "* " button until the number of the air gun display screen is third time to flash. When the display screen displays "A (automatic)" or "H (manual)", press the "▲" or "▼" button to choose the air gun manual / automatic function; When it is in automatic state, the air gun will automatically cool down on the bracket, and will stop working when the temperature is less than 100 ℃.  When it is in manual state, the air gun will not cool down on the bracket, and will still work normally.
7. Set the air gun compensation temperature, long press the "* " button, then the air gun display screen and the soldering iron display screen will display the respective compensation temperature numbers, then shor t press the "* " button until the air gun display screen numbers is flash, press the "▲" or "▼" button to set the compensation temperature needed for the air gun.
8. Turn off the air gun, long press the air gun switch, the air gun is turned off.
9. Set the temperature of the soldering iron, shor t press the "* " button until the number of the  soldering iron  display screen is the first time to flash. Press the "▲" or "▼" button to set the temperature needed for the soldering iron.
10. Set the sleeping time of the soldering iron, shor t press the "* " button until the number of the soldering iron display screen is the second time to flash. When the soldering iron display screen displays "S" and sleeping time, press the "▲" or "▼" button to set the sleeping time needed for the soldering iron. The sleeping time of  the soldering iron can  be set between 0 and 99 minutes. Be careful, when the sleeping time is "00", the solding iron will keep working and not sleep.
11. Set the compensation temperature of the soldering iron, long press the "* "  button until the air gun and soldering iron display screen display the respective compensation temperature numbers, then shor t press the "* " button until the soldering iron display screen number is flash. Press the "▲" or "▼" button to set the compensation temperature needed for the soldering iron.
12. Turn off the soldering iron, long press the soldering iron switch, the soldering iron is turned off.

Note: After entering the setup mode, the machine will automatically exit the setup mode without any key for 5 seconds.

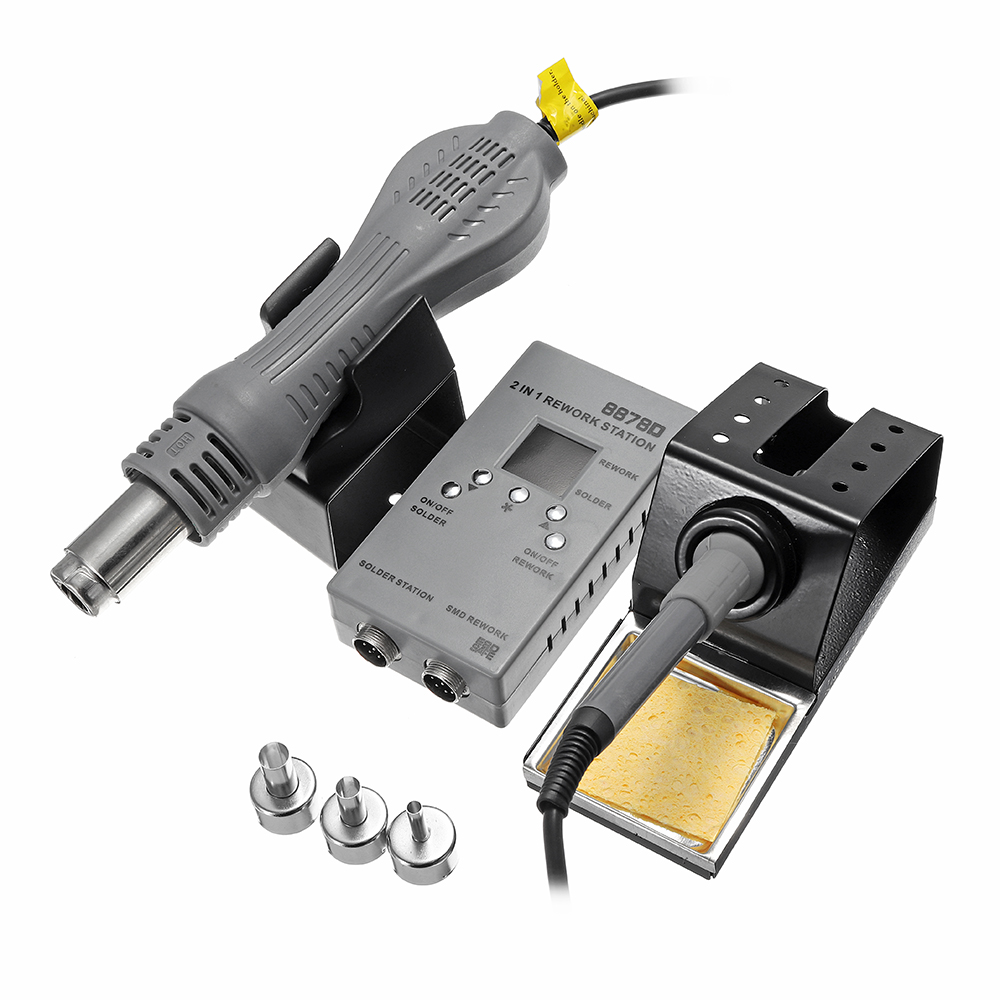

Package includeds :

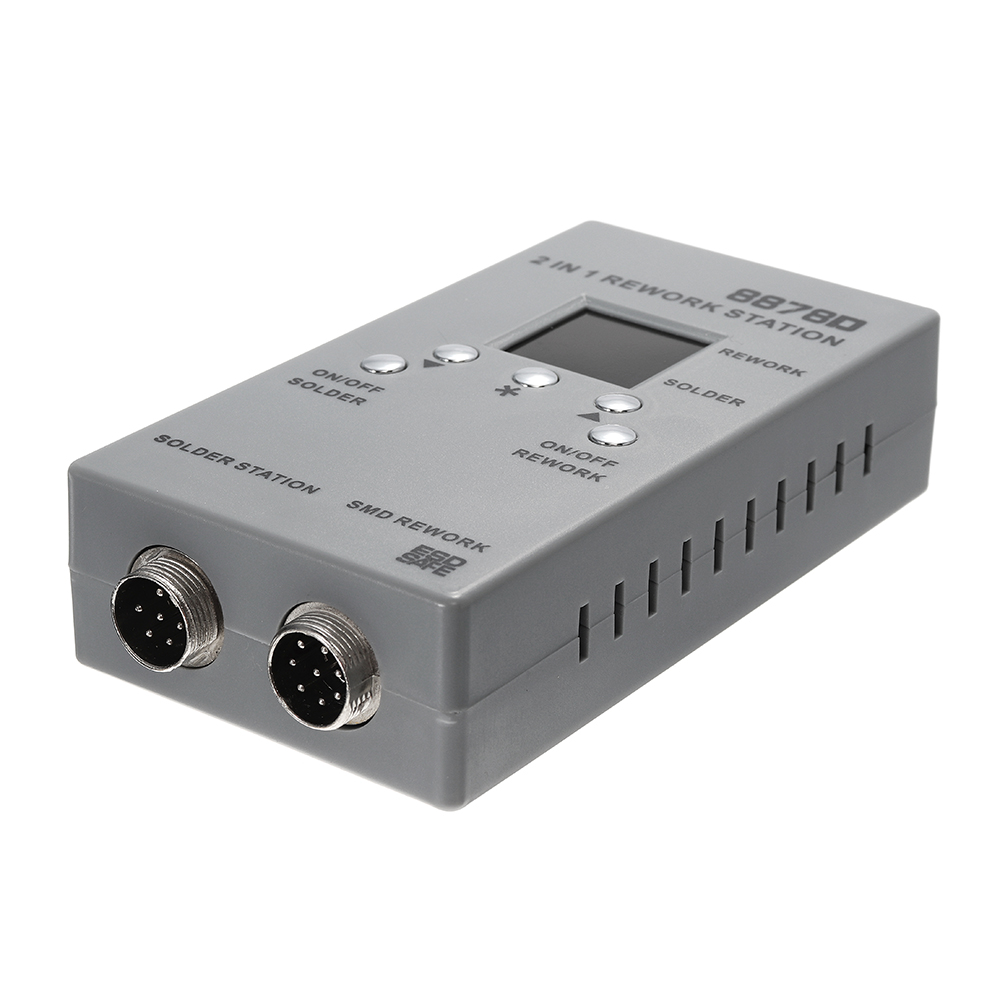

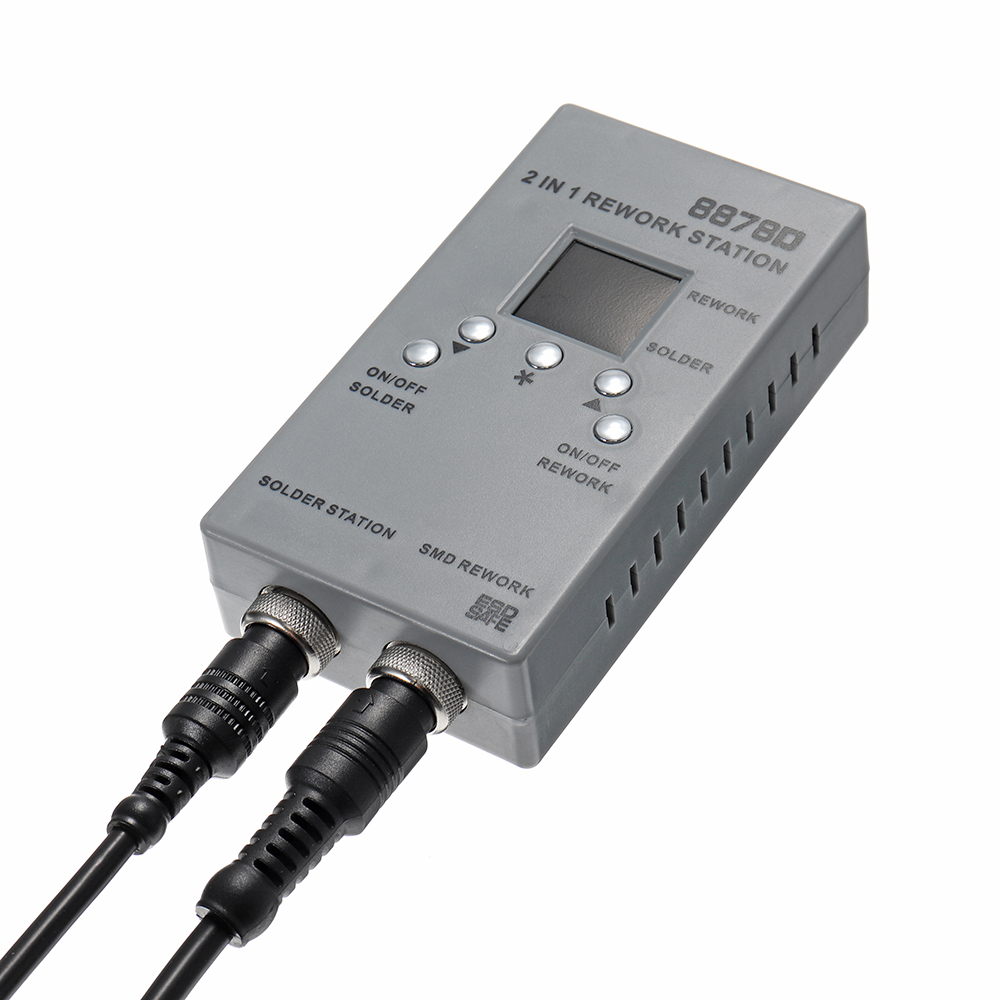

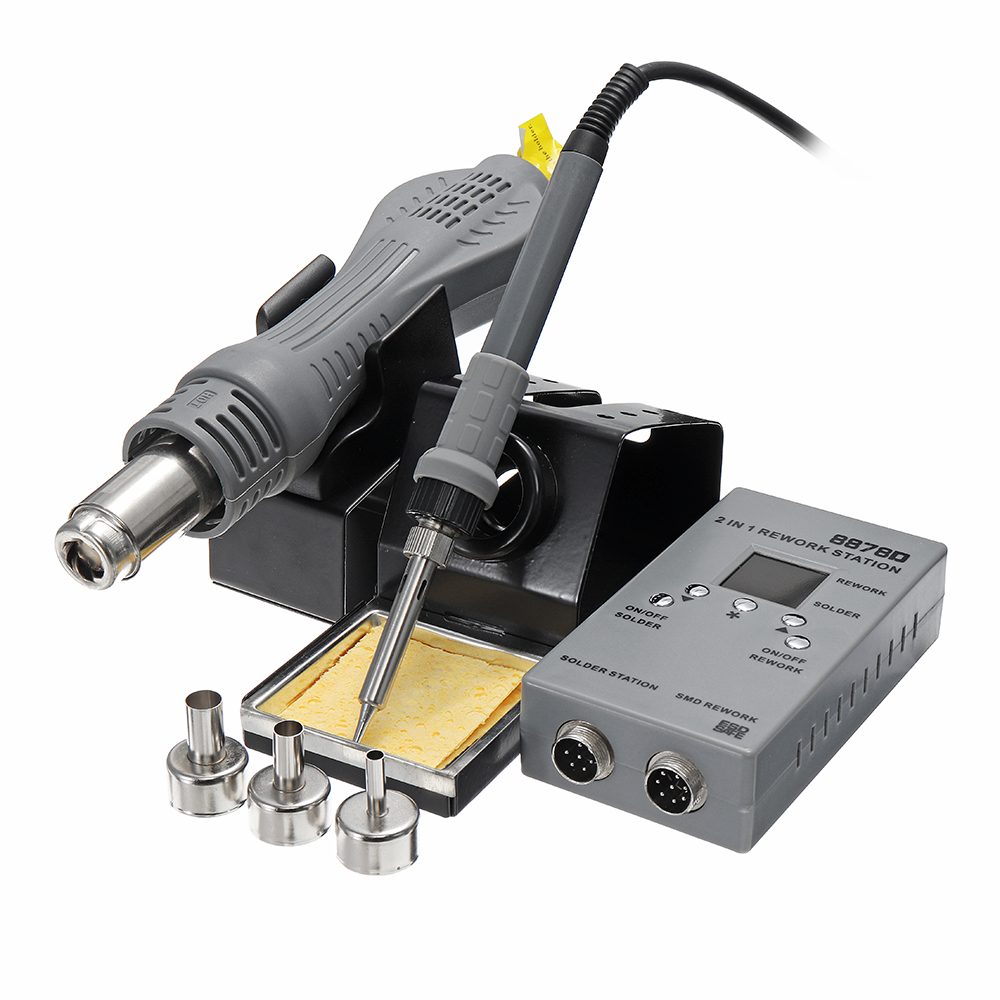

1 x 8878D 2-in-1 Rework Station

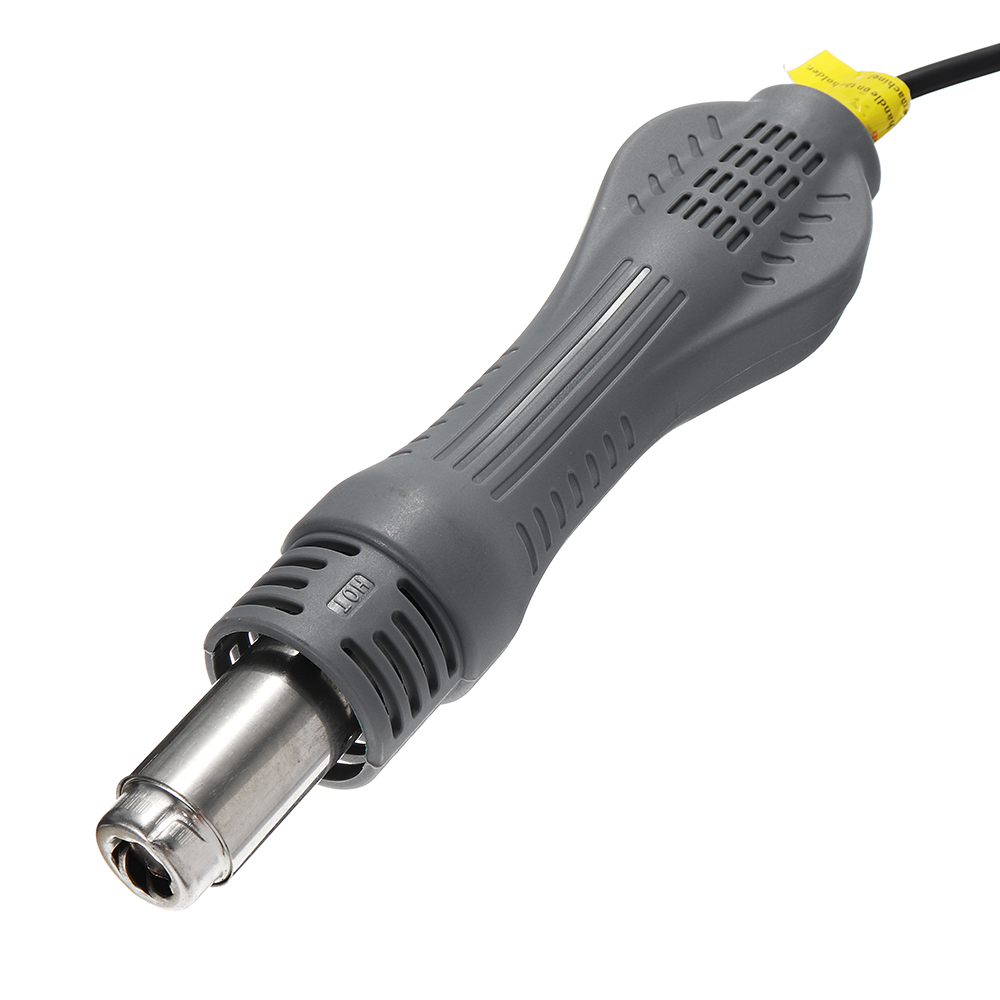

1 x Hot Air Gun with Station

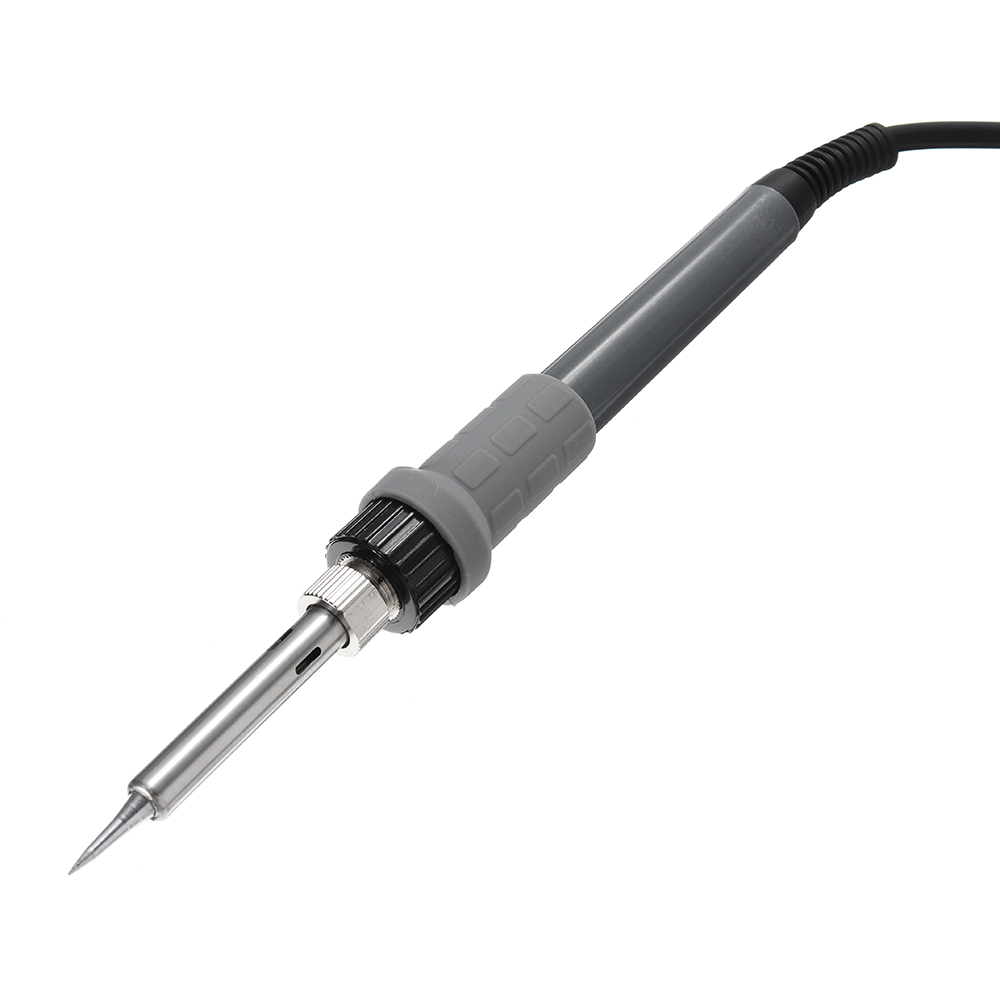

1 x Soldering Iron with Station
3 x Nozzle


Details pictures :


YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-1

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-2

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-3

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-4

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-5

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-6

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-7

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-8

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-9

YAOGONG-8878D-2-In-1-SMD-Rework-Soldering-Station-Hot-Air-Gun-Welding-Solder-Iron-Repair-Tool-1348341-10
