8 Channel Android Phone bluetooth Remote Control Relay Switch Module for Smart Home LED Lighting System DC 12V
- Stock: In Stock
- Model: ST230048267
- SKU: ST230048267
$13.85
Ex Tax: $13.85
>>>Manual: Click here to open<<<
Description:
Description:
- Operating voltage: DC 12V
- Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 123MA,5 relays open 150MA,6 relays open 177MA,7 relays open 203MA,8 relays open 229MA.
- Ssend commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)
- "Momentary" "Self-locking" "Interlock" "open" "close" 5 Commands
- You can modify the Bluetooth name and PIN(Access Password) use " UST to TTL232"
- Size: 96 x 68 x 19 mm
Typical Applications:
Home lighting system
Remote control switch
Remote locking
Garage door remote control
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp
AC DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control
Access Control System
Security Monitoring
Wiring diagram:
Wiring diagram:

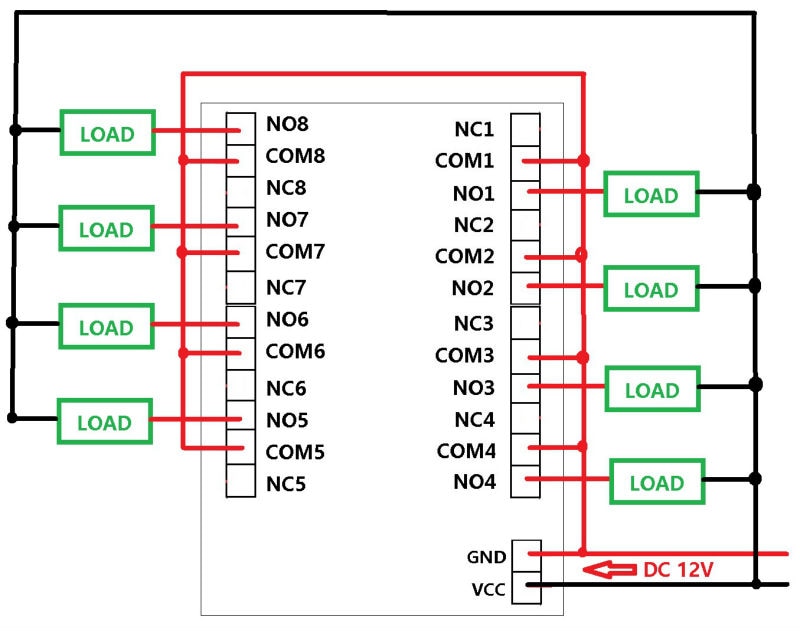

1. DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 12V equipment

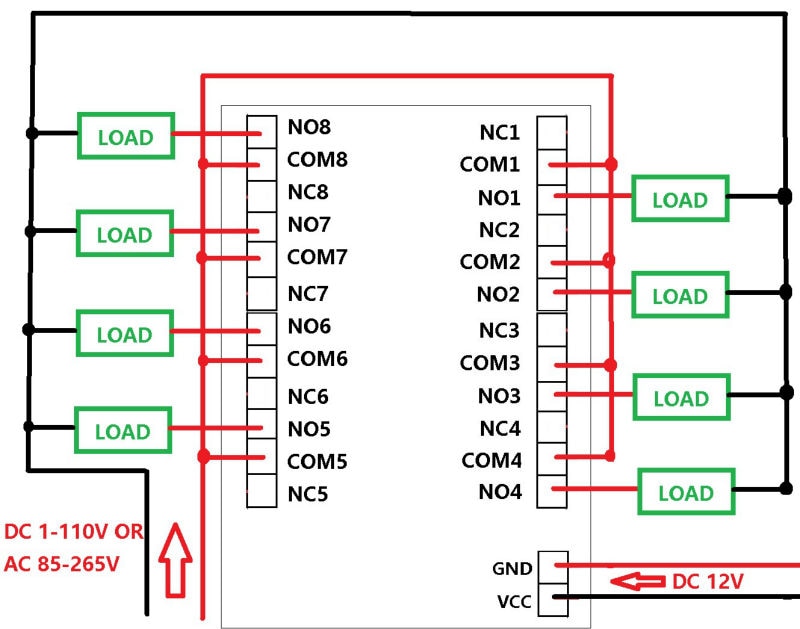

2. DC 1-110V OR AC 85-265V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC AC equipment
Note:
Only for Android OS, does not support the Apple OS
Package Inlcuded:
1 x DC 12V 8 Channel Android bluetooth Relay Module
