7628 Stepper Motor 4Pcs Set with DM542 Driver MACH3 Control Board 360W24V Power Supply CNC DIY Kit for 3D Printer
- Stock: In Stock
- Model: ST230049727
- SKU: ST230049727
$215.10
Ex Tax: $215.10

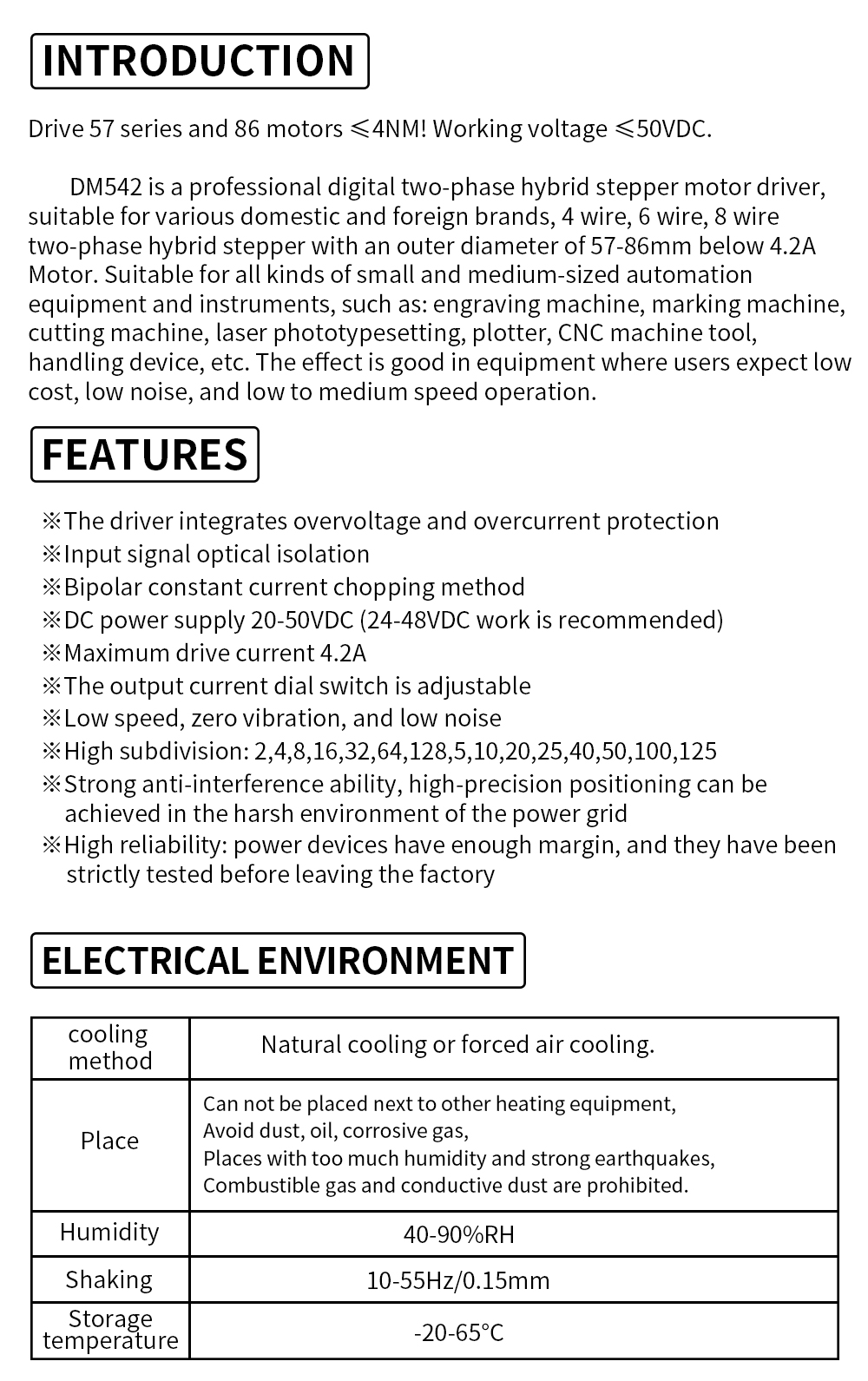

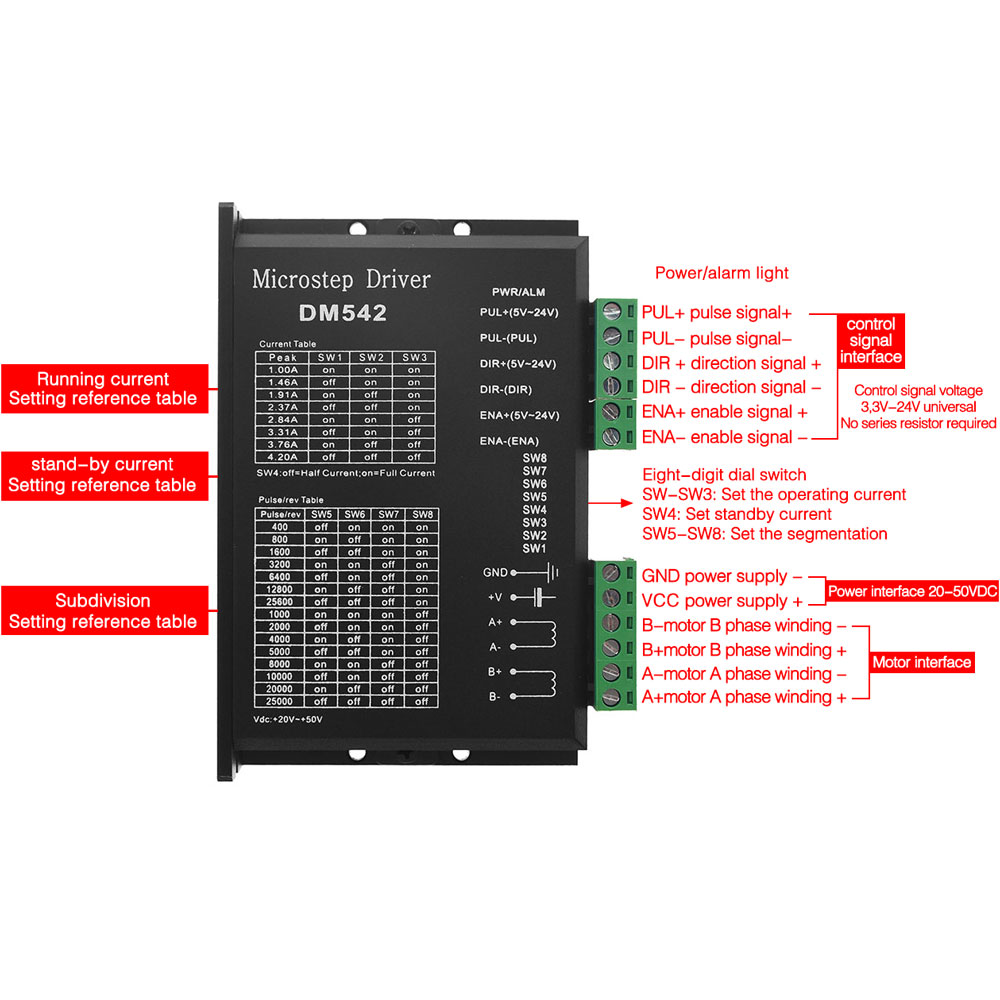

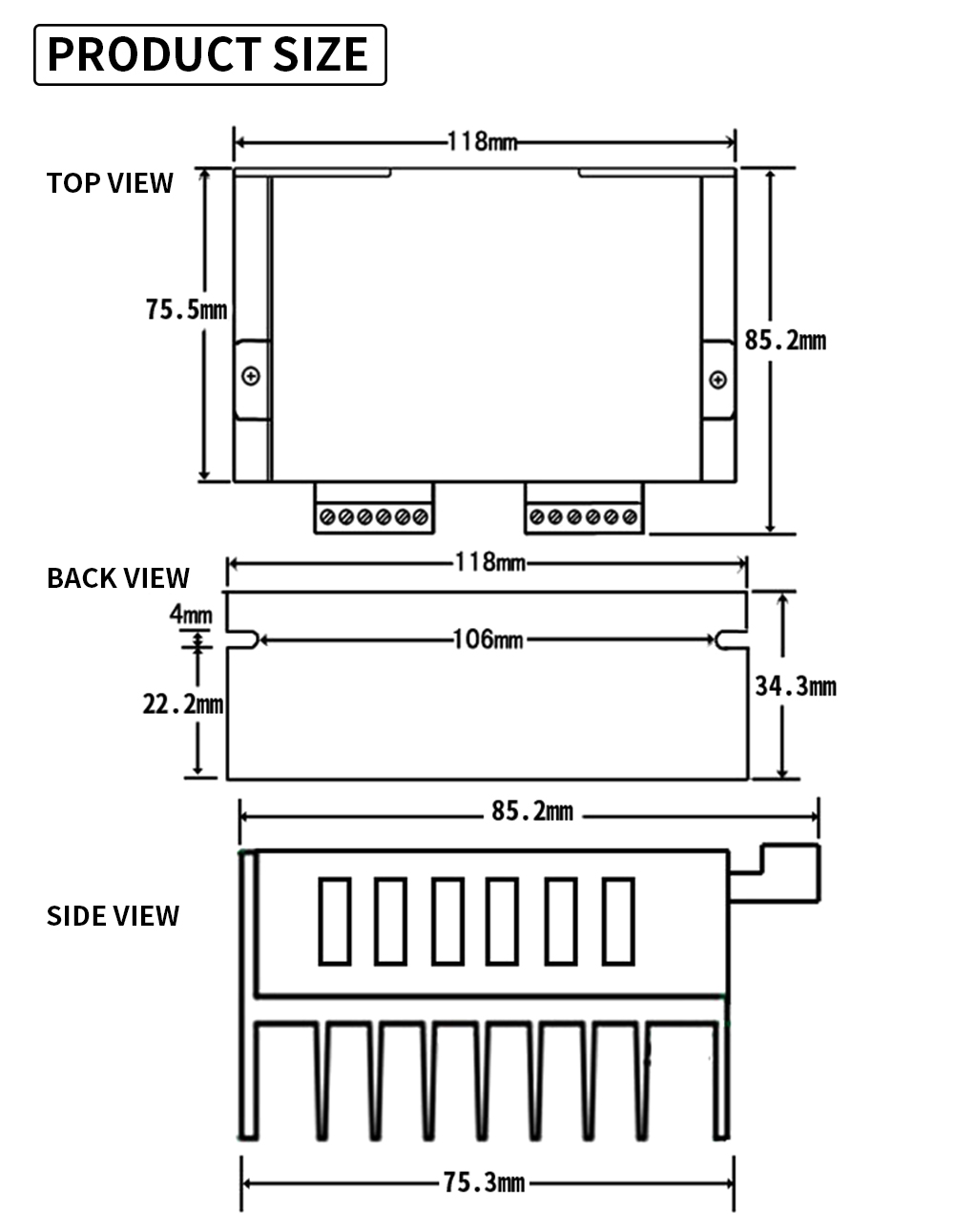

DM542
- The driver integrates overvoltage and overcurrent protection.
- Input signal optical isolation.
- Dipolar constant current chopping method.
- DC power supply 20-50VDC (24-48VDC work is recommended).
- Maximum drive current 4.2A.

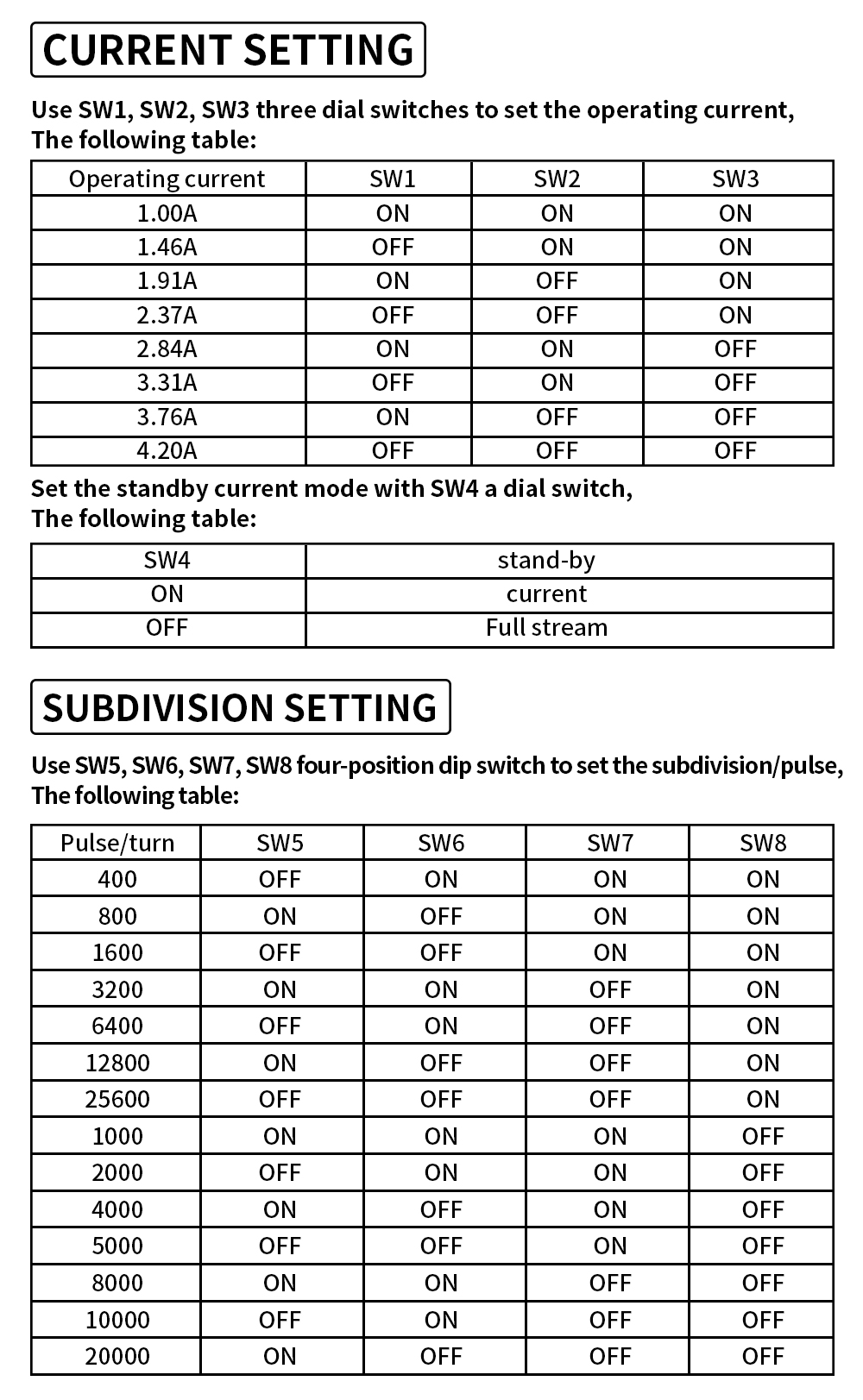

- The output current dial switch is adjustable.
- Low speedm zero vibration, and low noise.
- High subdivision:2,4,8,16,32,64,128,5,10,20,25,40,50,100,125.
- Strong anti-interference ability, high-precision positioning canbe achieved in the harsh encironment of the power grid.
- High reliability:power devices have enouth margin, and they have been strictly tested before leaving the factory.

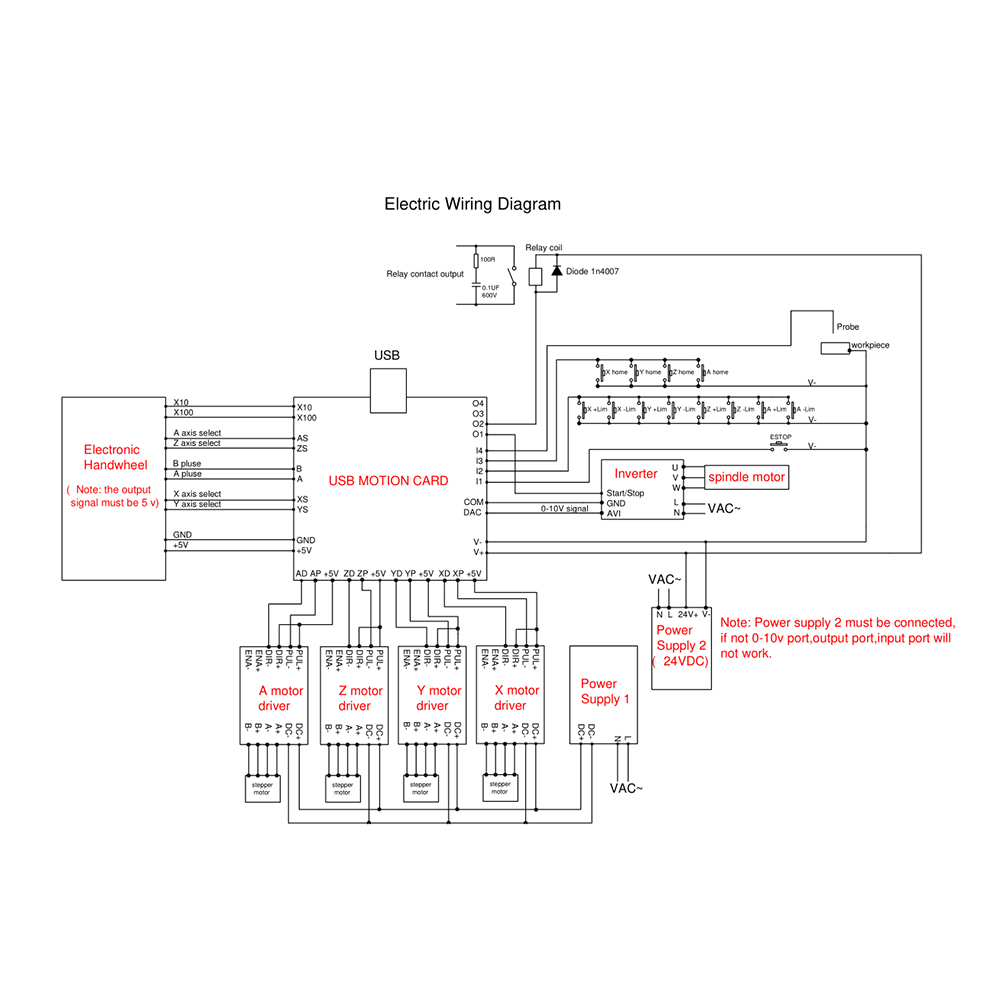

Mach3
1. Support for 4axis linkage, you can connect four stepper motor drives or servo drives;
2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
3. Support automatic probe tool
4. Support Emergency input
5. Support for limit switch
6. Support for connecting electronic handwheel
7. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable
8. Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
10. 4 general-purpose isolated relay
drive output interface, can drive four relays for controlling the
spindle starts, forward rotating and reverse rotating, pumps and other
device
11. 1 status LED, indicate connection status on the board
Package Included:

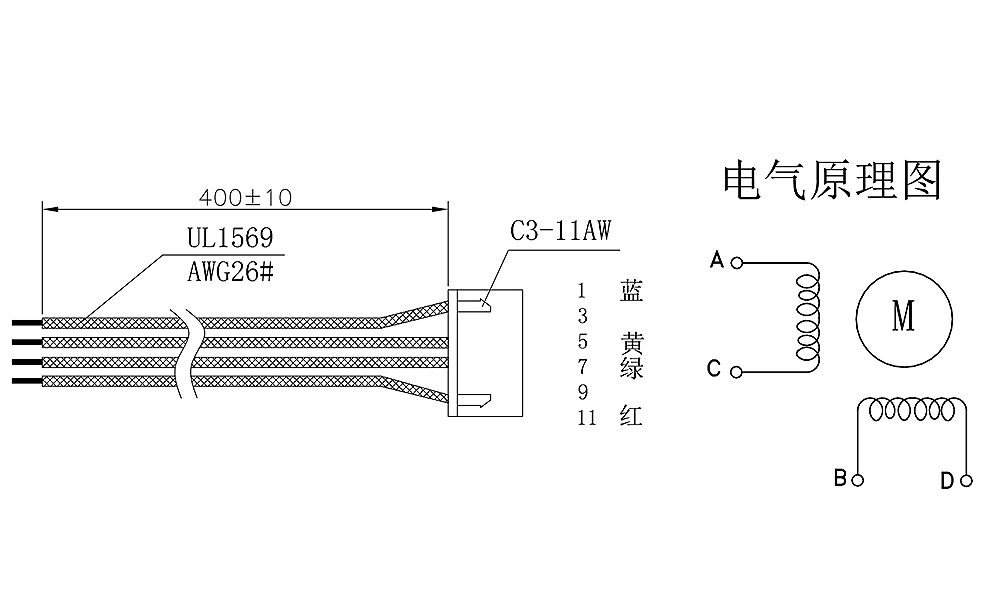

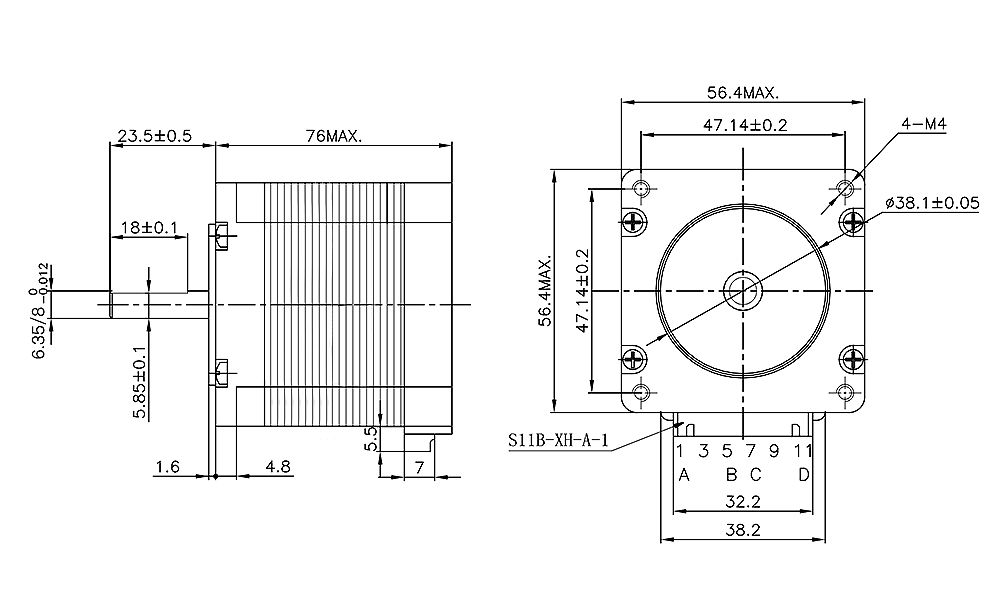

4* 7628 Stepper Motor
4* DM542 Motor Driver
1* MACH3 Controller Board

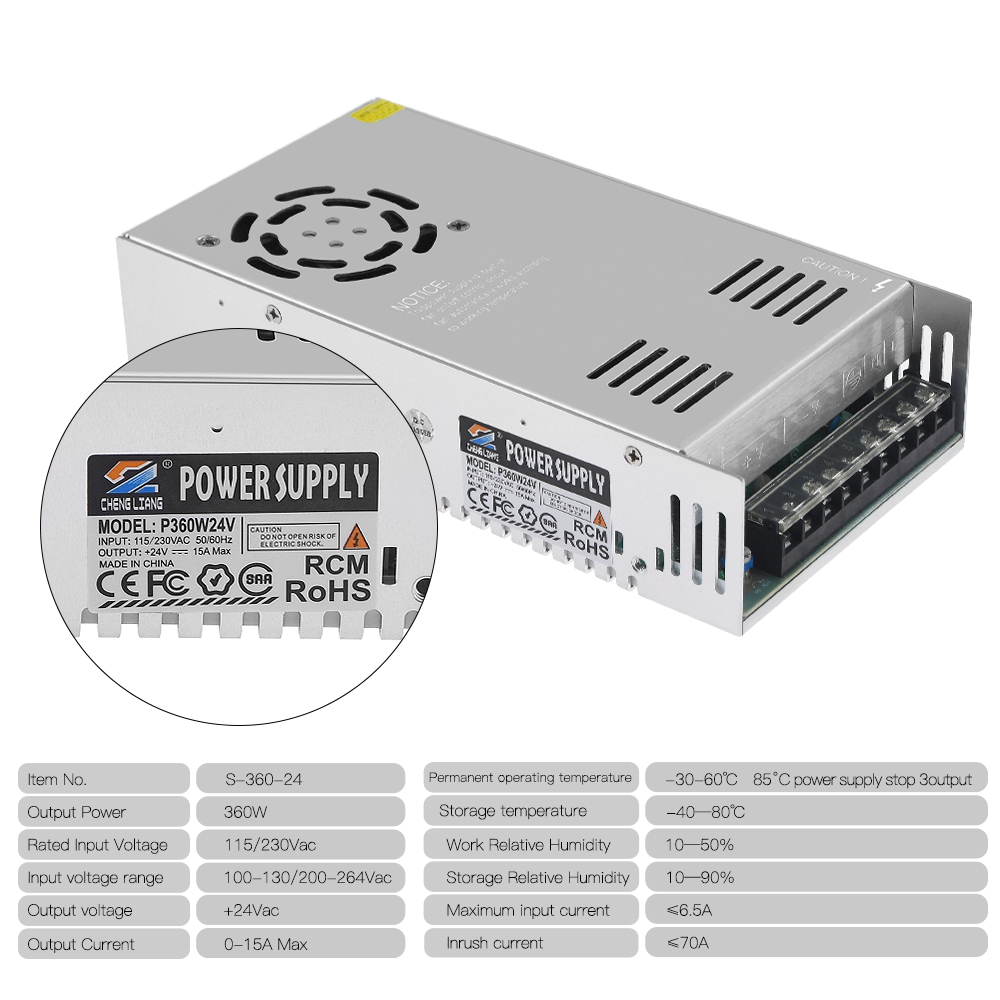

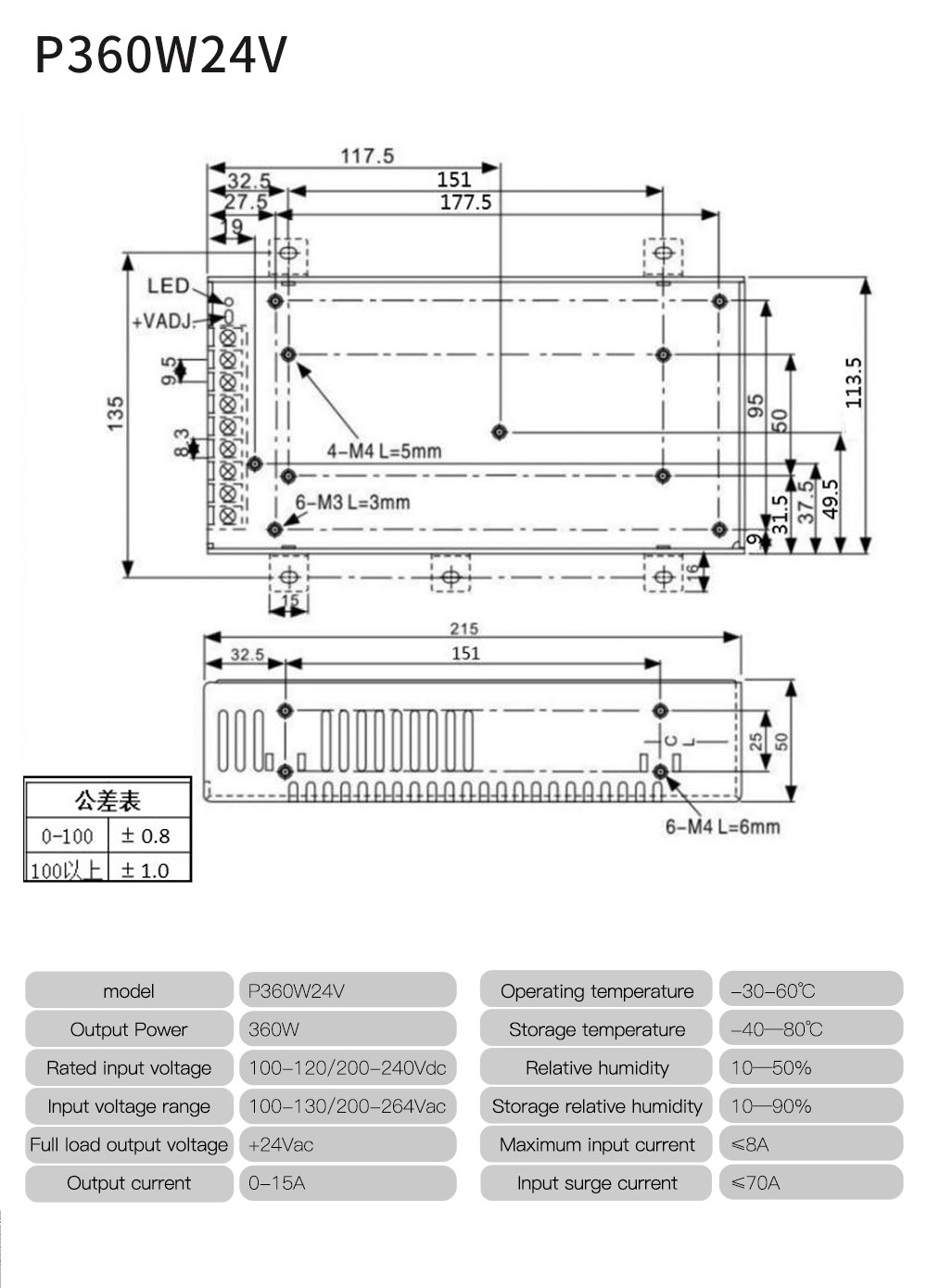

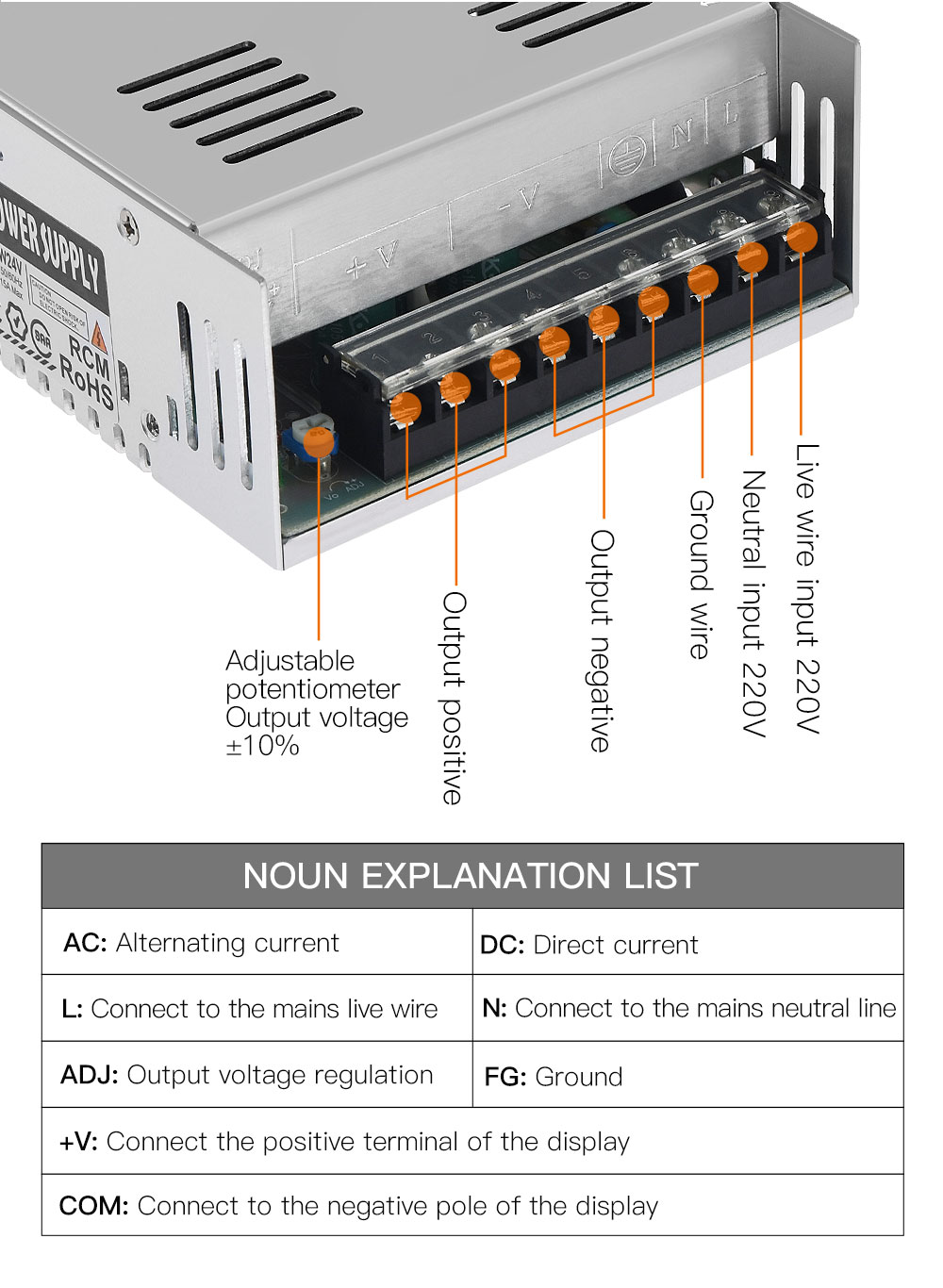

1* 360W24V Power Supply
