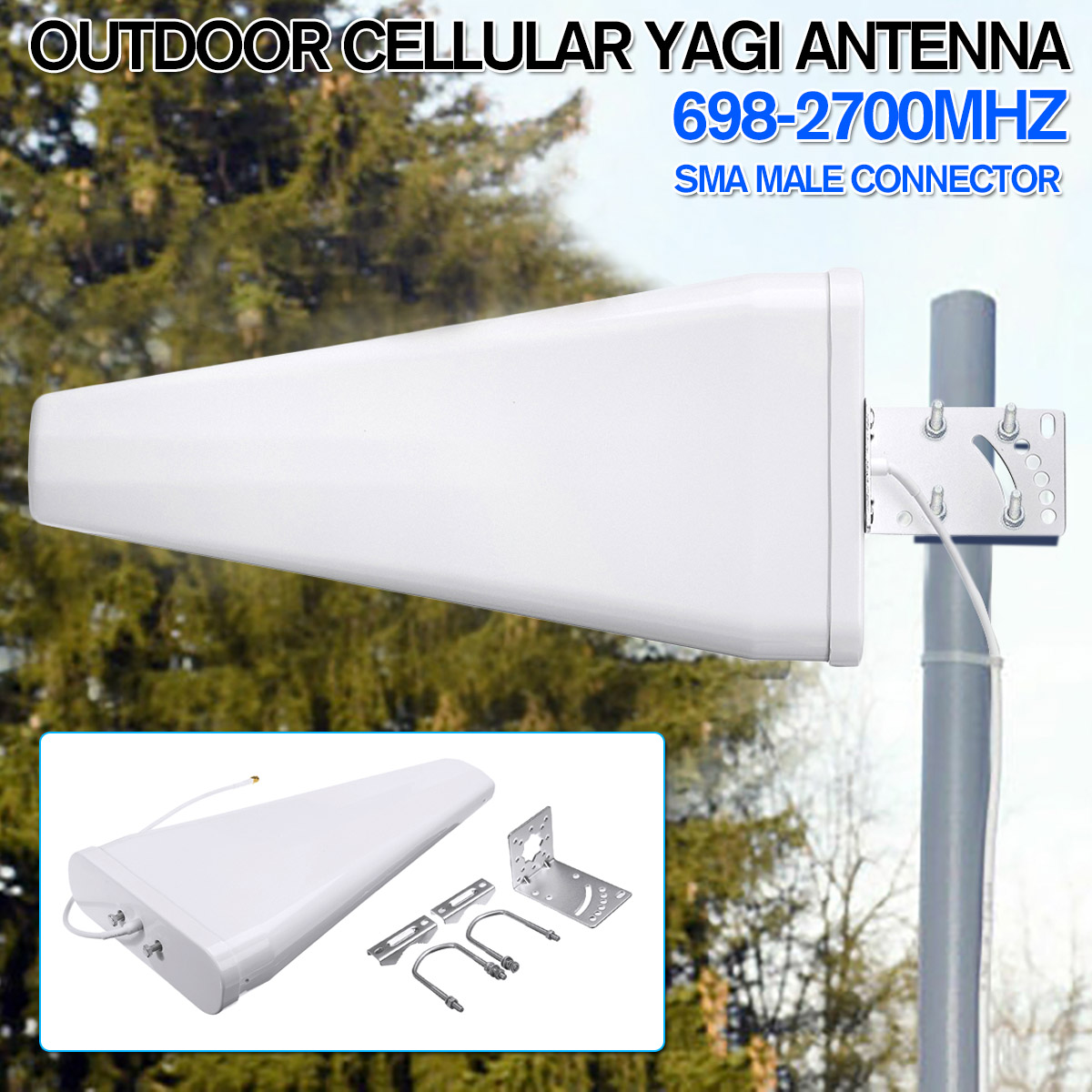

698-2700MHZ 3G 4G Omnidirectional Outdoor Cellular Yagi Antenna SMA Male for 4G
- Stock: In Stock
- Model: ST22019192
- SKU: ST22019192
$34.99
Ex Tax: $34.99
Description :
The wide Band Log Periodic Omnidirectional Antenna will collect the cell tower signal and send it through the cable to an amplifier, cell phone or cellular data card. When the cell phone or cellular data card transmits, the signal is transferred to an amplifier or directly to the antenna and broadcast back to the cell tower.

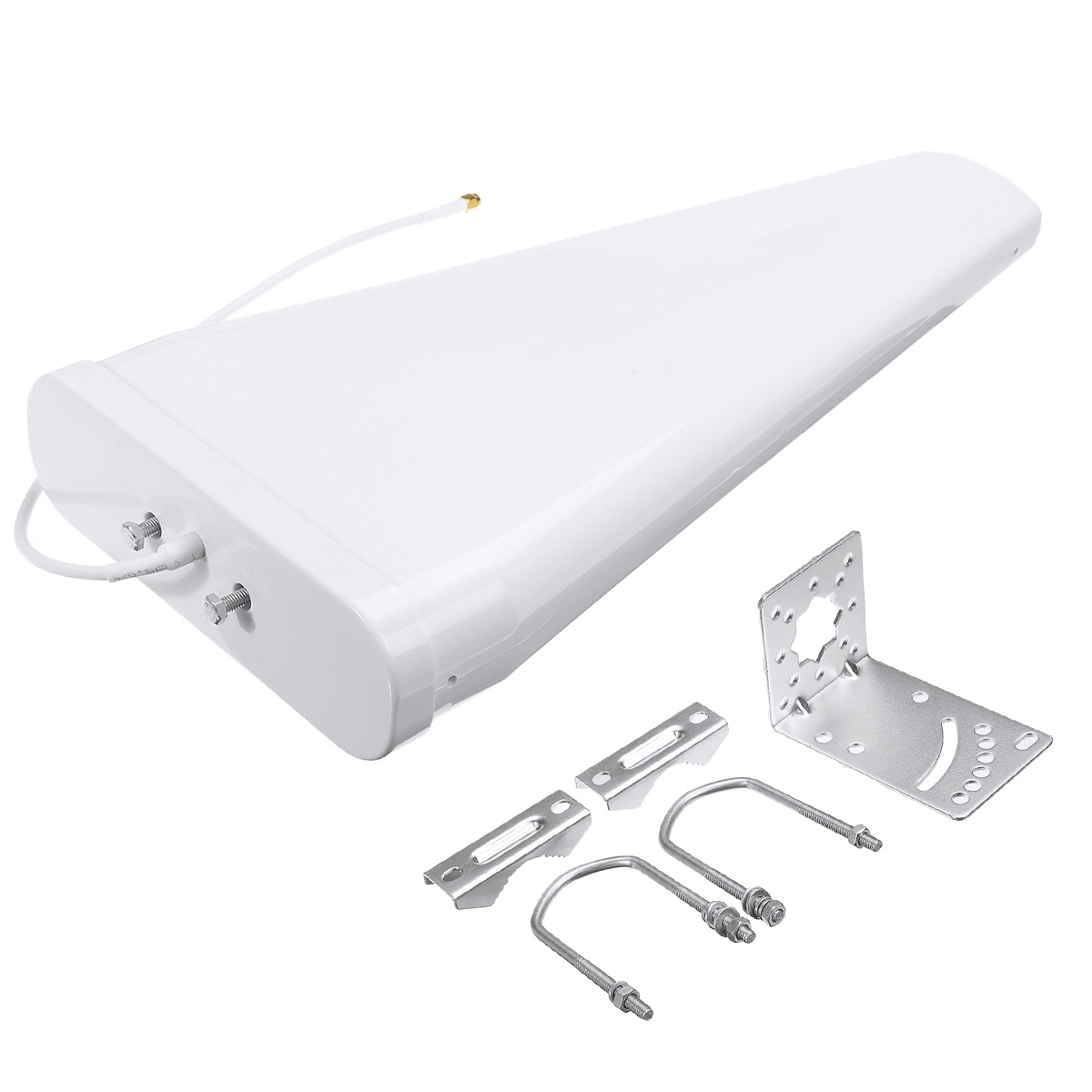

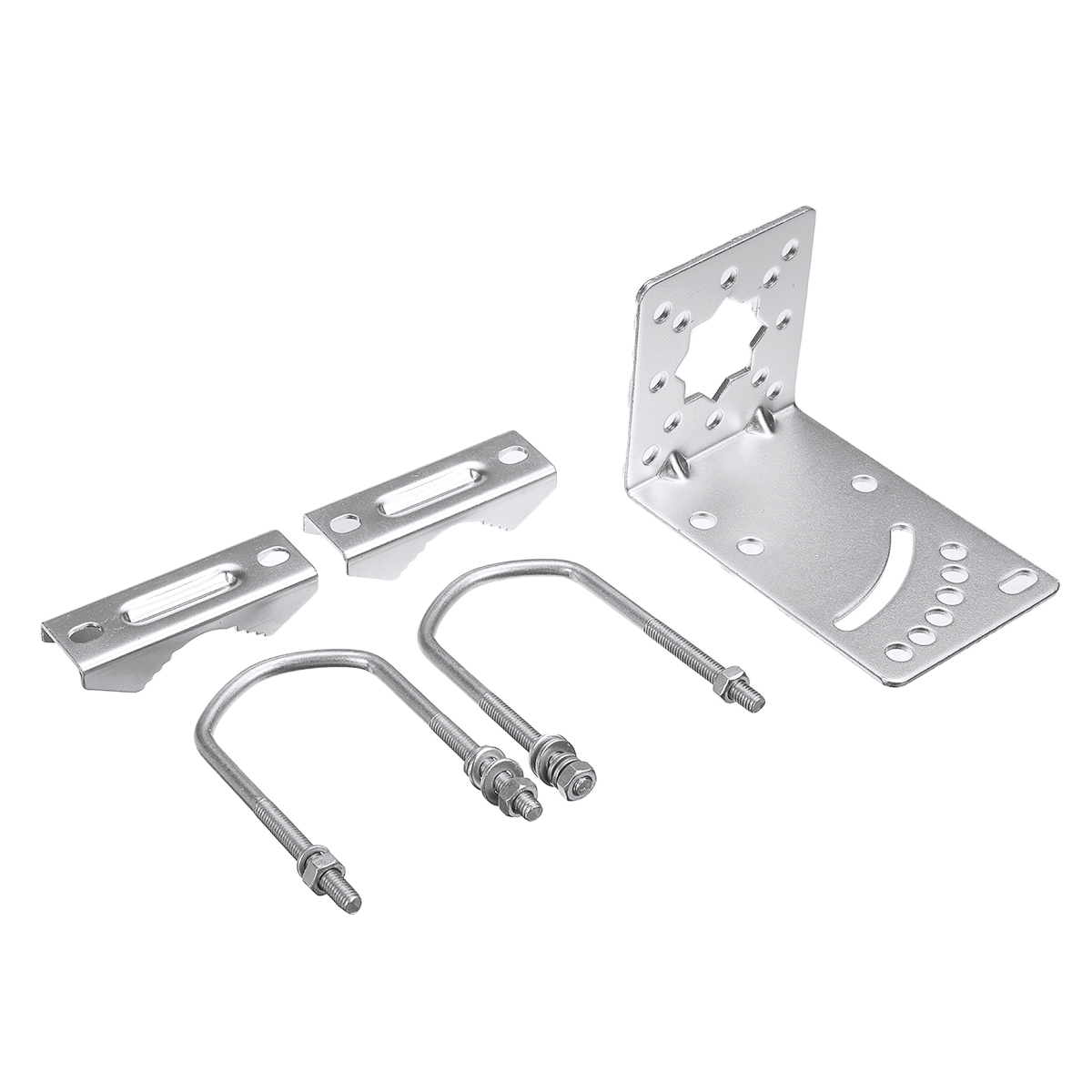

This Omnidirectiona ultra wideband log periodic antenna covers a very wide frequency range with high gain. Because it covers both cellular, PCS and WiFi worldwide frequencies, it is very useful for CPE equipment and base station equipment needed for these frequency bands minimizing the amount of equipment needed for each service location. This antenna can be used indoors or outdoors and comes complete with all components needed for pole mounting or wall mounting The sealed housing is UV stabilized ABS plastic. The backplate is stainless steel with stainless steel fasteners. All bracket components are stainless steel as well for corrosion protection. The pigtail is 12" outdoor rated cable terminated with an FME Male connector.
Specifications :
Model: YCC-4420-12
Color: White
Frequency Range: 698-960/1710-2700Mhz
Gain: 10/12(dBi)
VSWR: ≤1.8
Max power: 50 W
Polarization: Omnidirectional
Input Impedance: 50Ω
Lightning protection: DC Ground
Antanna Length: 30cm/ 12"

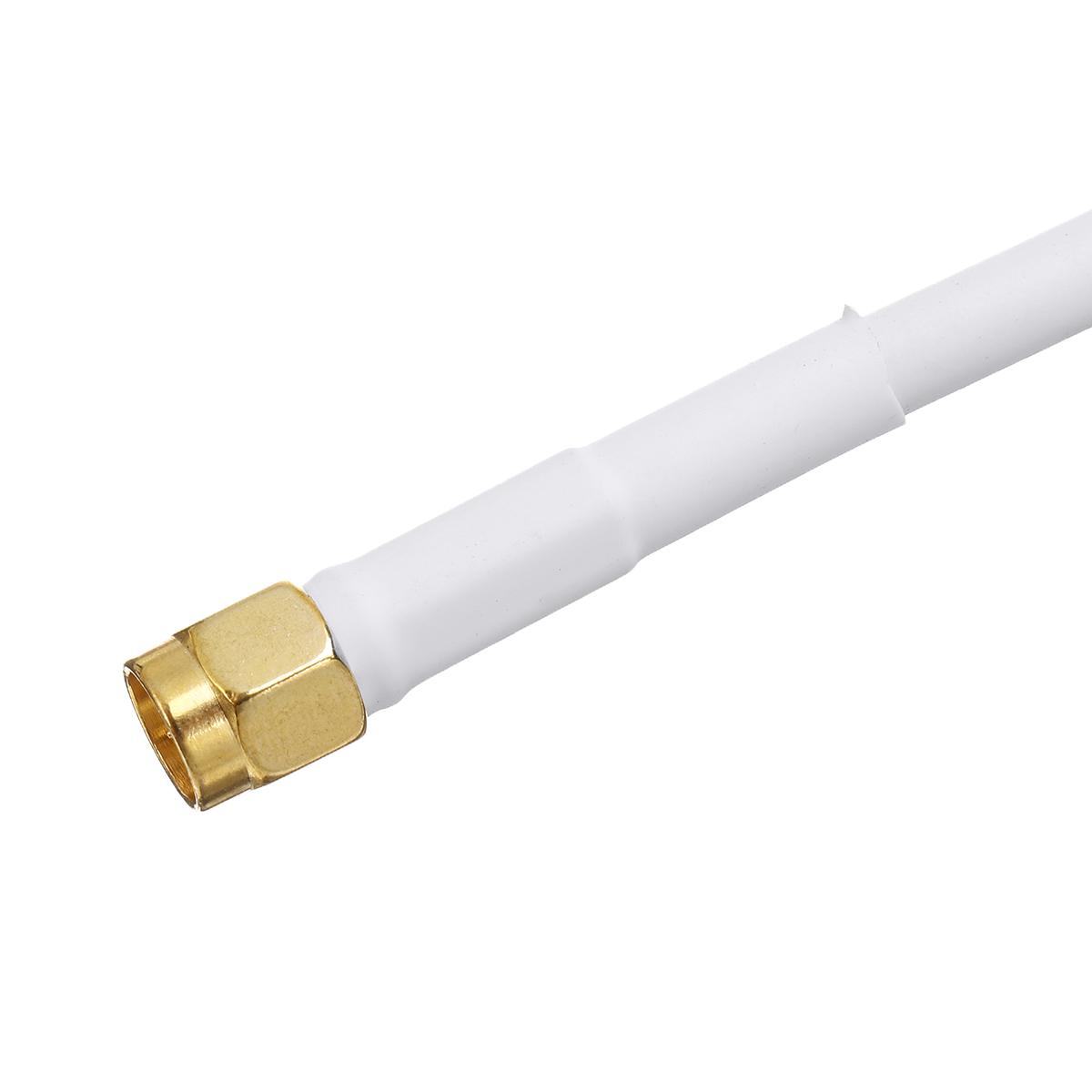

Connector Type on Antenna: SMA Male
Diameter of installation pole(mm): Ø30~Ø50mm
Working Temperature: -40°C~+85°C
Package Includes :
1X 4G LTE Directional Outdoor Log Periodic Yagi Antenna

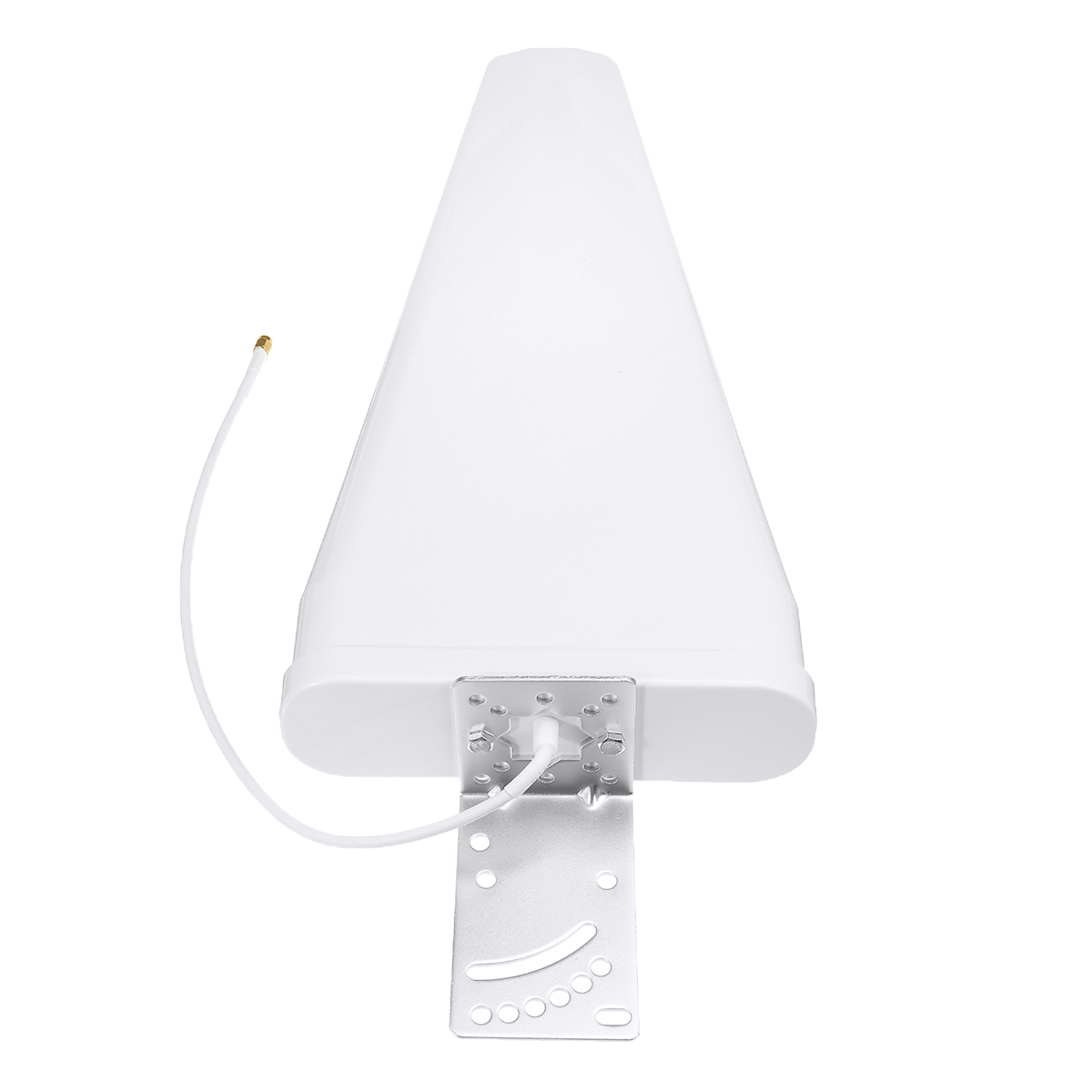

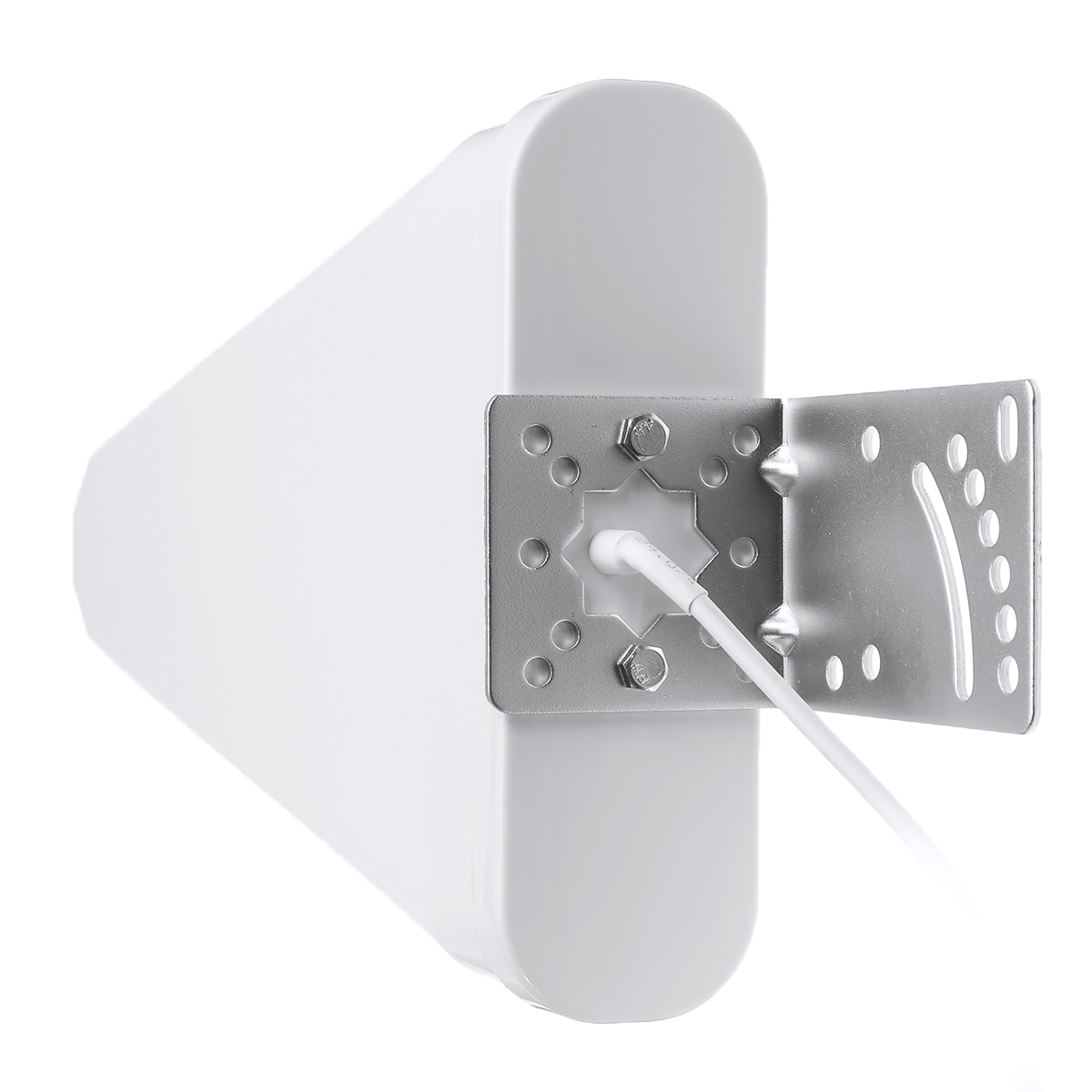

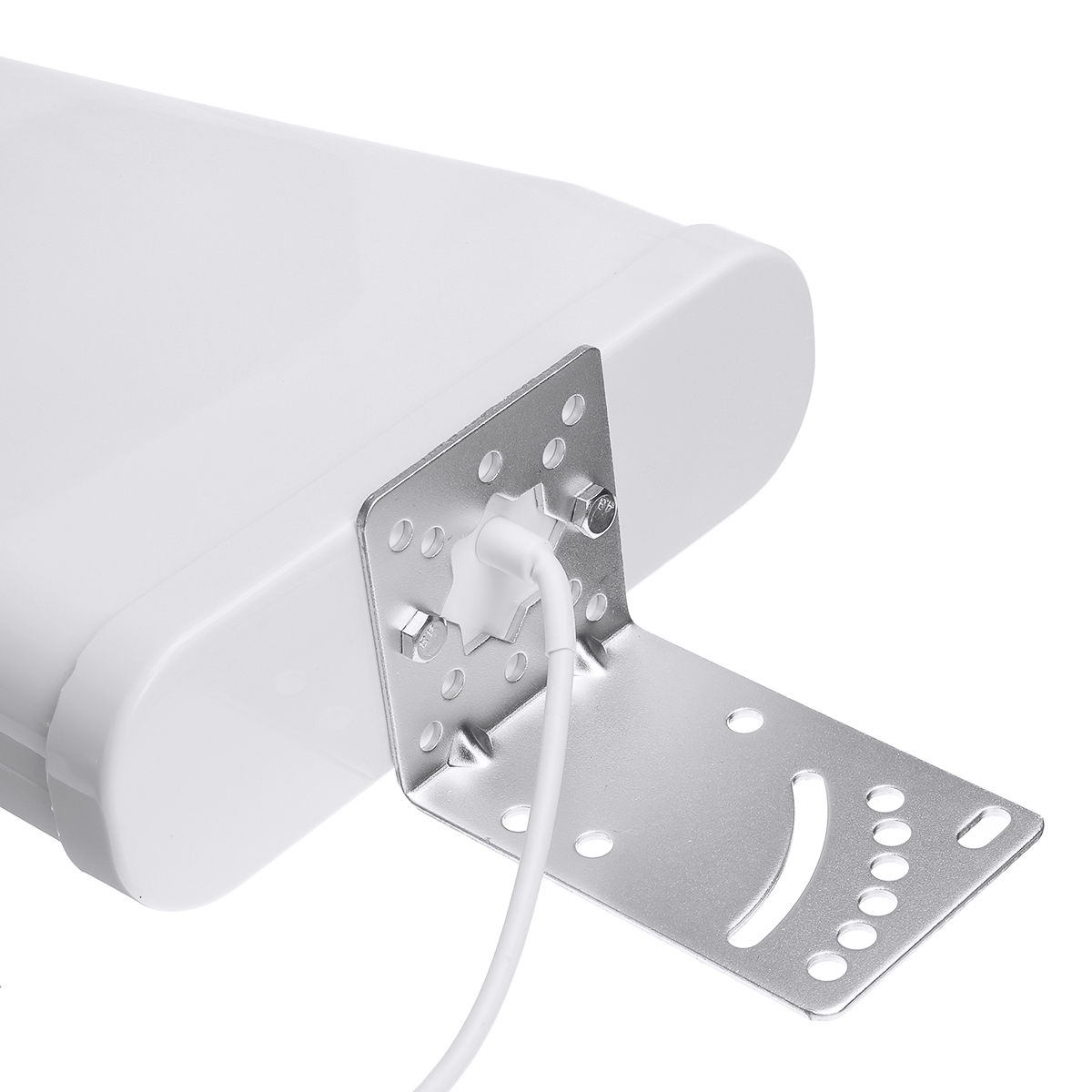

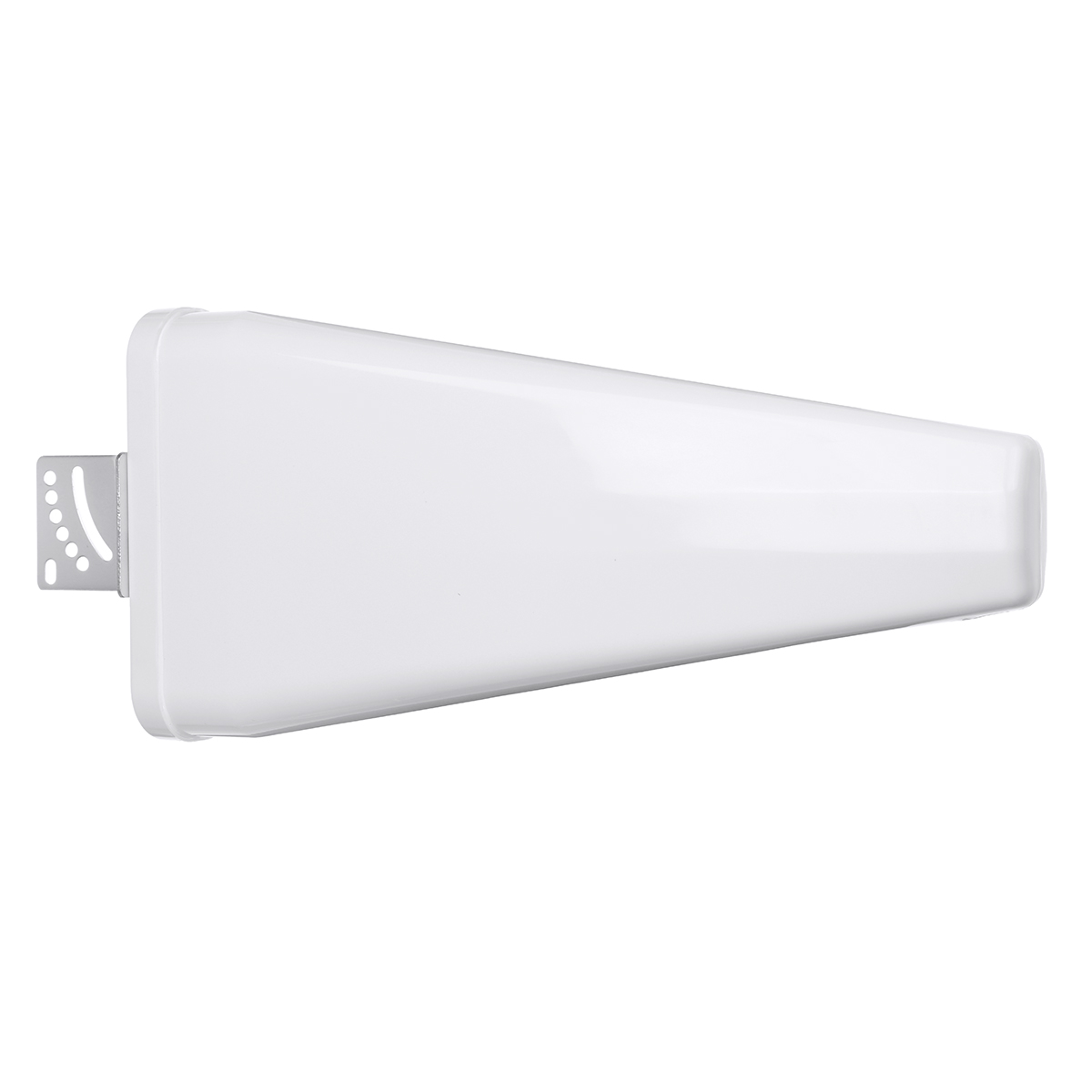

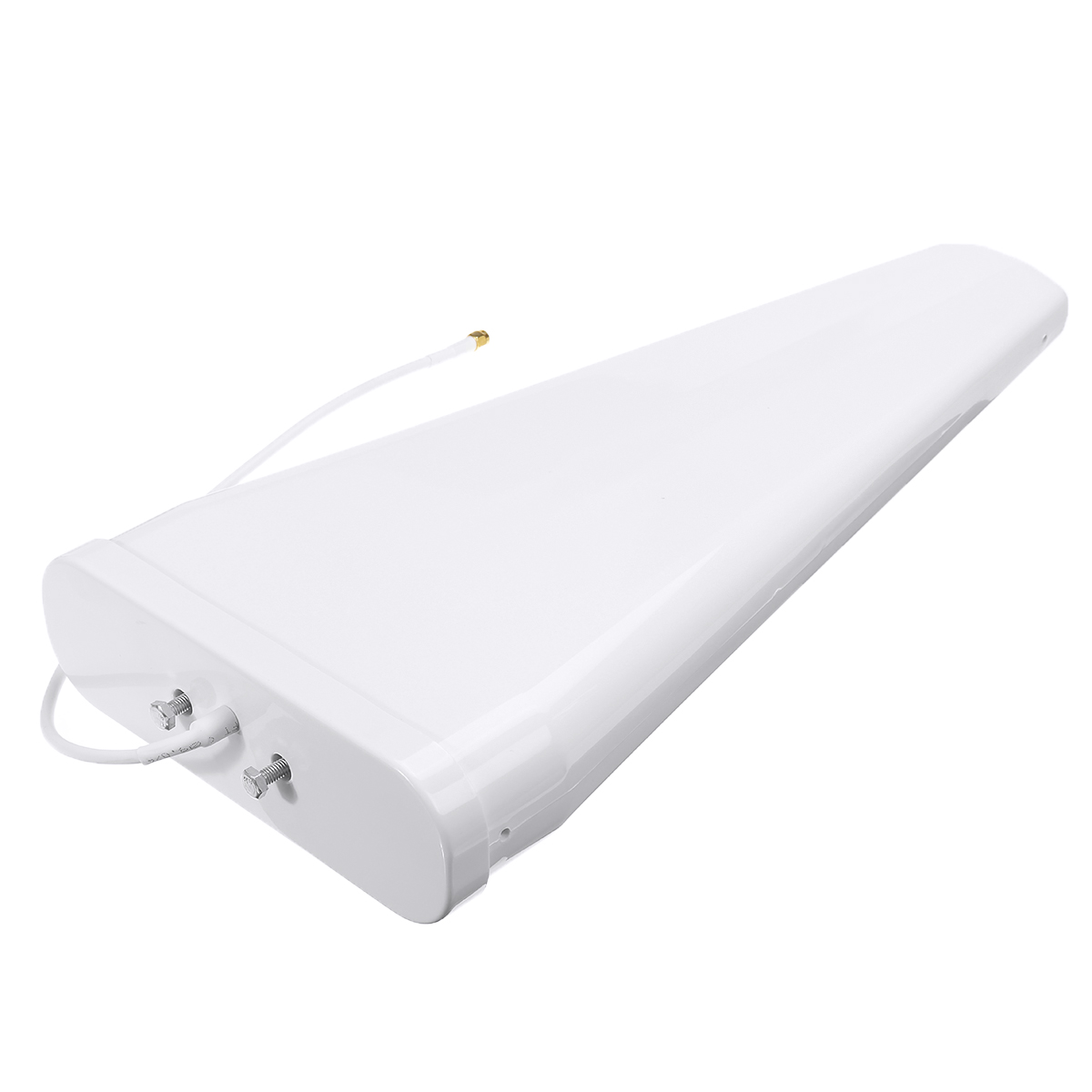

Details Pictures :
