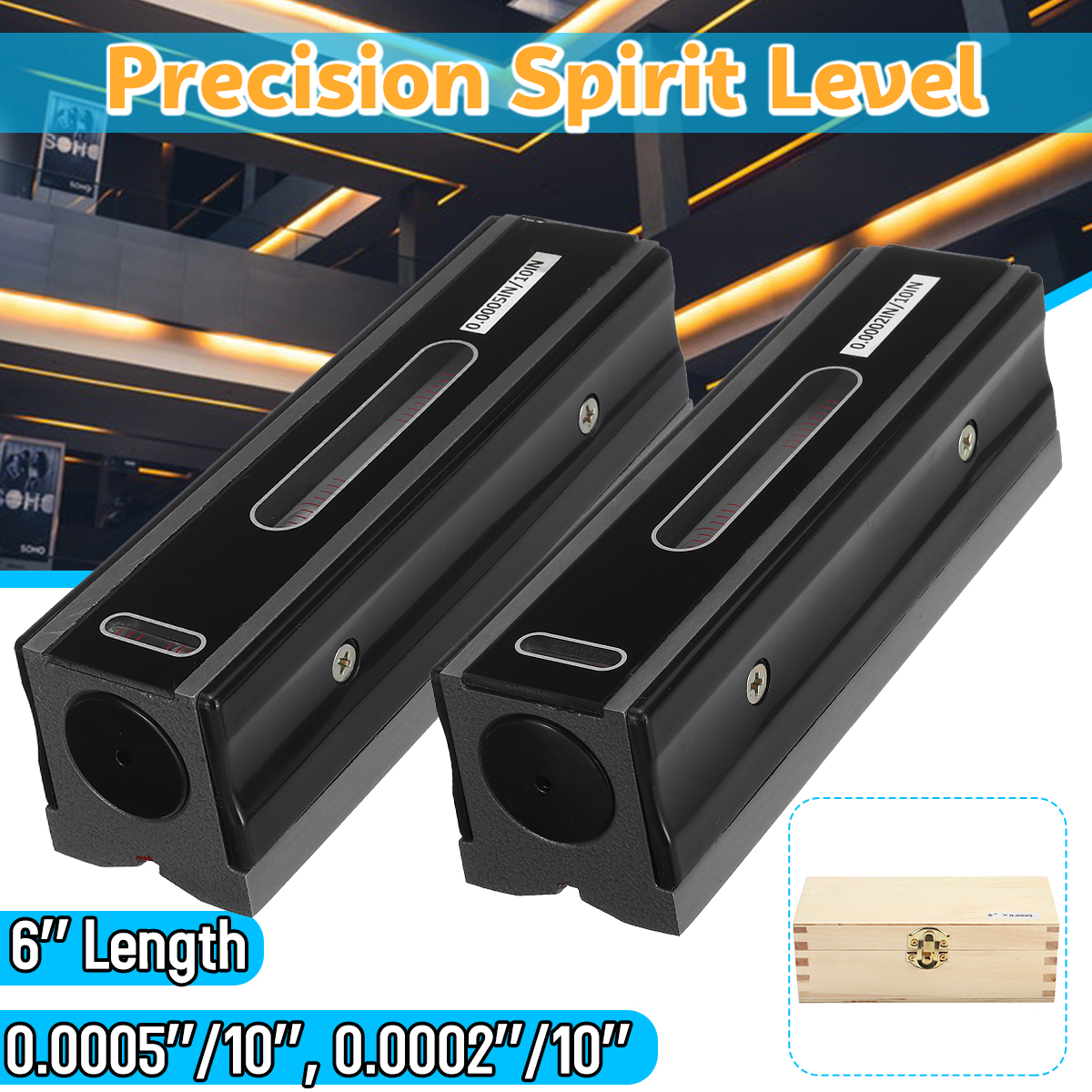

6 Inch Precision Level Graduation Accuracy .0005/.0002 Inch Graduation Bar Leveler

Description:

6 Inch Cast Iron Level Graduation .0005/.0002 Inch Bar Level Measurement Level

Specifications:

- Material: Cast Iron

- Measuring Range: 150mm/6"

- Resolution:
#002: 0.0002"/10",
#001: 0.0005"/10"

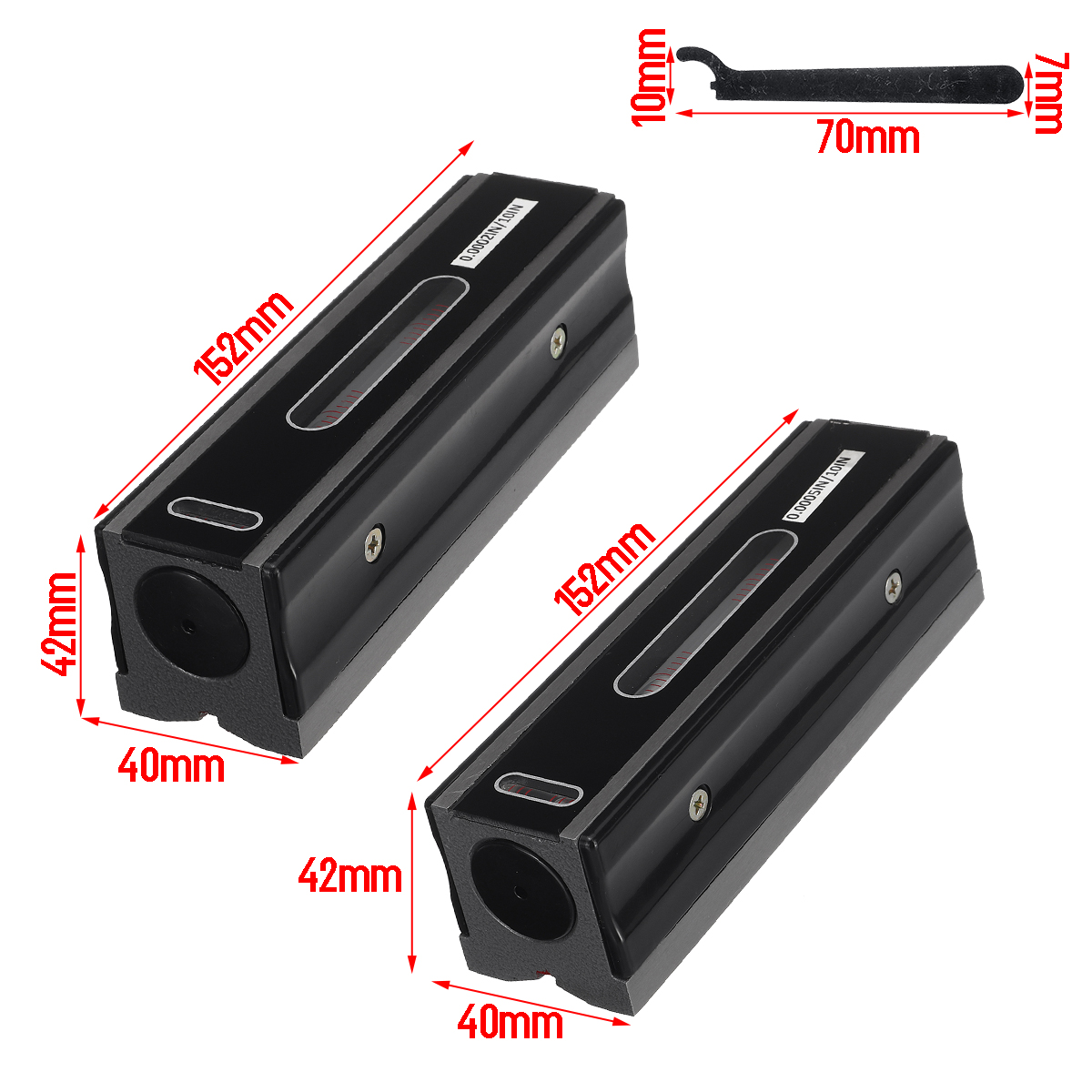

- Precision Spirit Level Size: 152x42x40mm/6x1.7x1.6"

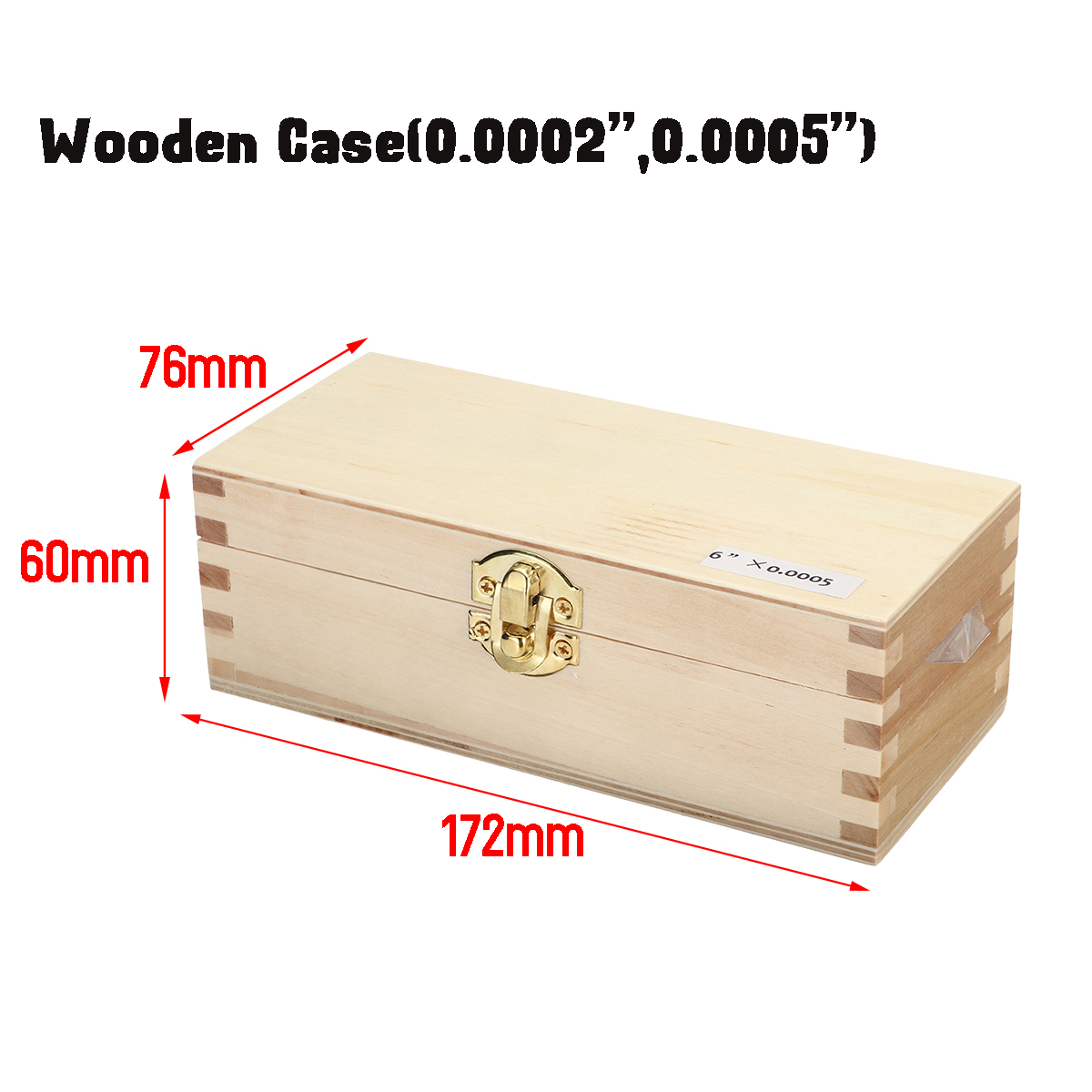

- Wooden Case Size: 172x76x60mm/6.8x2.9x2.4"

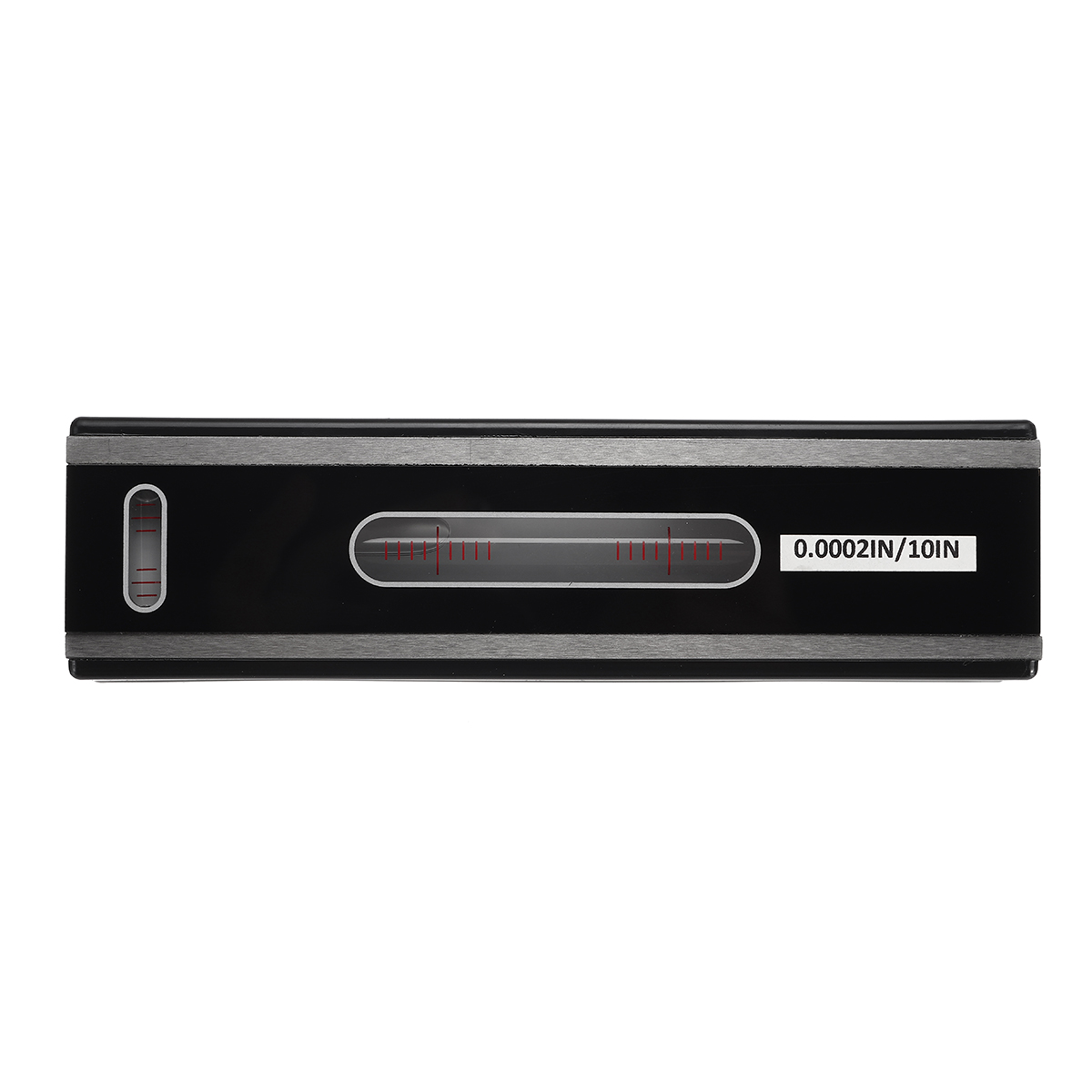

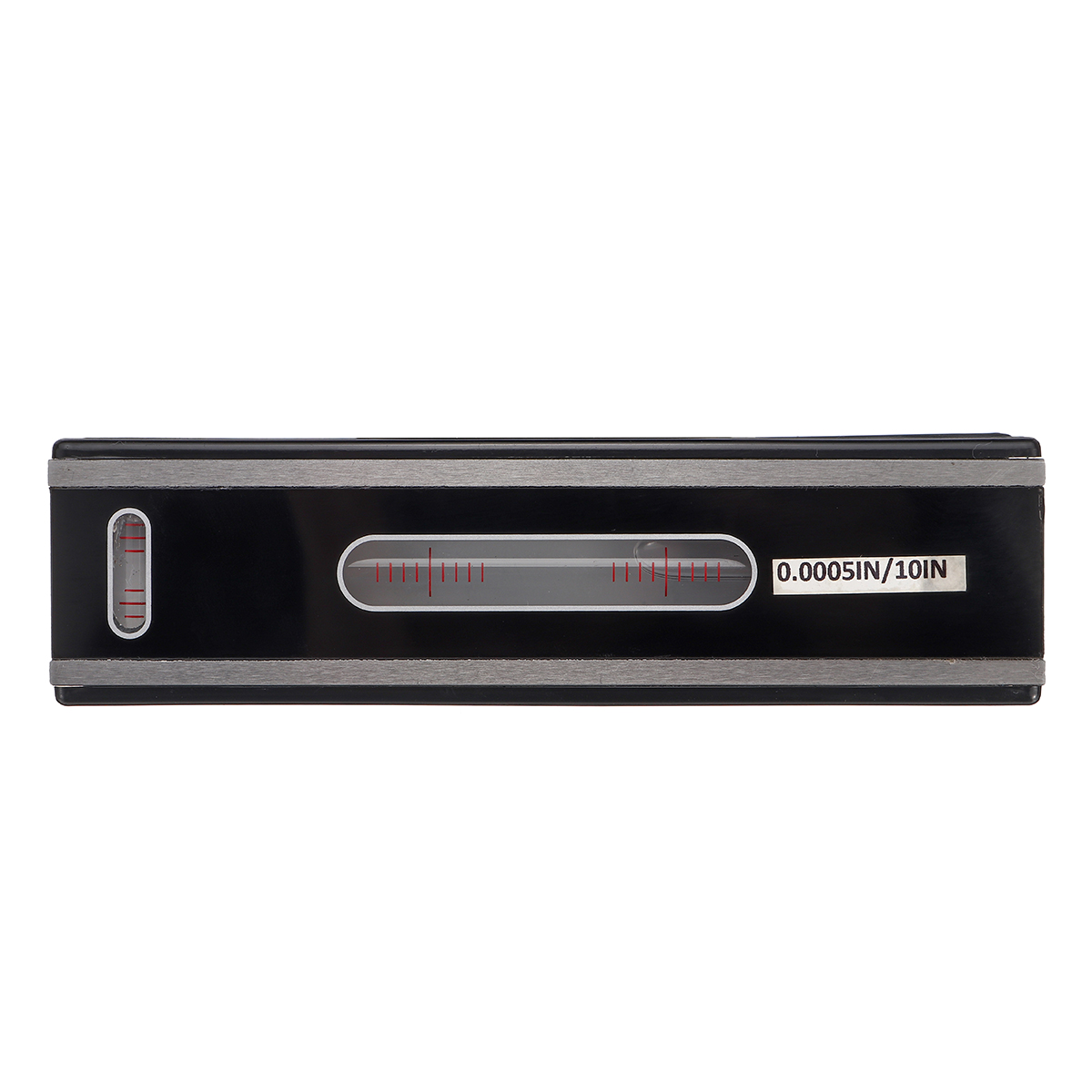

- Graduated bubble vials.

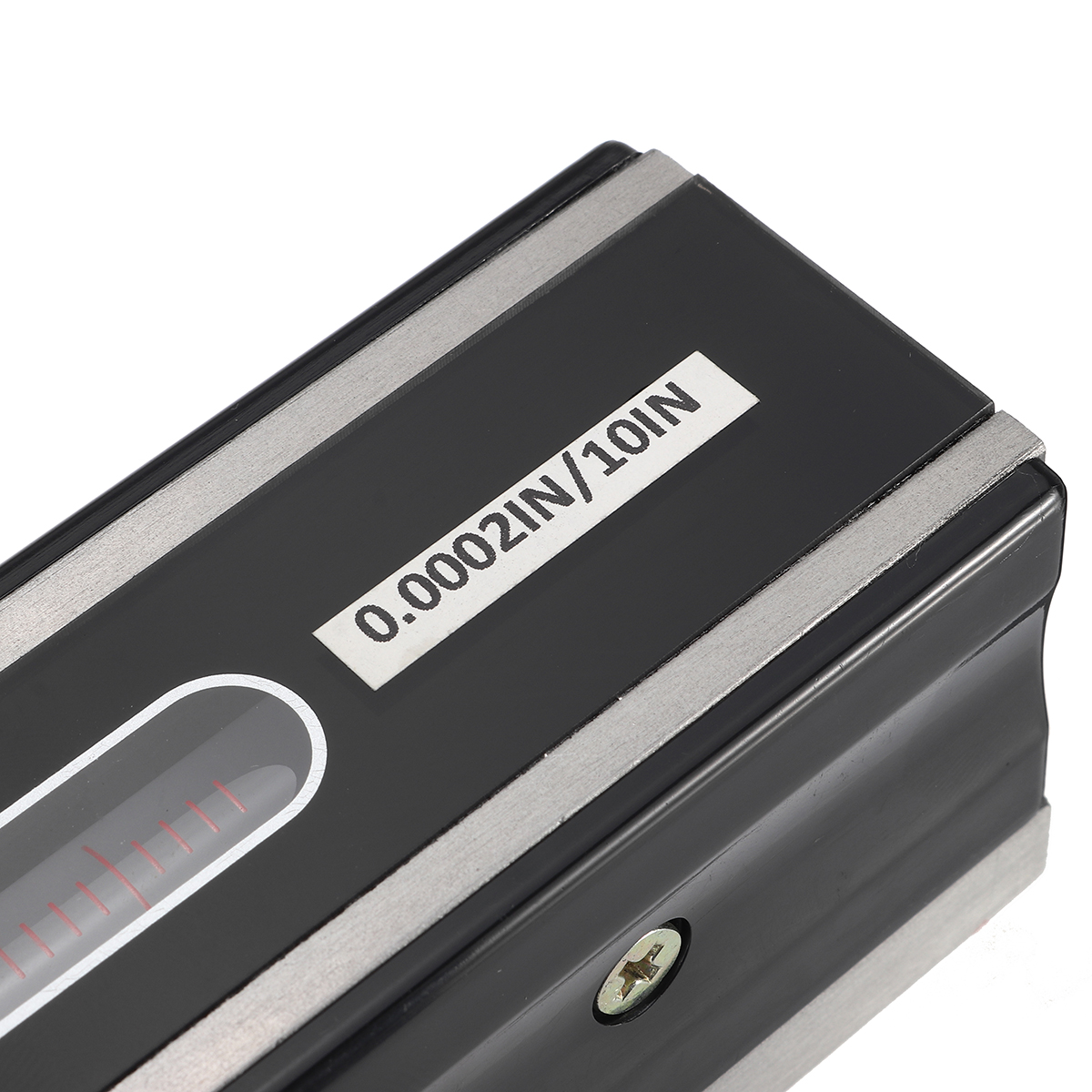

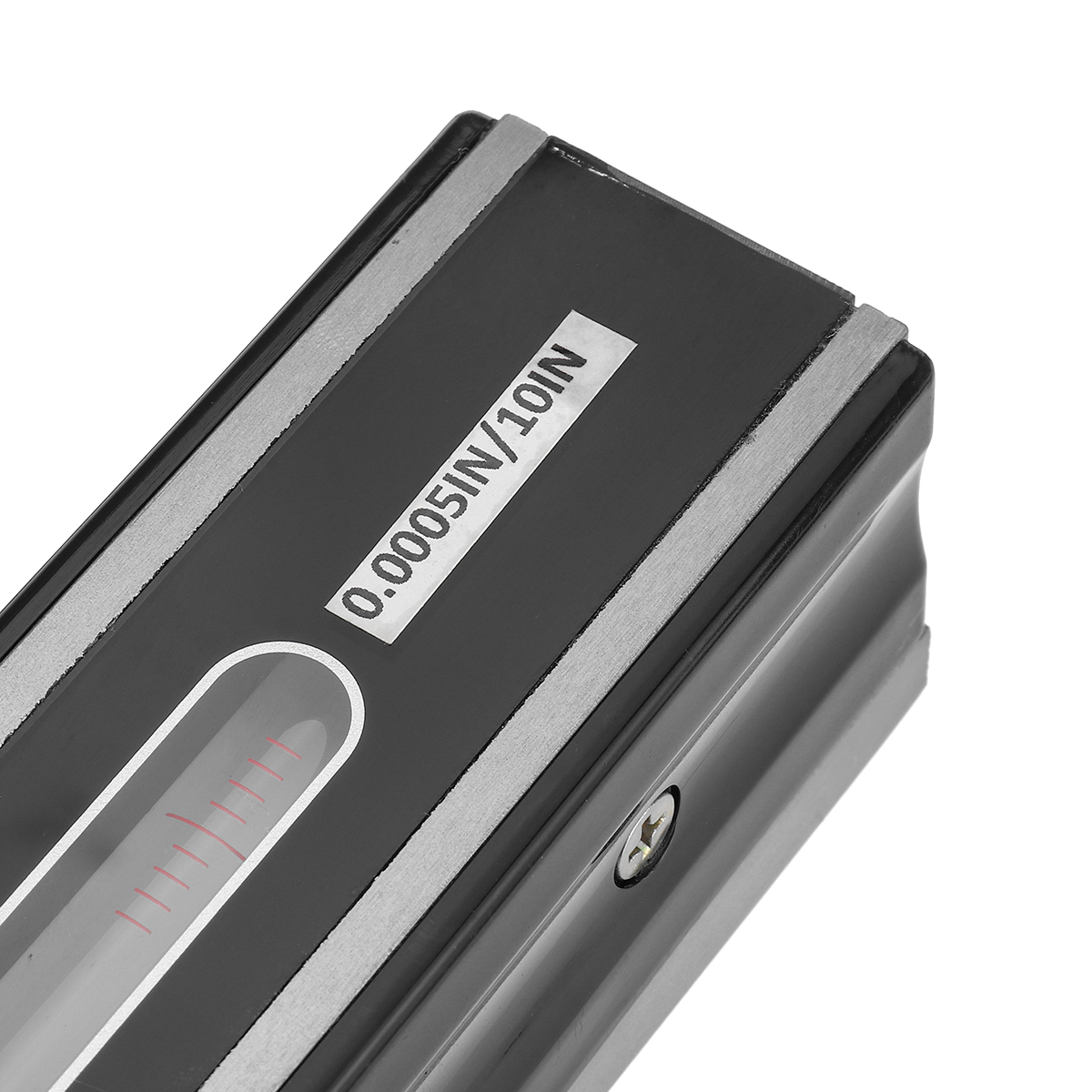

- Sensitivity per division: 0.0002"/10", 0.0005"/10"

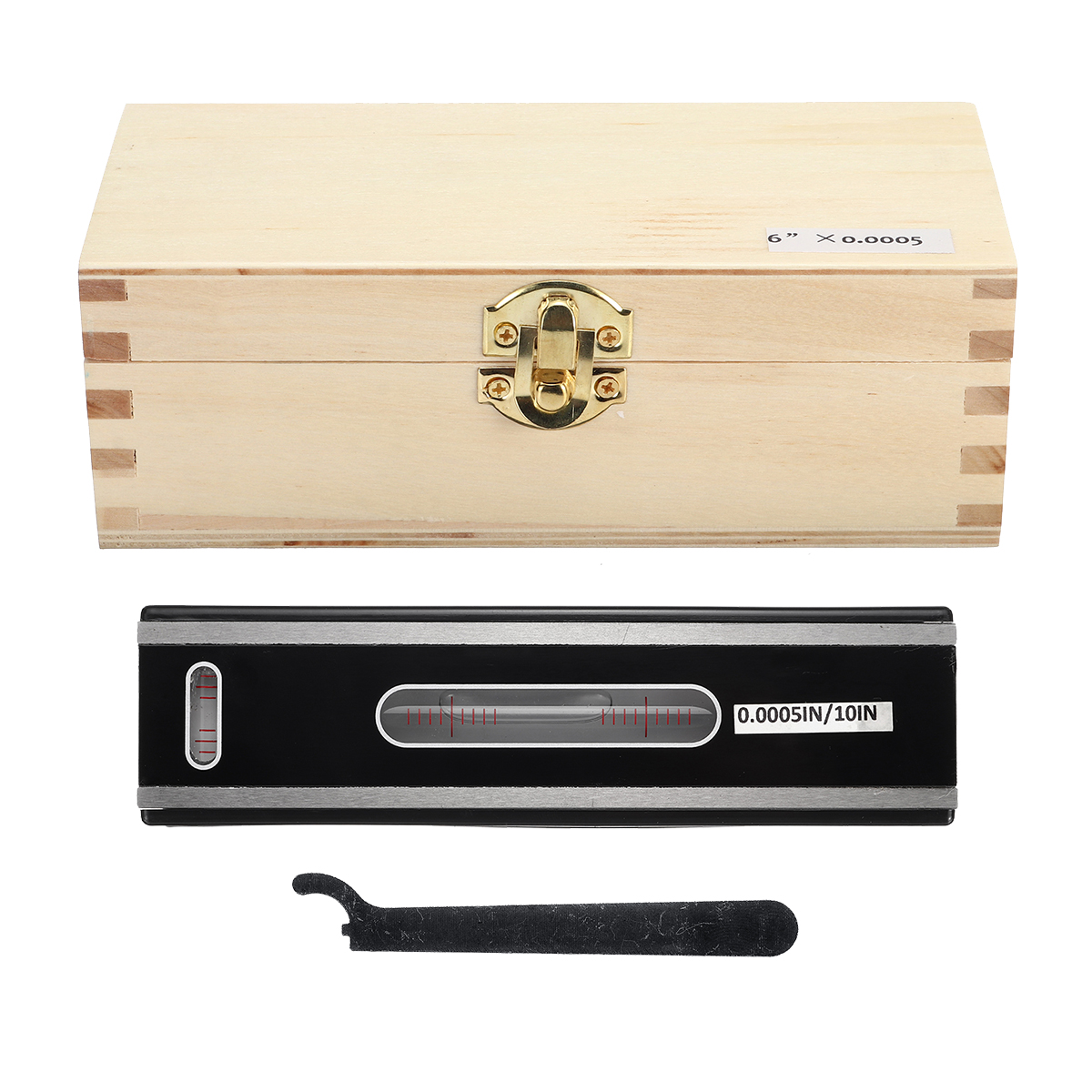

- Pack in a wooden storage case and with a Insulating Grip.

- Precision engineers spirit level for setting and checking the level of machinery and other high accuracy levelling applications.

Features:

- Use: Mainly used to test the straightness of the guide rails of various machine tools and other types of equipment and the horizontal position and vertical position of equipment installation. It can also be used for small angle measurements and work surfaces with V-grooves, as well as the mounting parallelism of cylindrical workpieces, as well as the horizontal and vertical position of the installation.

- Working principle: The inner wall of the glass tube of the bubble level is a curved surface with a certain radius of curvature. When the level is tilted, the bubble moves to the raised end of the level. The radius of curvature of the leveling bubble determines the accuracy of the product.

- Instrument structure: mainly consists of body, level bubble system and adjustment mechanism. The body can measure the base surface, the level bubble is used as a reading to reflect the true value of the body surface measurement, and the adjustment mechanism is used to adjust the level zero.

Package Included:

1 x Precision Spirit Level
