  • Stock: In Stock
  • Model: ST22001662
  • SKU: ST22001662
$256.95
Ex Tax: $256.95

Available Options


Introduction:

The lightest 4K Cinewhoop in the World. Provide 1080P / 4K Camera for your option.

Comes with new CRAZYBEEX FR V2.2 F4 FC, support Betaflight OSD, easy to get RSSI, Voltage ,current from your goggles.

Cinefun,more smooth,more stable,and more powerful. Eachine wish you have fun!


Specification:

Model: Cinefun

Item Name: 75mm 1S F4 1080P / 4K Whoop FPV Racing Drone

Wheelbase: 75mm
Size: 97mm*97mm*51mm

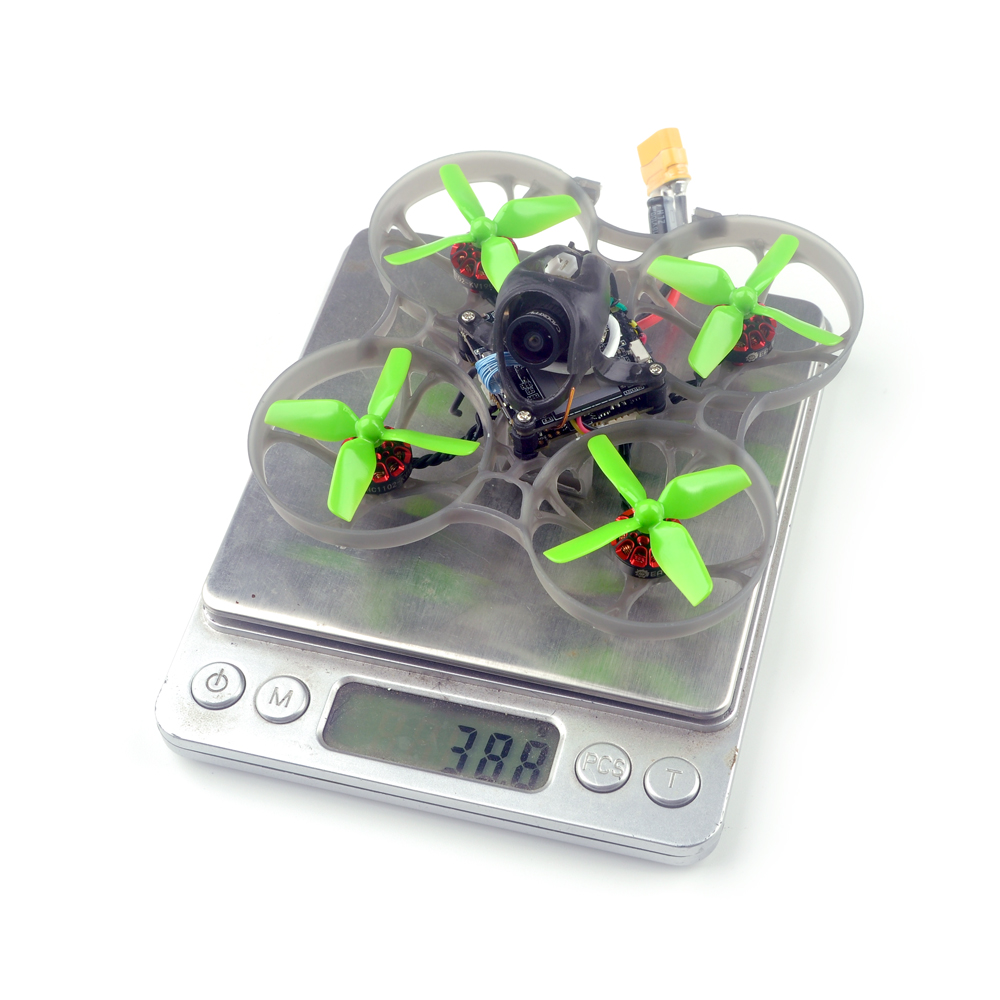

Weight: 39g for 4k camera version (without battery);

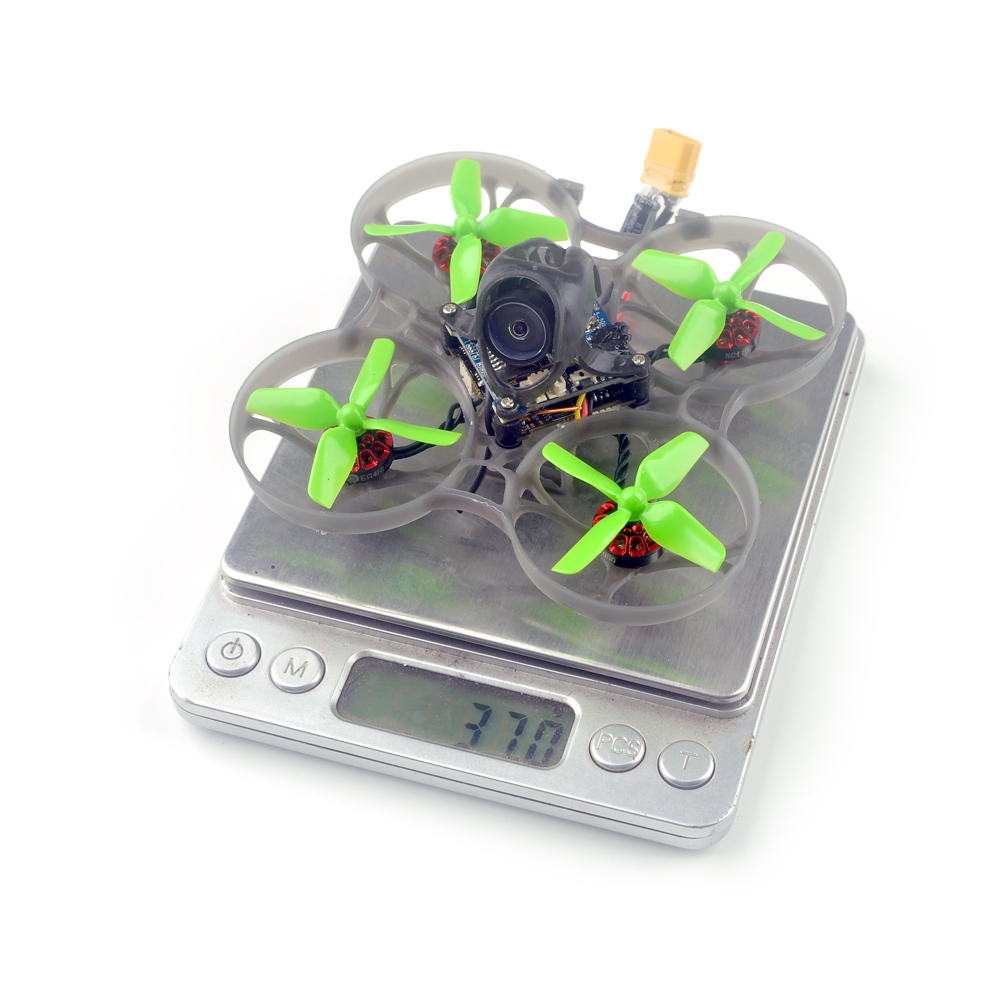

37g for 1080p camera version (without battery)
Takeoff Weight: 54.5g (with Original 1s 650mah Lipo battery )

Flight Time: 5 mins ( take example as original lipo battery)


1102 19000KV Motor

Model: NC1102

KV: 19000KV

No.of Cells(Lipo): 1S only
Configuration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*16mm
Weight: 2.9g

F4 OSD Flight Controller(Frsky SPI RX version) CRAZYBEEX FR V2.2 FC Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEEX FS V2.2 FC Firmware target: CrazybeeF4FS
(External TBS CRSF NANO version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver or no receiver
Built-in 5V 1A BEC
Onboard 5A 4in1 ESCMCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_8.HEX
Default protocol: DSHOT600
Onboard 5.8G 40CH 25/200mW VTX

Output power: 25mw~200mw switchable
Frequency: 40CH

Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Onboard Frsky Receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard Flysky Receiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
Failsafe support

External TBS CRSF Nano RX Version

Original TBS CRSF Receiver ,CRSF Protocol , Official TBS transmitter compatible

Runcam Split3-Lite 1080P Camera Version

Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)

Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps

Video File Format: MOV

Image Resolution:2 MP

TV Mode: NTSC (720*480)/PAL (720*576) Switchable

Interface: JST 1.25mm / UART and SH 1.0mm

Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)

Hole Distance of Installation: 25.5*25.5mm

PCB Size: 29*29mm

Lens Module Size: 14*14mm

Lens Specs: M9

Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.)

CADDX Loris 4K Camera VersionColor: Black, Silver (randomly)
Image Sensor: 1/2.7'' CMOS Sensor
Hirizontal Resolution: 800TVL
Video Resolution: 1080P/60fps, 1080P/120fps, 2.7K/60fps, 4K/30fps, 4K/60fps (Real 3.5K/60fps)
FPV/Recording FOV: 165°
Lens: 1.8mm
FPV Latency: 40ms
TV System: NTSV & PAL (changeable)
Audio: Digital MIC
WDR: DWDR
Fly OSD: Yes
Video Files: MP4
Electronic Shutter: PAL: 1/50~100000; NTSC: 1/60~100000
DNR: 3DNR
Video Output: CVBS
Memory Card: Max. Support 128G
Work Temperature: -20℃ ~ +60℃
Weight: 10g
Dimensions: DVR Board: 29*29mm / Camera: 14*14mm (can be extended into 19*19mm)
1S 650mAh Lipo Battery

Voltage: 1S 3.8V

Capacity: 650mAh

Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx8mm
Weight: 15.5g

Connector: XT30

Quantity: 4 PCS


Features:

- Super Light 4K CineWhoop

- Powerful and smoothly
- Caddx Loris 4K Camera & DVR ready

- Runcam Split3-lite 1080P Camera & DVR ready
- Camera Angle adjustable
- VTX power switchable 25mw~200mw

- Comes with 4 PCS Lipo Battery


Frsky Receiver Version Manual


Flsky Receiver Version Manual


TBS CRSF Receiver Version Manual

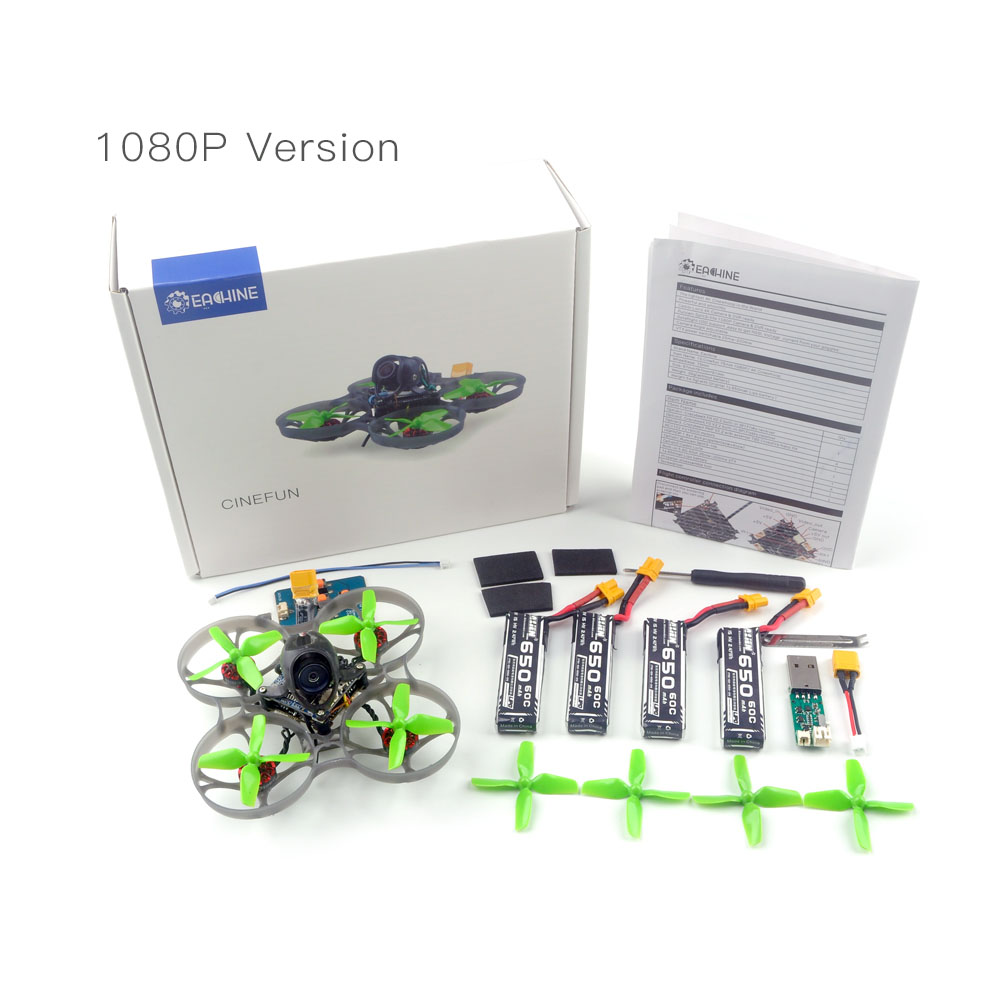

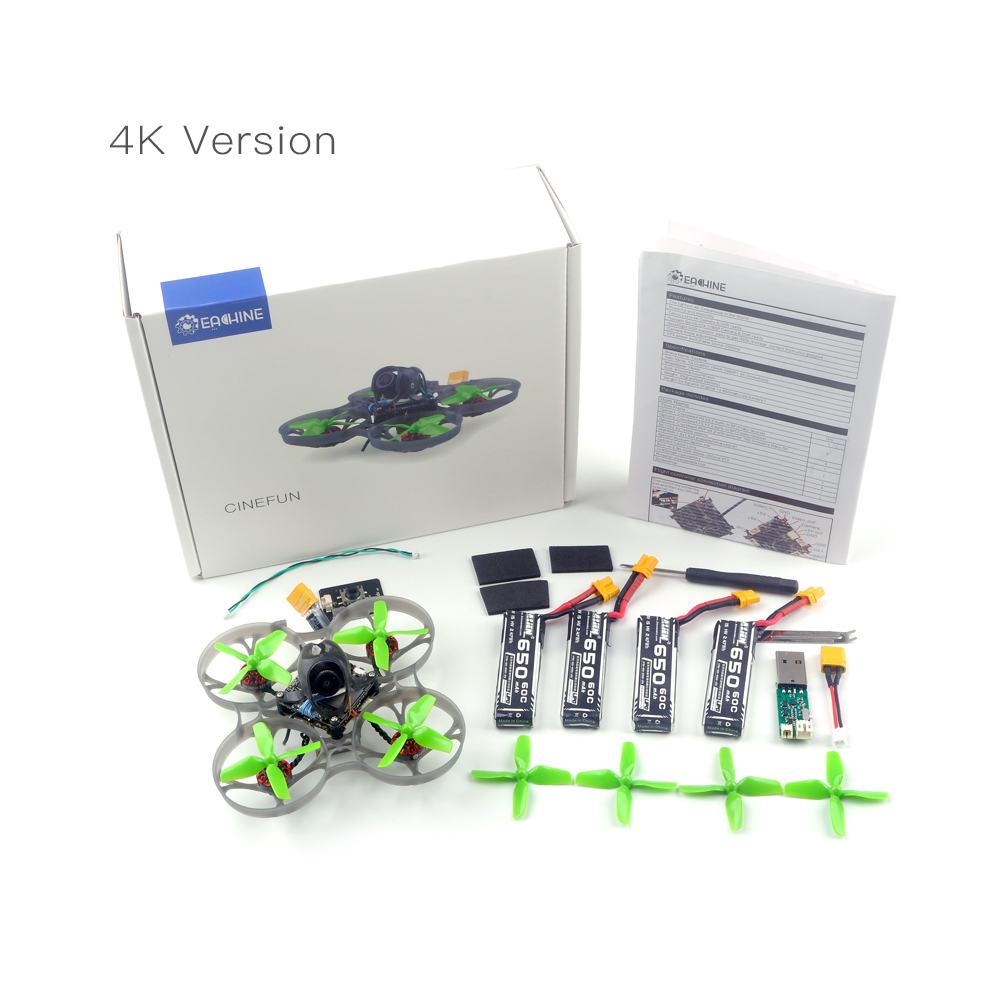

Package Included:

1x Cinefun 1S 75mm FPV Racing Drone

4x HQPROP 1.6x1.6 4-Blade Propeller CW

4x HQPROP 1.6x1.6 4-Blade Propeller CCW

4x 1S 650mAh Lipo Battery

1x Screwdriver

1x Propeller Disassemble Tool

1x USB Charger ( Switch toward USB Port Side: 4.35V; toward connector plug port side: 4.2V)



39g-Eachine-Cinefun-1S-75mm-CRAZYBEEX-FR-V22-F4-4K-CineWhoop-Ultralight-Whoop-FPV-Racing-Drone-BNF-w-1789166-1

39g-Eachine-Cinefun-1S-75mm-CRAZYBEEX-FR-V22-F4-4K-CineWhoop-Ultralight-Whoop-FPV-Racing-Drone-BNF-w-1789166-2

39g-Eachine-Cinefun-1S-75mm-CRAZYBEEX-FR-V22-F4-4K-CineWhoop-Ultralight-Whoop-FPV-Racing-Drone-BNF-w-1789166-3

39g-Eachine-Cinefun-1S-75mm-CRAZYBEEX-FR-V22-F4-4K-CineWhoop-Ultralight-Whoop-FPV-Racing-Drone-BNF-w-1789166-4

39g-Eachine-Cinefun-1S-75mm-CRAZYBEEX-FR-V22-F4-4K-CineWhoop-Ultralight-Whoop-FPV-Racing-Drone-BNF-w-1789166-5

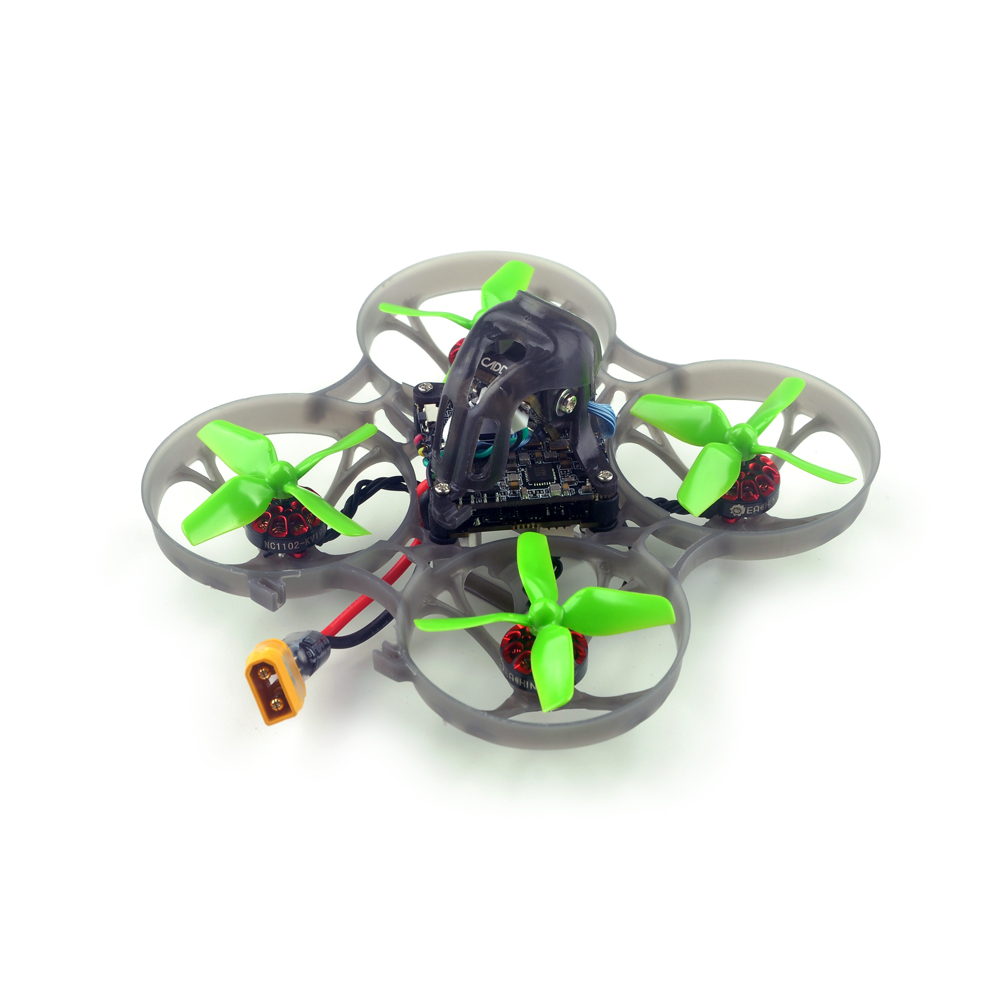

39g-Eachine-Cinefun-1S-75mm-CRAZYBEEX-FR-V22-F4-4K-CineWhoop-Ultralight-Whoop-FPV-Racing-Drone-BNF-w-1789166-6
