2Pcs 100MHz X1/X10 Oscilloscope Probe Kit, DC‑100MHz BNC Passive Test Lead For Compatible Measuring Instrument
- Stock: In Stock
- Model: ST22011770
- SKU: ST22011770
$16.99
Ex Tax: $16.99
Product Overview

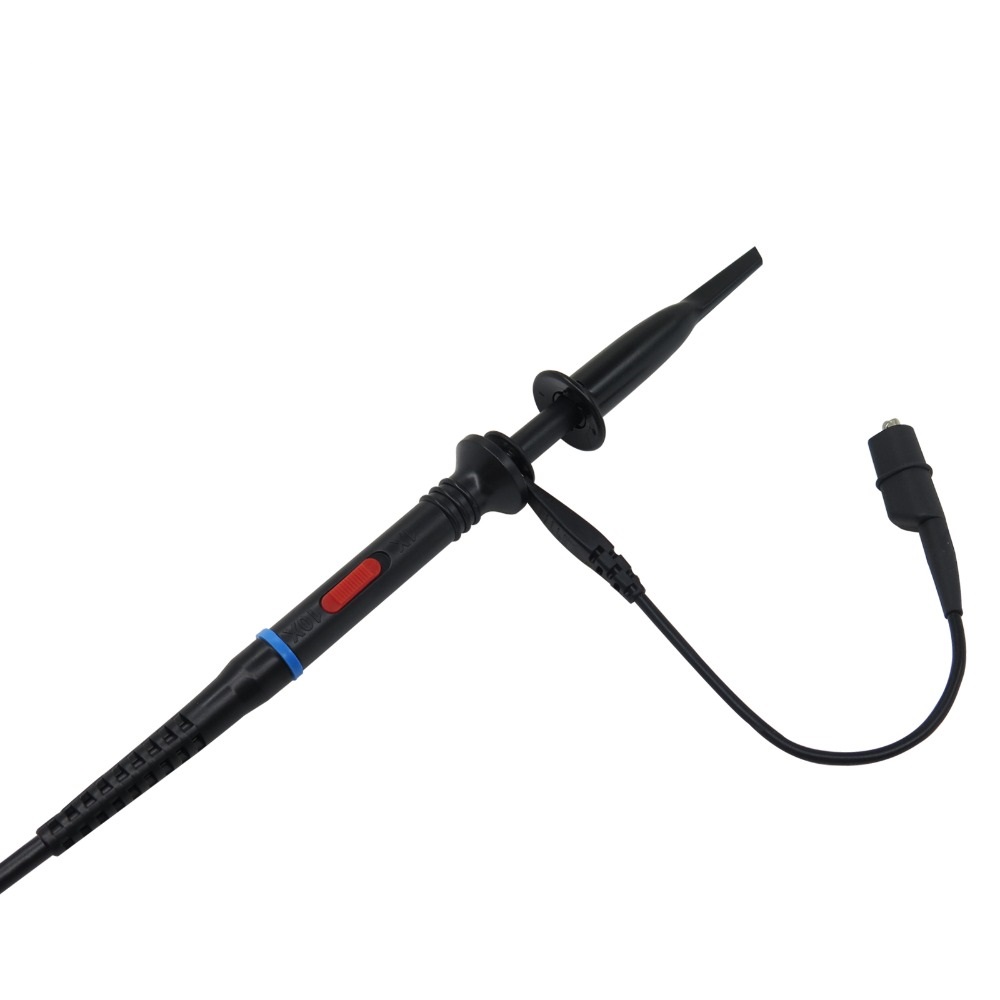

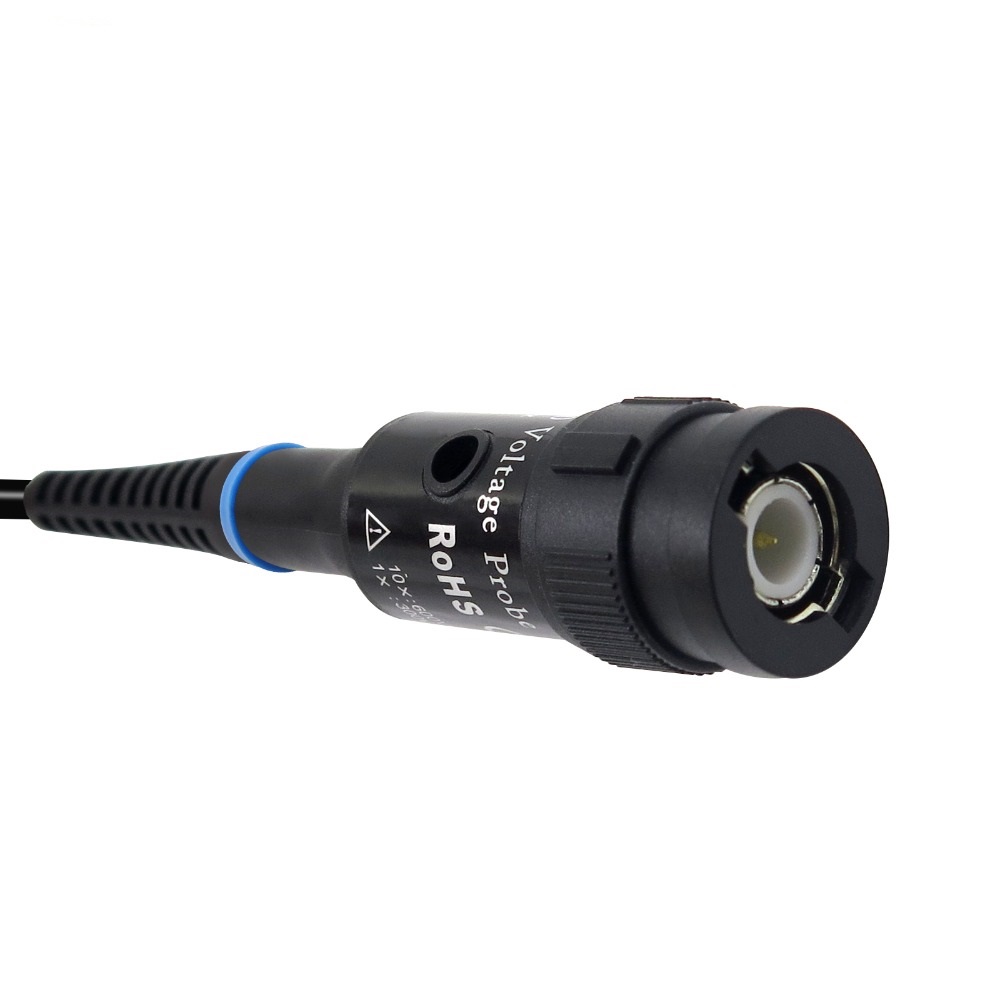

This aftermarket third‑party 2‑piece passive oscilloscope probe kit is practical signal‑measurement accessory for compatible oscilloscope instrument. It features DC‑100MHz bandwidth and 3.5ns rise‑time with switchable 1X /10X attenuation modes. Equipped with standard BNC connector, it acquires electronic signals for lab test, circuit debugging and industrial measurement tasks. Complete auxiliary accessories are supplied for quick setup and field‑use measurement.
Key Features
- 2‑piece passive oscilloscope test probe kit, DC‑100MHz bandwidth

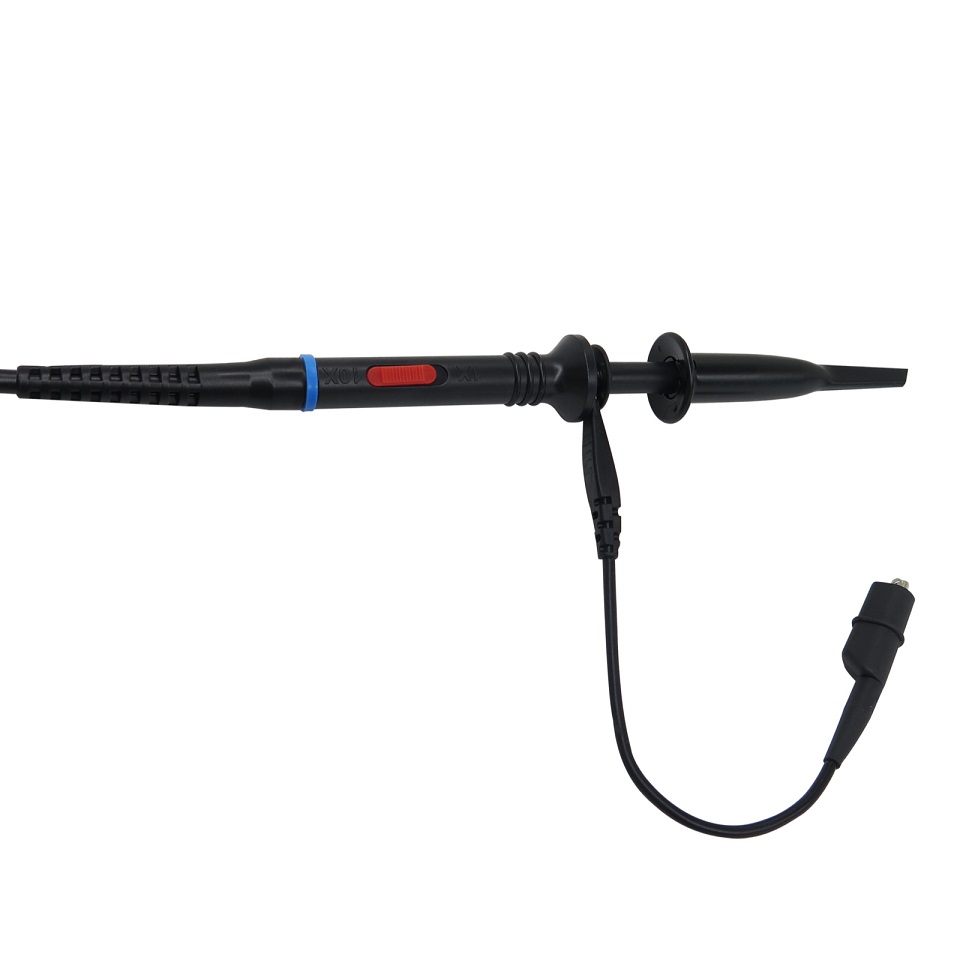

- Switchable X1 / X10 attenuation ratio for multi‑range signal measurement
- 3.5ns rise‑time; input resistance 1MΩ /10MΩ ±2% for stable signal sampling
- Max input voltage: 200Vp‑p (1X), 600Vp‑p (10X); compensation range 14‑45pF
- 110±2cm cable length, complete set of auxiliary installation accessories included

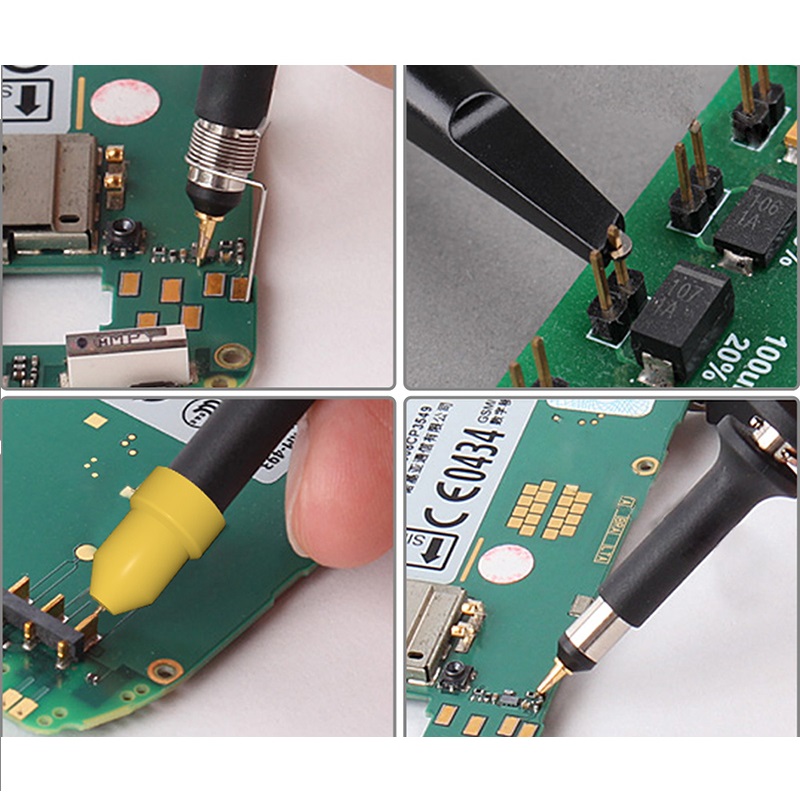

- Suitable for electronic lab test, circuit repair and industrial measurement scenarios
Technical Specifications
| Product | 2Pcs 100MHz X1/X10 Oscilloscope Passive Probe Kit (Aftermarket Test‑Measurement Accessory) |
| Bandwidth | DC‑100MHz |
| Rise Time | 3.5 ns |
| Attenuation Ratio | Switchable 1X / 10X |
| Input Resistance | 1MΩ / 10MΩ ±2% |
| Input Capacitance | 1X:70‑120pF; 10X:14‑18pF |
| Max Input Voltage | 1X:200Vp‑p; 10X:600Vp‑p |
| Compensation Range | 14‑45 pF |
| Cable Length | 110 ± 2 cm |
| Set Weight | Approx 130 g |
| Operation Environment | 0‑50℃, 0‑80%RH |
| Storage Environment | -20‑60℃, 0‑90%RH |

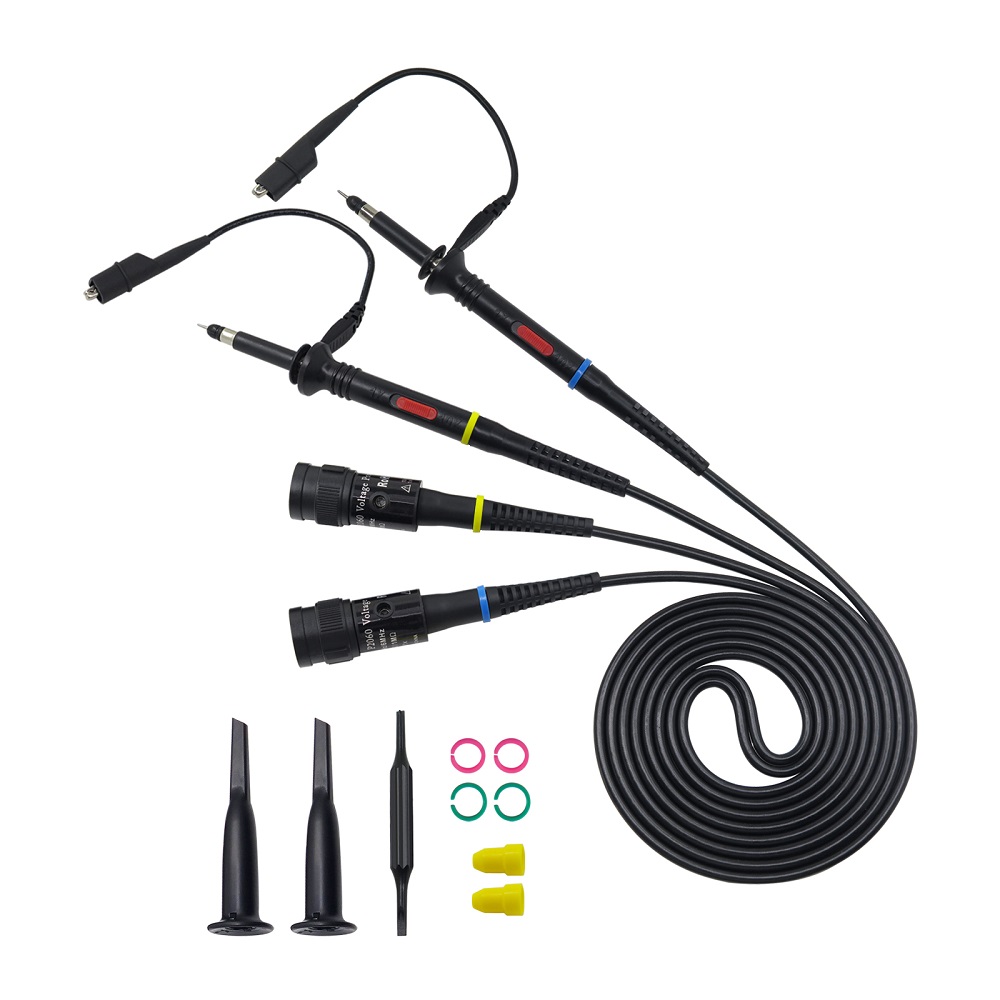

Package Contents
- 2 × Oscilloscope Probes
- 8 × Marker Rings

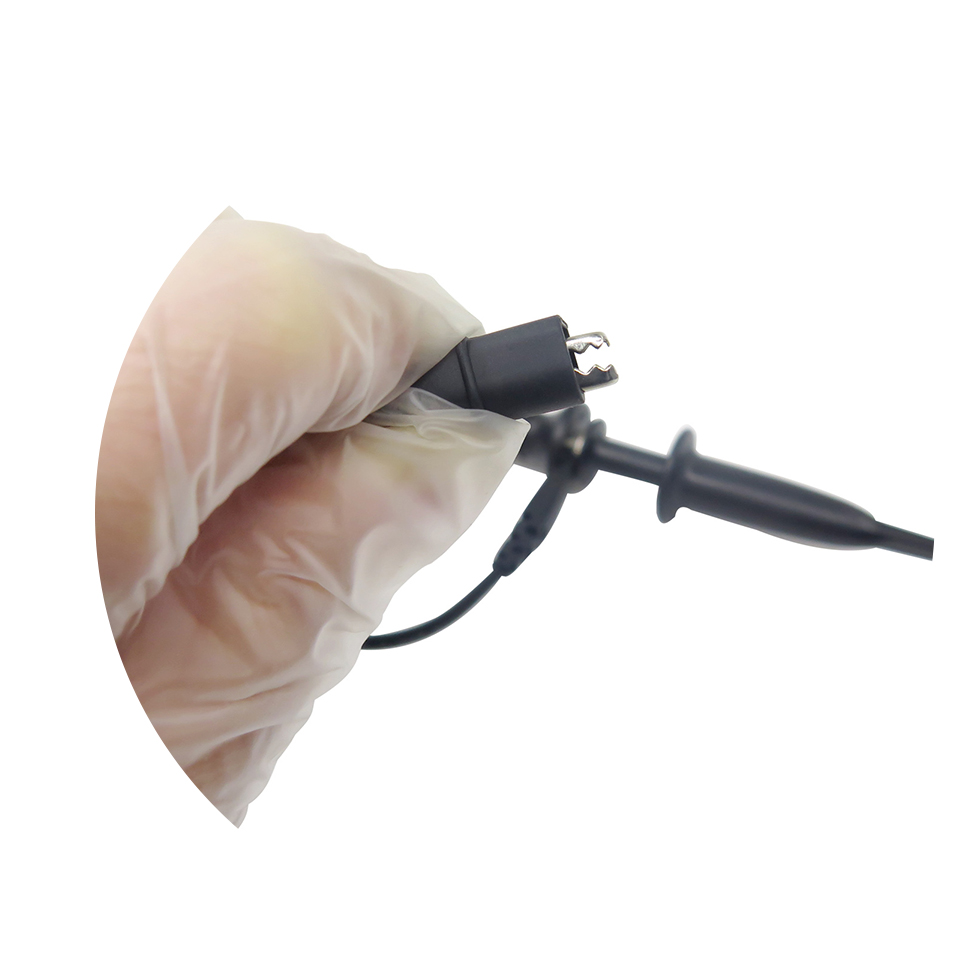

- 2 × Ground Leads
- 2 × Locating Sleeves

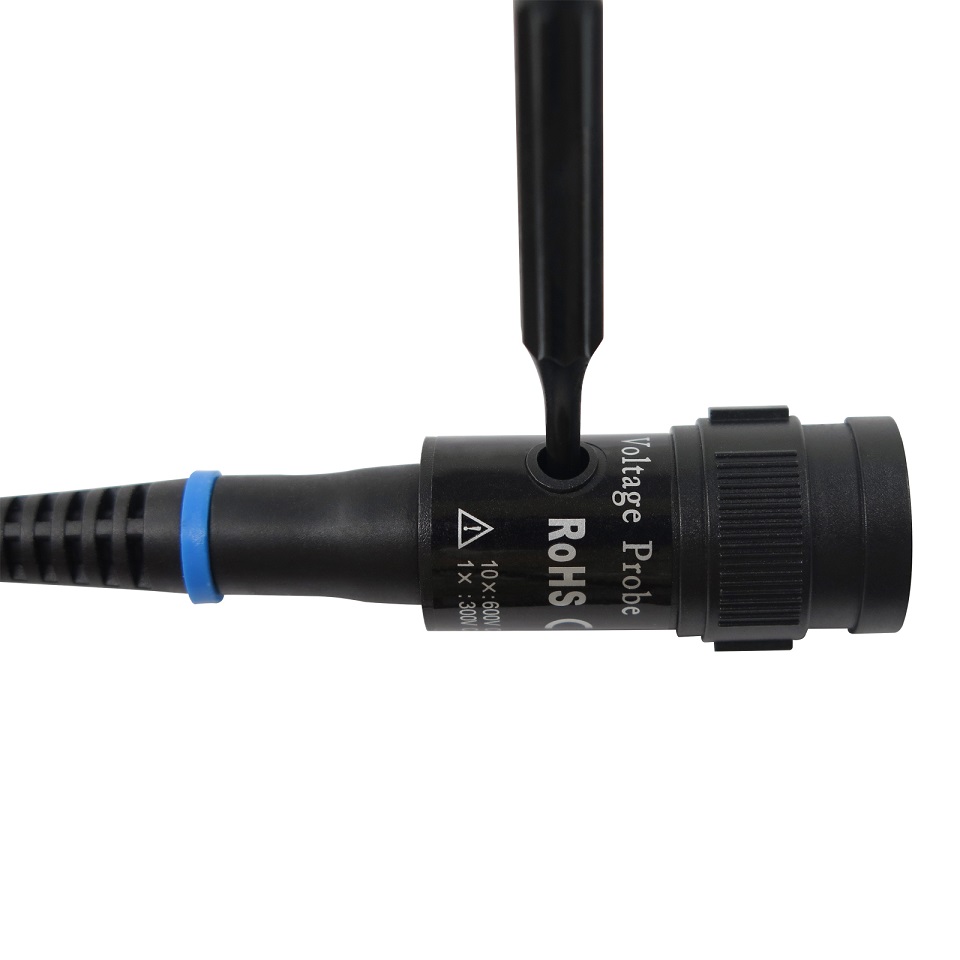

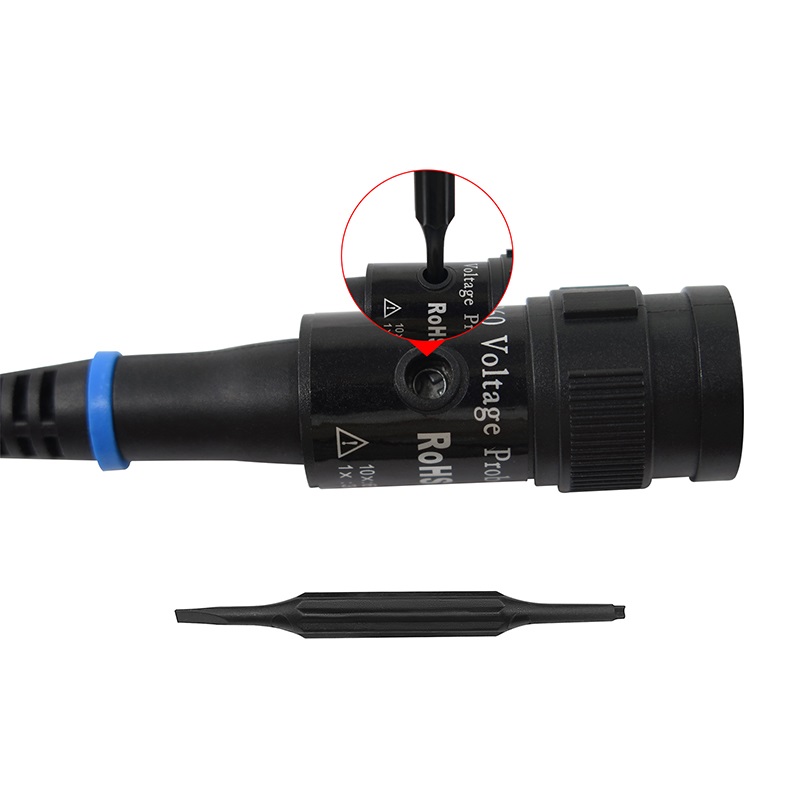

- 1 × Adjustment Tool
- 1 × User Manual
Important Notice: This is a universal aftermarket test‑measurement accessory. Oscilloscope test instrument shown in demo photos is for illustration only and NOT included. Please double‑check your oscilloscope BNC‑interface and parameter compatibility before placing your order.
