2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair

2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
2K 51MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring for Phone PCB Repair
  • Stock: In Stock
  • Model: ST22012057
  • SKU: ST22012057
$131.99
Ex Tax: $131.99

Noting:

1:PC Support : Windows XP/7/8/10 system

2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.

3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.

4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)

Features:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 51 MegaPixel (take a picture For HDMI)
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS

HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual

Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor: 51 megapixel Panasoniic CMOS sensor 1/2.33 inch
Effective pixel: 51 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Support
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G

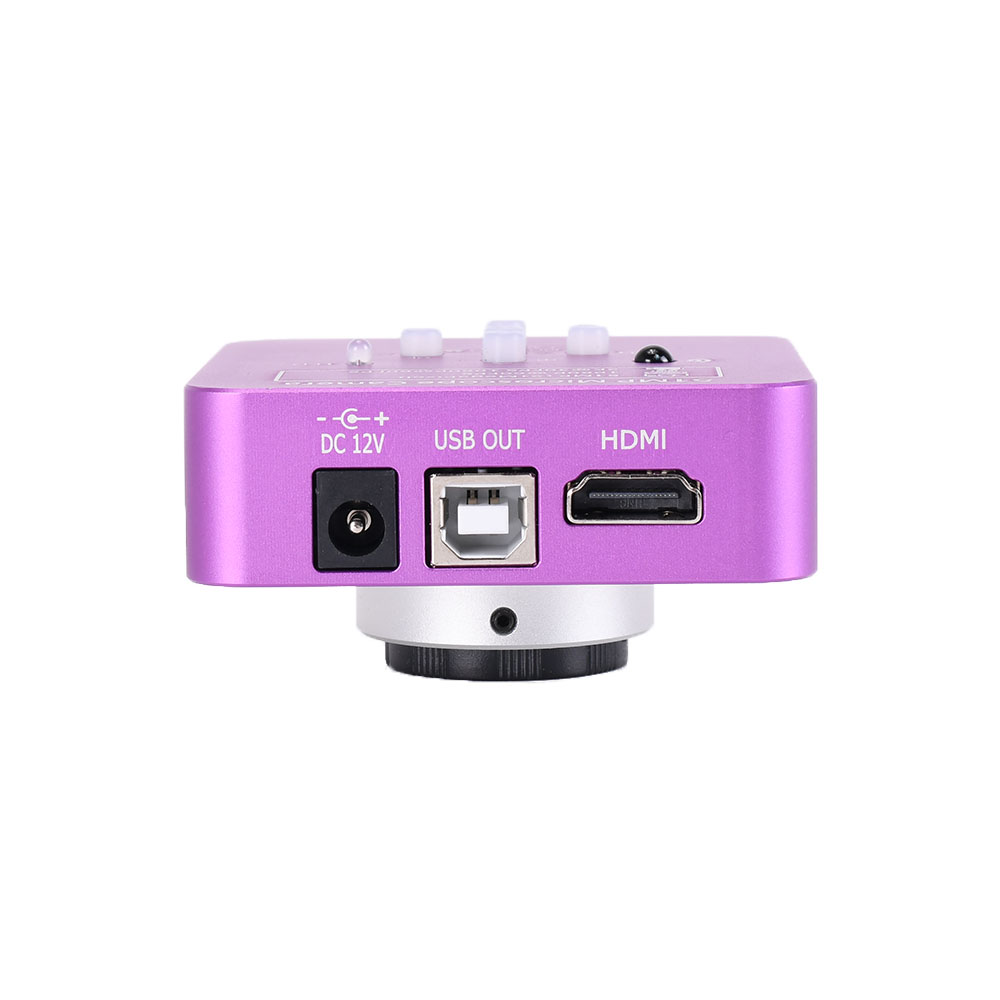

HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

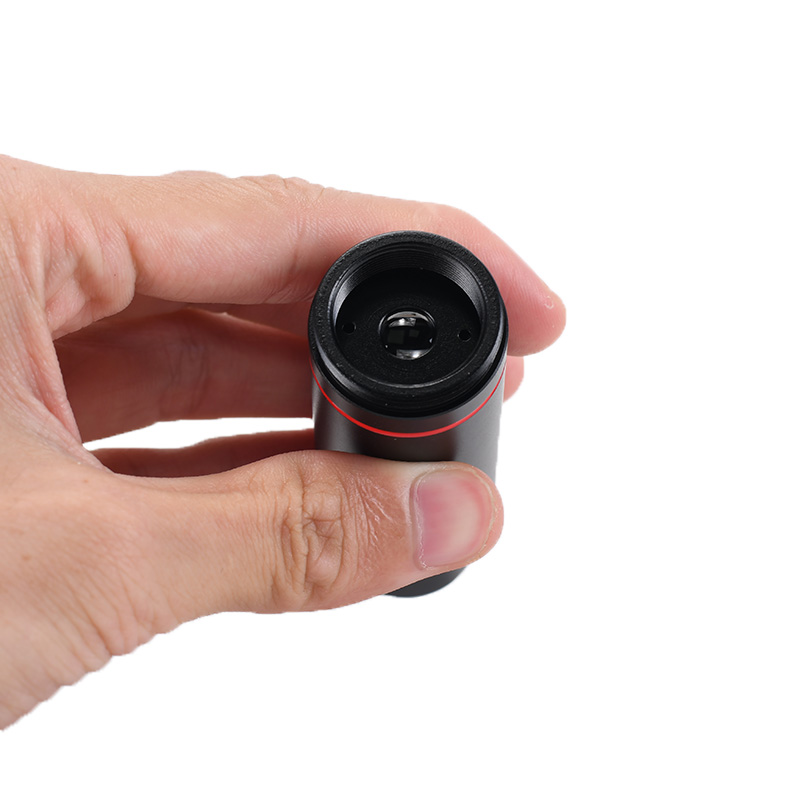

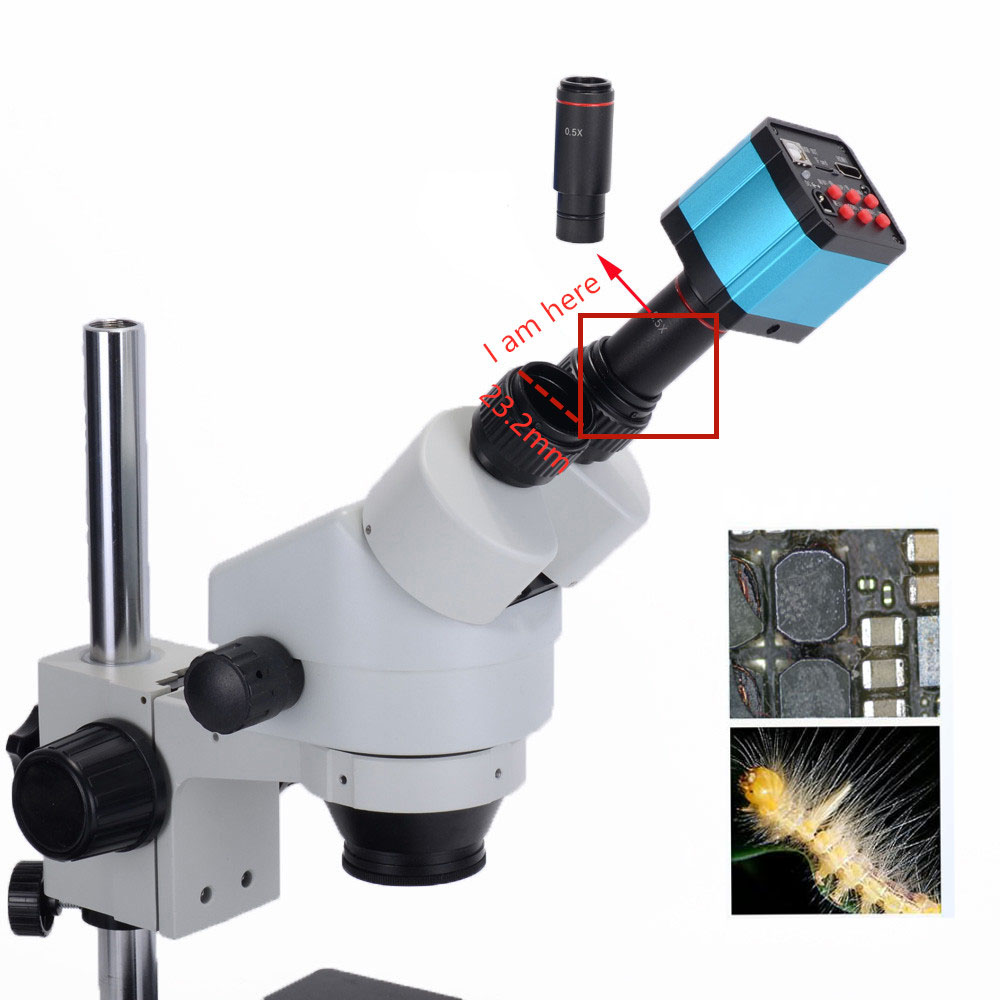

This microscope camera is a 0.5x Reducing lens, which expands the camera's field of view. It can be used with C-Mount or CS-Mount camera in any pixel and placed in a binocular or trinocular microscope to expand its field of view. Can be installed directly in the biological or stereo eyepiece camera.

Specification
Magnification: 0.5X
Mounting Size: 23.2mm, 30mm ,30.5mm
C-mount Thread: 32TPI-UN-2A
Suit Microscope: biological microscope and stereo microscope

Feature:


0.5X magnification to get a more wide view of microscope
C-MOUNT adapter to connect CCD camera or Digital eyepiece to microscope

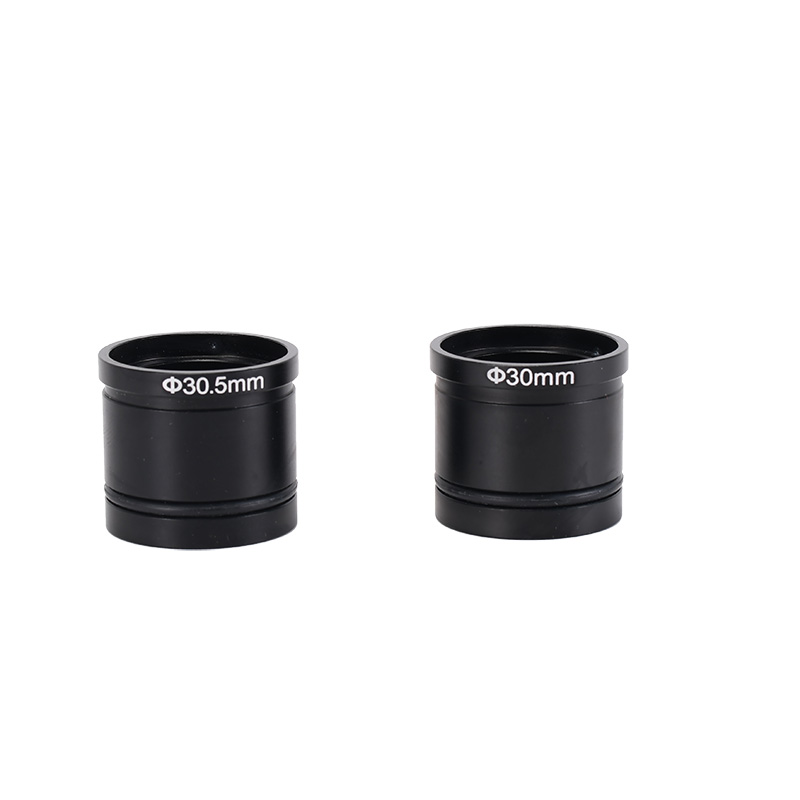

Including two adapters from 23.2mm to 30mm and 30.5mm

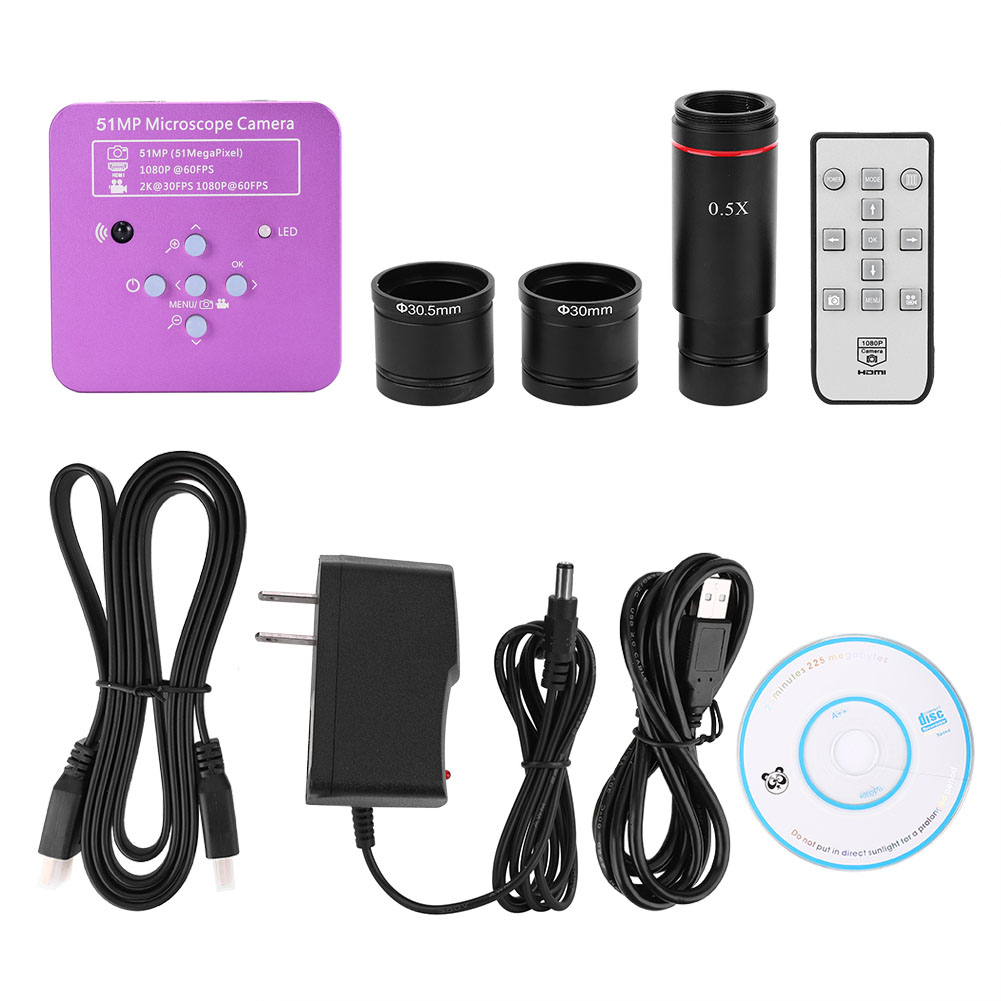

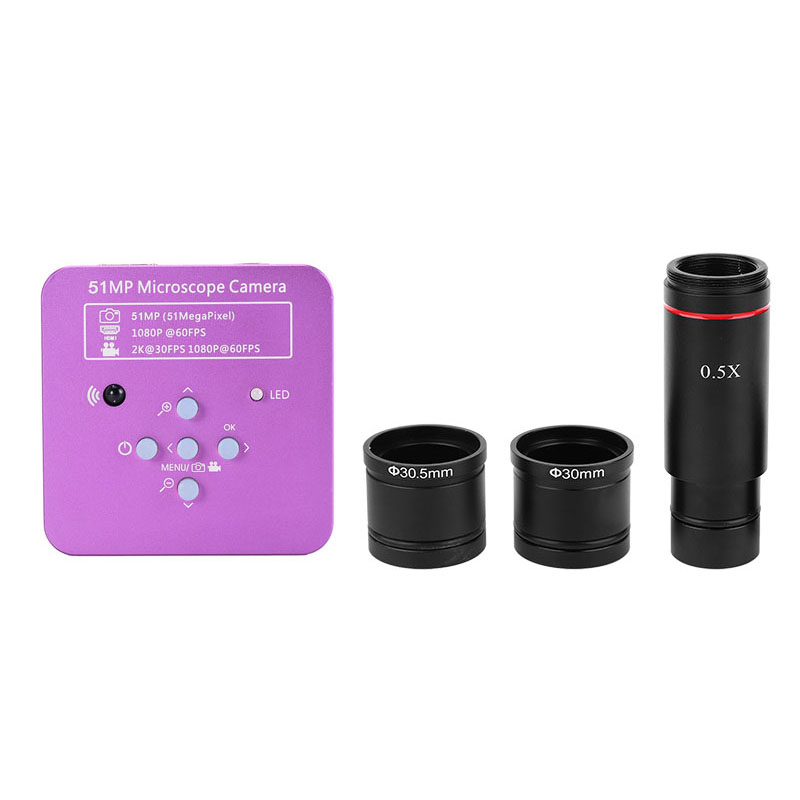

Package including:

1 x 51MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC

1 x Remote Control

1 x 0.5X C-MOUNT adapter

1 x 23.2mm to 30mm adapter ring

1 x 23.2mm to 30.5mm adapter ring

Details pictures:



HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-1

HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-2

HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-3

HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-4

HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-5

HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-6

HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-7

HAYEAR-2K-51MP-1080P-60FPS-HDMI-USB-Electronic-Industrial-Microscope-Camera-05X-Eyepiece-Adapter-30m-1705003-8
