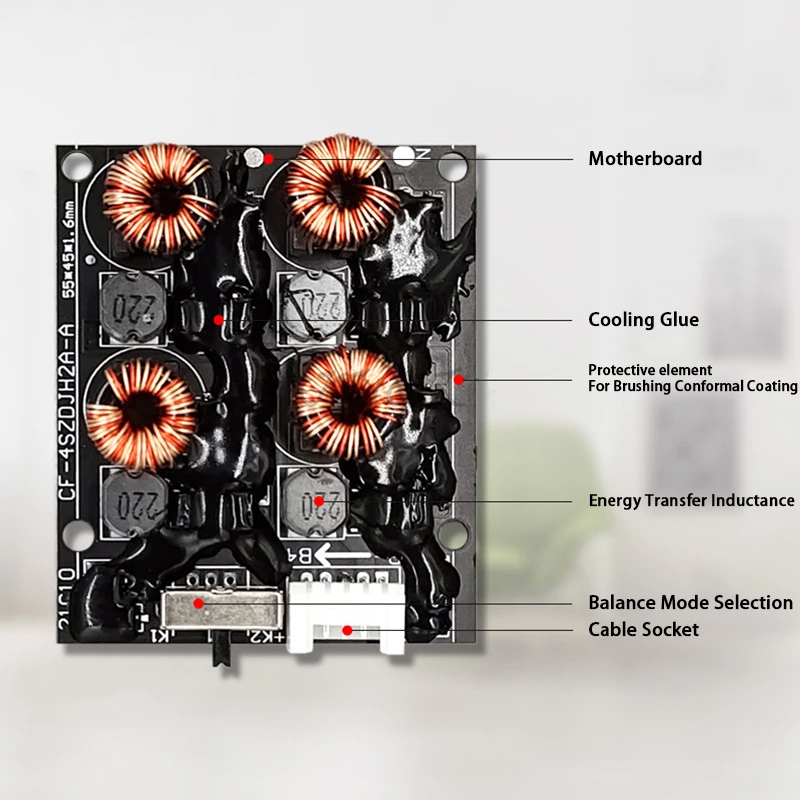

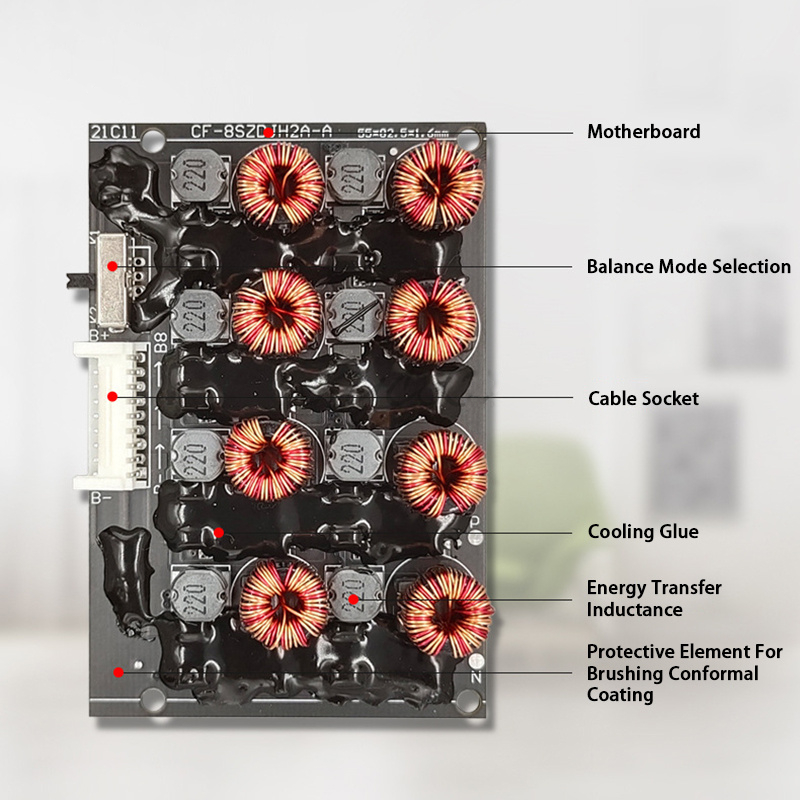

2A 4S 8S BMS Active Balancer Equalizer Lifepo4 Li-ion Lipo Lithium Battery Energy Transfer Board Balance Module
- Stock: In Stock
- Model: ST230044482
- SKU: ST230044482
$12.99
Ex Tax: $12.99
Specification
Balance current: <2A
Balanced pressure difference: <10mV
Self-consumption during work: <10mA
Self-consumption during sleep: <500uA
Product size: 55*45*15mm
PCB thickness: 1.6mm

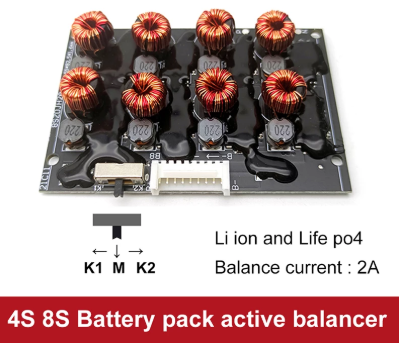

Description of Active Balance Switch:
K2: Forced to close the active balance and enter sleep;
Middle: the battery cell voltage is lower than 3.0V to close the active equalization and enter the sleep;
K1: active balance open all-time; not recommended
Pacakge Included:
1 x Active Balancer Equalizer Module
