25 Degree 3.175mm Shank 0.1/0.2/0.3/0.4/0.5mm Flat Bottom PCB Engraving Bit CNC Tool
- Stock: In Stock
- Model: ST22006339
- SKU: ST22006339
$7.99
Ex Tax: $7.99
Description:

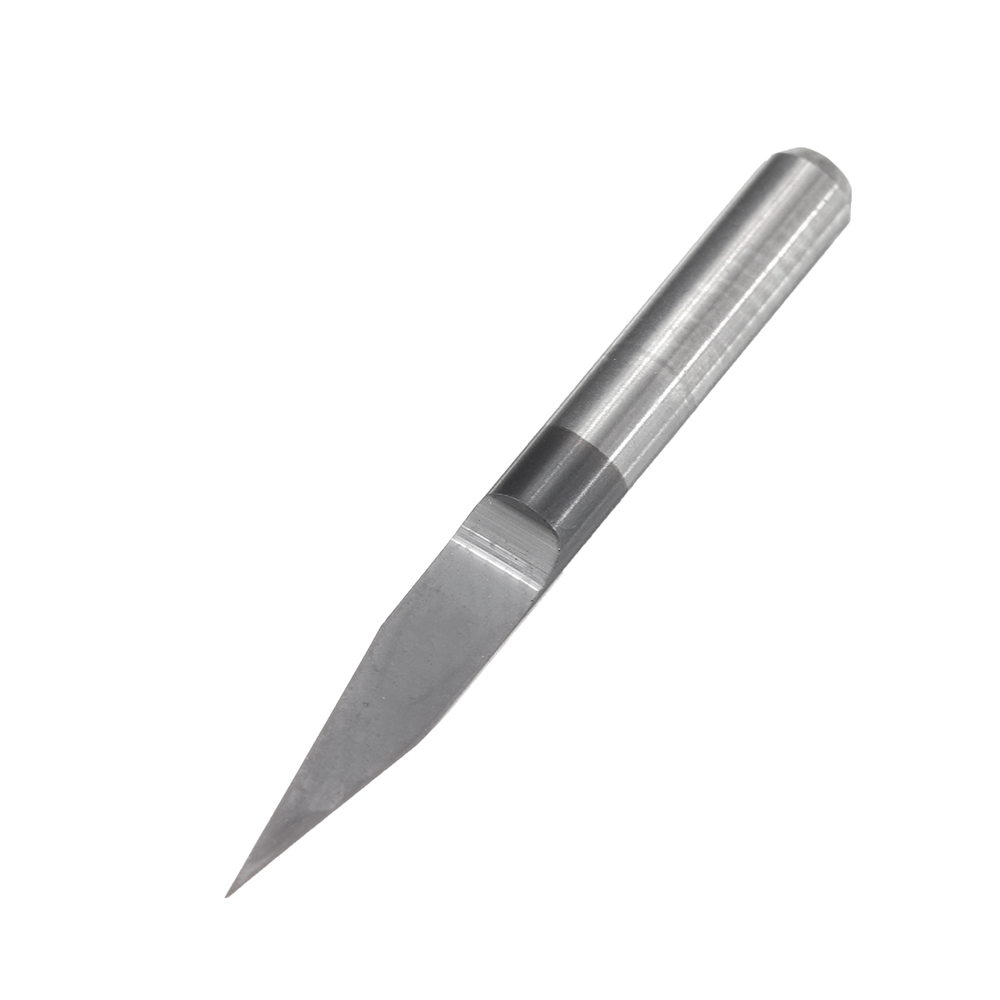

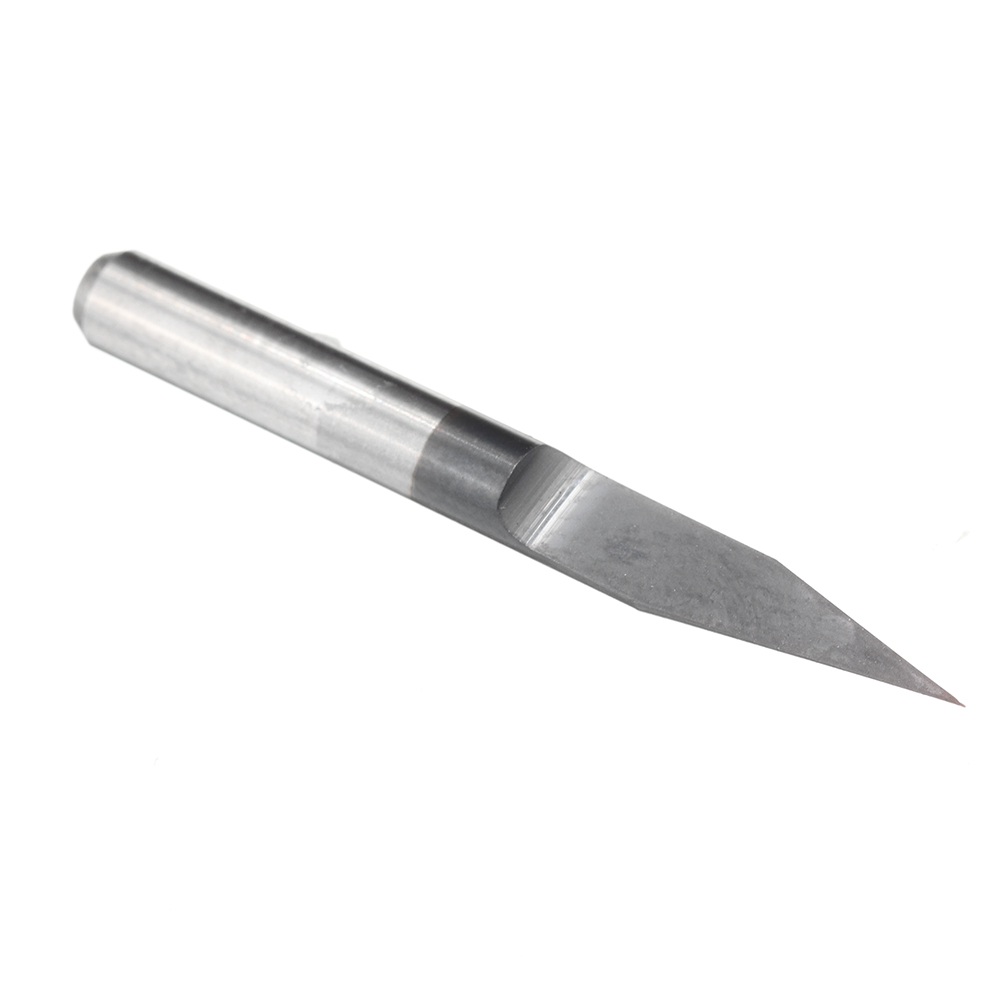

25° flat bottom PCB engraving bit TiAlN Coated carbide CNC engraving tool.
Specification:
Material: Carbide
Surface Treatment: TiAlN Coated
Type: Flat Bottom Engraving Bits
Shape: V-shape
Degree: 25°
Shank diameter: 3.175mm
Cutting edge diameter: 0.1/0.2/0.3/0.4/0.5mm (optional)
Total length: 33mm
Quantity: 1pc
Features:
TiAlN coating, high temperature resistance, better processing.
Have sufficient bending strength and wear resistance; High hardness, high wear resistance, high strength;
Range of processing: PCB, Copper, Aluminum, ABS, Acrylic, PVC, Nylon, Resin, The majority of plastics, Wood, Fiberglass, Carbon.
Package Included:

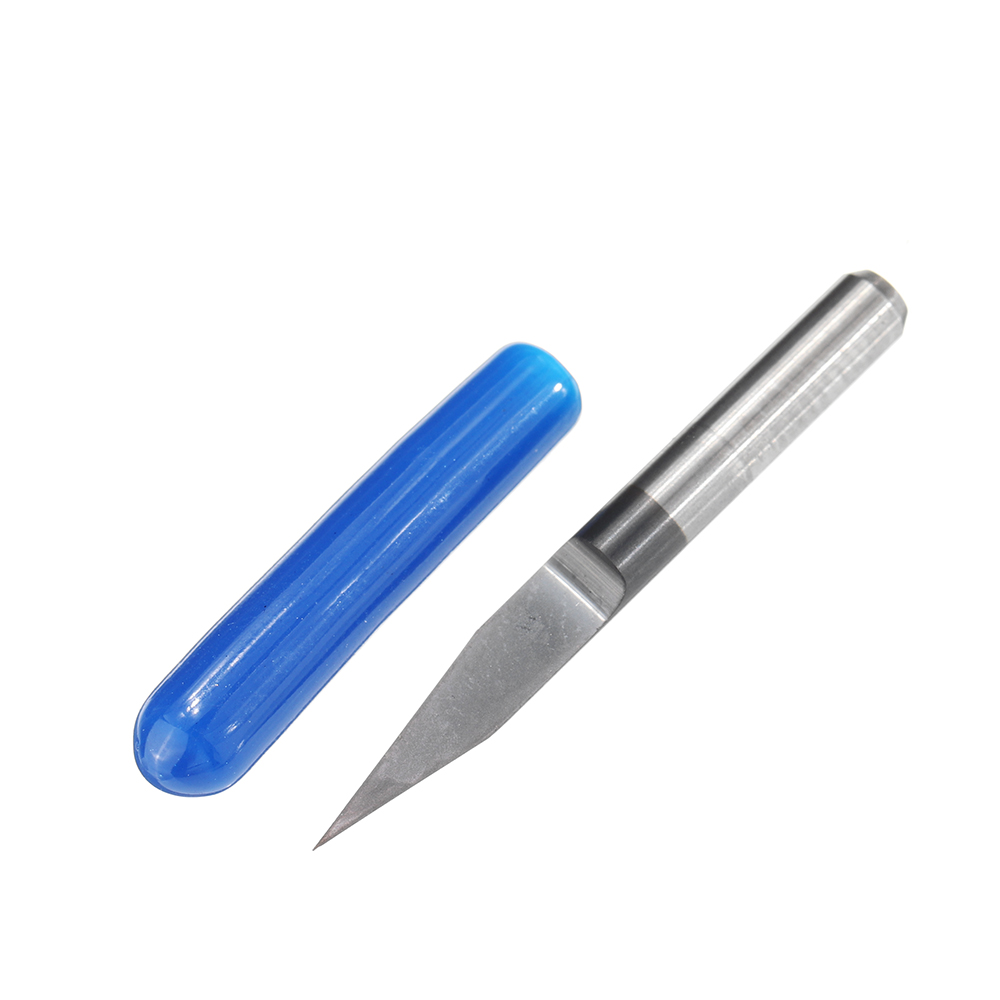

1pc x 25° PCB Engraving Bit
