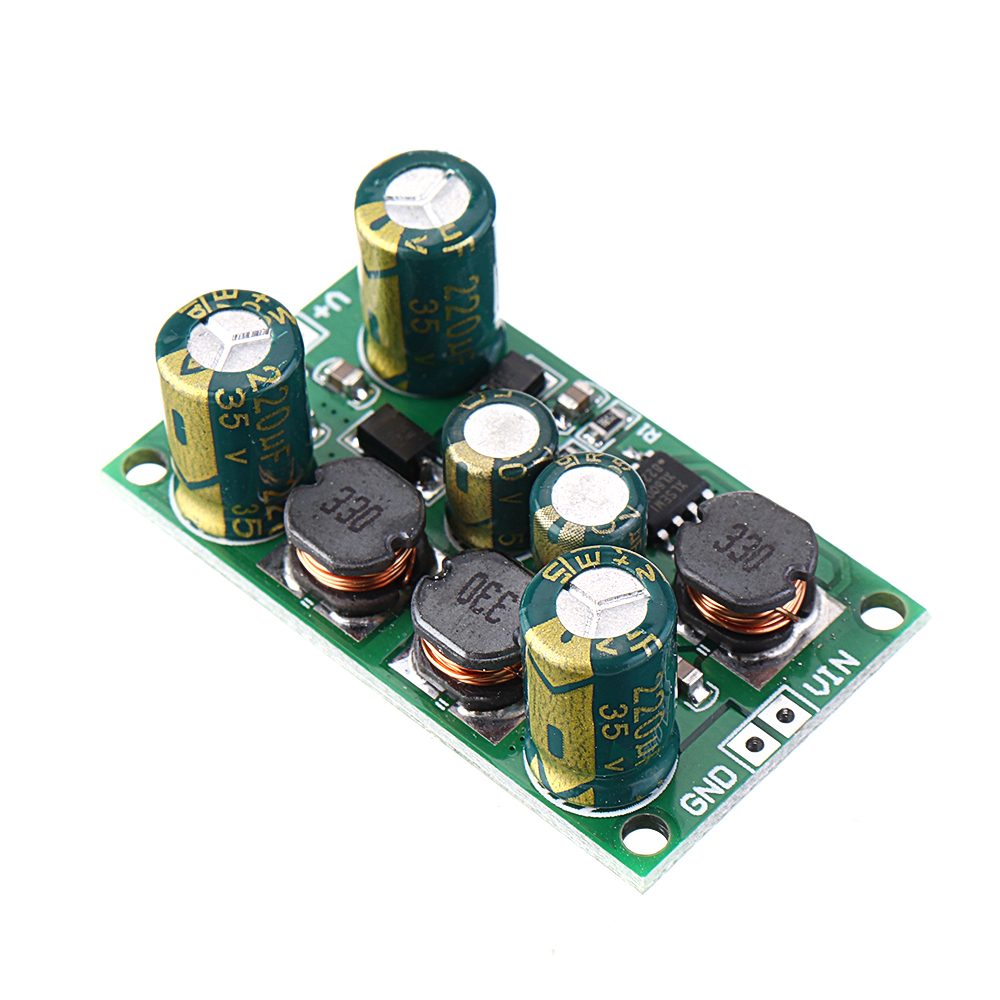

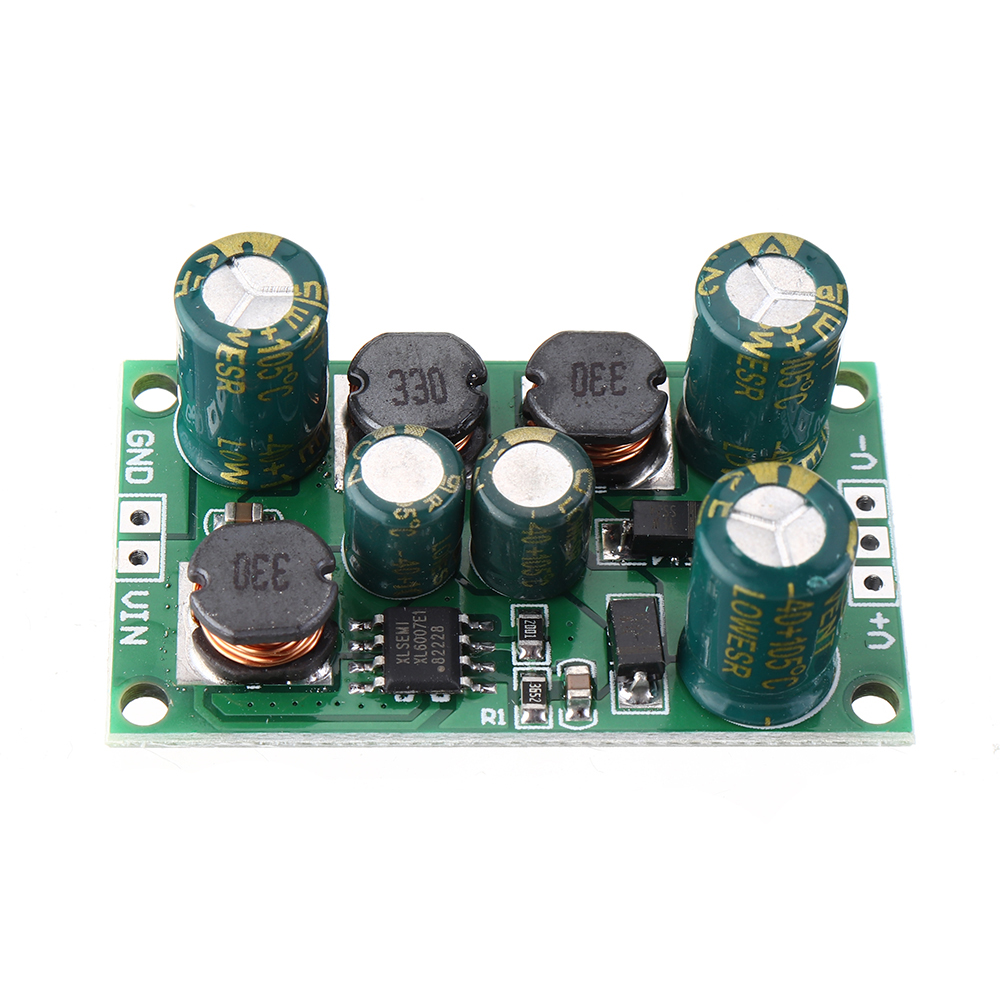

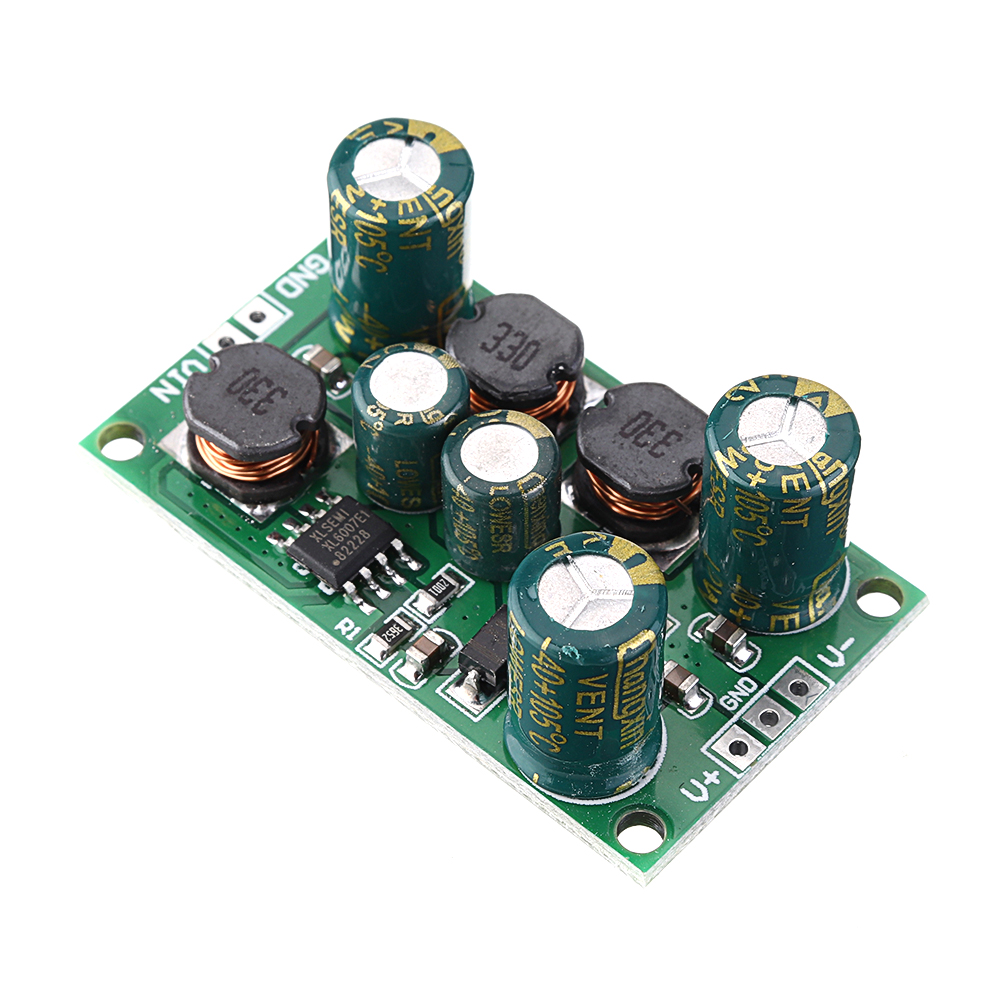

2 in 1 8W 3-24V to 5V 6V 9V 10V 12V 15V 18V 24V Boost-Buck Dual Voltage Power Supply Module for ADC DAC LCD OP-AMP Speaker

Stock: In Stock
Model: ST230044459
SKU: ST230044459

Based on 0 reviews. - Write a review

$11.00

Ex Tax: $11.00

Available Options

Voltage

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Reviews

Description:

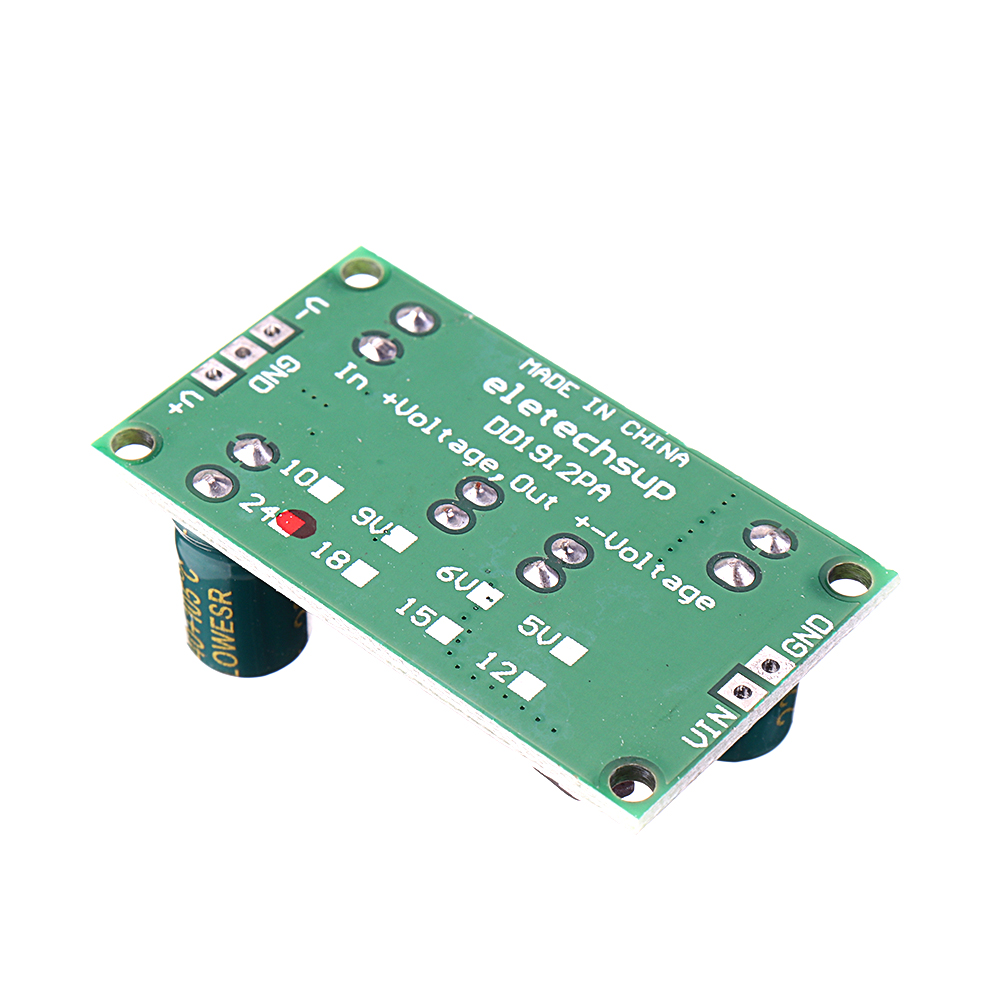

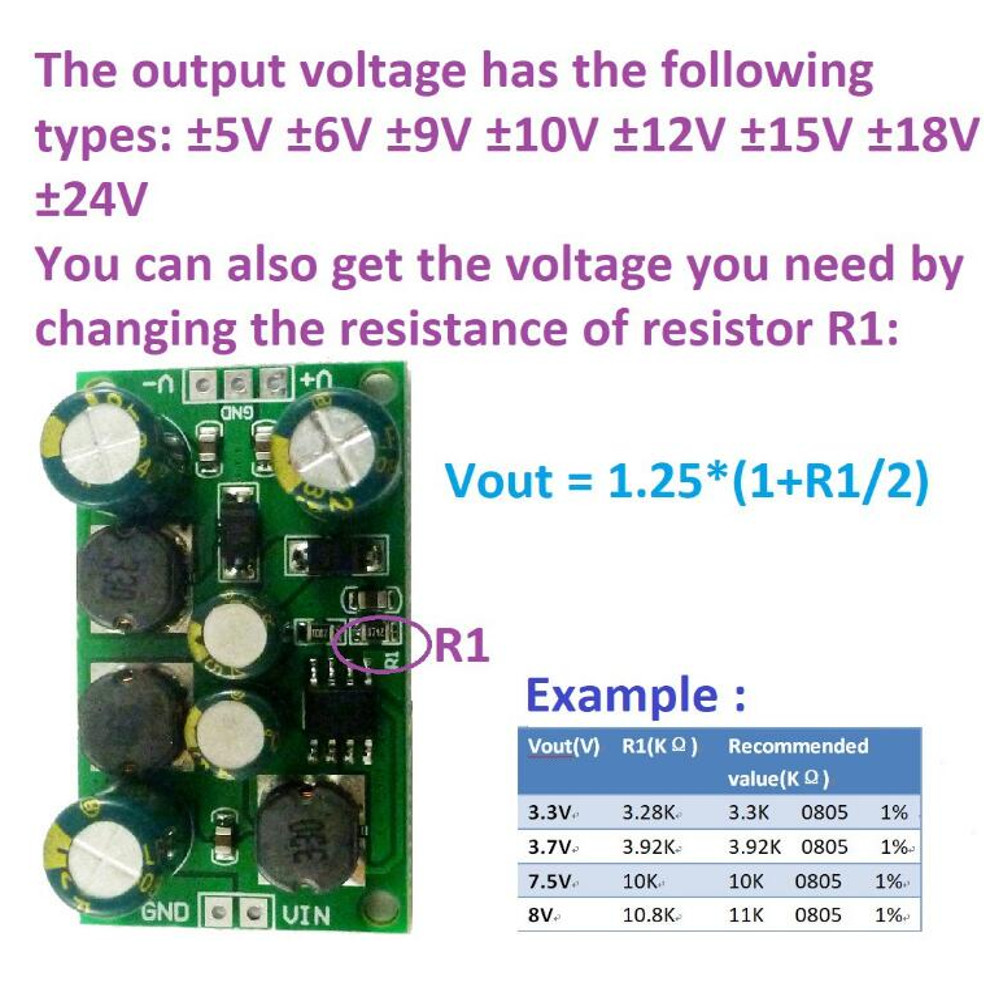

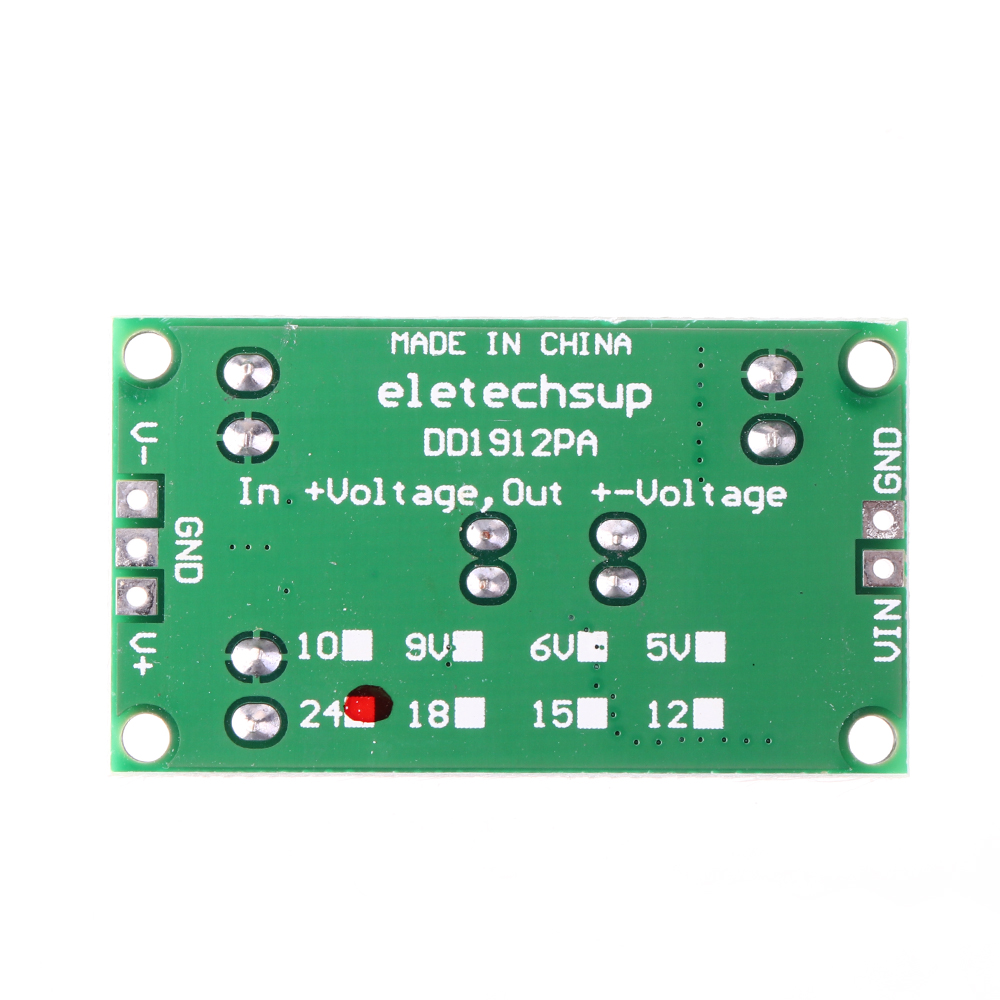

Input voltage: 3~24V, output optional: ±5V/±6V/±9V/±10V/±12V/±15V/±18V±24V

Maximum output power: 1-8W (For details, please see the description at the bottom or ask us for information.)

Conversion efficiency: 70-90%

Quiescent current: 3-4mA

Accuracy: Positive voltage ±3%, Negative voltage ±5%

8W DC-DC Boost-Buck Converter working frequency: 400KHZ.

Operating ambient temperature: -40~+85 Degrees Celsius

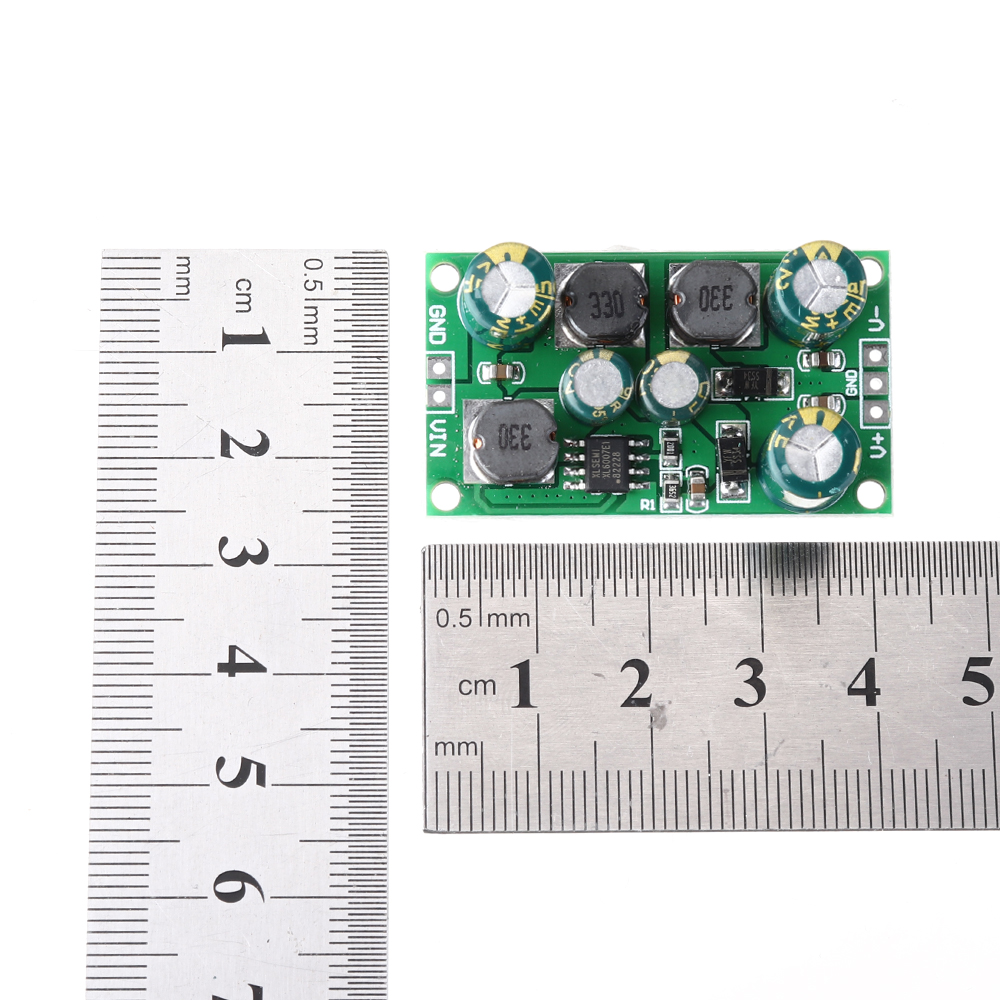

Size: 42 x 24 x 15mm

Weight: 10g

Feature:

High efficiency up to 90%

Built-in Frequency Compensation

Built-in Soft-Start Function

Built-in Thermal Shutdown Function

Built-in Current Limit Function

Note:

1. In order to obtain a more stable voltage, it is recommended that the output is greater than 10MA

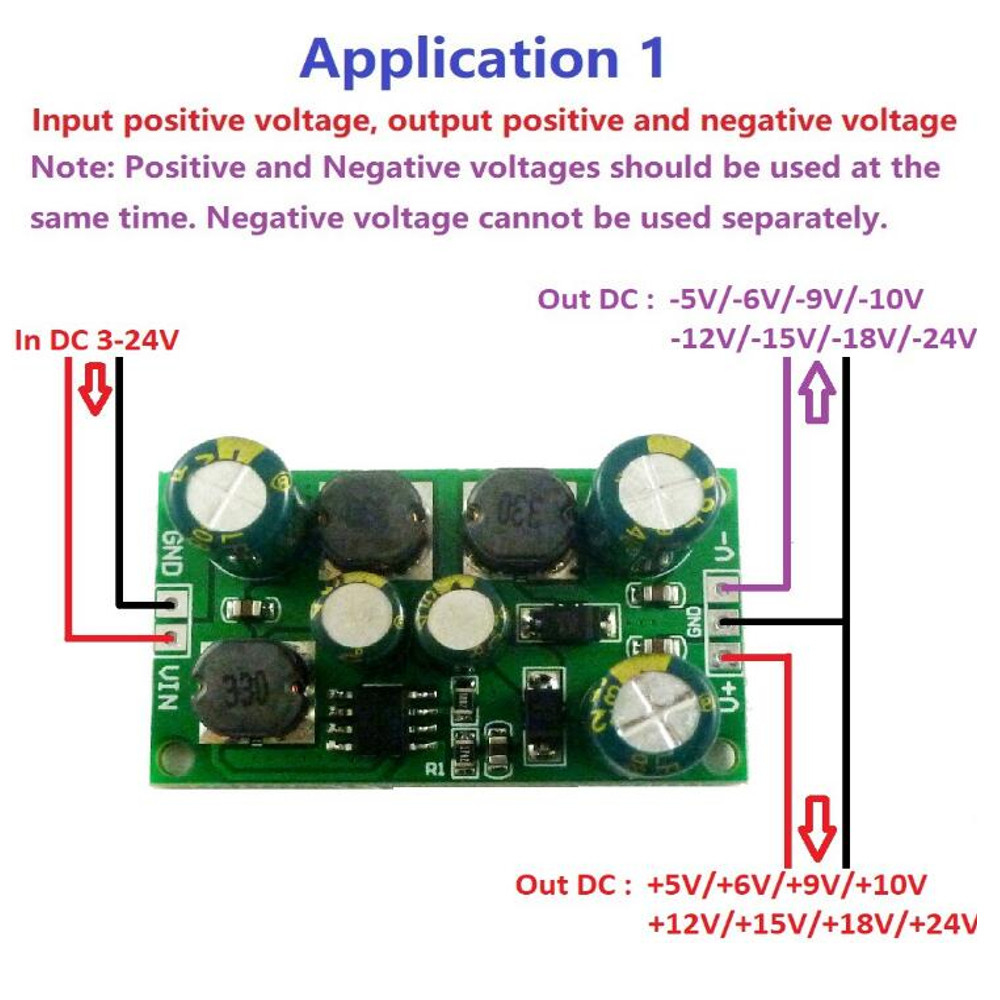

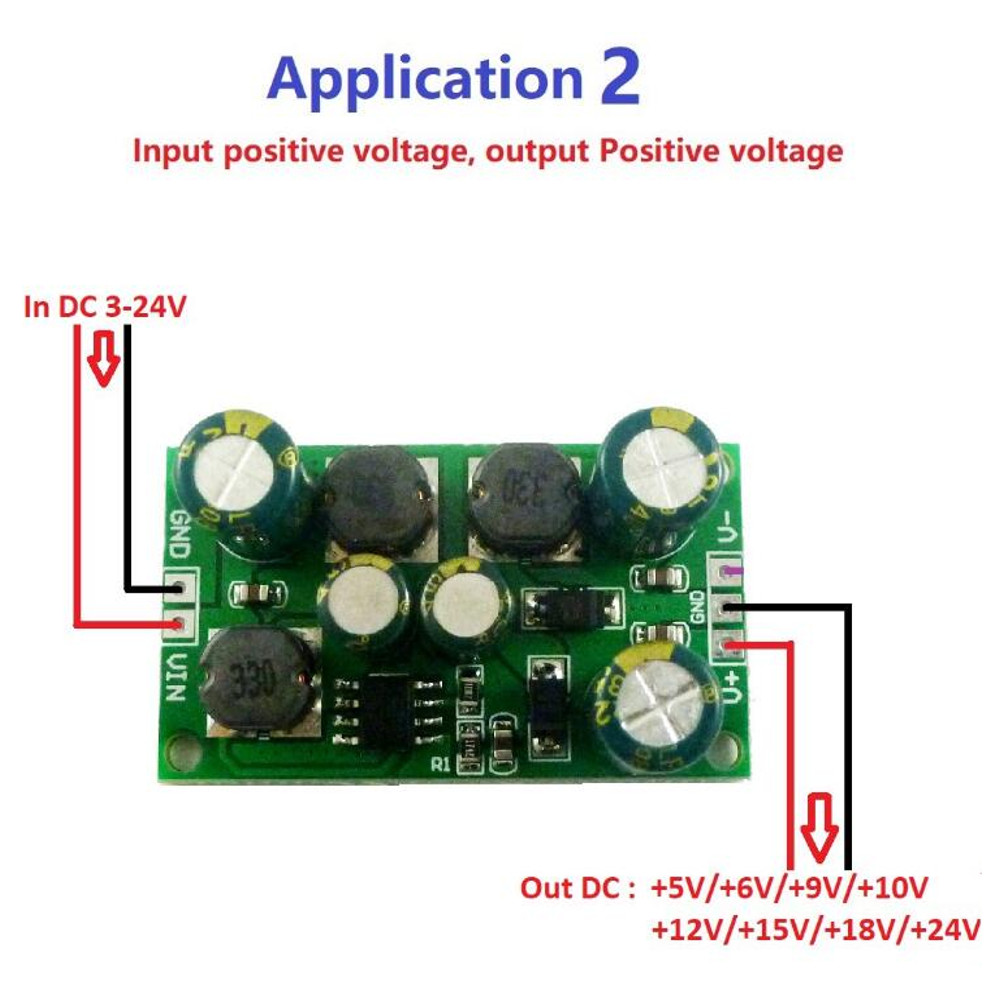

2. V- cannot be used alone, or no voltage output. But you can just use V+

Applications:

ADC/DAC/Operational Amplifier Reference voltage

RS232 RS485 RS422 Bus

Audio equipment

Low power audio power supply

Car audio amplifier dual power board

LCD power supply

Instrumentation equipment

Attention:

This is a DC-DC voltage converter module, must be noted when using:

1. Input voltage can not be greater than the maximum input range

2. Output power can not be greater than the maximum load for a long time

3. Input power must be greater than the output power because of the power consumption of the module itself

Q & A:

Q1: Why output voltage is less than the nominal voltage

A1: Input power supply power is too low. Test the input voltage with a multimeter, at this time of the input voltage is very low

Q2: Why is the negative voltage not output or the output too low?

A2: The negative voltage cannot be used alone. When using a negative voltage, the same load must be connected at the positive voltage terminal.

The maximum output power can reach 8W, but the maximum power will vary under different conditions. For details, please refer to the following table(10-80% of the maximum power is the most reliable):

1. Input DC 3-24V, Output ±5V
